GE 36" Electric Cooktop With 5 Elements JEP5036DTBB
- SKU-0000031351
- Model #JEP5036DTBB
| Condition | New |
|---|---|
| Type |  |
| Grade | C |
| Product Source |  |

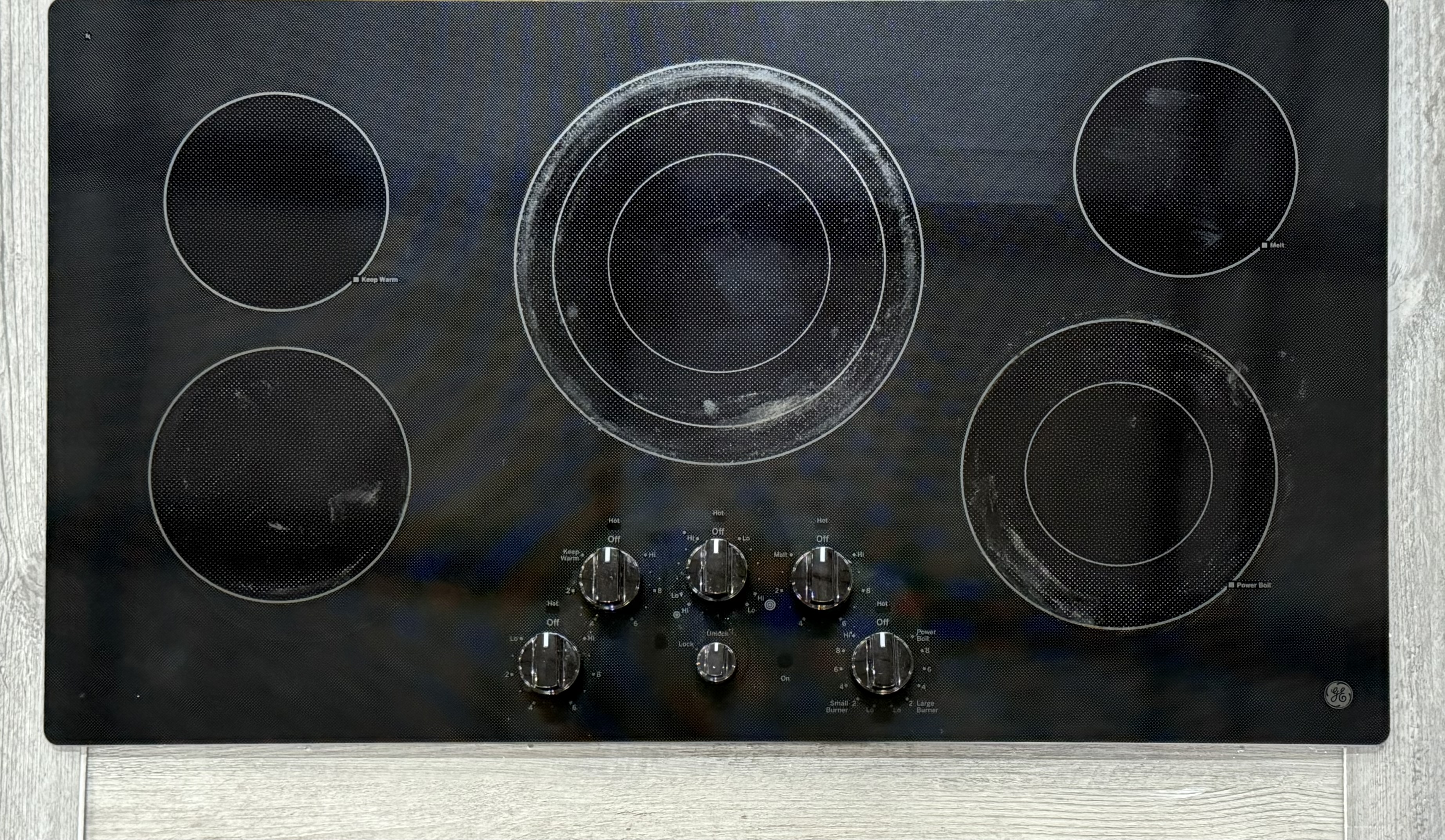

| Additional Info | Former Demonstration Unit Light Signs Of Use | Blemishes Around Burners |
7 DAY RETURNS ON ALL PRODUCTS
FAST Nationwide Shipping (Ships Same/Next Business Day)
Same Day Pick Up (Fort Lauderdale FL).
Same Day | Next Day Local Delivery Available.
| Brand | GE |
|---|---|
| Category | Cooking / Cooktop / Kitchen Appliances |
| Model Number | JEP5036DTBB |
| UPC/GTIN | 084691897040 |
| Capacity | 5.0000 |
| Color | Black |
| Width | 36 1/8 |
| Height | 3 3/8 |
| FILTER | |
| App Filter - Cabinet Width | Cooking 36 in. |
| App Filter - Cooktop Type | Radiant Smoothtop |
| App Filter - Fuel Type | Electric |
| App Filter - Control Type | Digital touch |
| APPEARANCE | |
| Color Appearance | Black |
| Frameless | Yes |
| Control Knobs | Gloss Black |
| POWER / RATINGS | |
| Recommended Circuit Breaker (Amps) at 240V | 40 |
| Max. Connected Load (kW) at 240V | 9.4 |
| Hertz | 60 |
| Max. Current Draw (Amps) at 240V | 39.2 |
| Max. Connected Load (kW) at 208V | 7.1 |
| Electrical Requirements | 208/240V ; 60Hz ; 40A |
| Recommended Circuit Breaker (Amps) at 208V | 40 |
| Max. Current Draw (Amps) at 208V | 34.1 |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
| WEIGHTS & DIMENSIONS | |
| Cutout Height (in) | 4 |
| Cooktop Size | 36 in |
| Overall Height | 3.375 in |
| Cutout Depth (in) | 19 1/8 in |
| Cabinet Width | 36 in |
| Approximate Shipping Weight | 49 lb |
| Overall Width | 36.125 in |
| Net Weight | 43.4 lb |
| Cutout Width (in) | 33.875 |
| Overall Depth | 21 in |
| FEATURES | |
| Filler trim kit | JXTR32B (not included) |
| Cooktop Burner Type | 5 Ribbon Smoothtop |
| Melt Setting | Yes |
| Fuel Type | Electric |
| Power Boil Burner | Yes |
| Element - Left Front | 7" 1500W (Keep Warm) |
| Indicator Lights | 5 Hot Surface Red Surface Element "ON" |
| Element - Right Front | 8"/5" 2400W Power Boil |

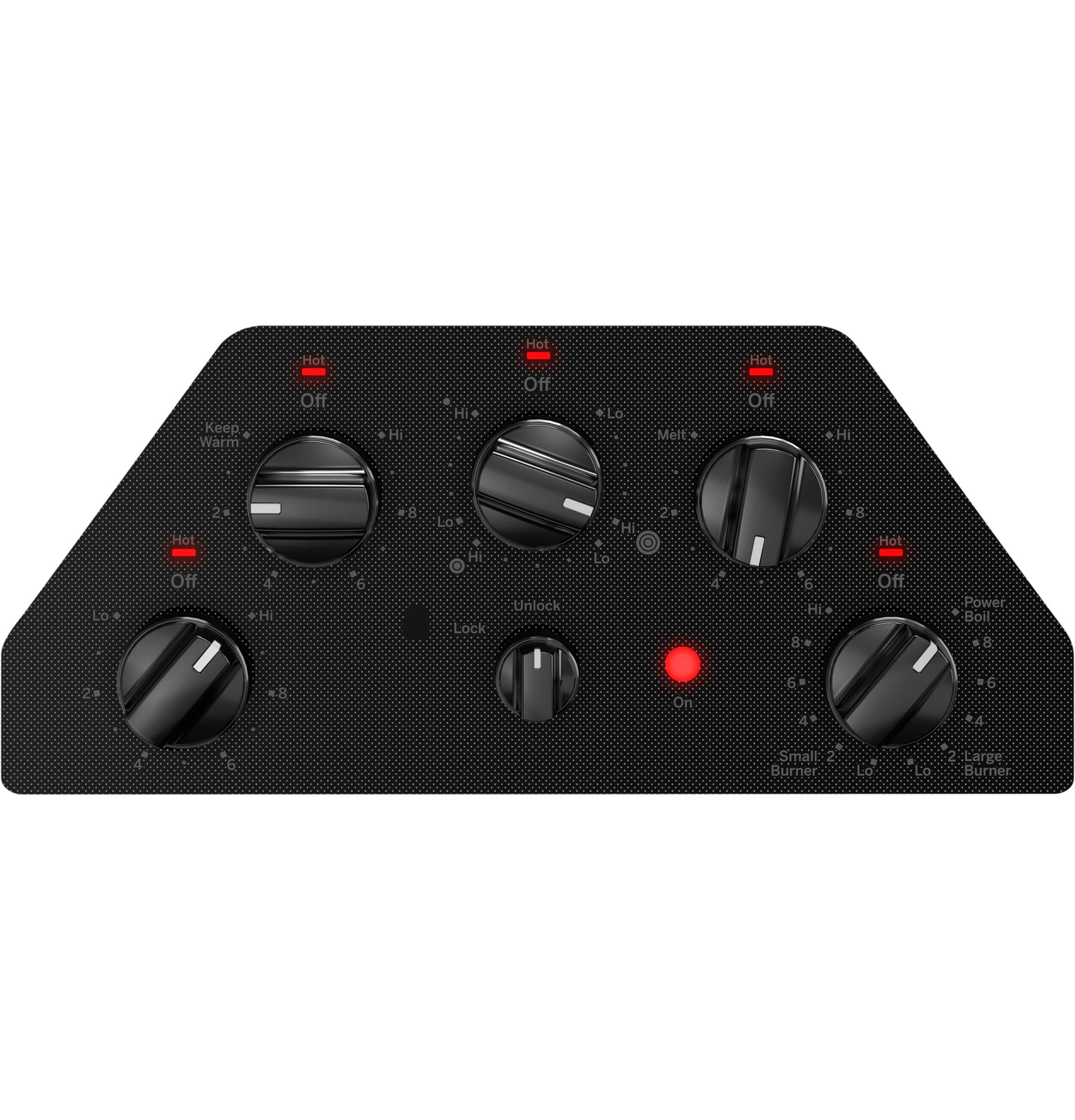

| Control Location | Front Center |
| Cooktop Type | Radiant Smoothtop |
| Cooktop Surface | Black Ceramic Glass |
| Cooktop Control Features | Keep-Warm Setting Melt Setting |
| Timer | Yes |
| Element - Left Rear | 6" 1200W |
| Control Type | Knob (Infinite switch) |
| Element - Center | 12"/9"/6" 3000W Tri-ring Power Boil |
| Element - Right Rear | 6" 1200W (Melt) |
| Product Type | Cooktop |
Easy Clean SurfaceA smooth glass surface makes cleaning up messes simpler than ever on this easy clean electric cooktopPower Boil on Tri-Ring ElementCook faster with a variety of different pan sizes on this powerful rapid boil electric cooktop with a 3,000-watt flexible elementPower Boil Dual-Ring Element (2,400W)Cook more dishes quickly with an additional 2,400-watt flexible cooking element that rapidly boils water in different pan sizesKeep Warm SettingThis electric cooktop’s 7″ element features a range of heat – from a dedicated “Keep Warm” setting to the power to boil waterControl LockProtect against unintentionally turning your cooktop on with a safety control lock settingHot Surface Indicator LightsA quick glance is all it takes to know when elements are warm on this electric cooktop with hot surface indicator lightsFit GuaranteeThis cooktop will fit your existing 36″ cut-out or GE Appliances will help pay for modifications up to $100Flexible Cooktop5 variously sized cooking burners on this flexible electric cooktop let you find the perfect fit for your pans and potsMelt SettingGently melt delicate foods without scorching thanks to this optimal melt option cooktop
Image Features

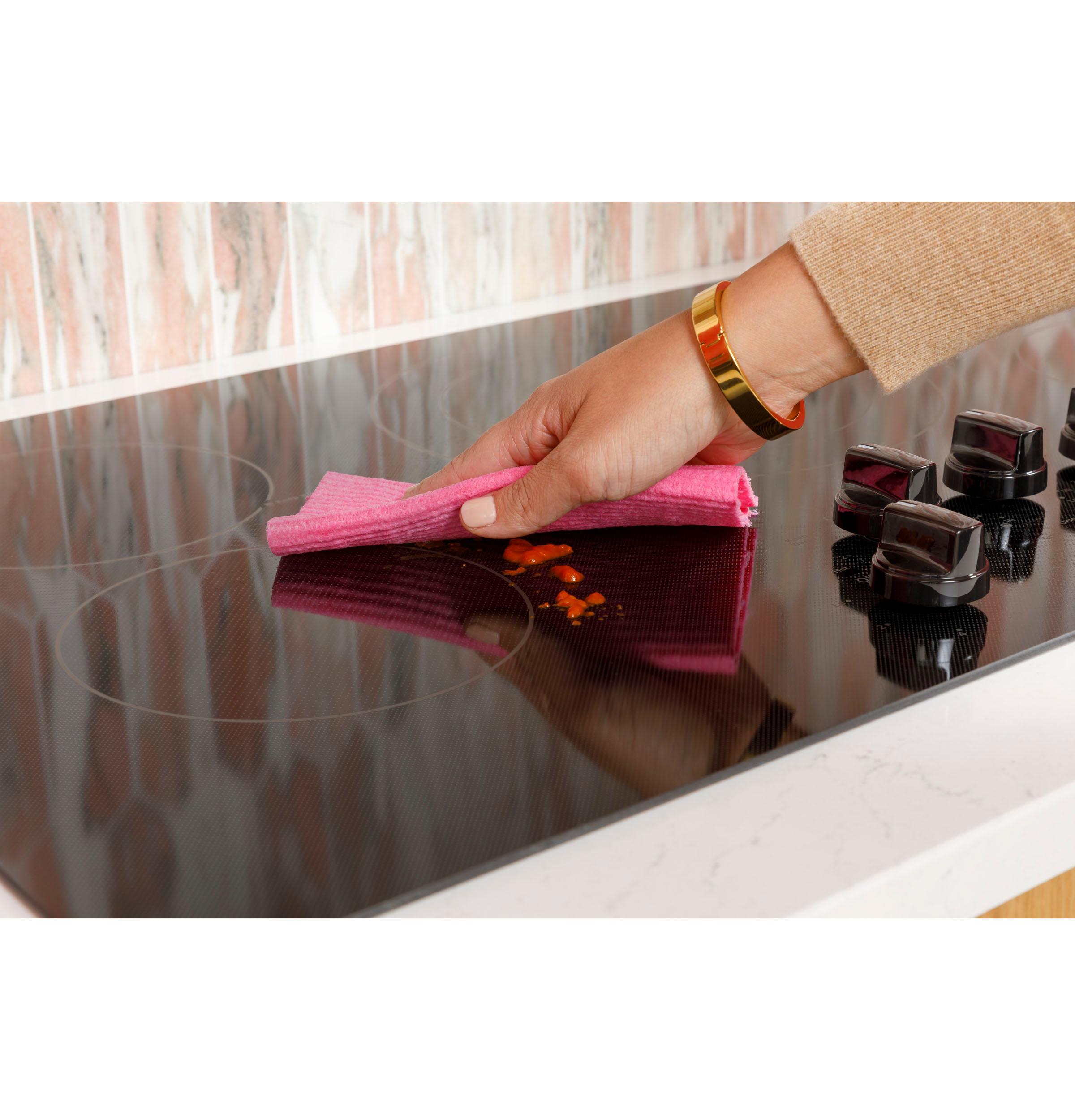

Easy Clean Surface
A smooth glass surface makes cleaning up messes simpler than ever on this easy clean electric cooktop

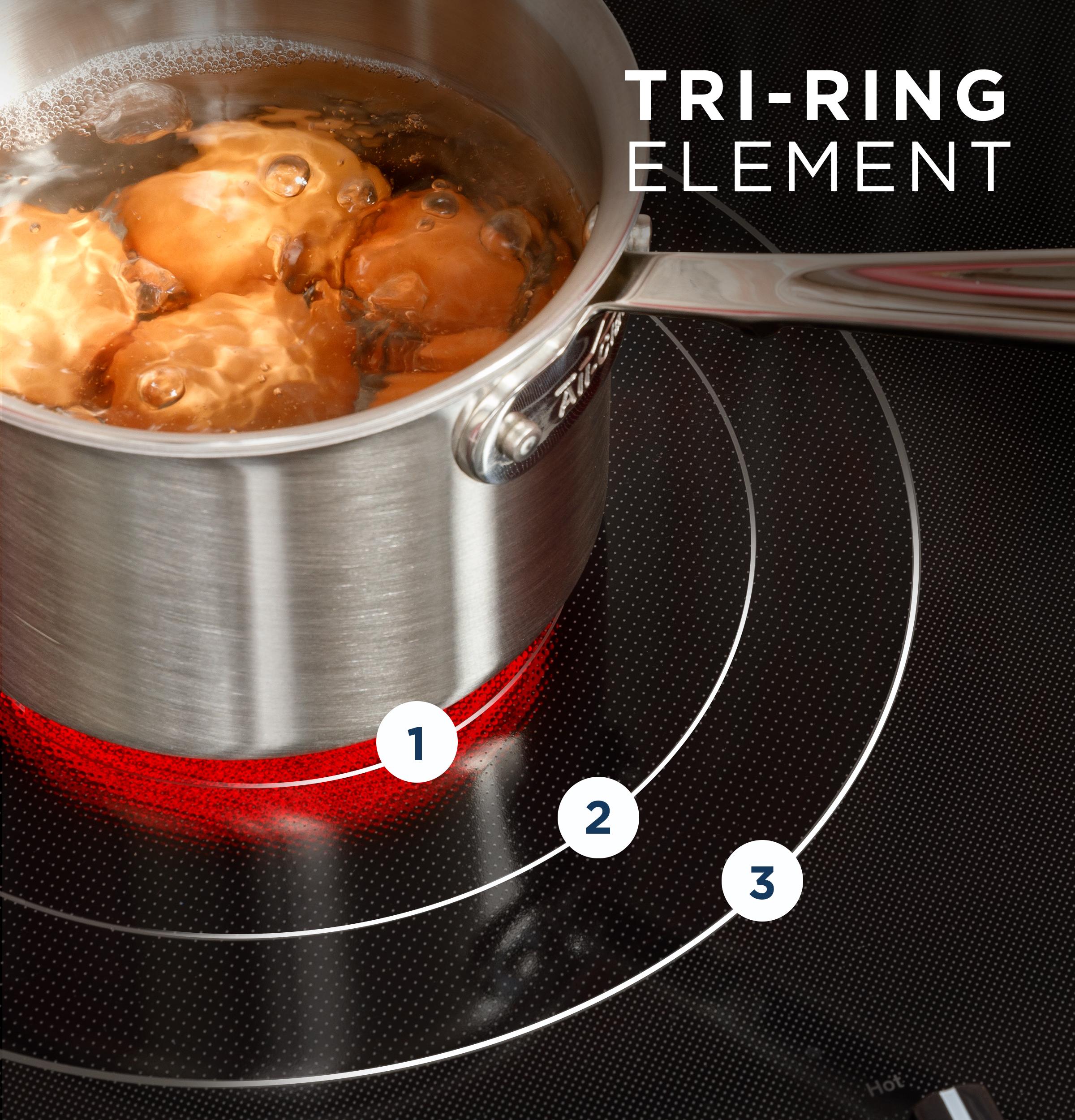

Power Boil on Tri-Ring Element
Cook faster with a variety of different pan sizes on this powerful rapid boil electric cooktop with a 3,000-watt flexible element

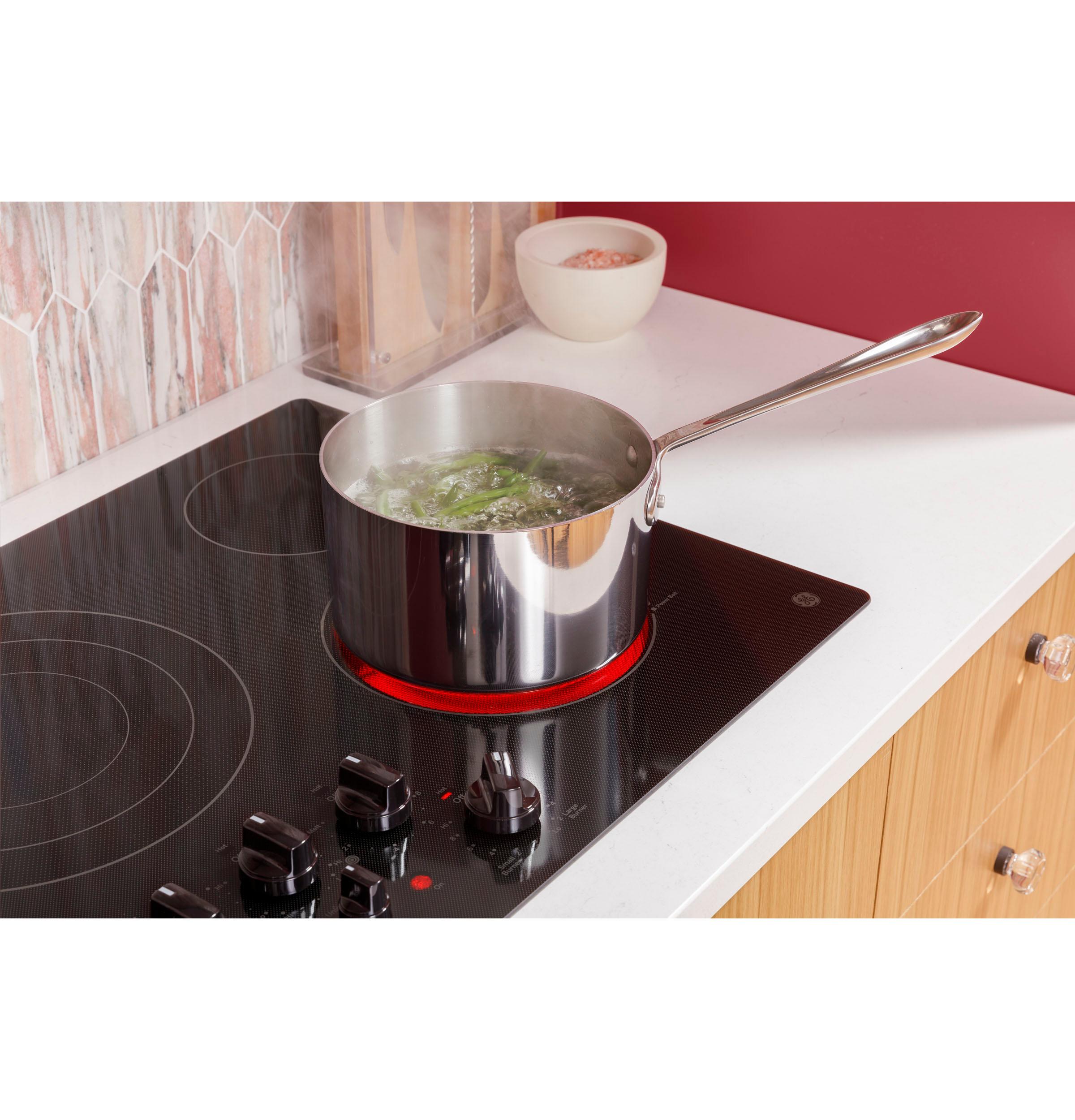

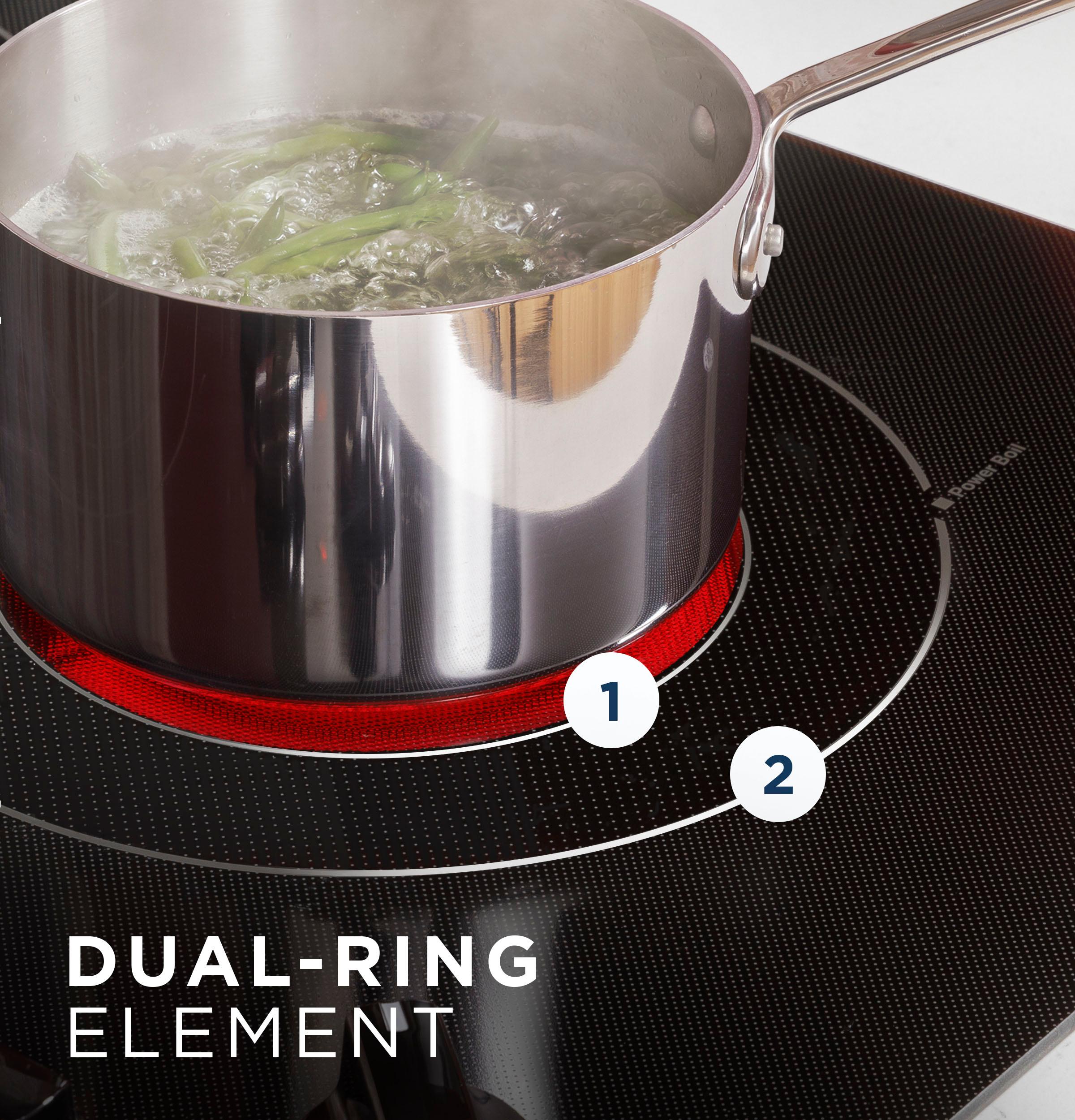

Power Boil Dual-Ring Element (2,400W)
Cook more dishes quickly with an additional 2,400-watt flexible cooking element that rapidly boils water in different pan sizes

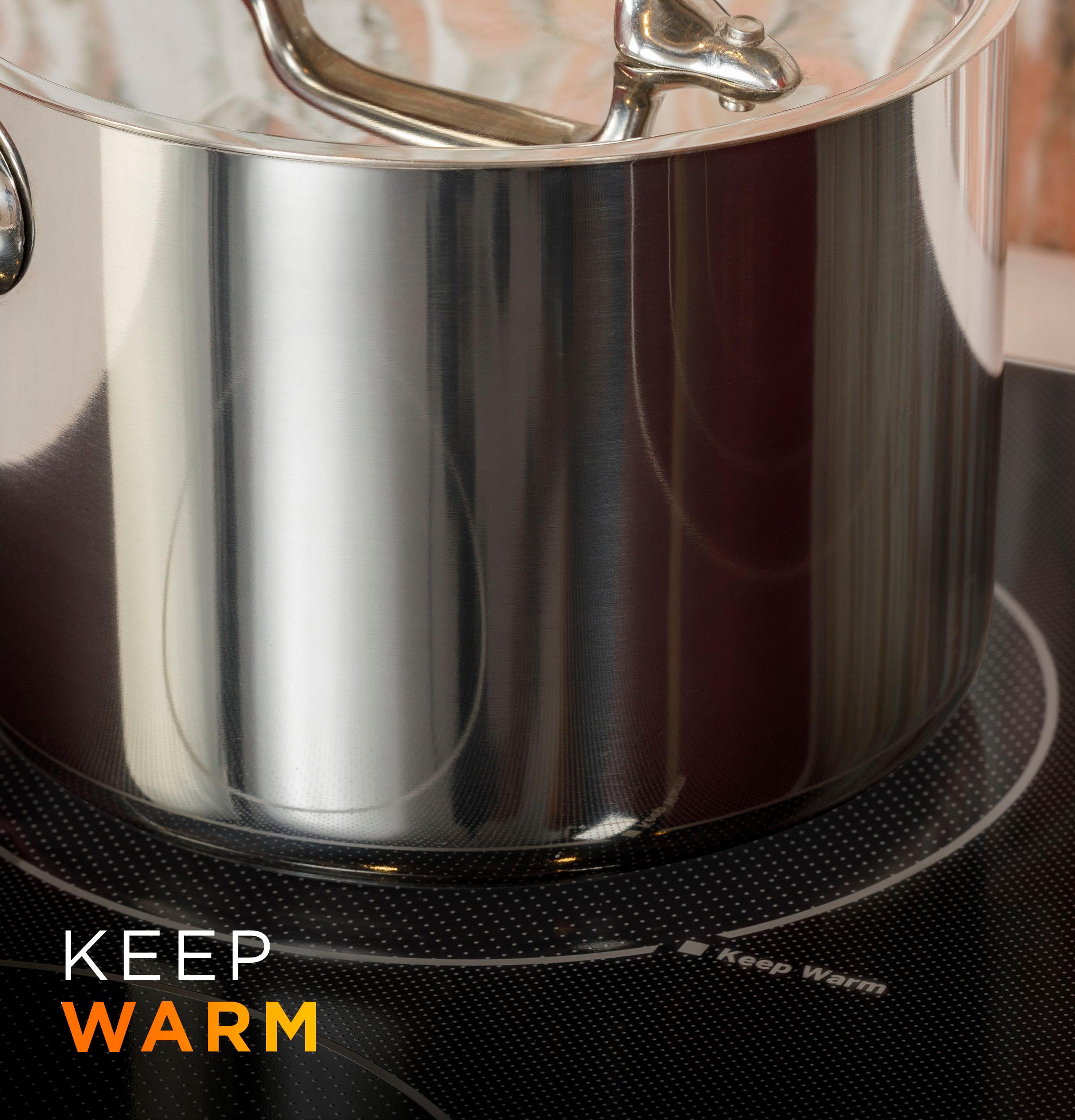

Keep Warm Setting
This electric cooktop's 7" element features a range of heat - from a dedicated "Keep Warm" setting to the power to boil water

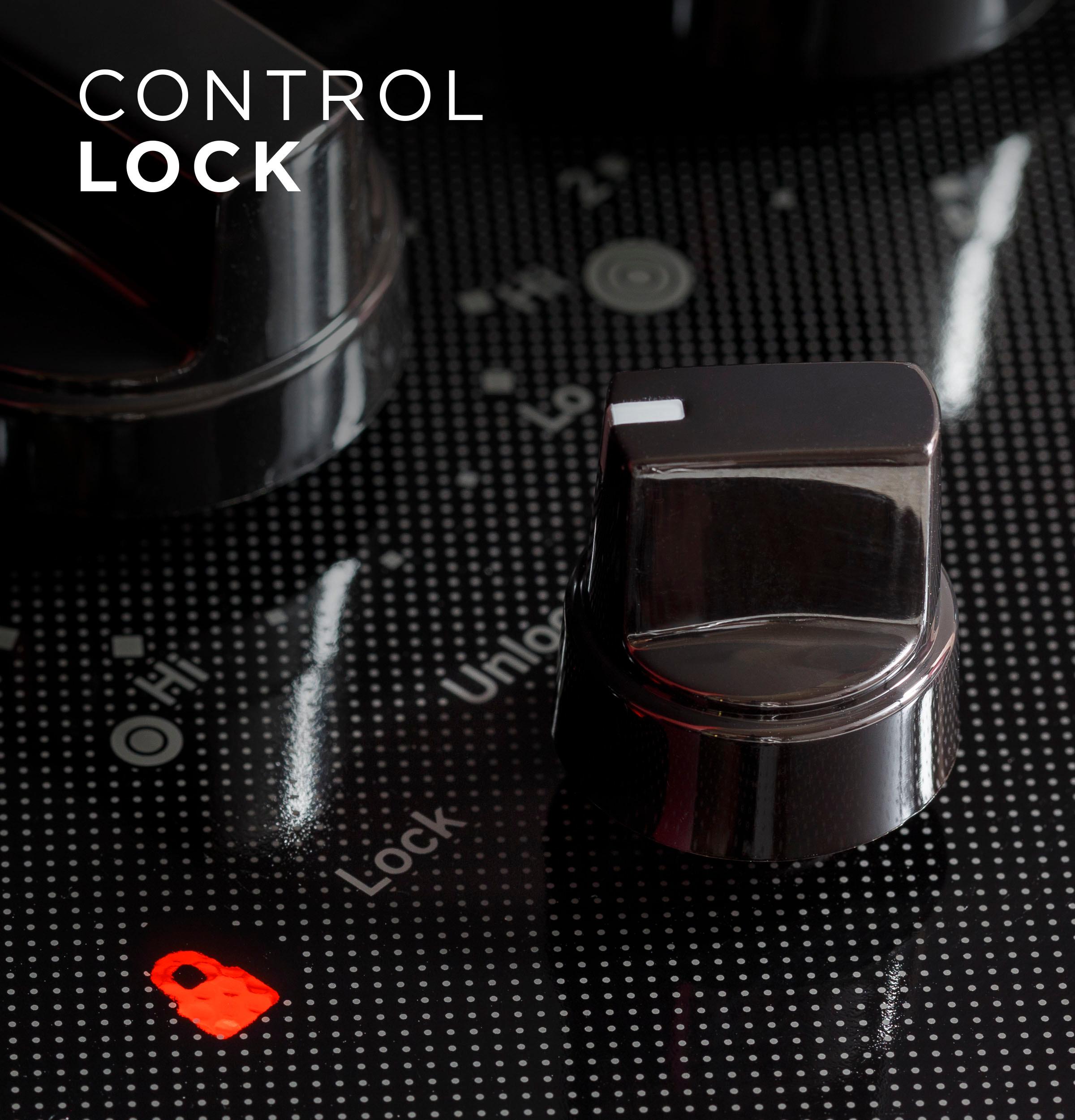

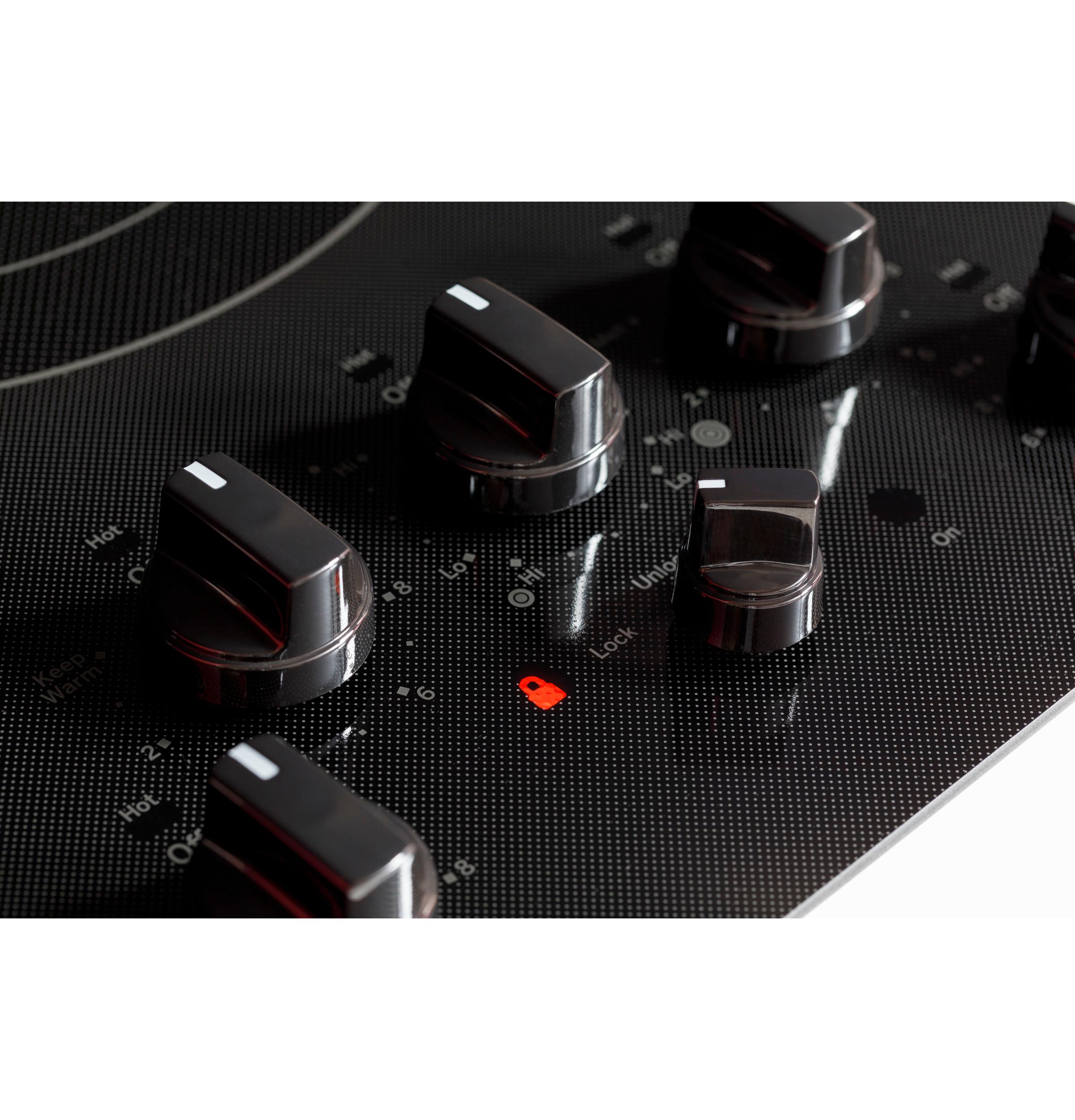

Control Lock
Protect against unintentionally turning your cooktop on with a safety control lock setting

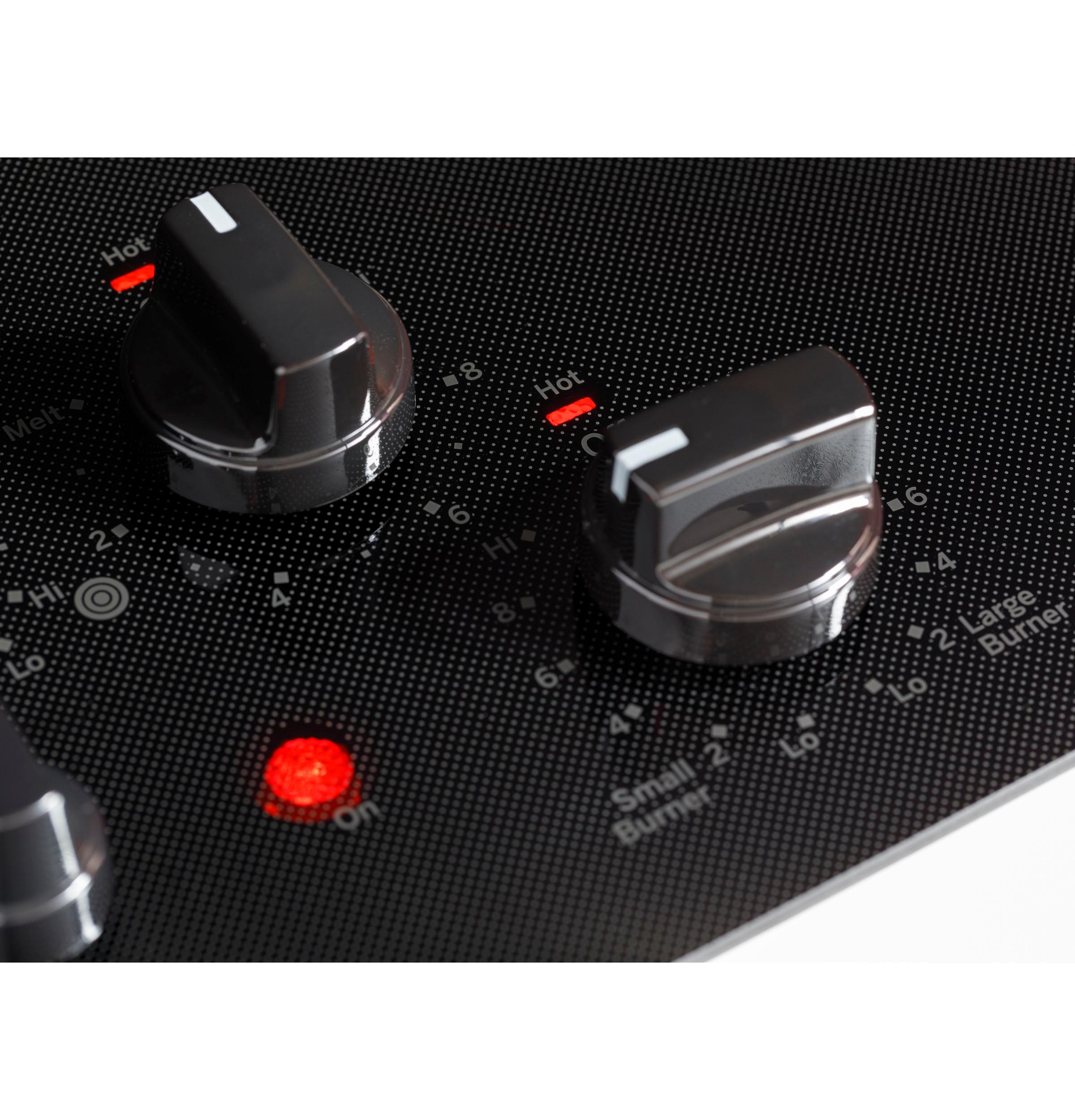

Hot Surface Indicator Lights
A quick glance is all it takes to know when elements are warm on this electric cooktop with hot surface indicator lights
Fit Guarantee
This cooktop will fit your existing 36" cut-out or GE Appliances will help pay for modifications up to $100

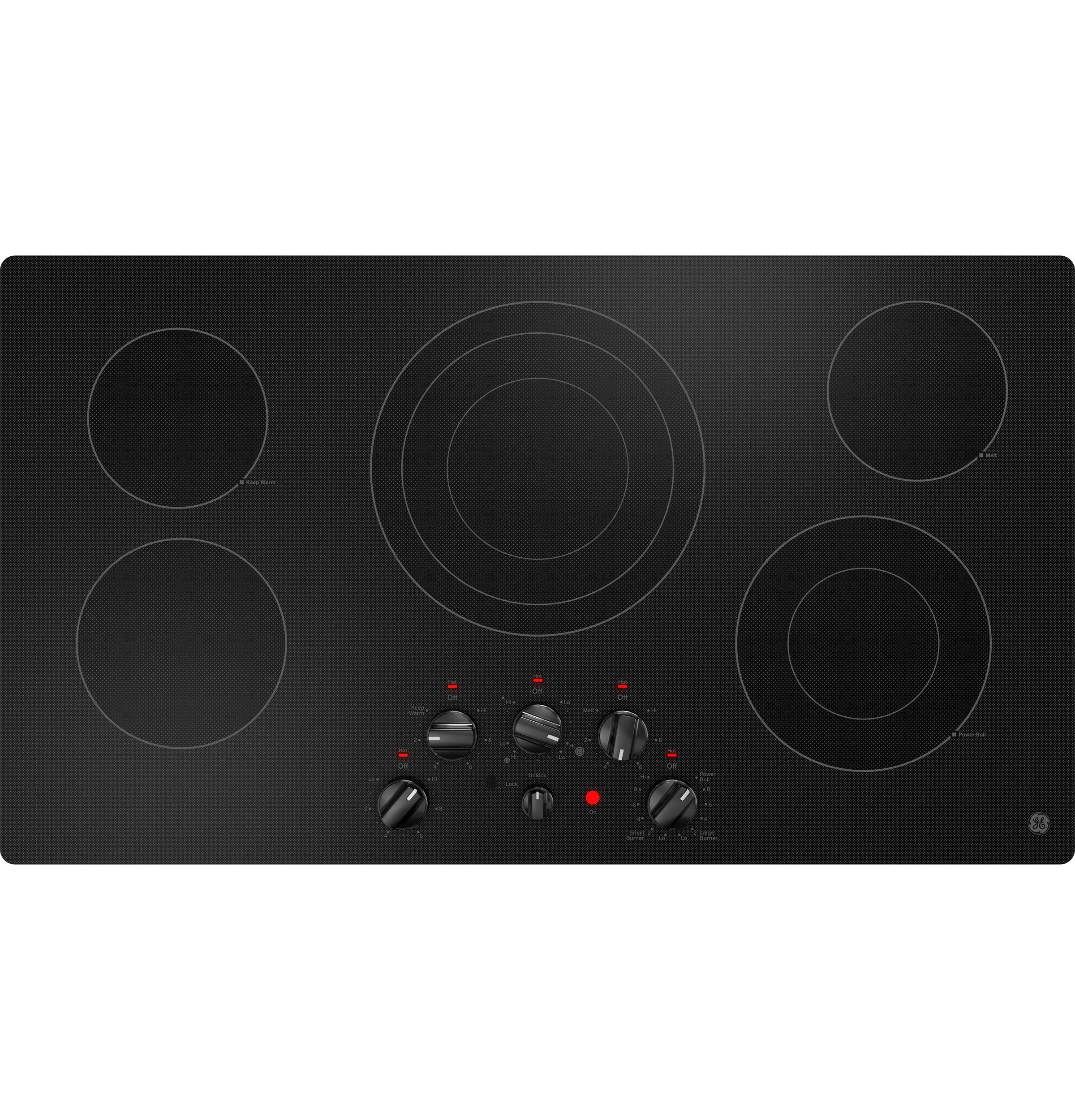

Flexible Cooktop
5 variously sized cooking burners on this flexible electric cooktop let you find the perfect fit for your pans and pots
Melt Setting
Gently melt delicate foods without scorching thanks to this optimal melt option cooktop
Features
- Easy Clean Surface
- Power Boil on Tri-Ring Element
- Power Boil Dual-Ring Element (2,400W)
- Keep Warm Setting
- Control Lock
- Hot Surface Indicator Lights
- Fit Guarantee
- Flexible Cooktop
- Melt Setting
Item Attributes
| Brand Code: | GE |
|---|---|
| Part Number: | JEP5036DTBB |
| GTIN14: | 084691897040 |
| Category Code: | Cooking |
| Sub Category Code: | Cooking / Cooktop / Kitchen Appliances |
