| CAPACITY | |
| Total Capacity (cubic feet) | 10 cu ft |
| Capacity (Cu. Ft.) | 5.0 Upper / 5.0 Lower |
| FILTER | |
| App Filter - WiFi Connect | Built-In |
| App Filter - Cabinet Width | Cooking 30 in. (Standard) |
| APPEARANCE | |
| Design Style | Minimalist Collection |
| Frameless Oven Door(s) | Stainless Steel |
| Oven Door Features | Drop-Down Oven Window Soft-Close Hinges |
| Handle Color | Stainless Steel |
| Color Appearance | Stainless Steel |
| Installation | Flush Appearance Over Warming Drawer Side-by-Side |
| Handle | Minimalist Collection |
| POWER / RATINGS | |
| Bake Wattage | 2850W |
| Convection Wattage | 2400W |
| Electrical Requirements | 240V/208V; 60Hz; 40A |
| KW Rating at 240V | 9 |
| Amp Rating at 208V | 40 |
| Broiler Wattage | 4300W; Dual Element |
| Amp Rating at 240V | 40 |
| KW Rating at 208V | 6.8 |
| WARRANTY | |
| Labor Warranty | Limited 2-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 2-year entire appliance |
| ACCESSORIES | |
| Optional Accessories | ZX30VT2 Flush Vent Trim Accessory |
| WEIGHTS & DIMENSIONS | |
| Overall Depth | 26.8125 in |
| Cabinet Width | 30 in |
| Net Weight | 304 lb |
| Oven Interior Dimensions (upper) | 25 x 17-3/8 x 20 1/4 |
| Overall Width | 29.75 in |
| Cutout Dimensions (w x h x d) (in.) | 28-5/8 x 51-15/16 x 23-1/2 |
| Oven Interior Dimensions (lower) | 25 x 17-3/8 x 20 1/4 |
| Approximate Shipping Weight | 330 lb |
| Overall Height | 51.1875 in |
| FEATURES | |
| WiFi Connect | Built-In |
| Oven Cooking Modes | Convection Bake Convection Bake Multi-Rack Convection Broil Hi/Lo Convection Roast Dehydrate Keep Warm No-Preheat Air Frying Precision Cooking Modes Proof Thermal Bake Thermal Broil Hi/Lo |
| Fuel Type | Electric |
| Product Type | Double Oven |
| Oven Interior | 2 Halogen Interior Oven Lights (Both Ovens) Black Gloss Finish Hidden Bake |
| Cooking Technology | Convection |
| Oven Features | 10-Pass Bake Element 10-Pass Dual Broil Element Closed Door Broiling |
| Cleaning Time | Variable with Delay Clean Option |
| Configuration | Double Oven |
| Oven Rack Positions (Single or Upper/Lower) | 6 / 6 |
| Oven Control Features | 12-Hour Shut-Off Capability Audible Preheat Signal Auto Recipe Conversion Certified Sabbath Mode Control Lock Capability Cook Time C° or F° Programmable Delay Time Electronic Clock & Kitchen Timer Mis-Wire Detection Proof Mode Remote Enabled Scan-to-cook Temperature Probe Warm Mode |
| Collection | Minimalist |
| Short Description | 30" Minimalist Double Wall Oven |
| Oven Rack Features | 1 Self-Clean Heavy-Duty, Full Extension Oven Rack (Both Ovens) 2 Self-Clean Heavy-Duty Oven Racks (Both Ovens) Ladder-Rack Positions (Both Ovens) |
| Self-Clean Oven Door Lock | Automatic |
| Cooking System | True European Convection with Direct Air (Both Ovens) Variable Speed, Reverse Air Convection (Both Ovens) |
| Control Type | 7" Full-Color Touch LCD Screen |
| Connected Capabilities | Amazon Alexa Fresco Google Home IFTTT Innit Sonos The Google Assistant |
| Oven Cleaning Type | Self-Clean with Steam Clean Option |
The Monogram Minimalist CollectionStreamlined design and precisely machined metals create a contemporary yet functional aestheticLCD controlsAdjust oven settings with little effort with a Brilliant 7″ LCD display that allows you to customize backgrounds and receive weather updatesWiFi powered by SmartHQ(TM)Perfectly in sync with a busy lifestyle, Alexa or Google Home can be used to control an array of oven functions from both inside and outside the homePrecision cooking modesMaster new recipes and perfectly execute favorite dishes using this ultra-smart system that automatically tracks cooking progress, modifies temperatures and adjusts cook timesNo-Preheat Air FryA must-have for health-conscious cooks, the No-Preheat Air Fry mode crisps food to crunchy perfection, without using oils or butterScan to cookInnovative and time saving, scan-to-cook technology ensures that packaged foods are always prepared correctly. A simple scan of the barcode with a smartphone delivers consistently, delicious resultsTrue European Convection with Direct AirChannels heated air from the top of the oven and circulates it around food on all sides for perfectly uniform baking and roasting10.0 cubic foot oven capacity (5.0 each oven)Easily accommodates even the largest mealsExclusive self-clean, (2 full-extension, 4 regular) oven racksGlide in and out smoothly on stainless steel ball bearings, and are designed to be left in the oven during the self-clean cycleSoft-Close DoorAn expertly engineered hinge ensures that the oven door closes quietly and smoothly, every timeTen-pass bake elementCovers more surface area for more even baking resultsTheatre-style halogen oven lightingLocated in three positions in the oven, modern halogen lighting enhances visibility for a clear view of the cooking’s progress, regardless of rack positionSelf-clean with Steam Clean optionGives you flexible options for thorough oven cleaning
Image Features

The Monogram Minimalist Collection
Streamlined design and precisely machined metals create a contemporary yet functional aesthetic

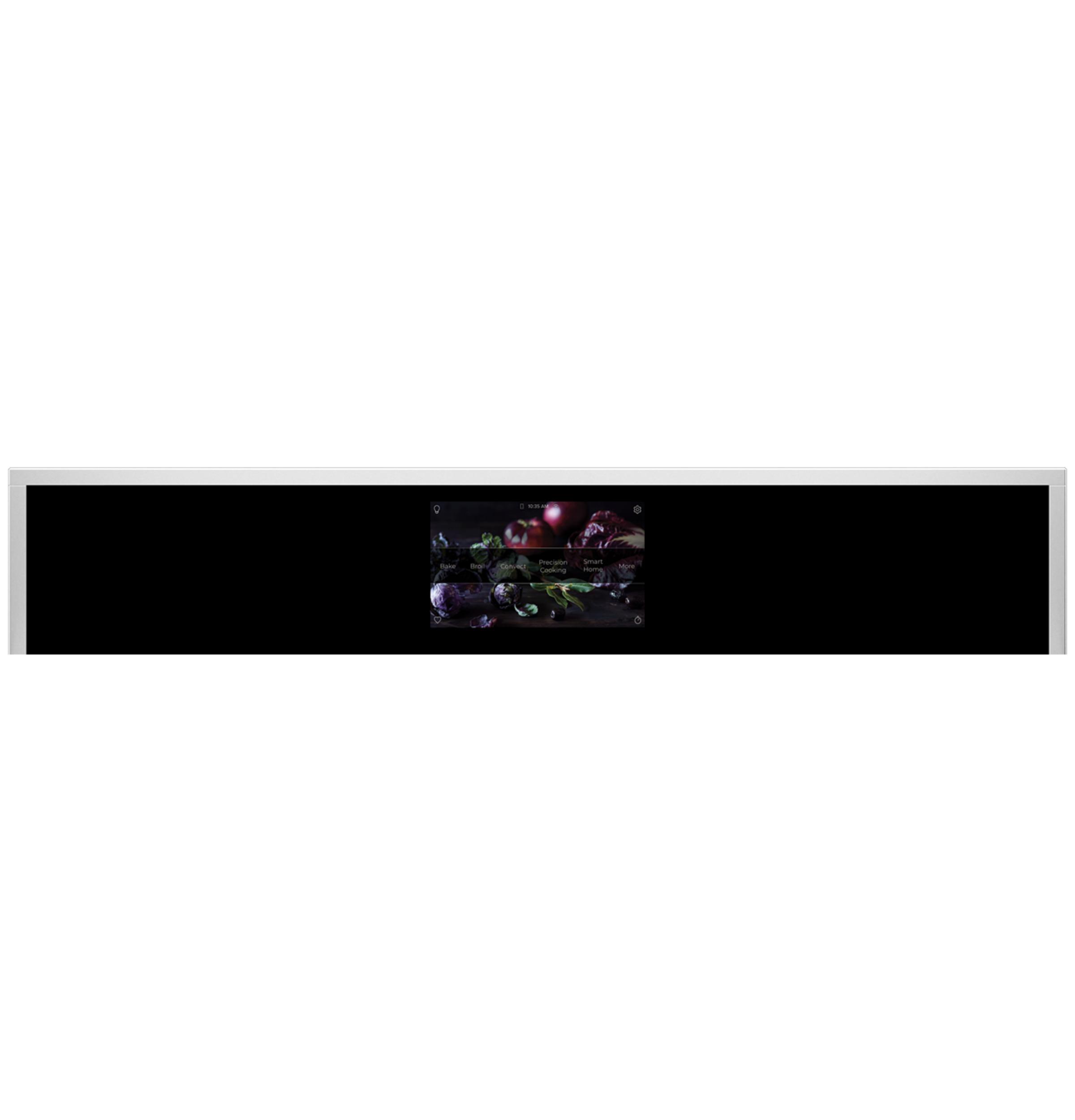

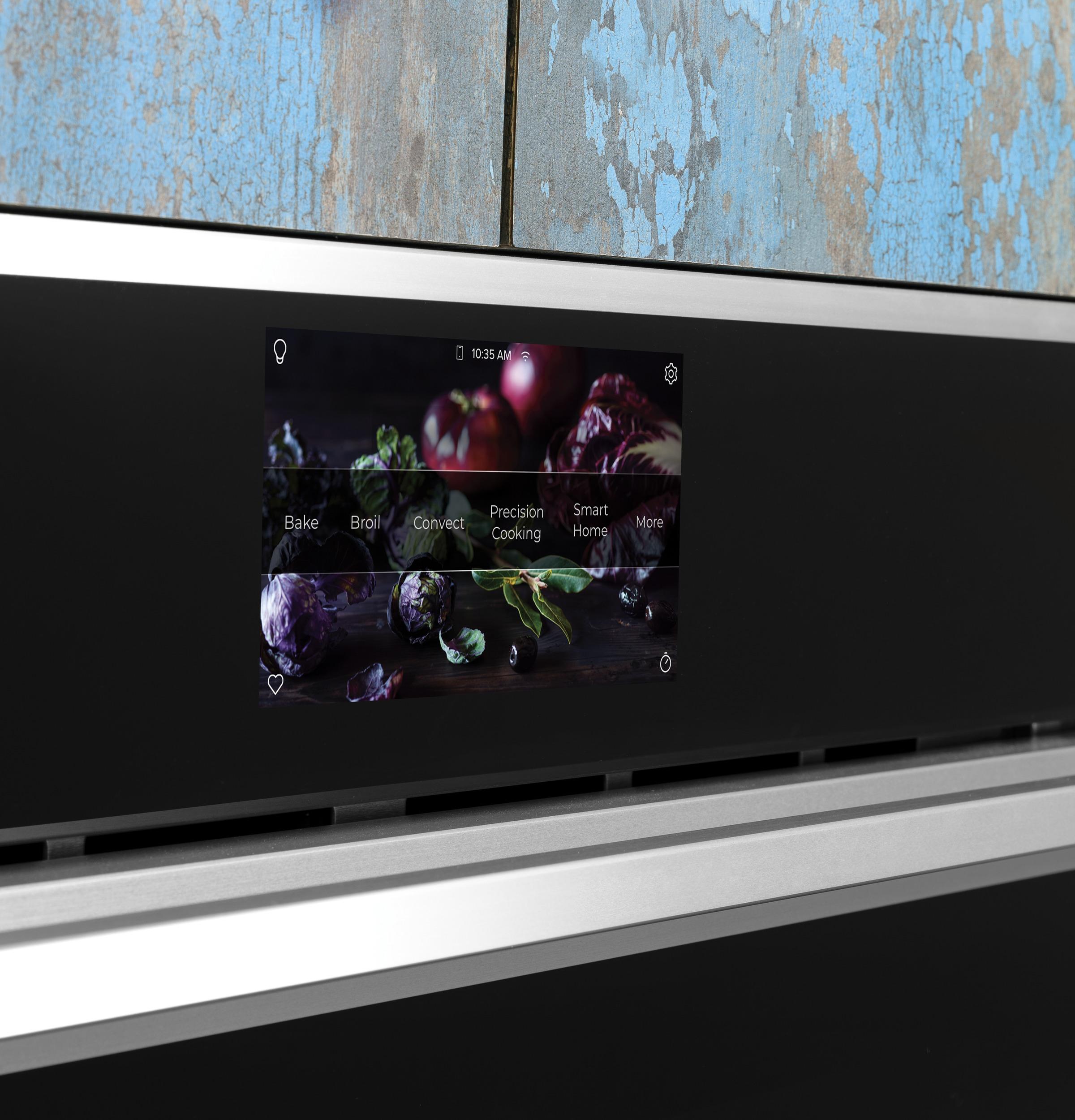

LCD controls
Adjust oven settings with little effort with a Brilliant 7" LCD display that allows you to customize backgrounds and receive weather updates

WiFi powered by SmartHQ(TM)
Perfectly in sync with a busy lifestyle, Alexa or Google Home can be used to control an array of oven functions from both inside and outside the home

Precision cooking modes
Master new recipes and perfectly execute favorite dishes using this ultra-smart system that automatically tracks cooking progress, modifies temperatures and adjusts cook times

Scan to cook
Innovative and time saving, scan-to-cook technology ensures that packaged foods are always prepared correctly. A simple scan of the barcode with a smartphone delivers consistently, delicious results

Soft-Close Door
An expertly engineered hinge ensures that the oven door closes quietly and smoothly, every time

Ten-pass bake element
Covers more surface area for more even baking results

Self-clean with Steam Clean option
Gives you flexible options for thorough oven cleaning
Features
- The Monogram Minimalist Collection
- LCD controls
- WiFi powered by SmartHQ(TM)
- Precision cooking modes
- No-Preheat Air Fry
- Scan to cook
- True European Convection with Direct Air
- 10.0 cubic foot oven capacity (5.0 each oven)
- Exclusive self-clean, (2 full-extension, 4 regular) oven racks
- Soft-Close Door
- Ten-pass bake element
- Theatre-style halogen oven lighting
- Self-clean with Steam Clean option
Item Attributes
| Part Number: | ZTD90DSSNSS |
|---|---|
| GTIN14: | 084691841937 |
| Category Code: | Cooking |
| Sub Category Code: | Cooking / Kitchen Appliances / Ovens |

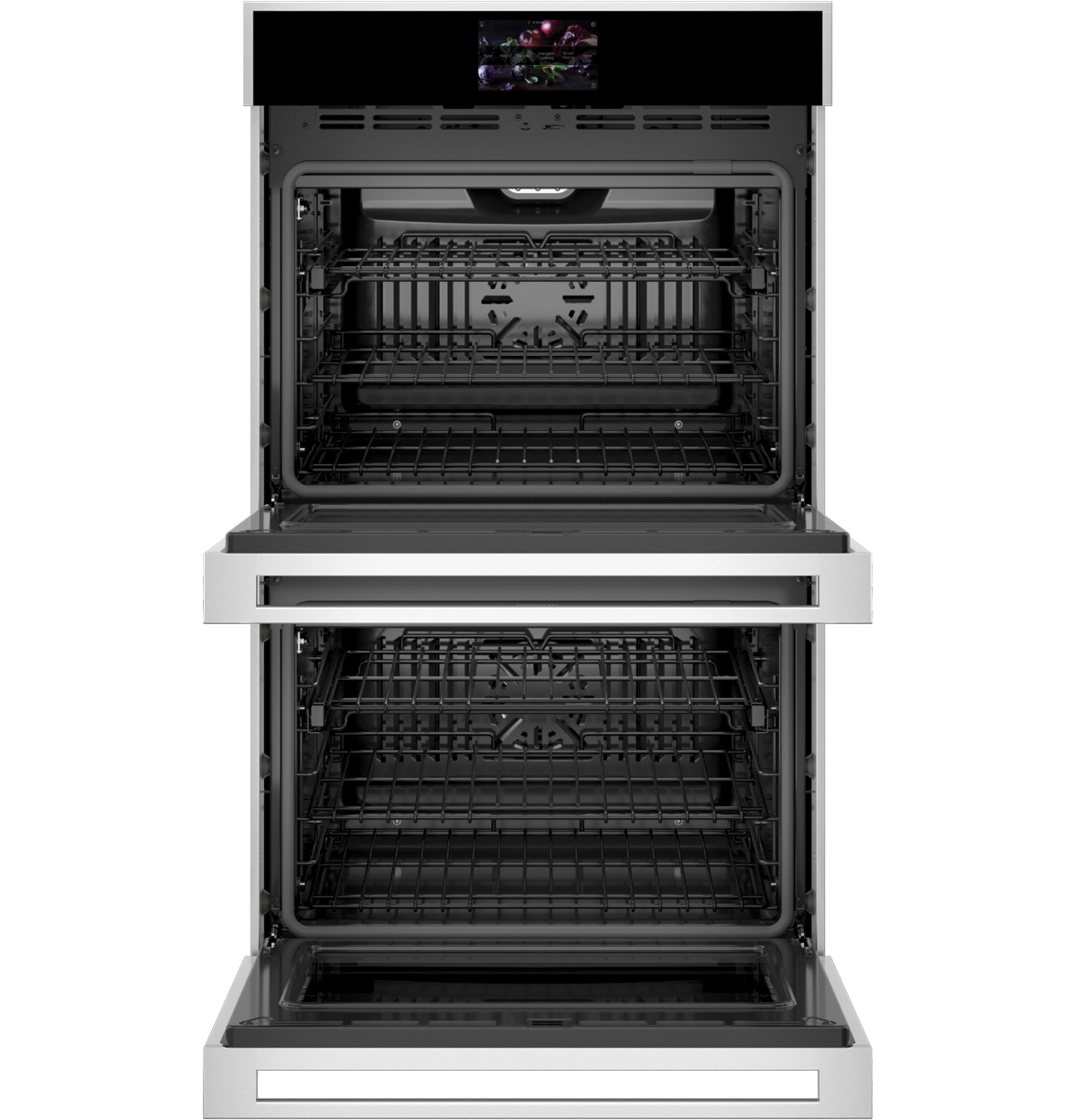

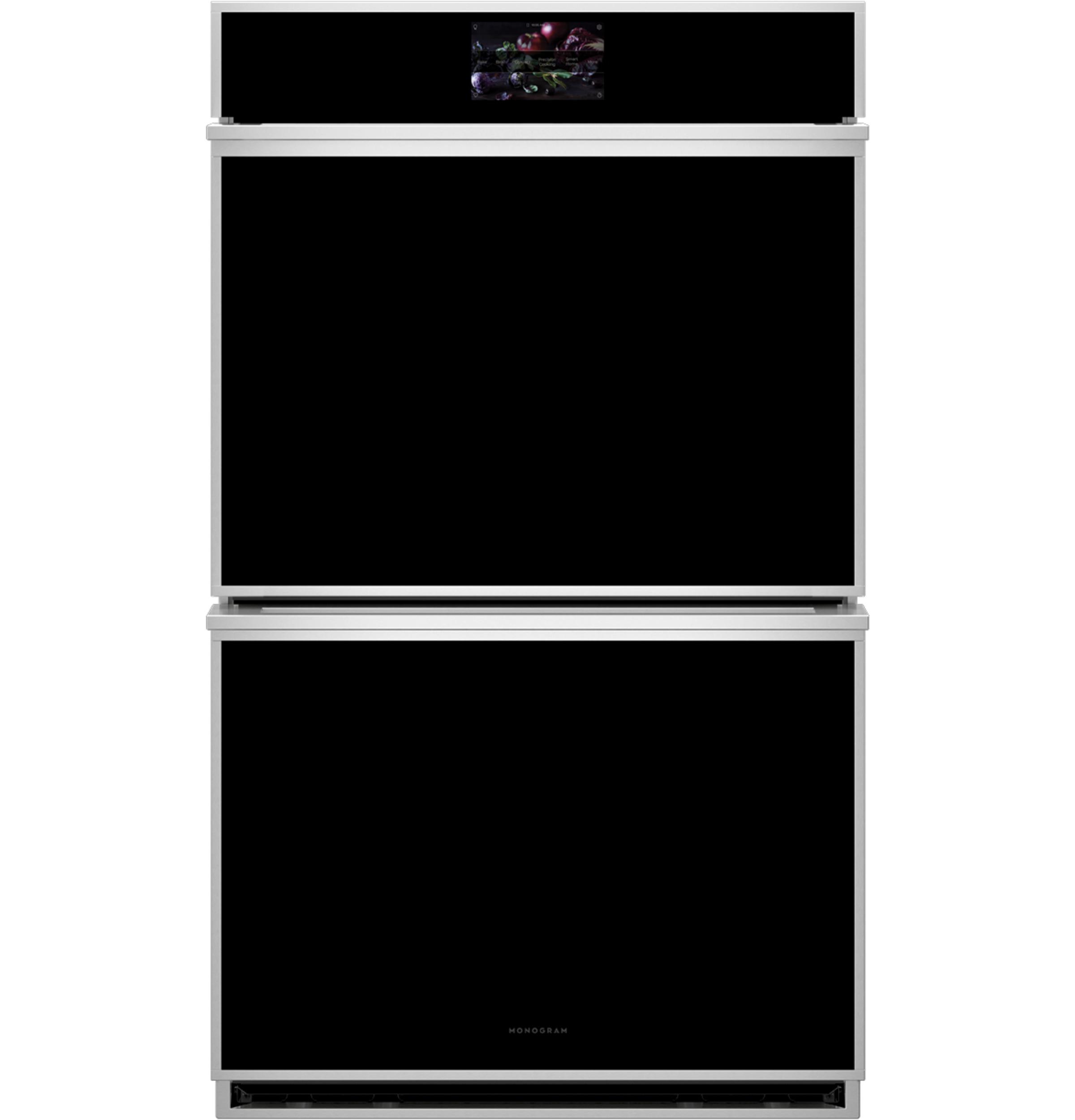

Monogram 30" Minimalist Double Wall Oven ZTD90DSSNSS
- SKU-0000043923
- Model #ZTD90DSSNSS
| Condition | New |
|---|---|
| Type | ![]() |
| Grade | A |
| Product Source | ![]() |

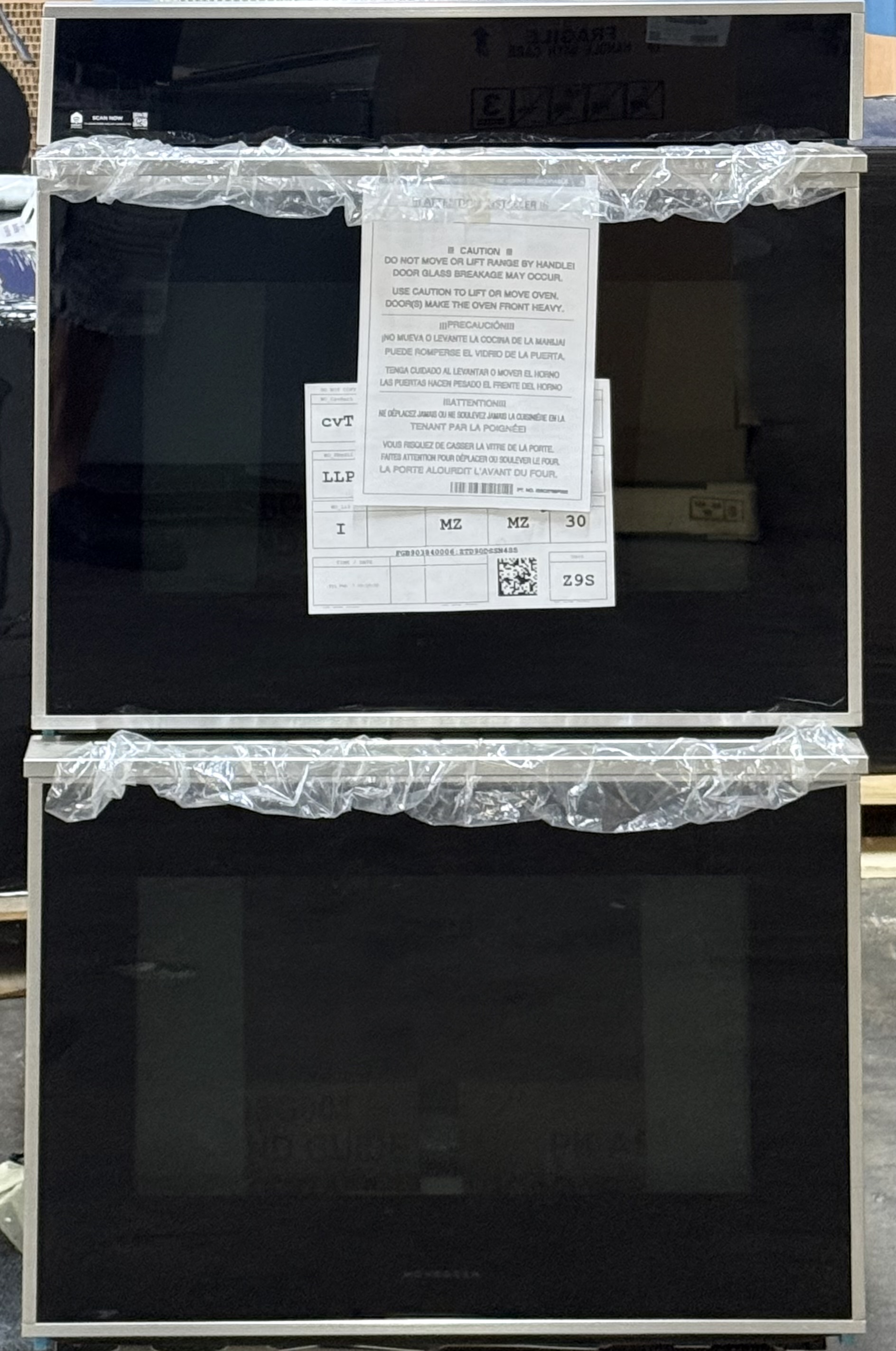

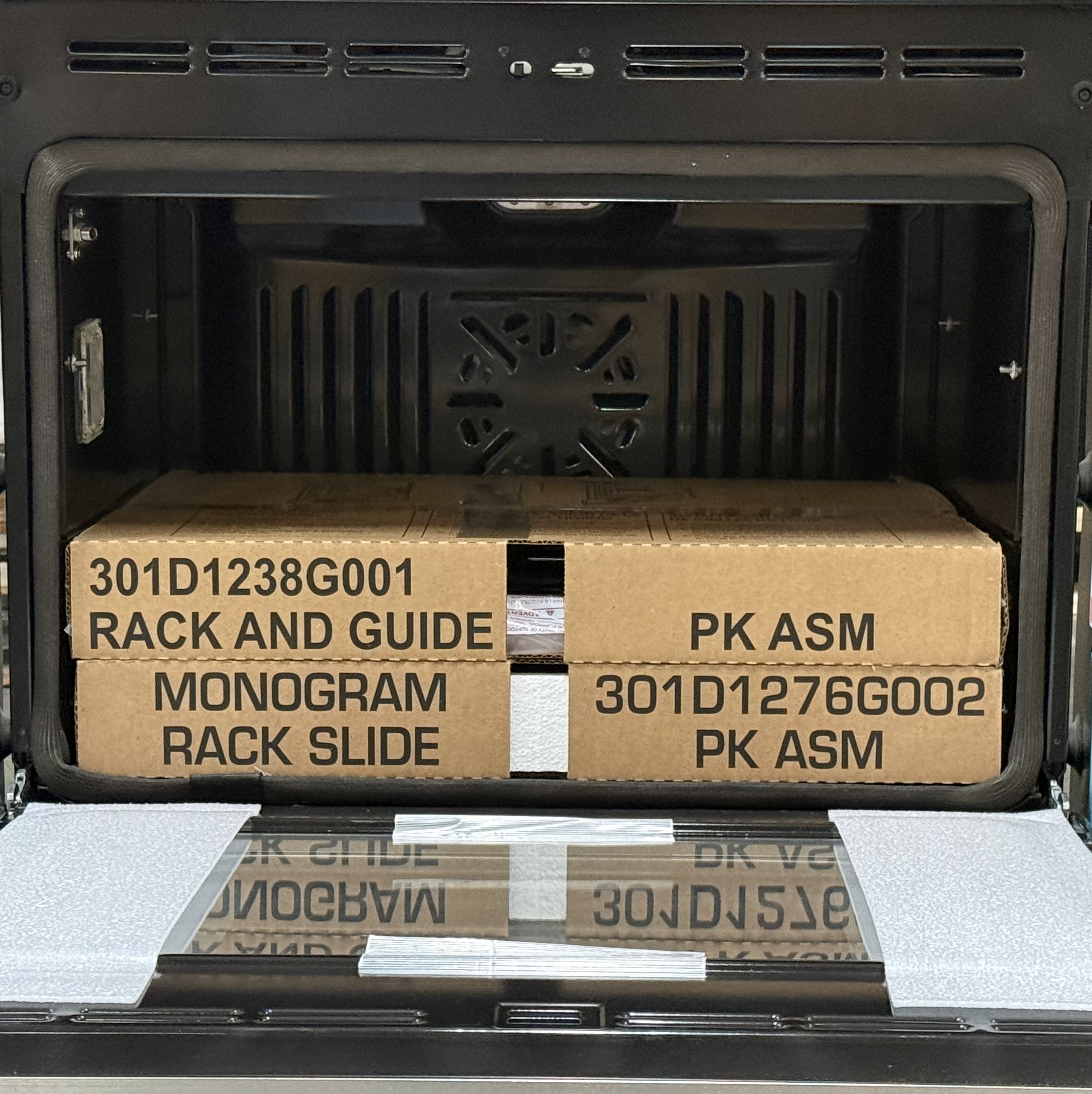

| Additional Info | Dent On Rear | No Forward Facing Imperfections| Cosmetic accessories and non-essential hardware from original packaging may not be included |
| Available Quantity | 1 |
7 DAY RETURNS ON ALL PRODUCTS
| Category | Cooking / Kitchen Appliances / Ovens |
|---|---|
| Model Number | ZTD90DSSNSS |
| UPC/GTIN | 084691841937 |
| Capacity | 5.0000 |
| Color | Stainless Steel |
| Depth | 26 13/16 |
| Width | 29 3/4 |
| Height | 51 3/16 |
