Product Information
| Category | Specification |
|---|---|
| Brand | Thermador |
| Series | Masterpiece Series |
| Model | UCVM36XS |
| Type | Downdraft |
| Color | Stainless Steel |
| Venting Type | Convertible |
| Operating Mode | Ducted / Recirculating |
| Blower Included | No |
| Blower Type | Sold Separately |
| Motor Location | External |
| Fingerprint Resistant | No |
| Glass Canopy | No |
| WiFi | No |
| Smart Accessory Required | No |
Dimensions & Weight
| Measurement | Size |
|---|---|
| Width | 37" |
| Depth | 2 3/4" |
| Height | 44 3/8" |
| Rise Height | 15" |
| Internal Duct Diameter | 8" |
| External Duct Diameter | 6", 8", or 10" |
| Net Weight | 47 lbs |
Performance
| Feature | Details |
|---|---|
| Fan Speeds | 3-Speed |
| Maximum CFM | Depends on blower selected |
| Noise Level | 1.2 Sones (Low) / 10.5 Sones (High) |
| Filter Type | Multilayer Cassette |
| Filter Material | Washable Synthetic Mesh |
| Dishwasher Safe Filters | Yes |
| Delay Shut-Off | Yes |
| Number of Lights | N/A |
| Damper Included | No |
Electrical Requirements
| Specification | Details |
|---|---|
| Amps | 10 A |
| Voltage | 120 V |
| Frequency | 60 Hz |
| Plug Type | 120V – 3 Prong |
| Power Cord Length | 30" |
| Energy Star Rated | No |
| CEE Rating | Not Available |
| Approved for Outdoor Use | No |
Compatible Blowers (Sold Separately)
Remote Blowers
- VTR630W — 600 CFM
- VTR1030W — 1000 CFM
- VTR1330W — 1300 CFM
Inline Blowers
- VTI610W — 600 CFM
- VTI1010W — 1000 CFM
Flexible Blower
- VTD600P — 600 CFM
Optional Accessories
- UCVRECIRC — Recirculation Kit
- UCVFILTER — Replacement Charcoal Filters
- UCV36ST — Gas Cooktop Seal Trim Kit
- EXTNCE5 — 5 ft. Electrical Panel Extension Cable
- RFPLT600P — Roofplate for VTR630W
- RFPLT1000P — Roofplate for VTR1030W / VTR1330W
- 25 ft. Blower Connector Cable
UPC
| Identifier | Number |
|---|---|
| UPC | 825225960898 |
| EAN | 0825225960898 |
Eliminate smoke and odors from your kitchen with this Thermador Masterpiece downdraft range hood. The automatic mode senses temperature changes and adjusts the fan speed accordingly, while the aluminum mesh filters trap grease, helping keep your cooktop clean. This Thermador Masterpiece downdraft range hood has a flexible discharge design for a customized setup.
Image Features

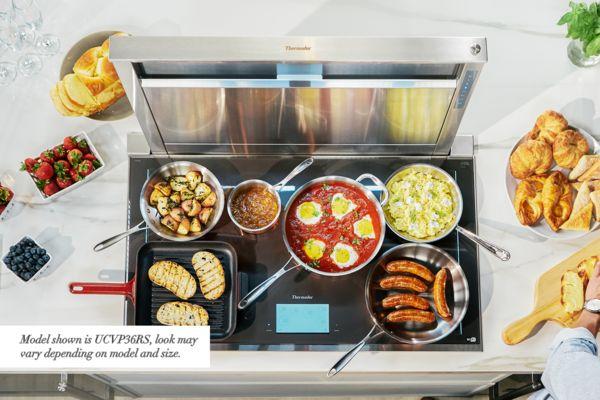

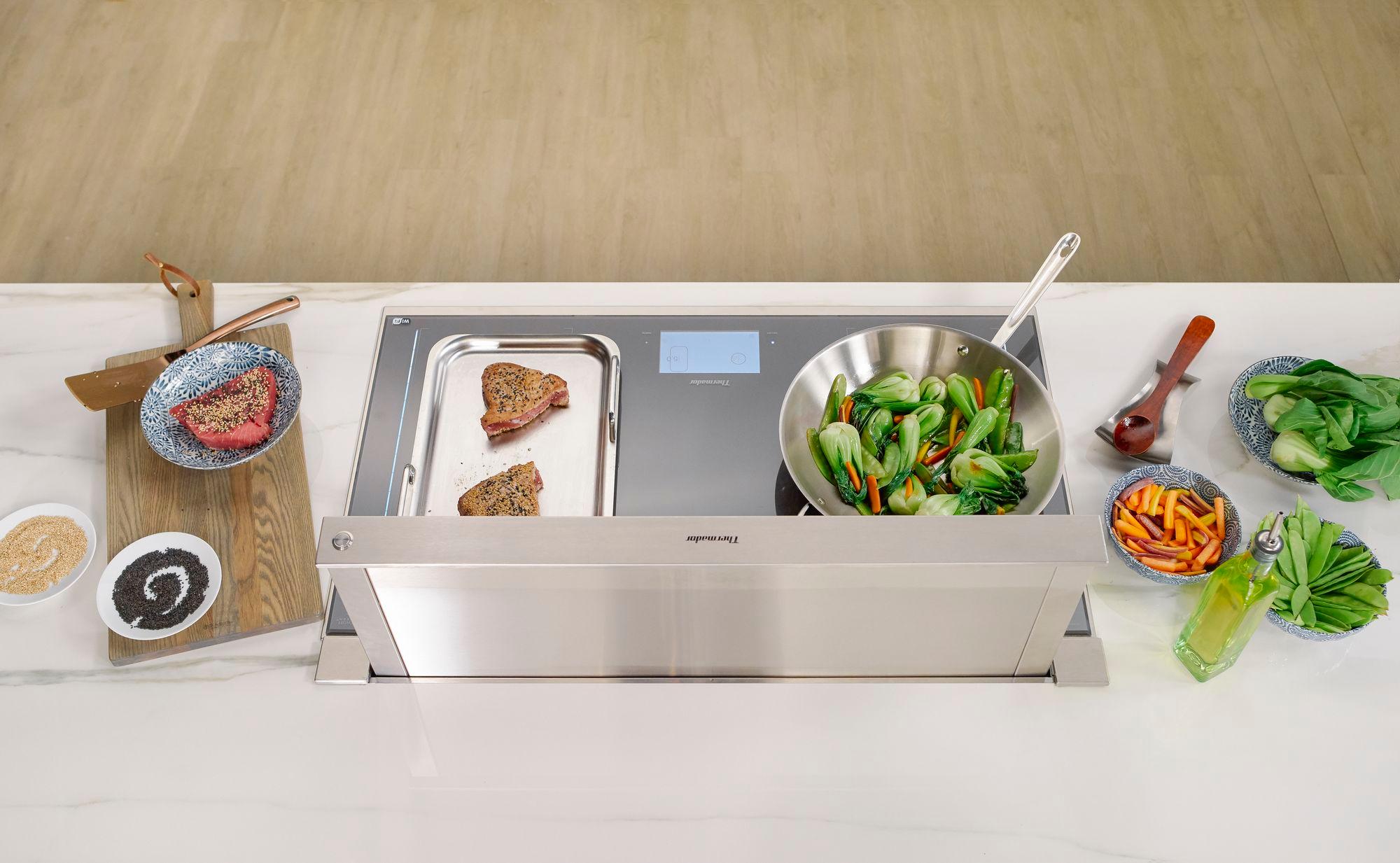

Blends seamlessly into countertop
Blends seamlessly into the countertop and is the perfect space-saving solution. The Downdraft disappears into the counter when not in use without compromising performance.

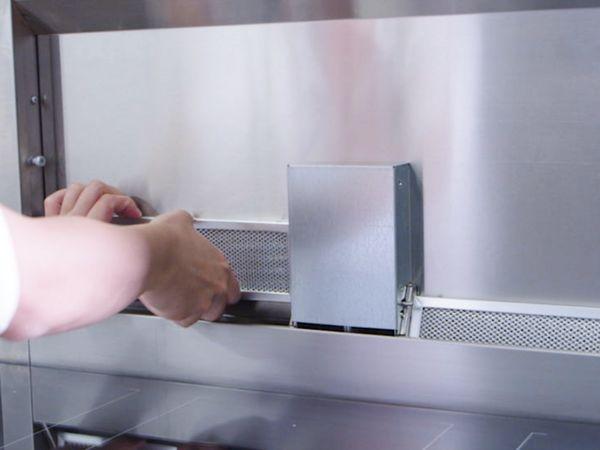

Easy-to-remove, dishwasher-safe filters
Dishwasher-Safe Filters combine the elements of a filter with a splatter shield in one easy-to-remove, dishwasher-safe element. These filters maximize grease capture without affecting Downdraft range airflow.

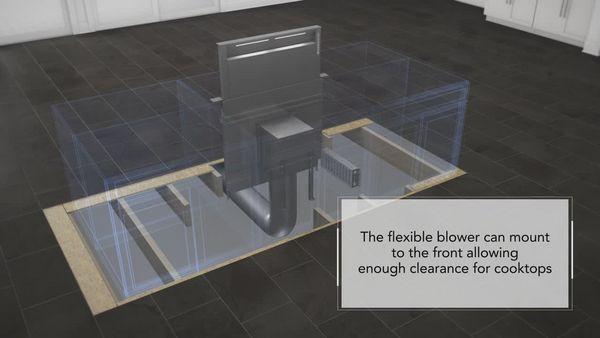

Personalization options with flexible discharge connections
Flexible discharge design gives six configurations to maximize space. Six discharge connections that include front, side, rear and downward exhaust options, as well as recirculation.
3 Fan speeds for the perfect air flow for any cooking situation
3 fan speeds that lets you choose the perfect air flow power for any cooking situation and can handle high-power cooking.

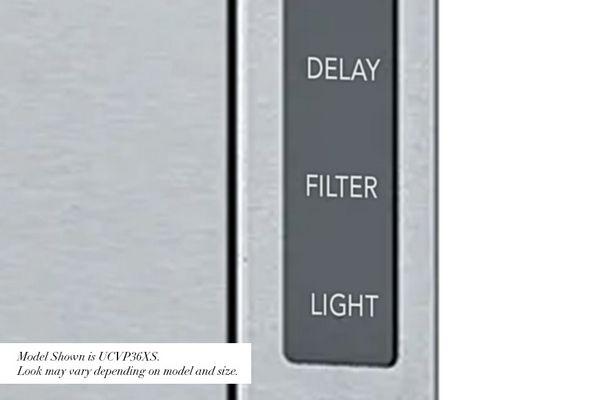

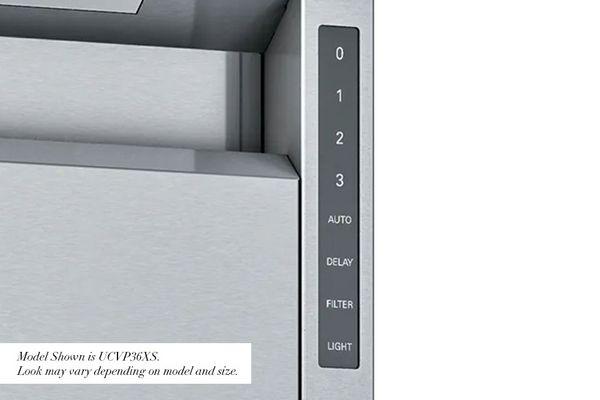

Be reminded when you need to clean your grease filter
The filter button will illuminate when dishwasher safe grease filter needs to be cleaned to ensure optimal performance.

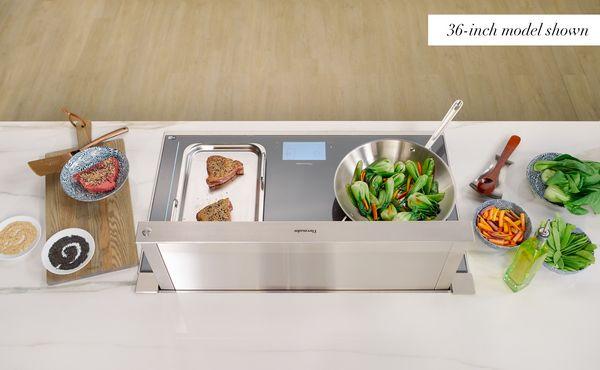

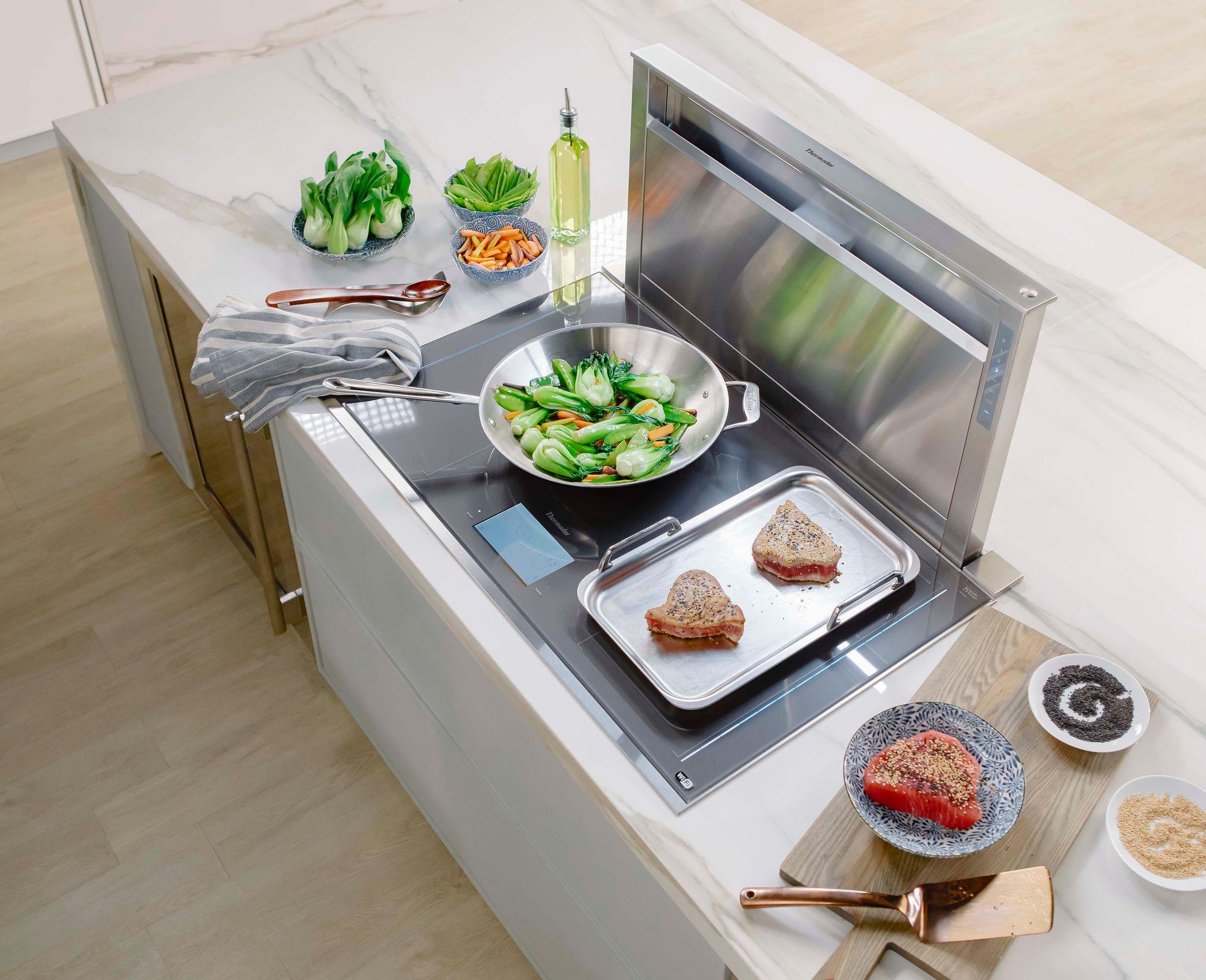

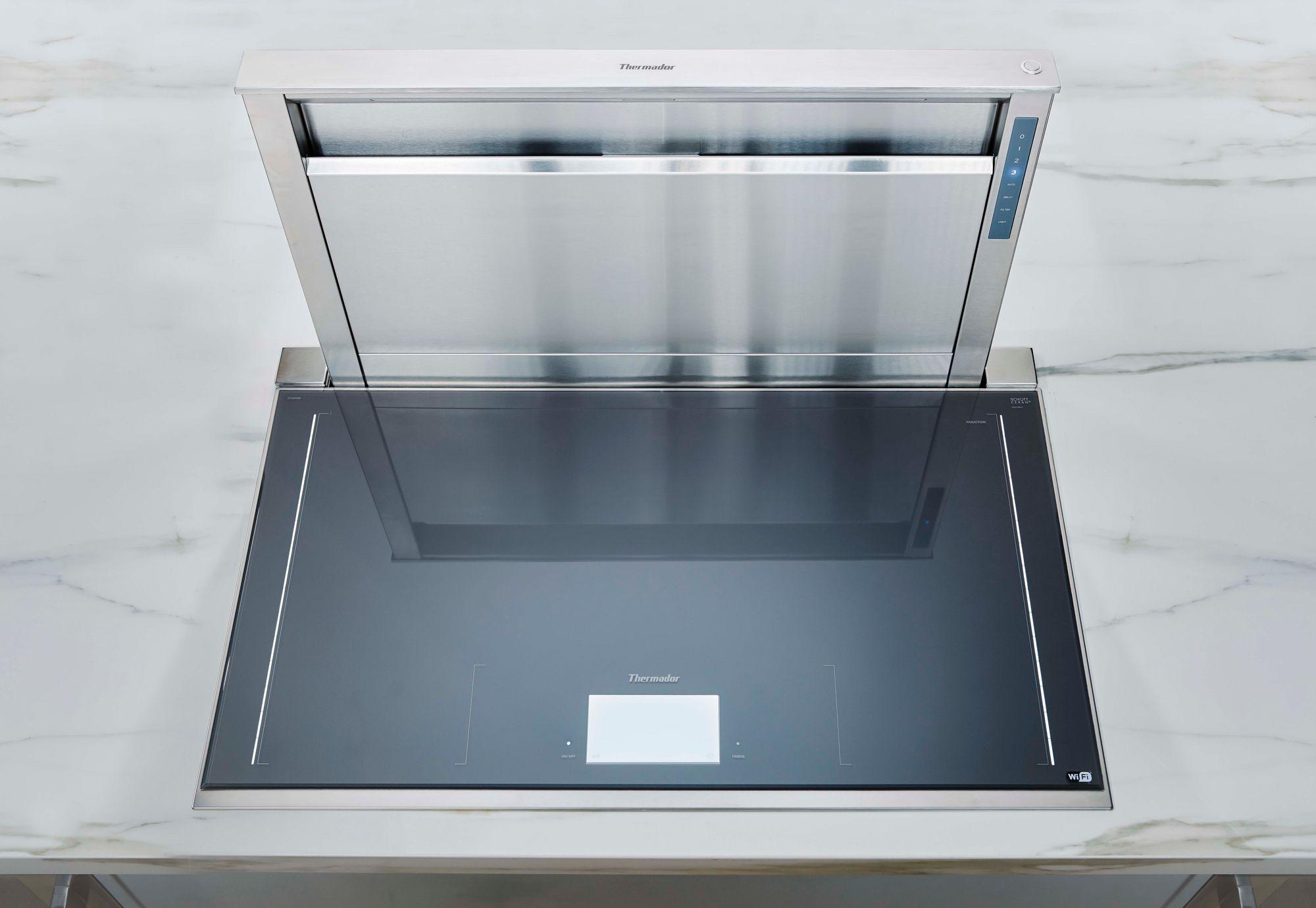

15-inch Telescopic Design
15-inch telescopic design rises from inside the countertop at the touch of a button, Downdraft captures steam, smoke, odors, and airborne grease particles, removing them from the kitchen to improve your cooking experience.
Recirculation Kit available with induction/electric cooktops
Recirculation Kit is available for use with induction/electric cooktops only.
Features
3-Stage Speed Settings
- Select the precise fan speed needed with four different settings.
Automatic Mode
- Detects temperatures to adjust fan speed automatically.
Dishwasher Safe Filter
- Grease mesh filters are dishwasher safe and easy to clean.
Delay Shut-Off
- 10-min delay shut-off ensures lingering odors are whisked away.
Powerfully Quiet®
- Efficient in operation at 1.2 sones at low speed.
15-inch Telescopic Design
- Rises to capture heat, smoke, grease, and steam.
Flexible Discharge Design
- Gives 6 configurations to maximize space.
Remote/Inline Blower
- To reduce noise, integral for top performance.
Check Filter Light
- Check filter reminder light illuminates after 40 hours of operation.
Engineered
- Allow for flexibility to exhaust at sides, front or rear
Additional Features:
- Sleek, removable front filter panel that acts as a splatter shield.
- Blowers sold separately and required to complete the installation.
- Recirculation kit available, use with induction/electric cooktops only.
- Replacement charcoal filters for recirculation kit sold separately.

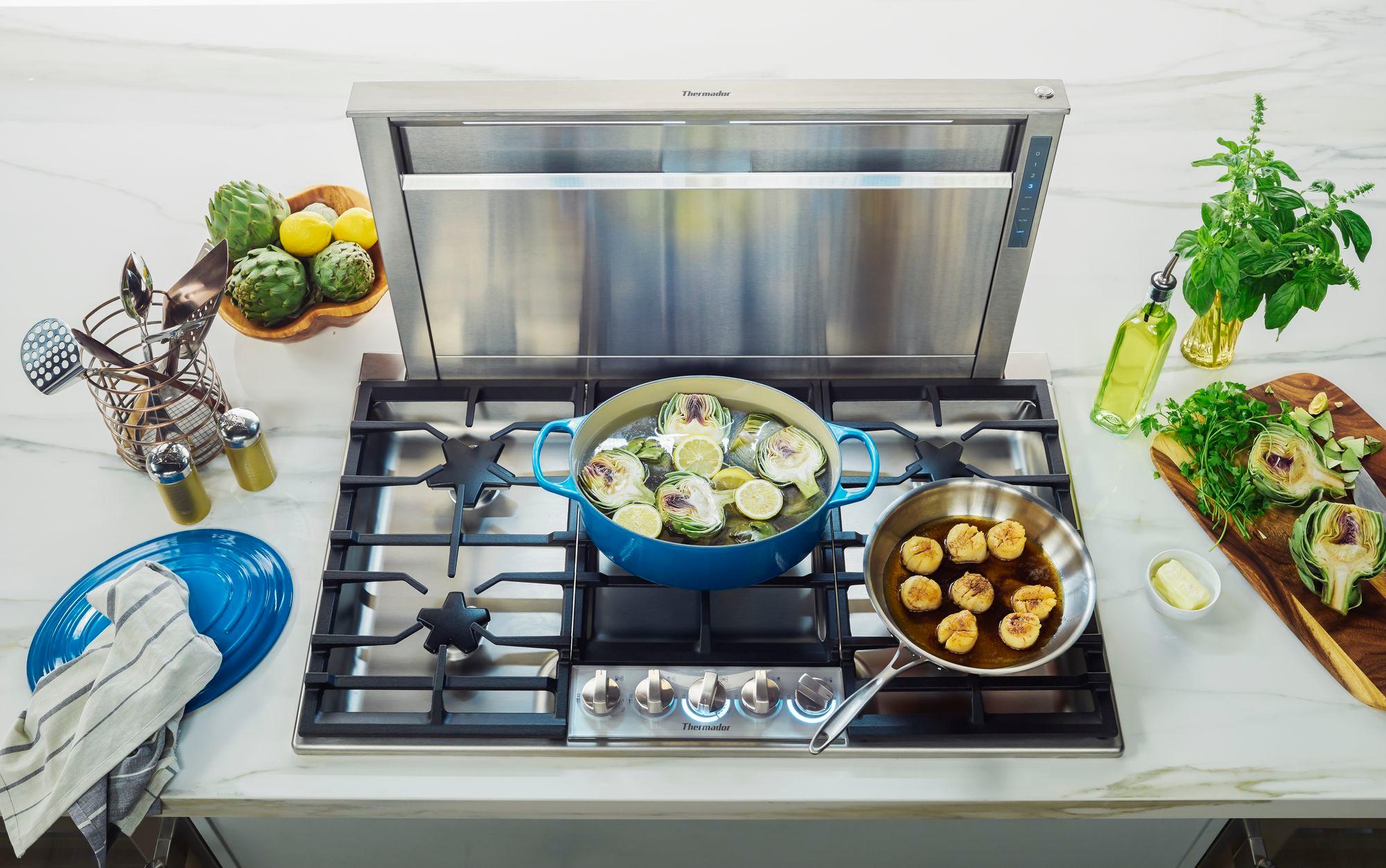

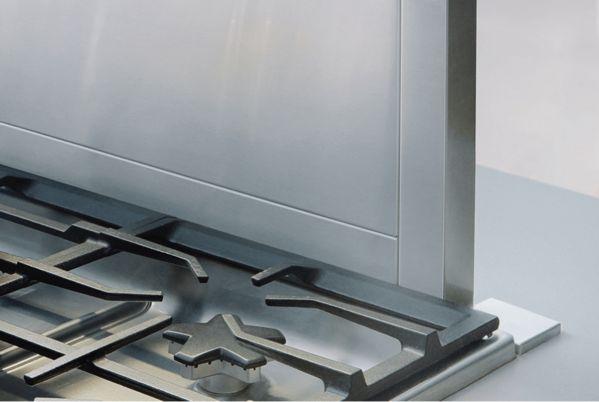

- Gas cooktop seal kit required to use with gas cooktops sold separately.
- Design match to Thermador Masterpiece Series cooktops.
- Suitable for wall or island applications.
- An authentic brushed stainless steel finish.
- Sleek, smooth touch control makes cleaning easy with a damp cloth.
- Designed to allow for flexibility to exhaust at sides, front or rear.

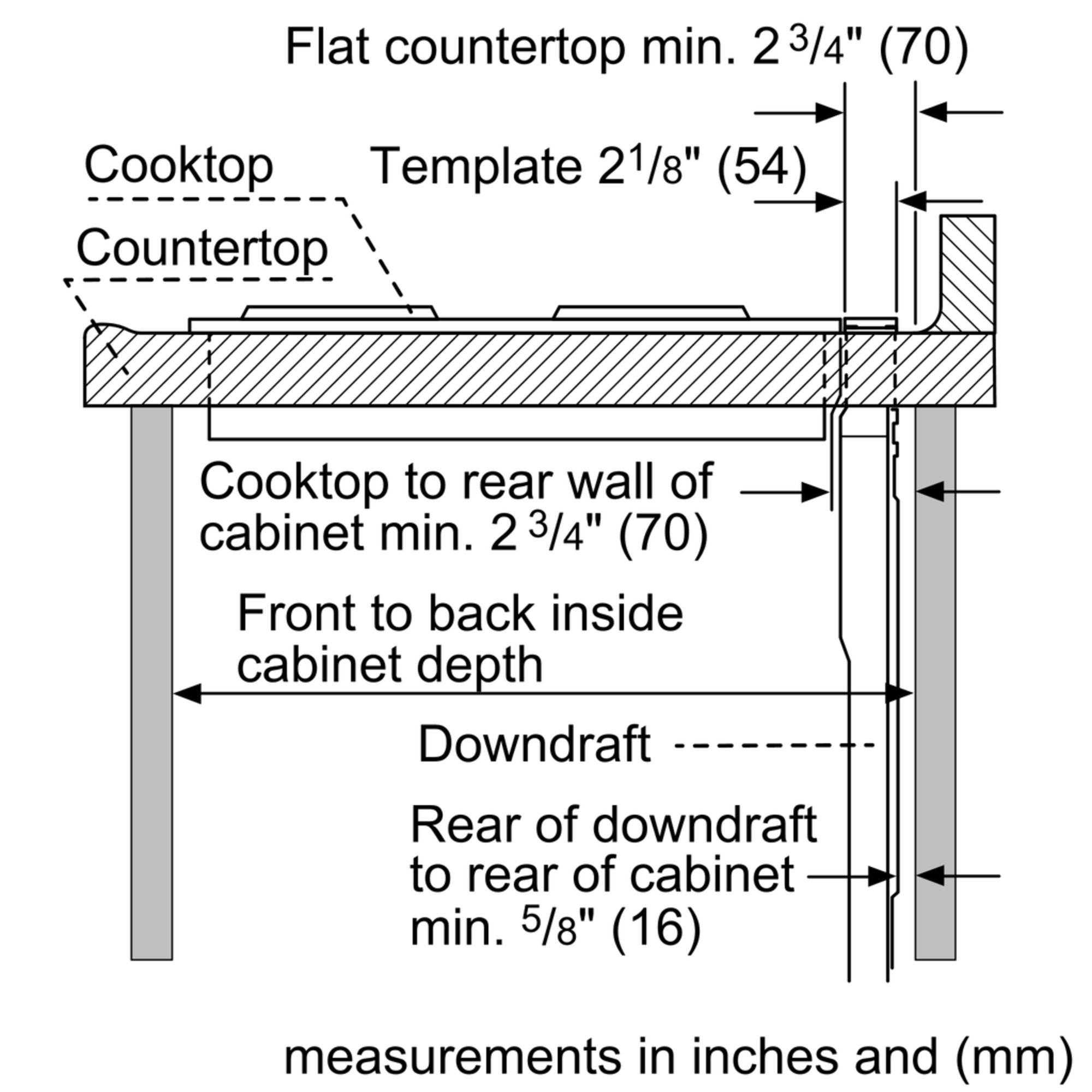

- Some blower positions may need deeper cabinets. See the installation guide.
- Additional accessories may be required for installation, see the manual.
Item Attributes
| Brand Code: | THERMADOR |
|---|---|
| Part Number: | UCVM36XS |
| GTIN14: | 825225960898 |
| Category Code: | Kitchen Appliances |
| Sub Category Code: | Kitchen Appliances / Range Hoods |
THERMADOR 36 Inch Convertible Downdraft Range Hood Blower Sold Separately Stainless Steel UCVM36XS
- SKU-0000040932
- Model #UCVM36XS

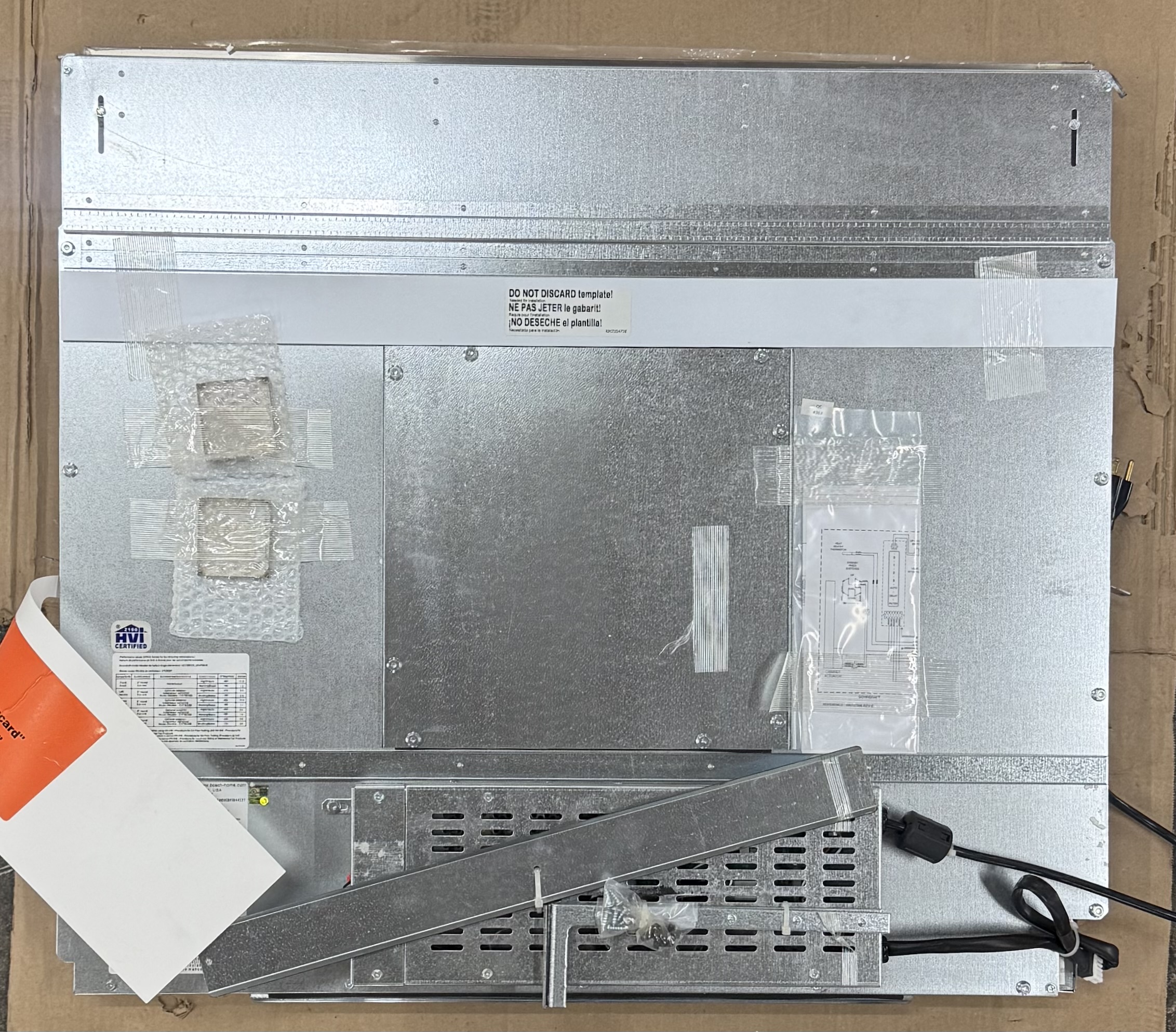

| Condition | New |
|---|---|
| Type |  |
| Grade | A |
| Product Source |  |
| Additional Info | Blower Assembly Sold Separately |
| Available Quantity | 1 |
7 DAY RETURNS ON ALL PRODUCTS
| Brand | THERMADOR |
|---|---|
| Category | Kitchen Appliances / Range Hoods |
| Model Number | UCVM36XS |
| UPC/GTIN | 825225960898 |
| Capacity | 1.0000 |
| Color | Stainless Steel |
| Depth | 2 3/4 |
| Width | 36 |
| Height | 15 |
