Ventahood 34" Wall Mounted Hood Liner Insert With 4 Speeds BH134SLDSS
- SKU-0000017276
- Model #BH134SLDSS
| Condition | New |
|---|---|
| Type |  |
| Grade | D |
| Product Source | |
| Additional Info | Surface Imperfections & Dings |
7 DAY RETURNS ON ALL PRODUCTS
FAST Nationwide Shipping (Ships Same/Next Business Day)
Same Day Pick Up (Fort Lauderdale FL).
Same Day | Next Day Local Delivery Available.
| Brand | Ventahood |
|---|---|
| Category | Kitchen Appliances / Range Hood |
| Model Number | BH134SLDSS |
| UPC/GTIN | 888197001273 |
| Capacity | 300.0000 |
| Color | Stainless Steel |
| Width | 34 3/8 |
| Height | 12 |
| WIDTH : | 34 3/8" |
| DEPTH : | 19 1/4" |
| HEIGHT : | 12" |
| CFM : | 300 |
| SONES : | 5.4 |
| Amps : | 2.5 |
| Num. Lights : | 2 |
| ELECTRICAL/MECHANICAL SPECIFICATIONS FOR BLOWER UNIT | |
| Model | B100 Single |
| Volts | 115 |
| Amps+ | 2.5 |
| Hz | 60 |
| RPM | 1550 |
| CFM [email protected]" | 300 |
| Equiv. CFM$ | 450 |
| CFM [email protected]" | 273 |
| CFM [email protected]" | 245 |
| CFM [email protected]" | 225 |
| Min. Round Duct Size | 6" (28 sq. in.) |
| Sones# | 5.4 |

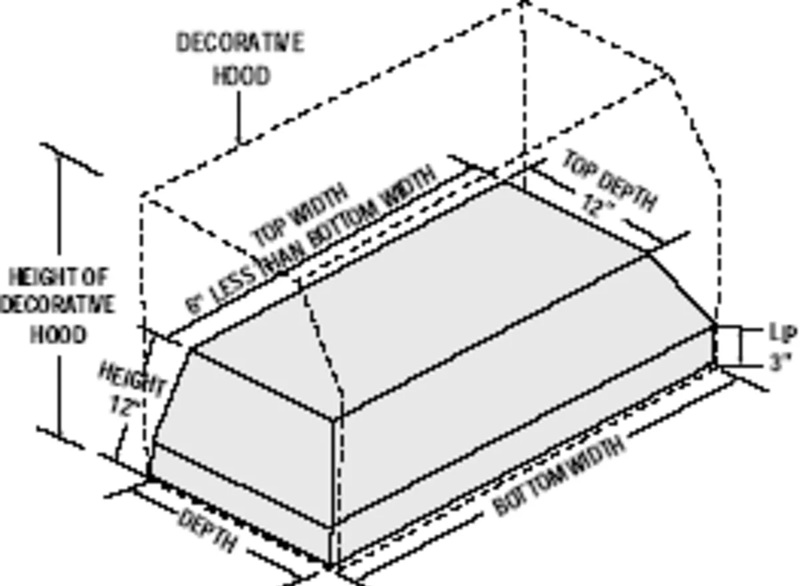

The standard ventilation of the BHSLD model is intended for use over standard cooking equipment. Click on the models for a list of our base model numbers for standard sizes; simply select the model you need, and then specify the finish [painted or stainless steel]. All liners in this series are 19 1/4″ deep. Recommended mounting height is 24″ – 27″ above the cooking surface. All Vent-A-Hood products are suitable for use in damp locations [outdoor applications such as a covered patio] when installed in a GFCI protected branch circuit.
Features
- Quietest at all speeds
- Easiest to Clean
- Patented Filterless Design
- Inherently Fire Safe
- 5 Year Warranty
- SensaSource(R) heat detection
Item Attributes
| Brand Code: | Ventahood |
|---|---|
| Part Number: | BH134SLDSS |
| GTIN14: | 888197001273 |
| Category Code: | Kitchen Appliances |
| Sub Category Code: | Kitchen Appliances / Range Hood |
| WIDTH : | 34 3/8" |
| DEPTH : | 19 1/4" |
| HEIGHT : | 12" |
| CFM : | 300 |
| SONES : | 5.4 |
| Amps : | 2.5 |
| Num. Lights : | 2 |
| ELECTRICAL/MECHANICAL SPECIFICATIONS FOR BLOWER UNIT | |
| Model | B100 Single |
| Volts | 115 |
| Amps+ | 2.5 |
| Hz | 60 |
| RPM | 1550 |
| CFM [email protected]" | 300 |
| Equiv. CFM$ | 450 |
| CFM [email protected]" | 273 |
| CFM [email protected]" | 245 |
| CFM [email protected]" | 225 |
| Min. Round Duct Size | 6" (28 sq. in.) |
| Sones# | 5.4 |
The standard ventilation of the BHSLD model is intended for use over standard cooking equipment. Click on the models for a list of our base model numbers for standard sizes; simply select the model you need, and then specify the finish [painted or stainless steel]. All liners in this series are 19 1/4″ deep. Recommended mounting height is 24″ – 27″ above the cooking surface. All Vent-A-Hood products are suitable for use in damp locations [outdoor applications such as a covered patio] when installed in a GFCI protected branch circuit.
Features
- Quietest at all speeds
- Easiest to Clean
- Patented Filterless Design
- Inherently Fire Safe
- 5 Year Warranty
- SensaSource(R) heat detection
