| Specification | Value |
|---|---|
| UPC | 00852017005949 |
| Certifications and Listings | ETL Listed |
| Finish | Blacks / Stainless Steel / Woods |
| Hardware Finish | Blacks / Stainless Steel |
| Type | Beverage Center / Wine Cooler |
| Design | French Door / Panel Ready |
| Installation Type | Built-In |
| Material | Glass / Stainless Steel |
| Number of Doors | 2 |
| Number of Handles | 2 |
| Numbe of Shelves | 9 |
| Hinge Location | Left / Right |
| Handle Style | Bar |
| Features | LED Lighting / Lock |
| Size | 23 |
| Application | Commercial / Residential |
| Style | Modern |
| Width | 23.38 |
| Height | 34.13 |
| Depth | 23.75 |
| AWBC242GGFD | Stainless Steel |
| AWBC242GGFDPRG | Panel Ready Glass |
| AWBC242GGFDBLSS | Black Stainless Steel |
| Panel Ready Glass | AWBC242GGFDPRG |
| Stainless Steel | AWBC242GGFD |
| Black Stainless Steel | AWBC242GGFDBLSS |
| Three interior LED lighting options | white, blue, and amber |
| Optional (sold separately) | Replacement Carbon Filter (Model: PCWRFILTER) |
| Door Swing | French door |
| Refrigerant Type | R600a |
| Voltage | 115V |
| Frequency | 60 Hz |
| Amperage | 1.5 Amps |
| Certifications | ETL Listed |
| Product Height | 34-1/8 inches |
| Product Width | 23-13/16 inches |
| Product Depth | 23-7/16 inches |
| Product Depth with Handle | 25-1/4 inches |
| Cutout Height | 34-3/8 inches |
| Cutout Width | 24-5/16 inches |
| Cutout Depth | 24-7/16 inches |
| Power Cord Length | 6 feet |
| Product Weight | 132 lbs. |
| Wine Zone Temperature Range | 40 to 65 degrees Fahrenheit |
| Beverage Zone Temperature Range | 34 to 65 degrees Fahrenheit |
| Panel Weight | Should not exceed 15 lbs. |
| Panel Installation | Use #6 wood screws; length depends on panel thickness. Ensure screws are not too long. |
| Panel Dimensions | Refer to the door dimensions for a precise fit. |
| We recommend using https | // with one of the following browsers: |
| Estimated Delivery | Oct 18-Oct 20 |
| SKU | AWBC242GGFD |

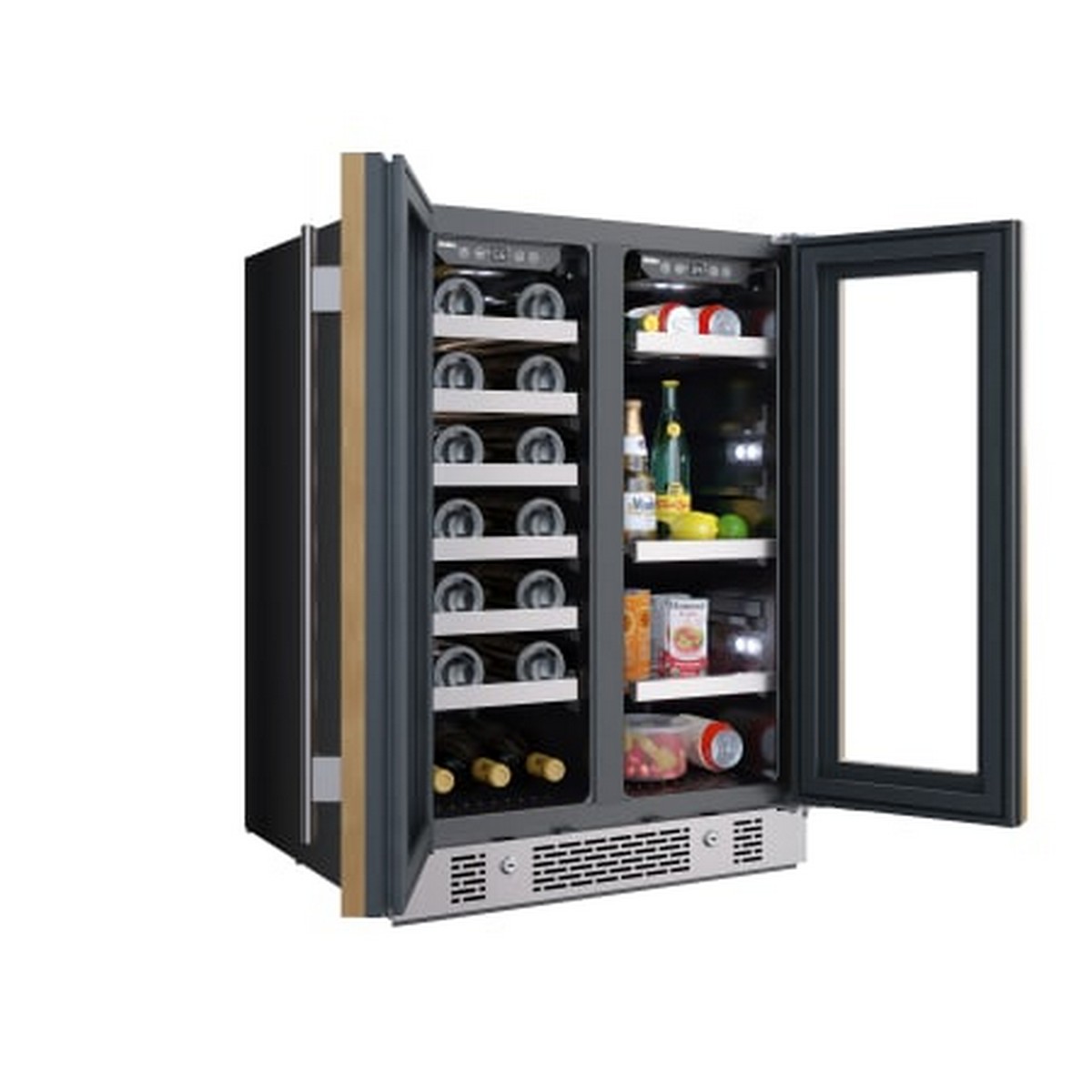

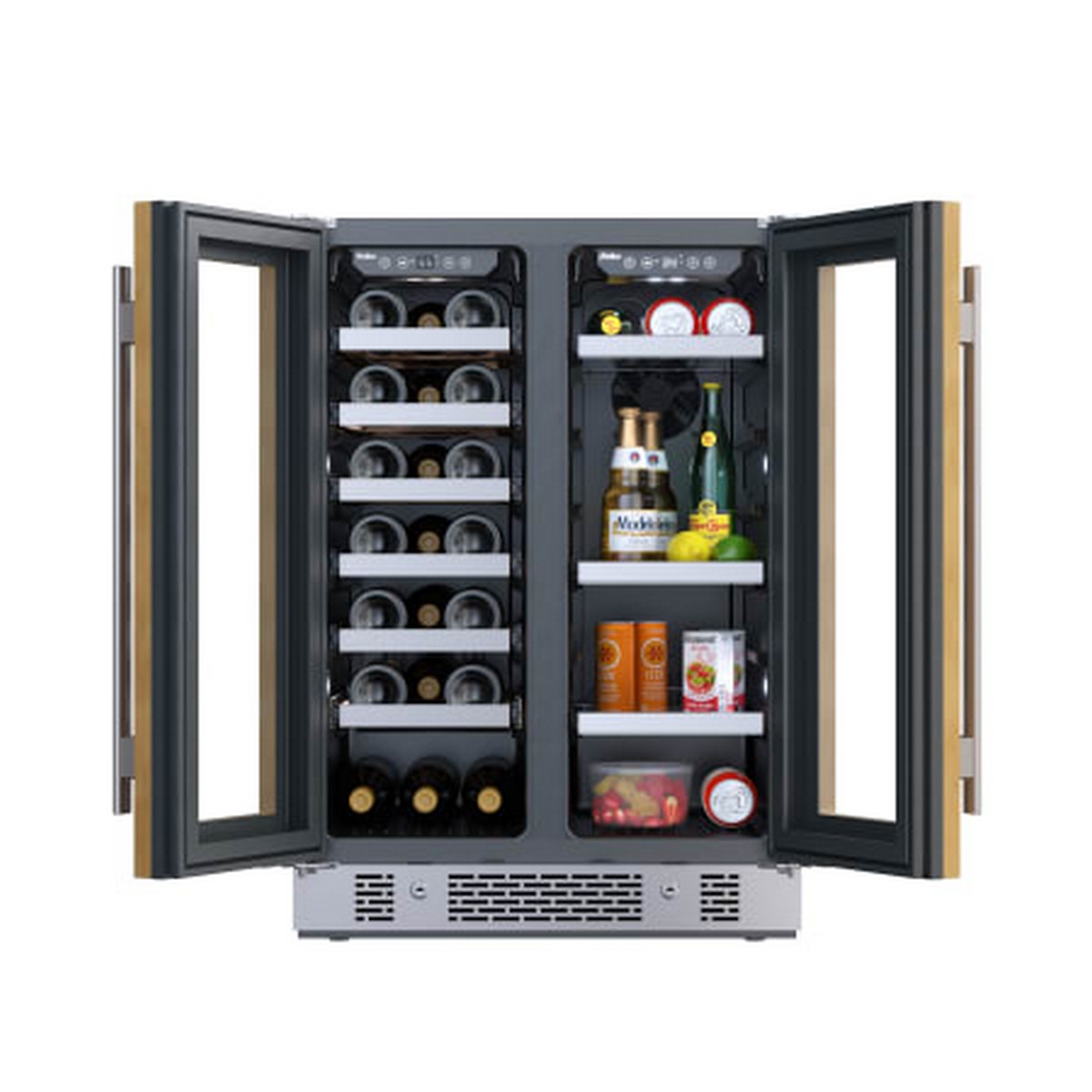

The Avallon AWBC242GGFDPRG is a 24″ panel-ready undercounter wine and beverage center featuring French doors and two independently controlled temperature zones. The wine compartment stores up to 21 standard 750 ml bottles at temperatures from 40°F to 65°F, while the beverage compartment accommodates up to 64 standard 12 oz. cans and adjusts from 34°F to 65°F. Fan-forced air circulation helps maintain consistent temperatures throughout both zones, while a carbon filter reduces unwanted interior odors. Low-E, UV-resistant double-pane glass with argon insulation helps protect beverages from light exposure and temperature fluctuations. Digital touch controls provide precise temperature management, and selectable white, blue, or amber LED lighting customizes the interior appearance. The panel-ready doors accept custom overlays for integration with surrounding cabinetry; custom panels are not included.
Features
Dual-Zone Storage
- Separate wine and beverage compartments
- Wine capacity of up to 21 standard bottles
- Beverage capacity of up to 64 standard cans
- Wine-zone temperature range of 40°F–65°F
- Beverage-zone temperature range of 34°F–65°F
- Fan-forced air circulation
- Built-in carbon filtration
Shelving & Organization
- Nine shelves

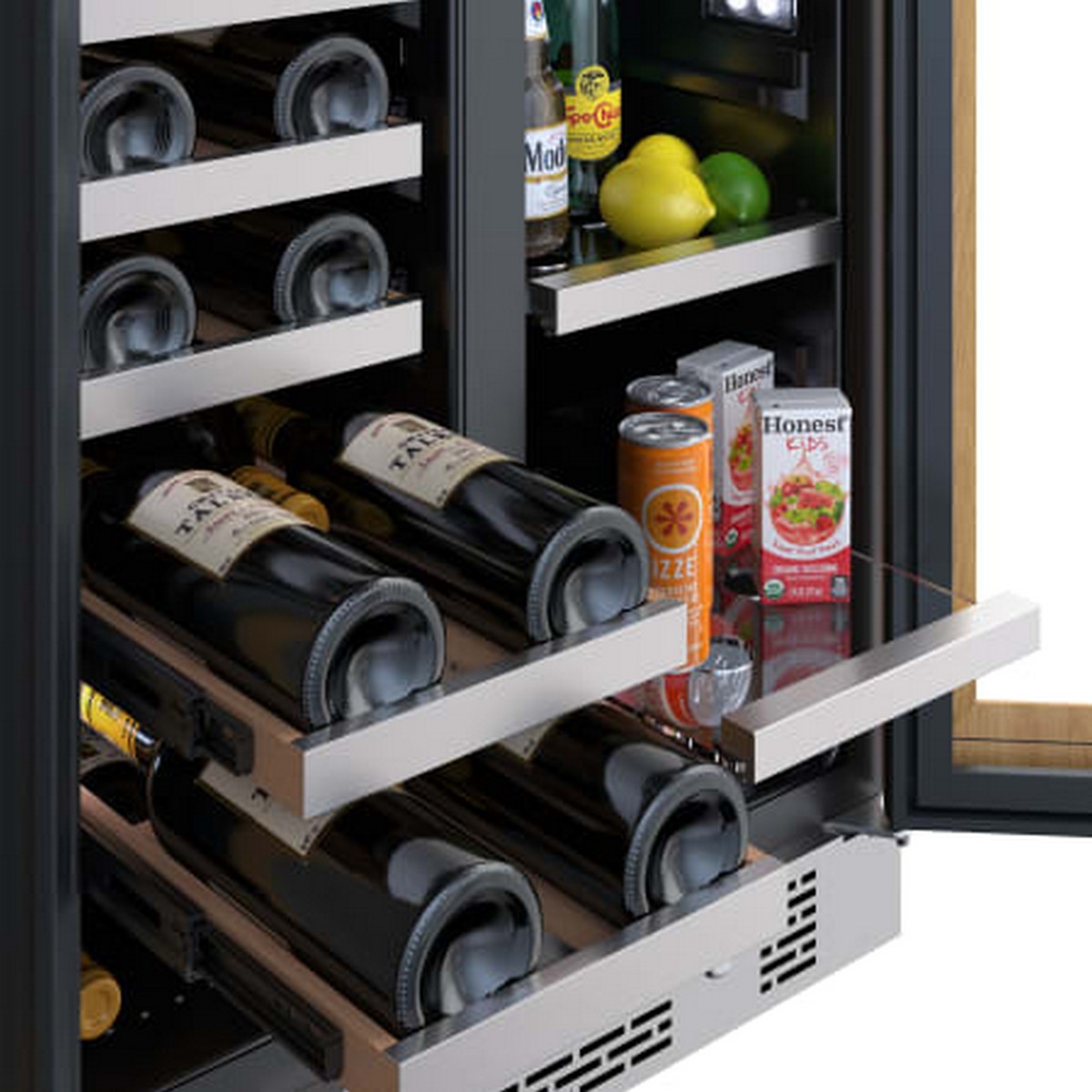

- Roll-out wooden wine shelves
- Stainless-steel shelf trim
- Clear tempered-glass beverage shelves
- French-door configuration
- Keyed door lock for added security
Controls & Lighting
- Digital touch controls
- Independent temperature adjustment
- White, blue and amber LED lighting options
- Sabbath mode
- Automatic interior illumination
Panel-Ready Design
- Accepts custom overlay panels
- Custom panels are not included
- Recommended 3/4" overlay-panel thickness
- Maximum panel weight of 15 lb. per door
- Panel dimensions approximately 11 3/4" W × 29 5/8" H per door
- Panel and handle alignment should be completed with the appliance on site
Installation & Efficiency
- Front-venting undercounter design
- Suitable for built-in or standalone installation
- Low-E, UV-resistant double-pane glass
- Argon gas between glass panes improves insulation
- Eco-friendly R600a refrigerant
Item Attributes
| Brand Code: | AVALLON |
|---|---|
| Part Number: | AWBC242GGFDPR |
| GTIN14: | 00852017005949 |
| Category Code: | Kitchen Appliances |
| Sub Category Code: | Kitchen Appliances / Refrigeration / Refrigerators |
AVALLON 24" Built In French Door Dual Zone Wine And Beverage Center Cooler Panel Ready Glass AWBC242GGFDPR
- SKU-0000045165
- Model #AWBC242GGFDPR
| Condition | New |
|---|---|
| Type |  |
| Grade | A |
| Product Source |  |
| Additional Info | Custom Panel Ready | Panel Sold Separately | Handles Included Inside | Great Savings| Cosmetic accessories and non-essential hardware from original packaging may not be included |
| Available Quantity | 1 |
