Dimensions and Measurements
Cutout Depth | 24.44 in. |
Cutout Height | 34.88 in. |
Cutout Width | 24.31 in. |
Depth | 23.4375 in. |
Depth with Handles | 25.625 in. |
Depth without Handles | 23.44 in. |
Height | 34.125 in. |
Nominal Depth | 23 in. |
Nominal Height | 34 in. |
Nominal Width | 24 in. |
Product Weight | 112 lbs. |
Total Capacity | 5.7 cu. ft. |
Width | 23.8125 in. |
Included Components
Glass Doors | Yes |
Light Included | Yes |
Characteristics and Features
Adjustable Shelves | No |
Automatic Door Closer | No |
Bulb Type | LED |
Can Capacity (12 oz.) | 140 |
Control Type | Touch |
Cooling Type | Compressor |
Counter Depth | Yes |
Defrost Type | Automatic |
Door Features | Child Lock, Door Alarm, Door Lock, Glass Door |
Door Swing | Right |
Installation Type | Built-In, Free Standing |
Leveling Legs | Yes |
Number Of Shelves | 3 |
Panel Ready | Yes |
Refrigerant | R-600A |
Removable Shelves | Yes |
Sabbath Mode | Yes |
Shelf Material | Tempered Glass |
Storage Features | Adjustable Shelves, Removable Shelves |
Temperature Display | Yes |
Theme | Transitional |
Electrical and Operational Information
Amperage | 1.5 |
Frequency | 60 Hertz |
Number of Zones | 1 |
Temperature (Max) | 65 °F |
Temperature (Min) | 34 °F |
Voltage | 115 |
Wattage | 120 |
Warranty and Product Information
Approved for Commercial Use | No |
Certifications | CSA |
Energy Star | No |
Manufacturer Warranty | 1 Year Parts and Labor, 5 Year Compressor |
Outdoor Approved | No |

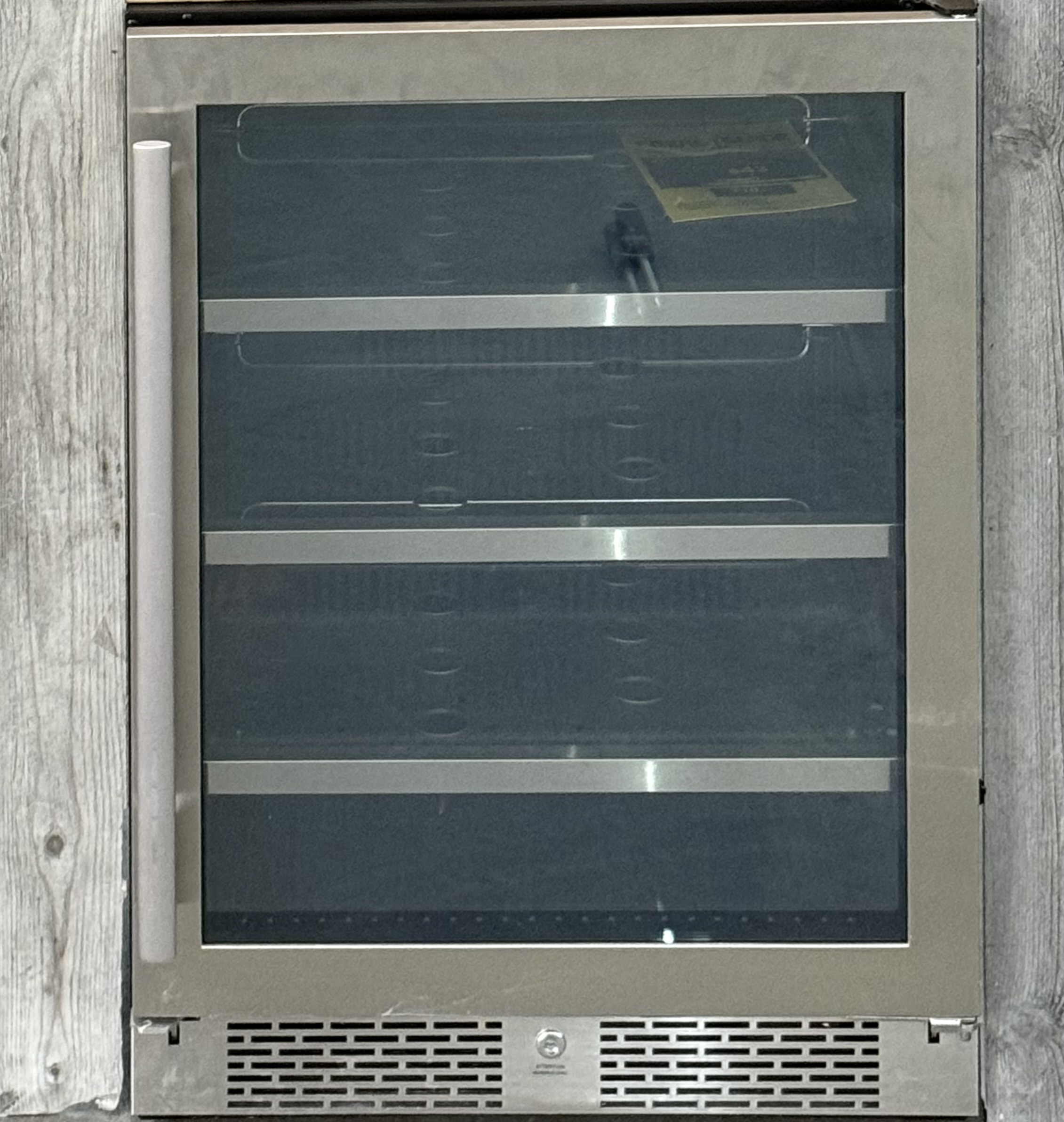

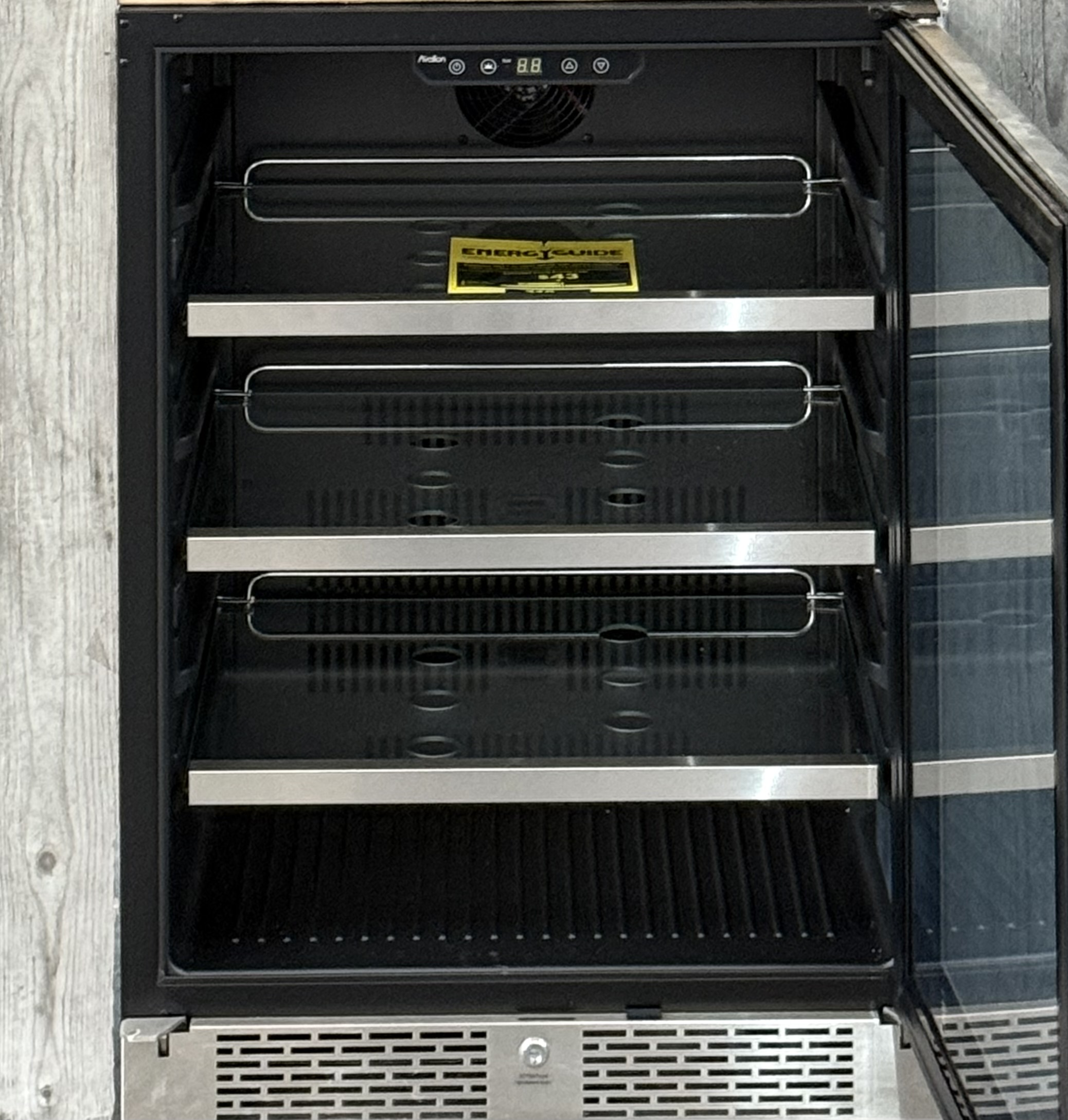

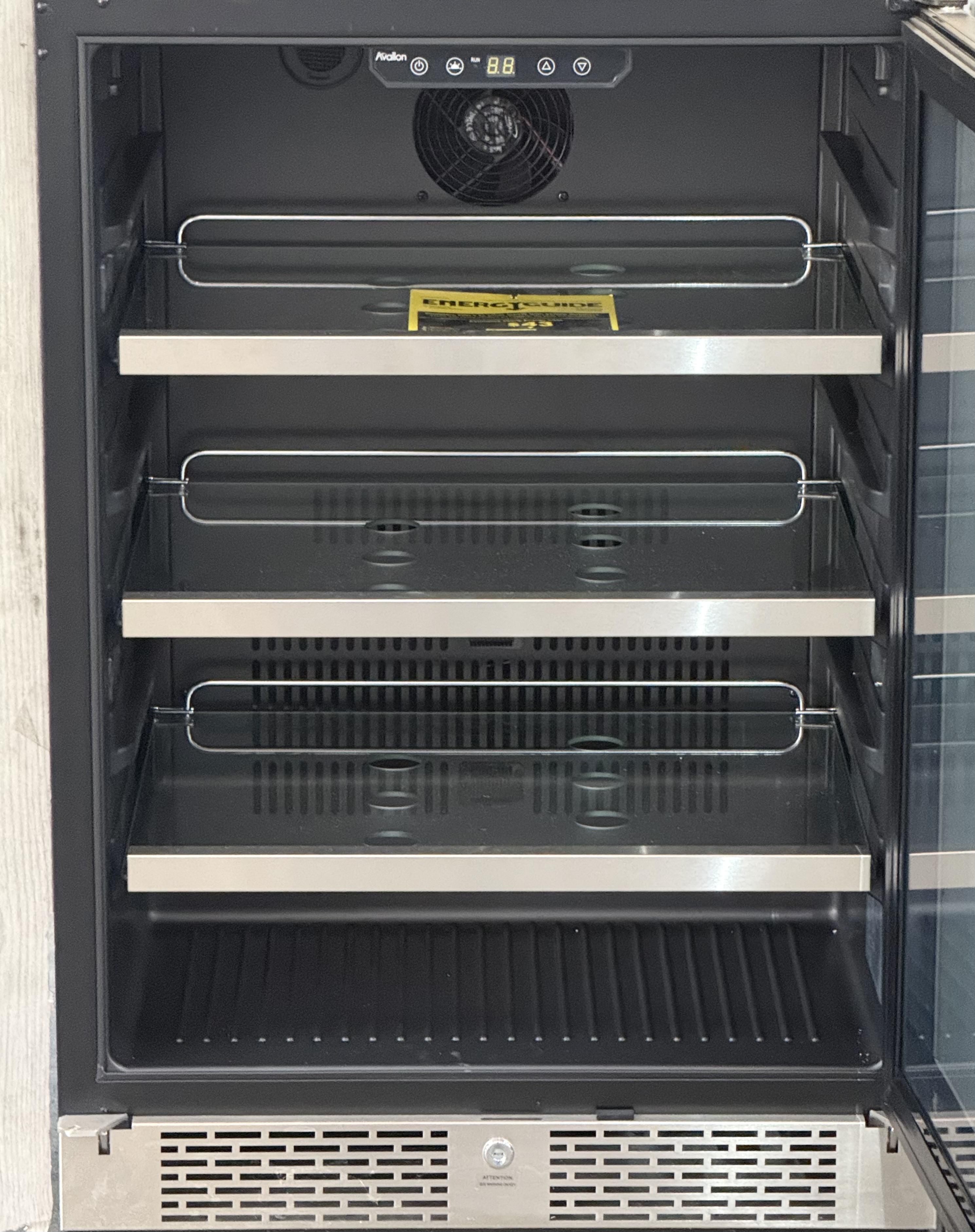

The Avallon ABR242SGRH is a 24″ single-zone undercounter beverage center offering 5.65 cu. ft. of refrigerated storage for as many as 140 standard 12-ounce cans. Its compressor-based cooling system and internal fan circulate cold air throughout the cabinet to maintain consistent temperatures between 34°F and 65°F, making it suitable for soft drinks, beer, bottled water, mixers, and other chilled beverages. The fixed right-hinged door combines a seamless stainless-steel frame with UV-resistant Low-E double-pane glass and insulating argon gas between the panes, helping reduce heat transfer while keeping the contents visible. Three removable tempered-glass shelves provide flexible organization, while selectable white, blue, or amber LED lighting allows the interior appearance to be customized. Front ventilation permits installation beneath a counter without requiring open clearance on the sides, and the appliance may also be used as an independent unit. Additional conveniences include digital touch controls, automatic defrost, a replaceable carbon filter, Sabbath mode, a keyed security lock, adjustable leveling feet, and audible warnings for an open door or abnormal interior temperature.
Features
Cooling and Performance
- 5.65 cu. ft. refrigerated capacity
- Storage for up to 140 standard 12-ounce cans
- Single temperature zone
- Adjustable temperature range of 34°F–65°F
- Compressor-based cooling system
- Fan-forced interior air circulation
- Automatic defrost
- Replaceable carbon filter
- High- and low-temperature warning
Storage and Lighting
- Three removable tempered-glass shelves
- Smooth sanded-glass shelf edges
- Adjustable shelf placement
- Selectable white, blue, or amber LED lighting
- Clear interior visibility
- Flexible storage for cans and bottles
Door and Controls
- Fixed right-hand door hinge
- Seamless stainless-steel door frame
- UV-resistant Low-E glass
- Double-pane glass construction
- Argon gas insulation between glass panes
- Stainless-steel handle
- Digital touch control panel
- Keyed security lock
- Door-ajar alarm
- Sabbath mode
Installation
- Front-venting design
- Undercounter installation
- Independent installation capability
- Indoor use
- Adjustable leveling feet
- Factory stainless-steel and glass door
- No custom overlay panel required
Item Attributes
| Brand Code: | AVALLON |
|---|---|
| Part Number: | ABR242SGRH |
| GTIN14: | 852017005611 |
| Category Code: | Kitchen Appliances |
| Sub Category Code: | Kitchen Appliances / Refrigeration / Refrigerators |
AVALLON 24 Inch Beverage Center Right Hinge Stainless Steel 5.7 Cu. Ft. ABR242SGRH
- SKU-0000043246
- Model #ABR242SGRH
| Condition | New |
|---|---|
| Type | ![]() |
| Grade | A |
| Product Source | ![]() |
| Additional Info | Former Showroom Display Model | No Forward Facing Imperfections| Cosmetic accessories and non-essential hardware from original packaging may not be included |
| Available Quantity | 1 |
7 DAY RETURNS ON ALL PRODUCTS
| Brand | AVALLON |
|---|---|
| Category | Kitchen Appliances / Refrigeration / Refrigerators |
| Model Number | ABR242SGRH |
| UPC/GTIN | 852017005611 |
| Capacity | 5.6500 |
| Color | Stainless Steel |
| Depth | 23 |
| Width | 24 |
| Height | 34 |
