| General | |

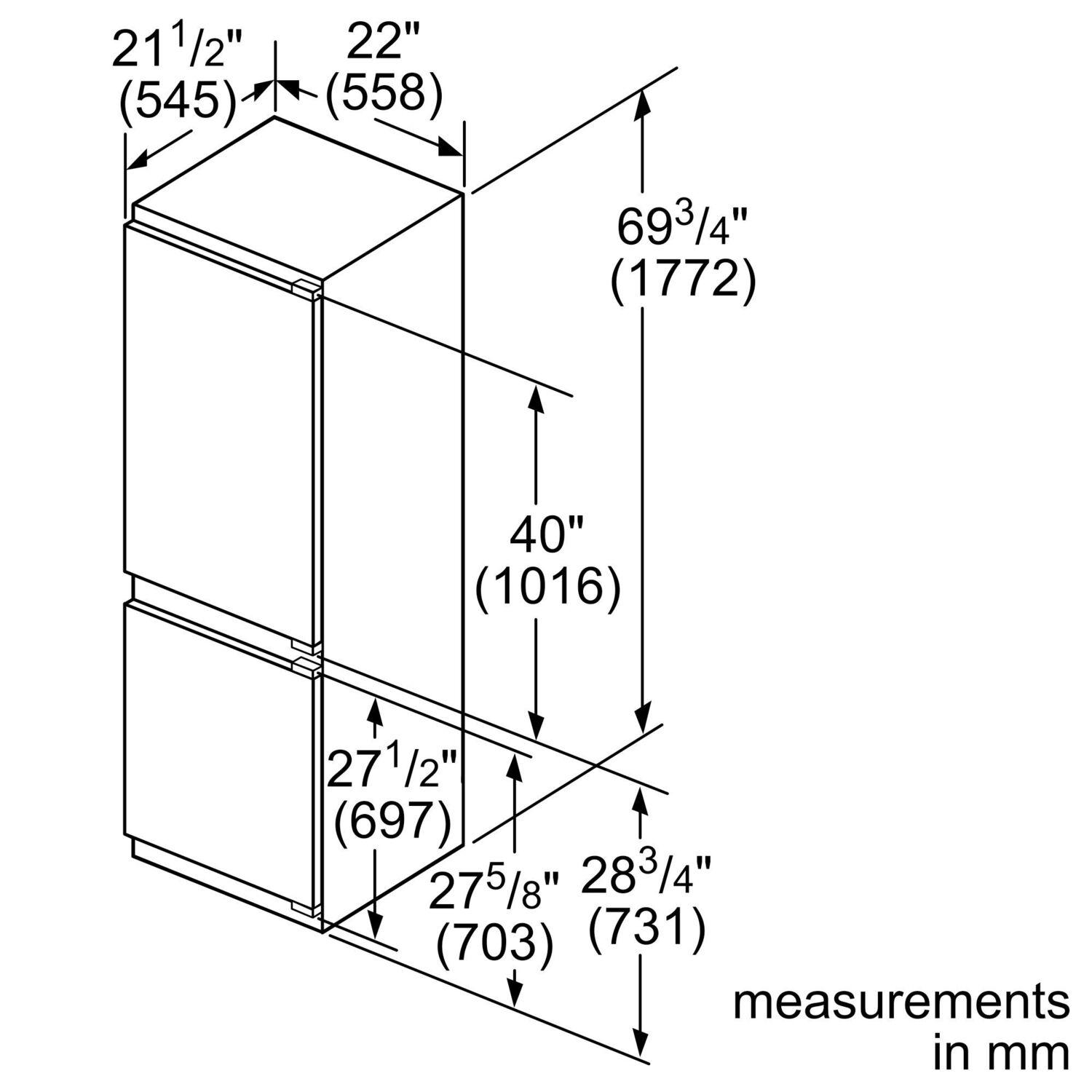

| Width of the appliance | 558 mm |
| Appliance Width (in) | 22 |
| Height of the appliance | 1,772 mm |
| Height | 69 3/4 |

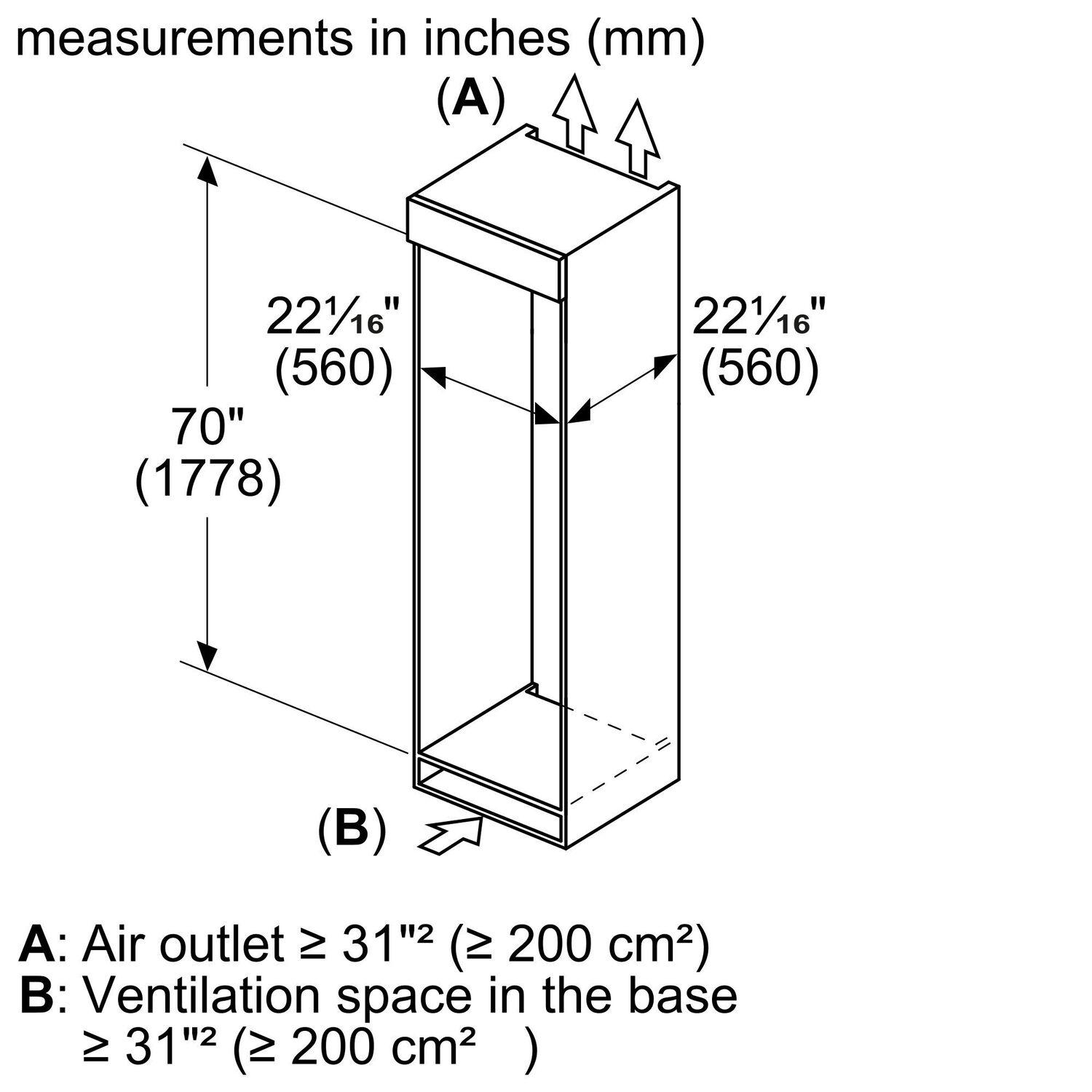

| Min. required cutout size (HxWxD) | 1775.0 x 560 x 550 mm |
| Required Cutout Size (HxWxD) (in) | 70 " x 22 1/16" x 22 1/16 |
| Freezer Net capacity | 67 l |
| Silence Level | 36 dB(A) re 1pW |
| Door Options | Right Reversible |
| Shelf Material - Refrigerator | Safety glass |
| Shelves for Bottles | No |
| Power cord length | 230.0 cm |
| Power Cord Length | 90 1/2 " |
| Included Accessories | 2 x cold accumulator, 3 x egg tray, 2 x ice cube tray, 1 x bottle holder in door tray |
| Connectivity | |
| Home Connect™ | |
| Home Connect Features | Remote Monitoring and Control |
| Camera | No |
| Size and weight | |
| Depth of the product | 545 mm |
| Depth (in) | 21 1/2 |
| Height of the appliance | 1,772 mm |
| Height | 69 3/4 |
| Min. required cutout size (HxWxD) | 1775.0 x 560 x 550 mm |
| Required Cutout Size (HxWxD) (in) | 70 " x 22 1/16" x 22 1/16 |
| Net Weight | 65.7 kg |
| Net Weight | 145.000 lbs |
| Width of the appliance | 558 mm |
| Appliance Width (in) | 22 |
| Cooling | |
| Number of shelves in fridge compartment | 3 |
| Number of Adjustable Shelves | 2 |
| Number of Refrigerator Door Bins | 1 |
| Light Wattage - Refrigerator | LED |
| Freezing | |
| Star Rating | 4 |
| Freezing drawers (Stck) | 3 |
| Number of freezing flaps (Stck) | 0 |
| Comfort | |
| SuperCool | Yes |
| superFreezing | Yes |
| Low frost | No |
| VarioZone | Yes |
| easyAccess shelves | No |
| EcoMode | No |
| Basic touch control | No |
| Vario shelf | Yes |
| Extremely silent appliances | Yes |
| Freshness system | VitaFresh Pro |
| Connection | |
| Watts | 90 W |
| Power cord length | 230.0 cm |
| Power Cord Length | 90 1/2 " |
| Fuse protection | 10 A |
| Frequency | 60 Hz |
| Plug type | 120V-3 prong |
| Volts | 110-120 V |

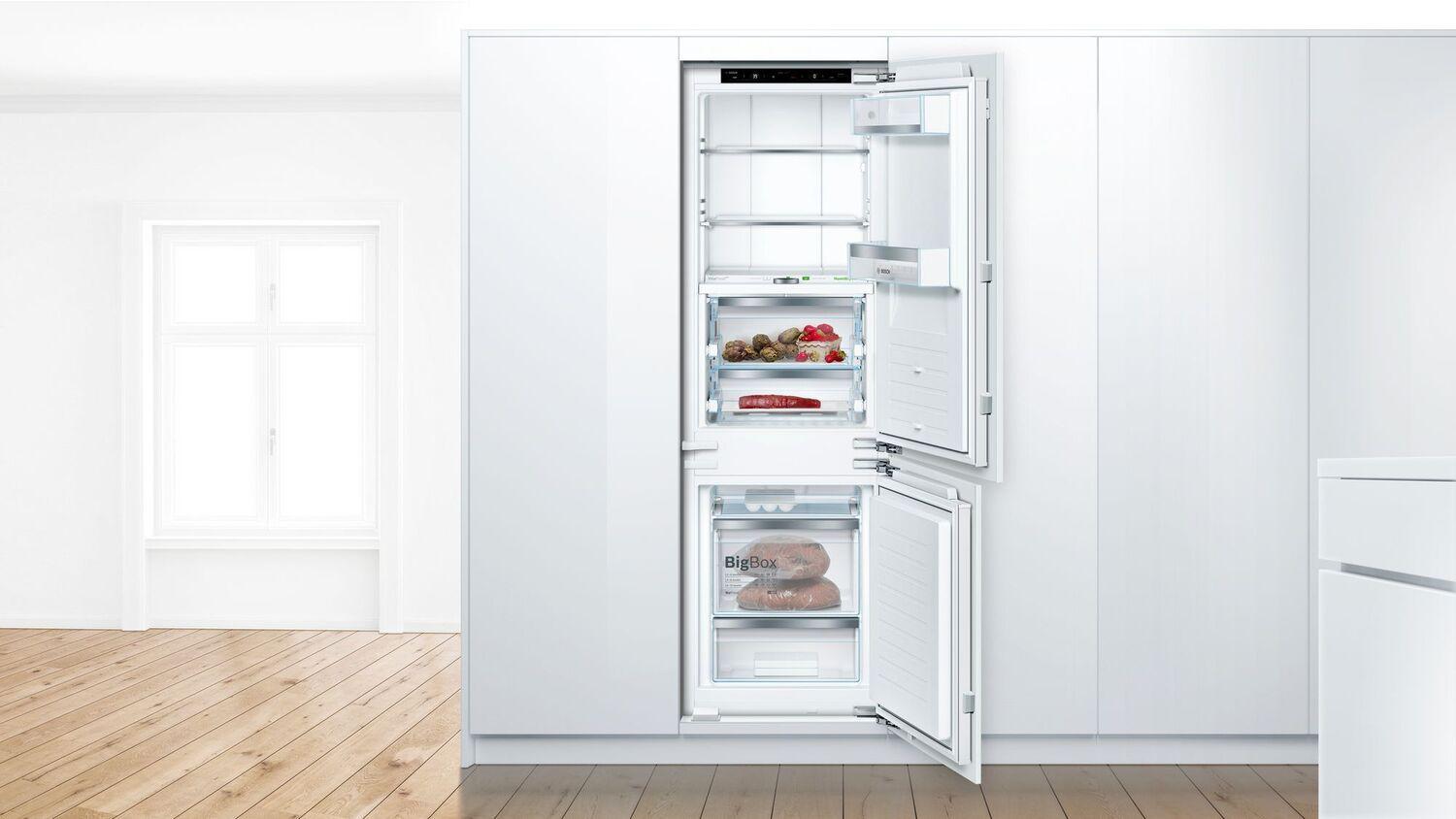

The 24 Custom Panel Bottom Freezer Refrigerator, with Home Connect, provides smart solutions and the optimal freshness environment for small kitchen spaces. Remotely monitor and control your refrigerator with the Home Connect app, and receive helpful notifications to help you master your day, in your own way.
Image Features

ENERGY STAR(R) qualified
(P) ENERGY STAR(R) qualified for energy efficiency.(/P)
Features

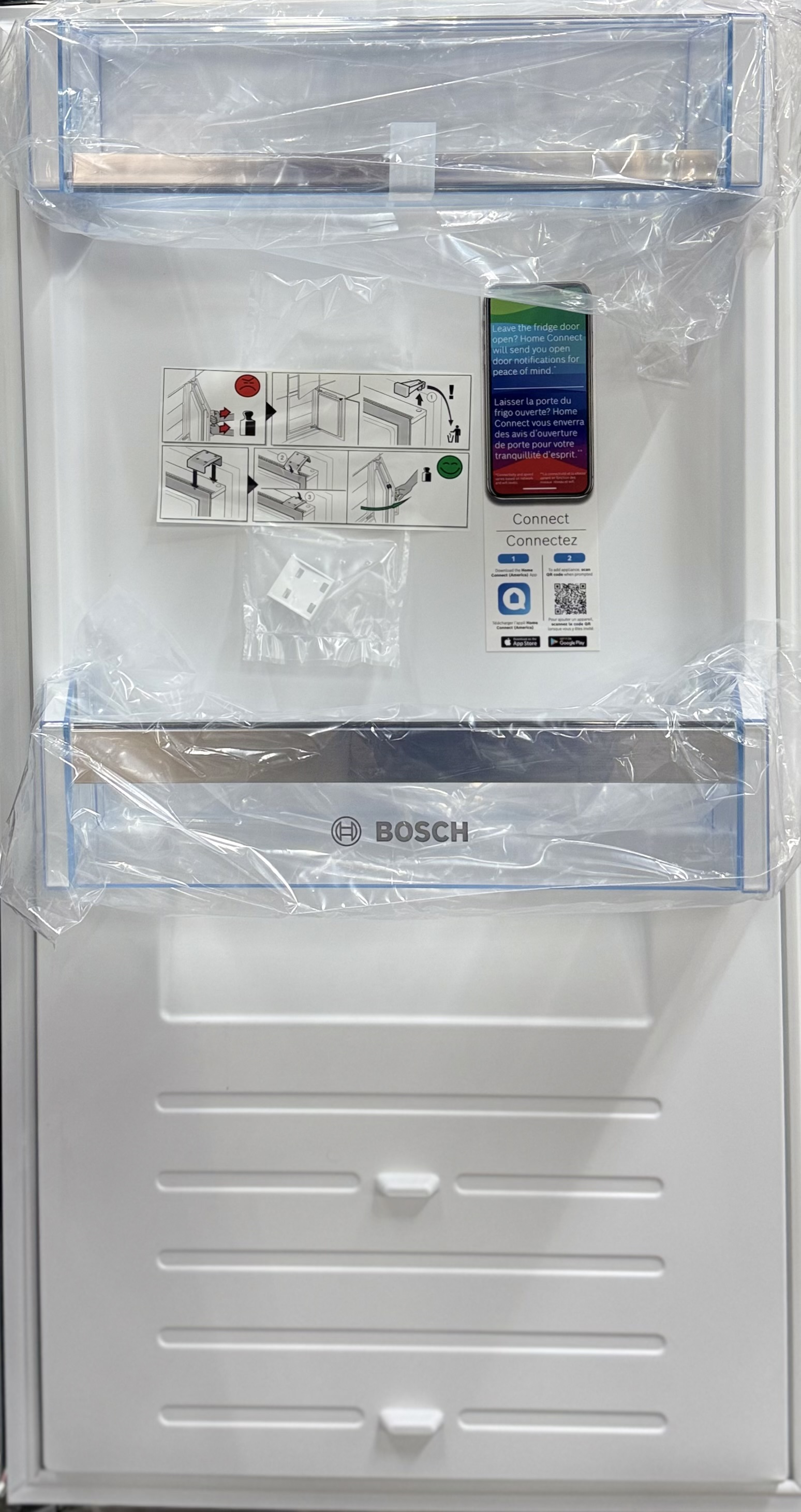

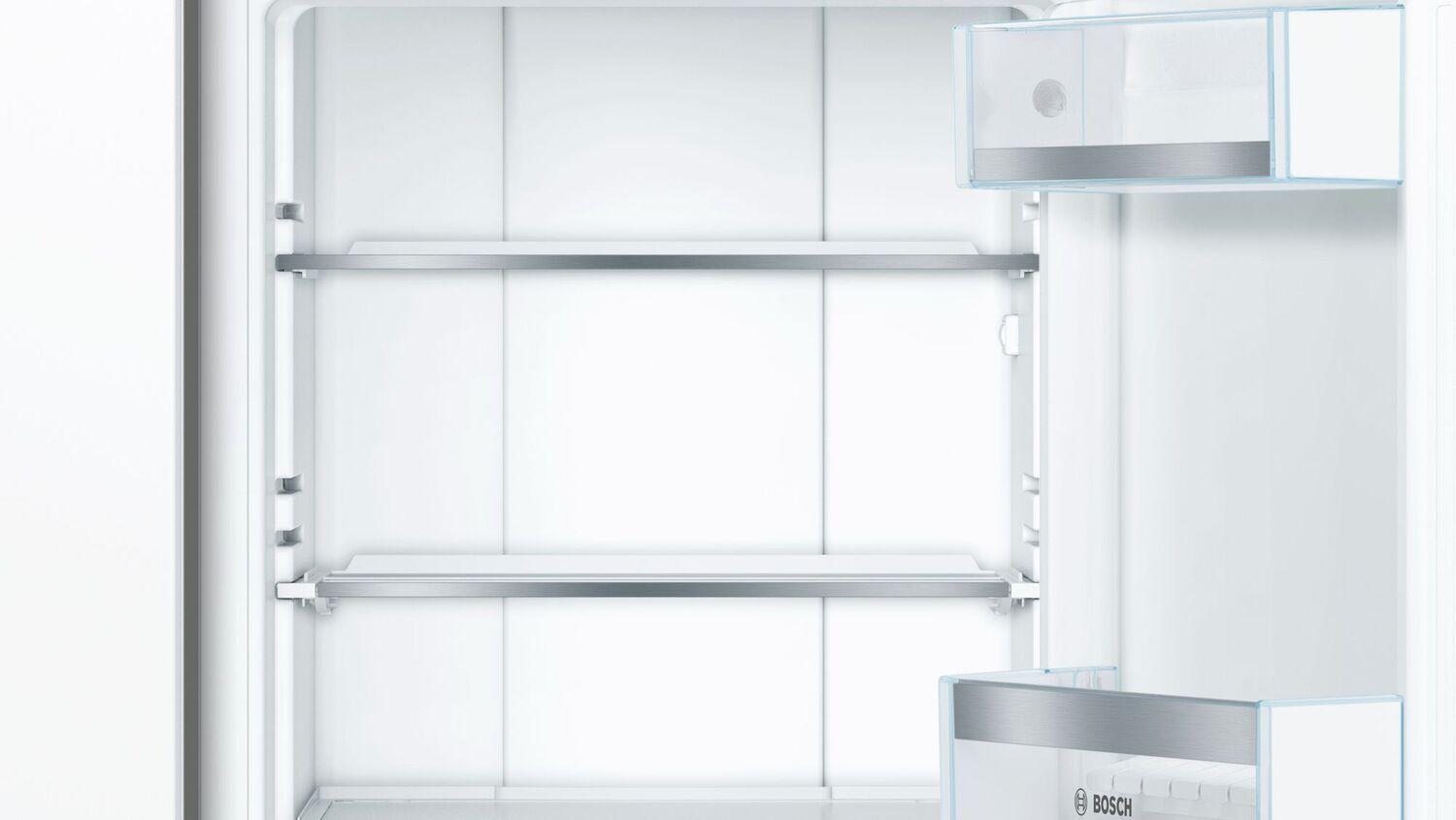

- Door bins offer additional storage, while a small items railing helps to keep items organized and clearly in view\
- 5.9 cu. ft. refrigerator capacity with 2.4 cu. ft. of freezer capacity

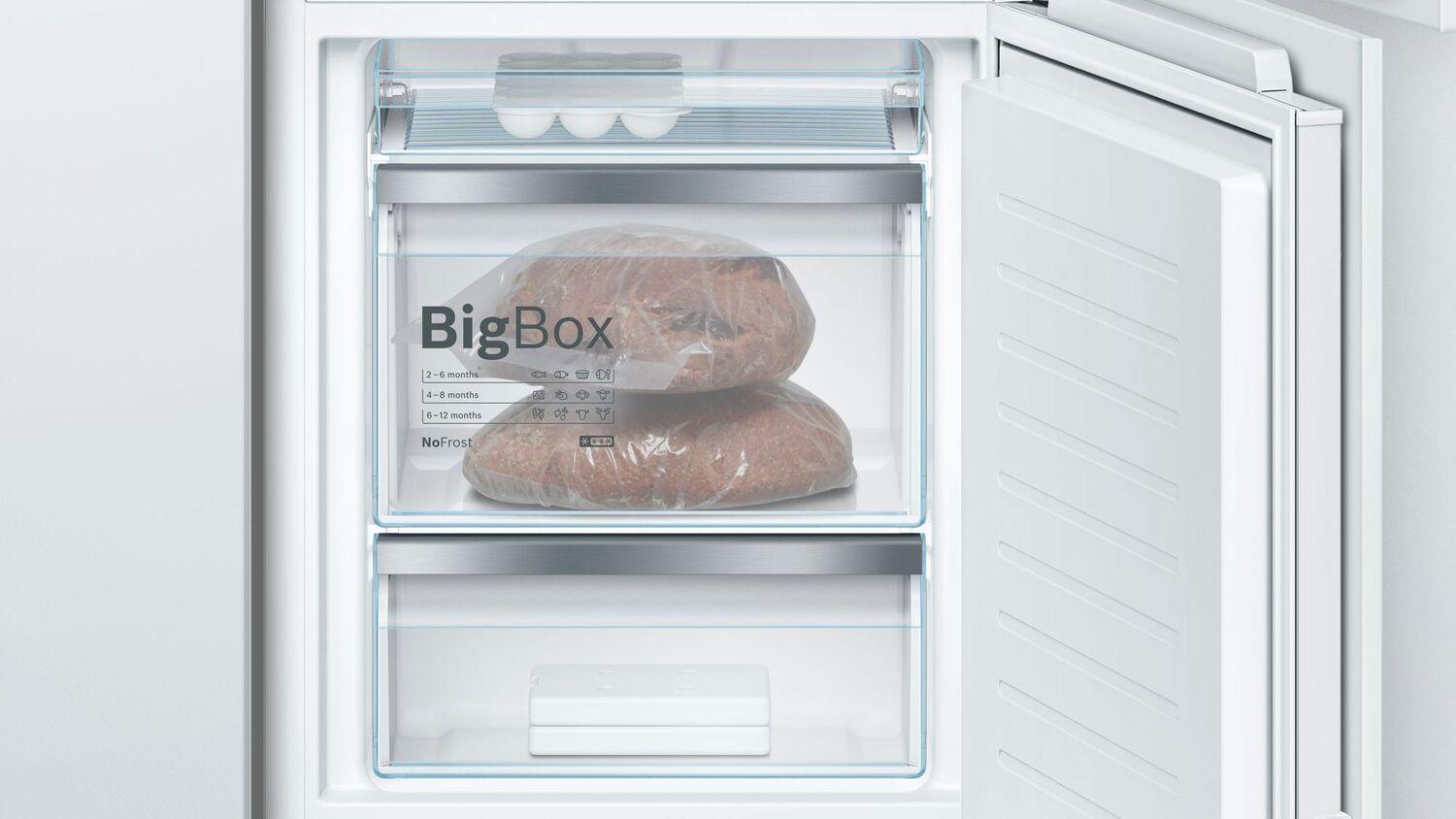

- Use the provided extra-deep freezer drawer to help organize frozen food, or remove the bin to offer additional storage space for larger items
- Connected refrigerator can notify you on your smart device if the temperature increases, in case the door didn't quite close all the way

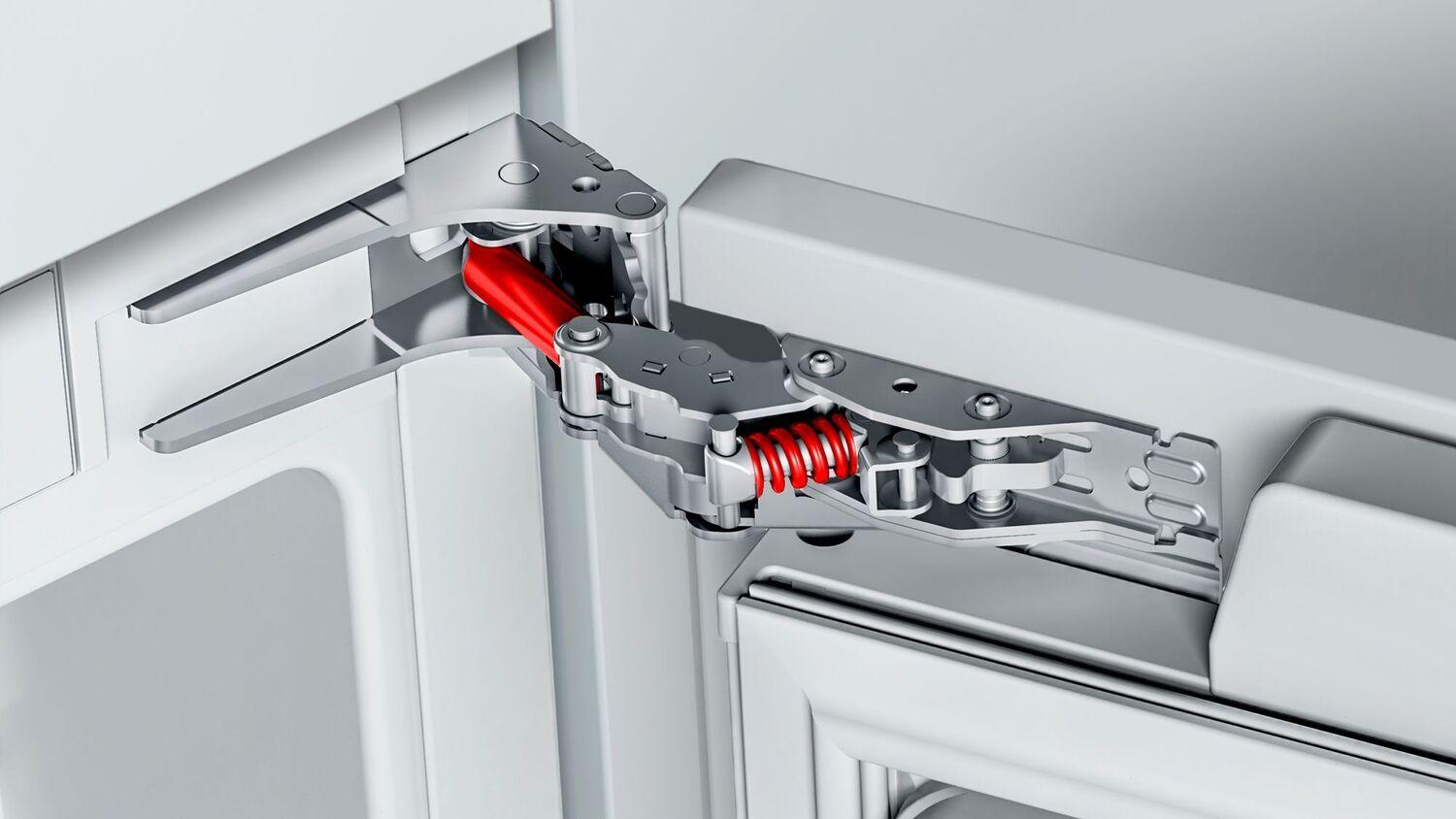

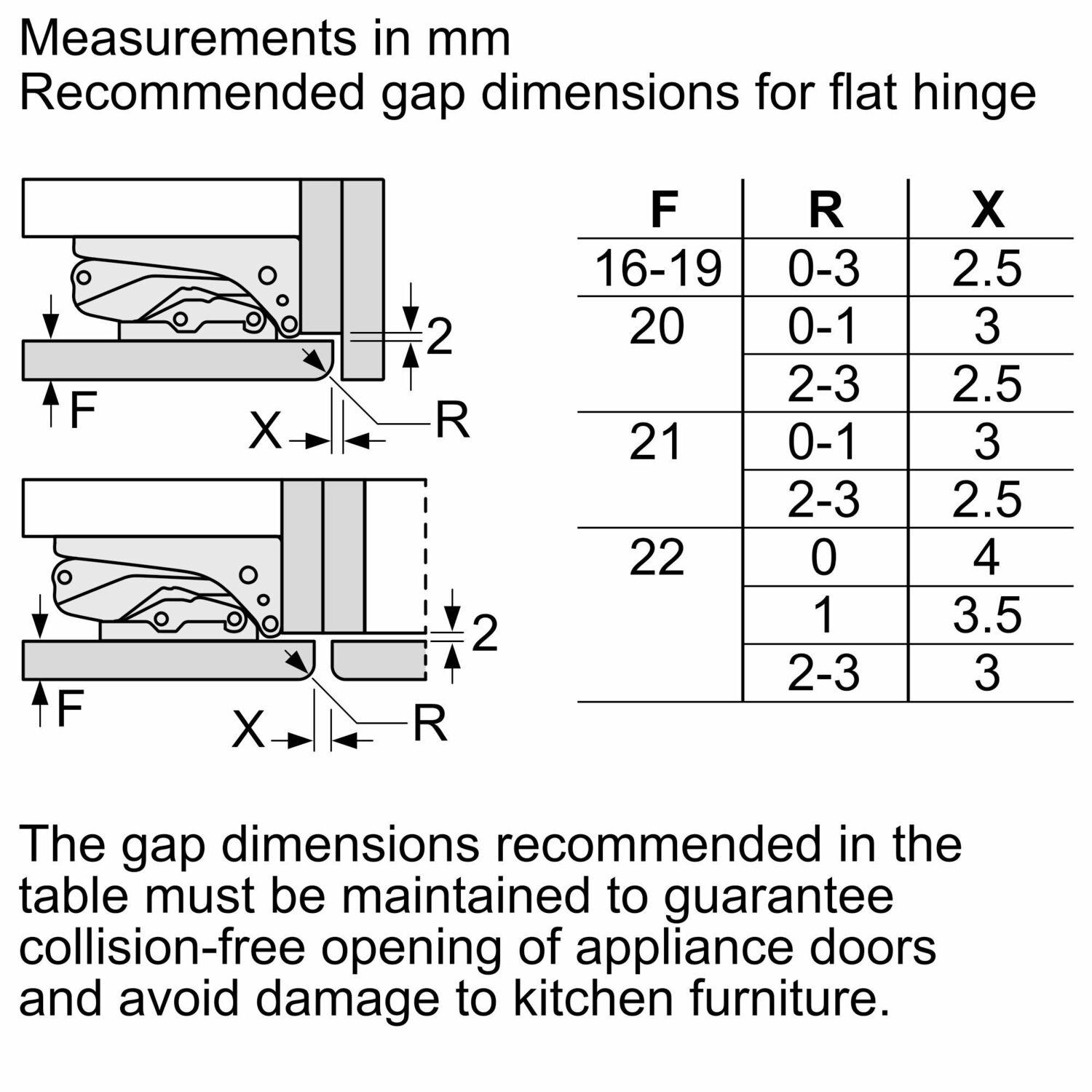

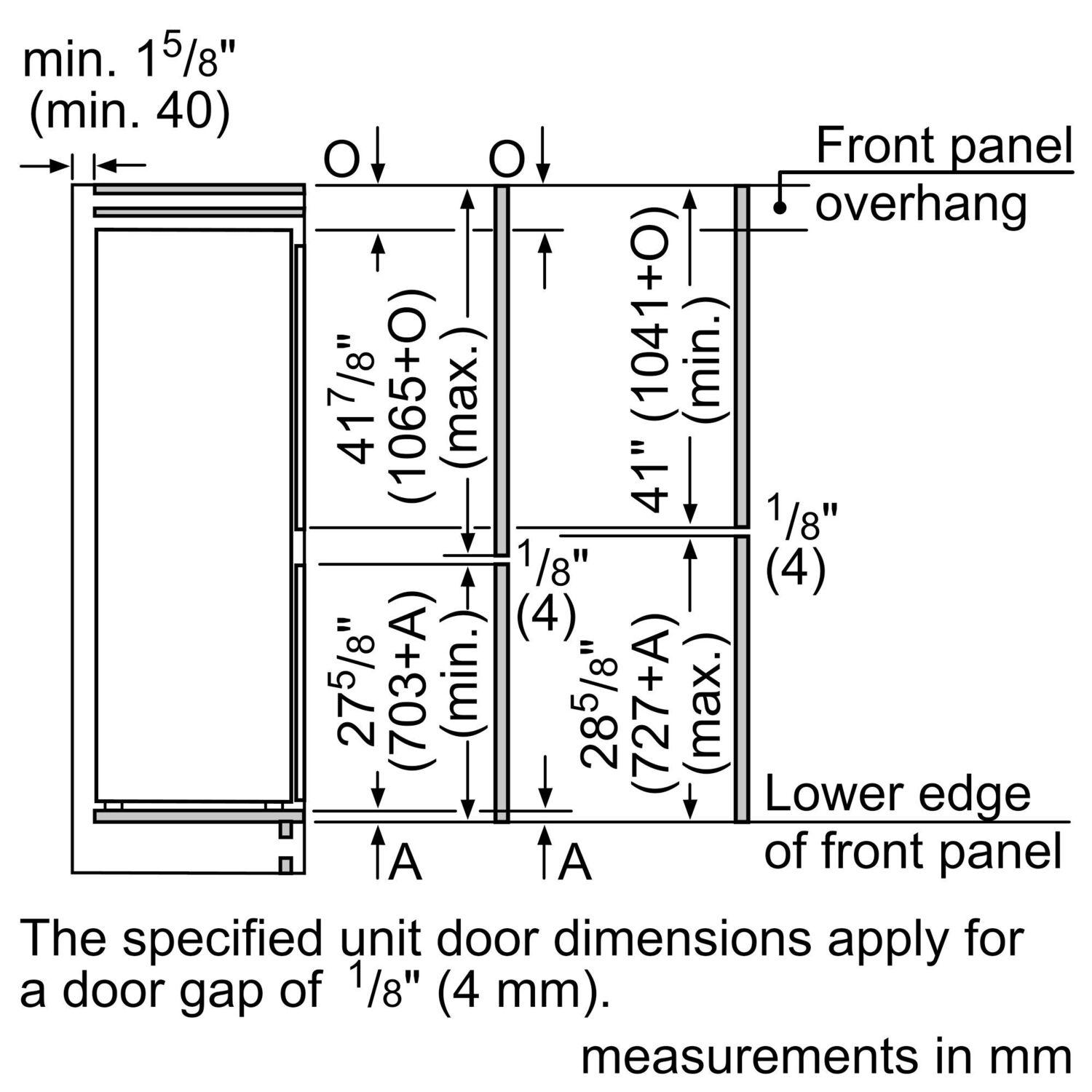

- Unique design of the OptiFlex hinge allows for a fully flush installation bringing a new level of sophistication to your kitchen
- Accepts easy to install custom panels (panels are not included)
- Bright LED lighting illuminates the entire interior

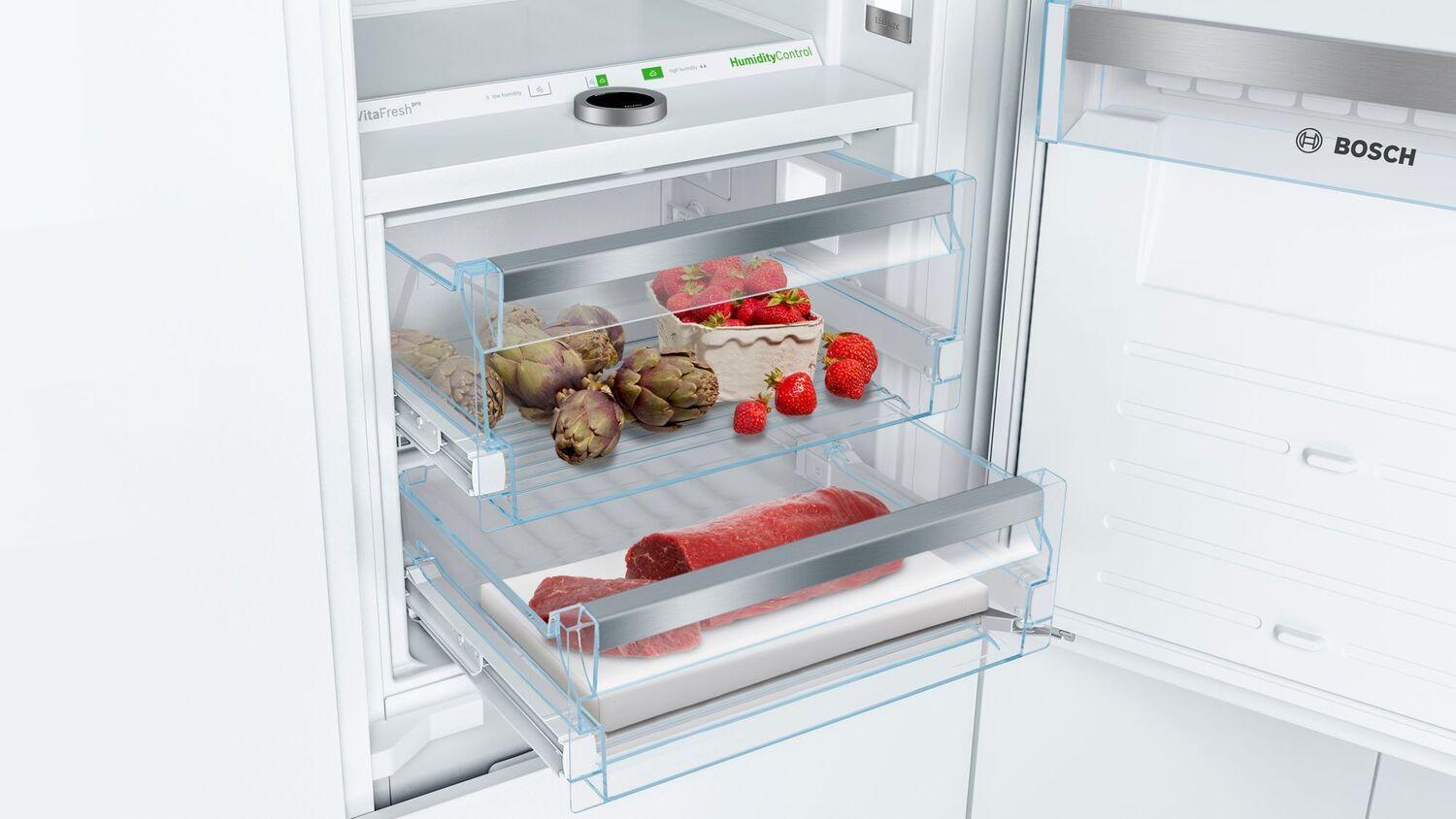

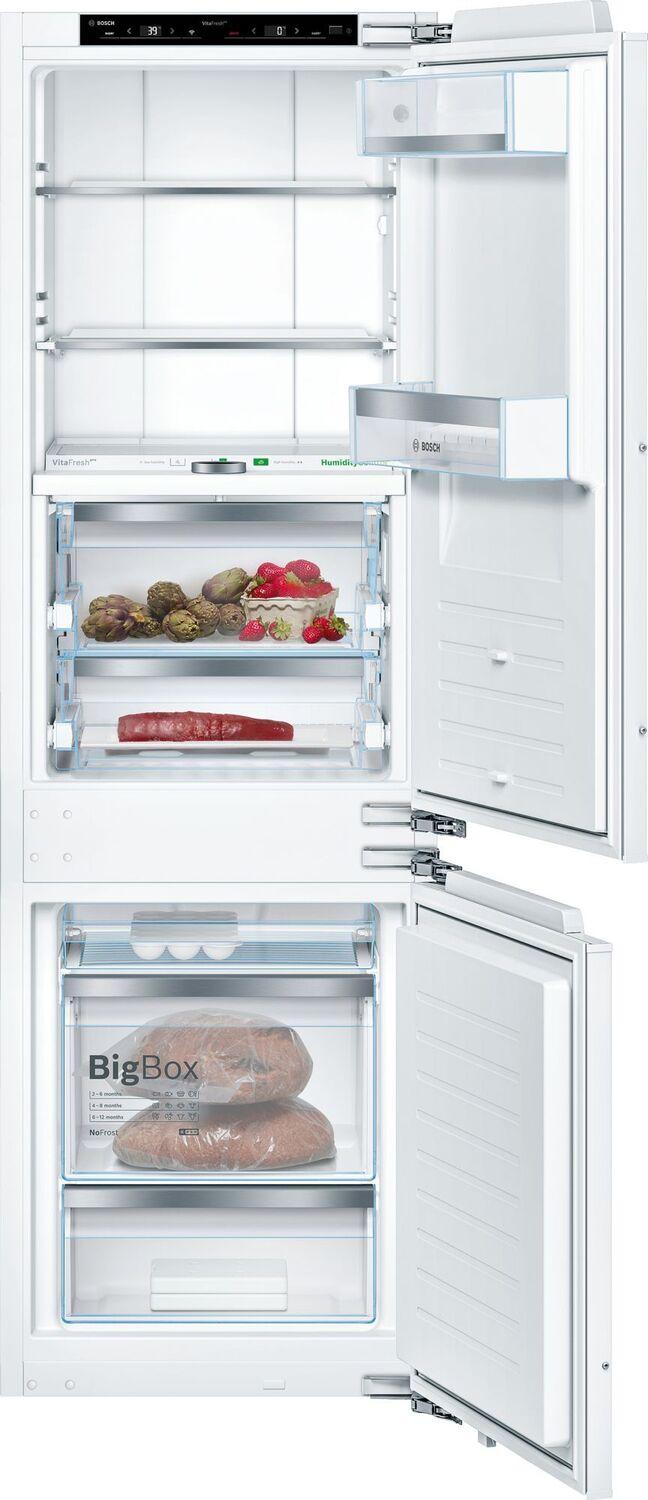

- Refrigerator compartment offers two drawers, and the freezer compartment offers three drawers
- Before stocking your freezer with new groceries, set it to SuperFreeze(R) to help new food freeze even faster.
- The Home Connect app offers useful storage tips, recipes, along with recommendations for the ideal temperature and humidity settings for a variety of food, making it easier to store your meat, produce and more in the optimal condition for extended freshness
Item Attributes
| Brand Code: | BOSCH |
|---|---|
| Part Number: | B09IB91NSP |
| GTIN14: | 825225955238 |
| Category Code: | Kitchen Appliances |
| Sub Category Code: | Kitchen Appliances / Refrigeration / Refrigerators |
BOSCH 800 Series 22-Inch Built-In Bottom-Freezer Refrigerator Panel Ready 8.3 Cu. Ft. - B09IB91NSP
- SKU-0000037067
- Model #B09IB91NSP
| Condition | New |
|---|---|
| Type | ![]() |
| Grade | D |
| Product Source | ![]() |

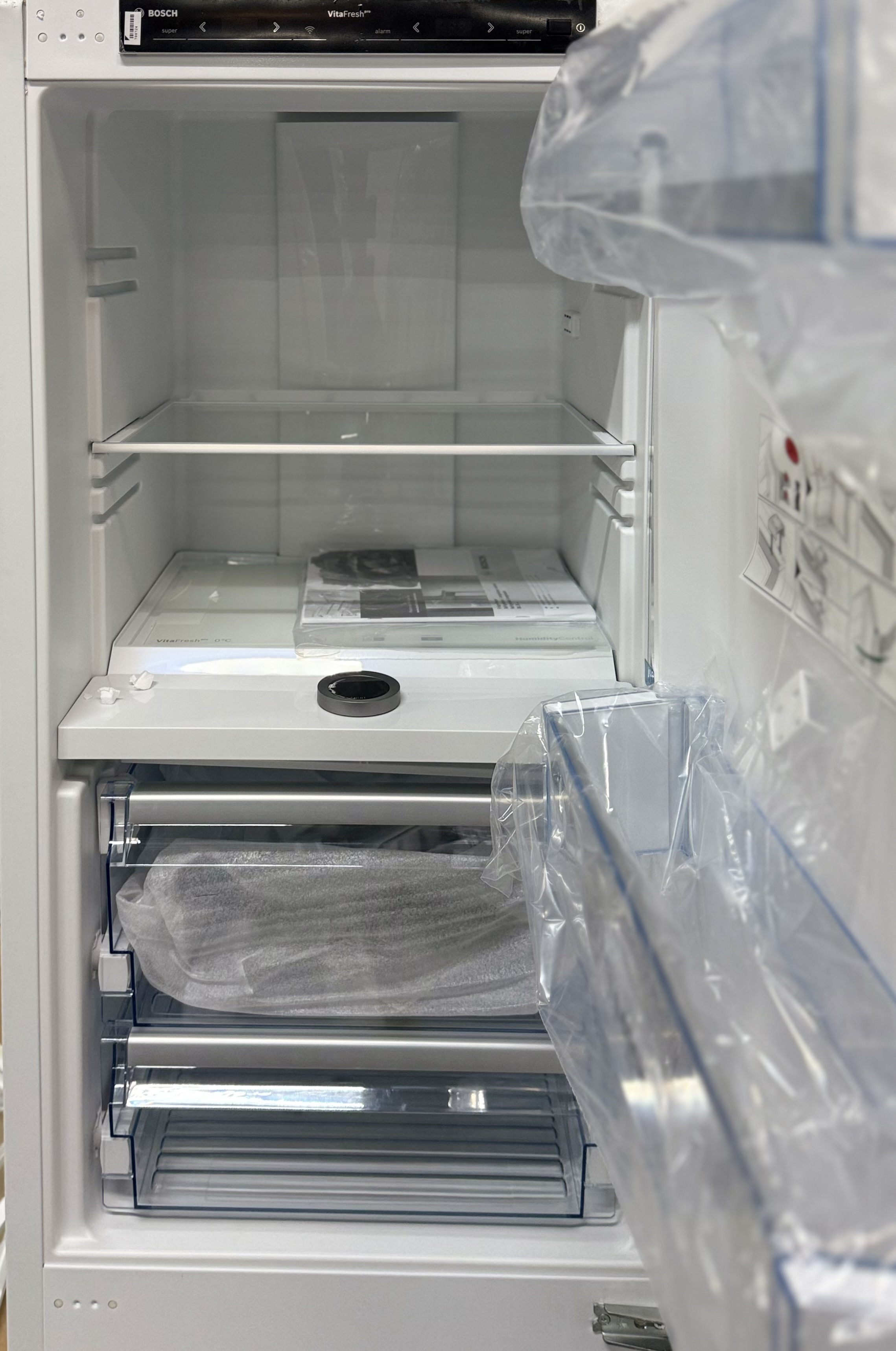

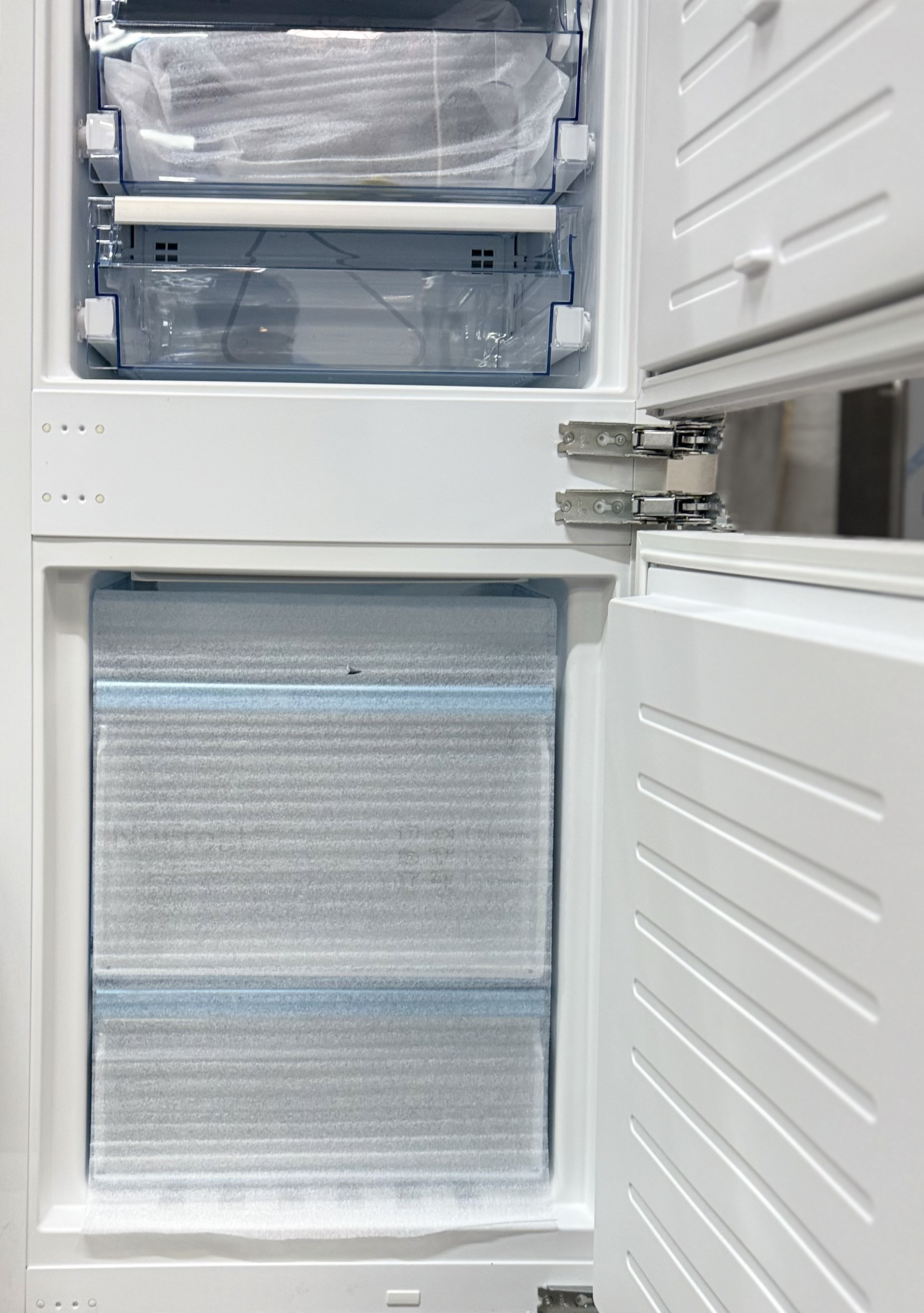

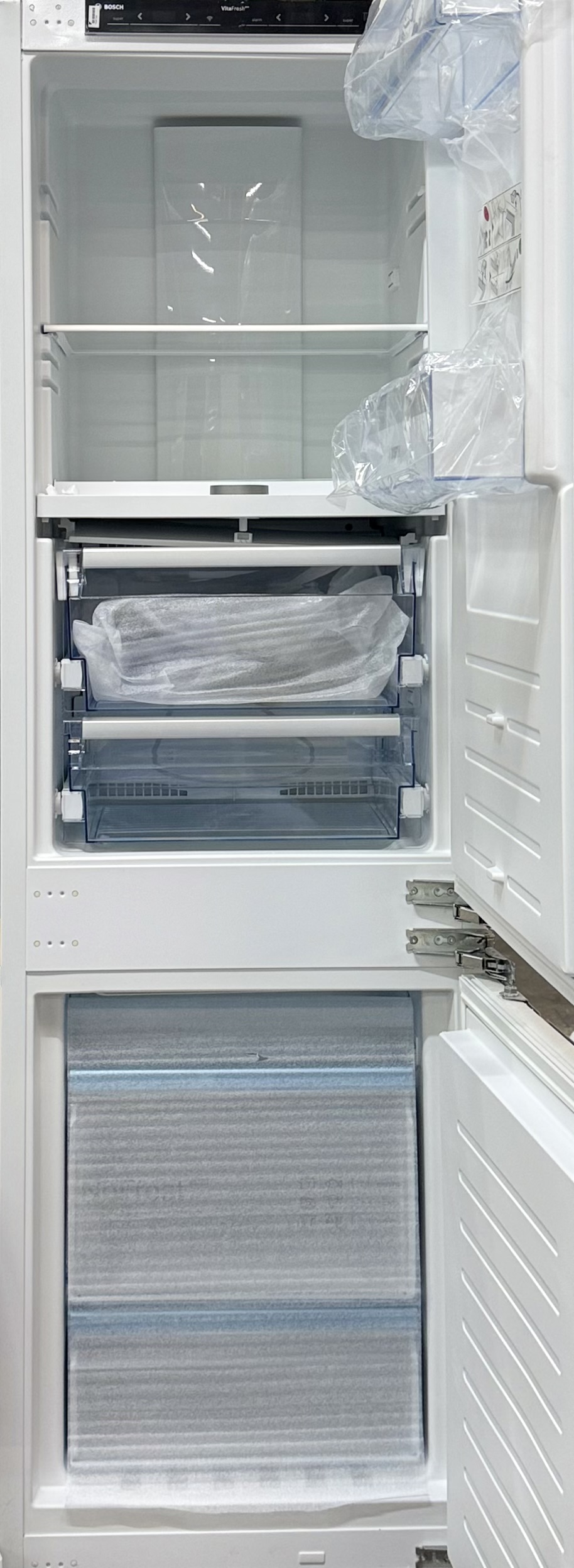

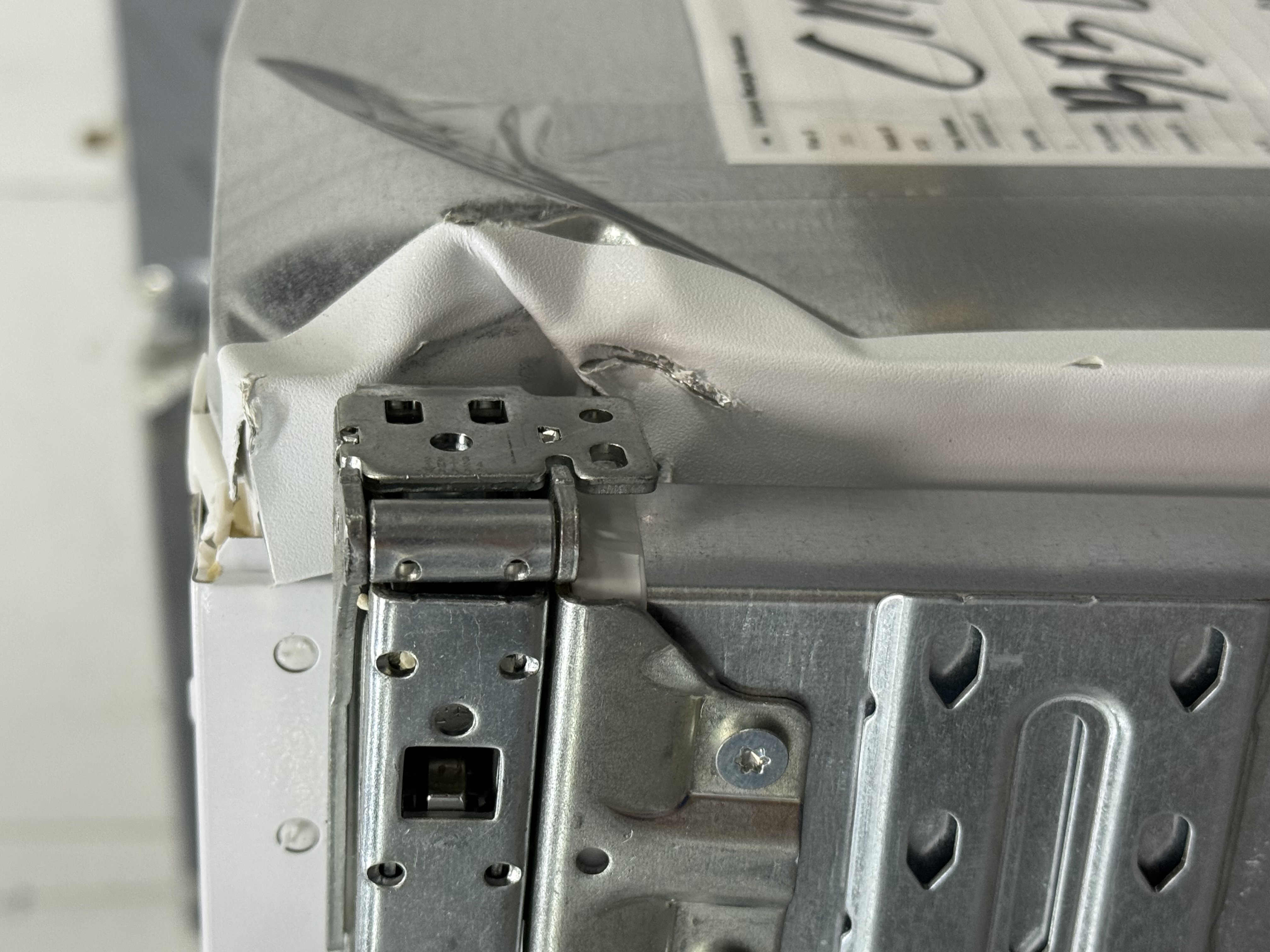

| Additional Info | Damage To Right Top Near Hinge | Does Not Effect Functionality | Inspected for full functionality. Cosmetic accessories and non-essential hardware from original packaging may not be included |
| Available Quantity | 1 |
7 DAY RETURNS ON ALL PRODUCTS
| Brand | BOSCH |
|---|---|
| Category | Kitchen Appliances / Refrigeration / Refrigerators |
| Model Number | B09IB91NSP |
| UPC/GTIN | 825225955238 |
| Capacity | 8.3000 |
| Color | Custom Panel Ready |
| Depth | 21 1/2 |
| Width | 21 31/32 |
| Height | 69 3/4 |
