Cafe (tm) Professional Series 30" Smart Built In Convection French Door Double Wall Oven CTD90FP2NS1
- SKU-0000031662
- Model #CTD90FP2NS1
| Condition | New |
|---|---|
| Type |  |
| Grade | B |
| Product Source |  |

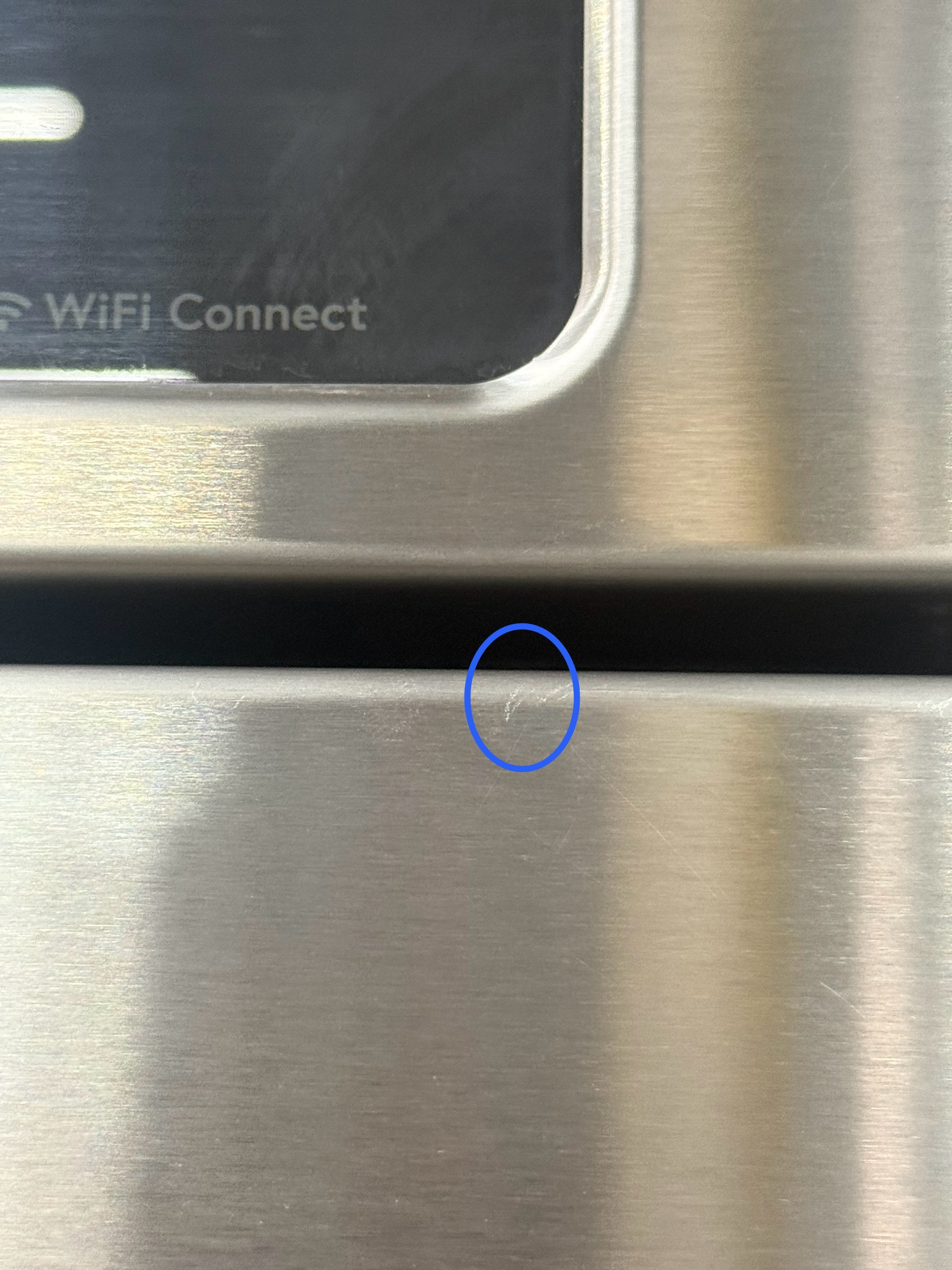

| Additional Info | Tiny Scratch Above Right Door | Minor Surface Scratches Above Control |
7 DAY RETURNS ON ALL PRODUCTS
| Brand | Cafe |
|---|---|
| Category | Cooking / Kitchen Appliances / Oven |
| Model Number | CTD90FP2NS1 |
| UPC/GTIN | 084691842187 |
| Capacity | 5.0000 |
| Color | Stainless Steel |
| Width | 29 3/4 |
| Height | 53 |
| CAPACITY | |
| Total Capacity (cubic feet) | 10 cu ft |
| Capacity (Cu. Ft.) | 5.0 Upper / 5.0 Lower |
| FILTER | |
| App Filter - Product Type | Wall Oven Double |
| App Filter - Control Type | Electronic touchpad |
| App Filter - WiFi Connect | Built-In |
| App Filter - Cooking Technology | Convection |
| App Filter - Cabinet Width | Cooking 30 in. (Standard) |
| App Filter - Fuel Type | Electric |
| App Filter - Convection | Yes |
| App Filter - Cleaning Type | Steam and Self-Clean |
| APPEARANCE | |
| Handle Color | Brushed Stainless |
| Installation | Above Warming Drawer Side-by-Side |

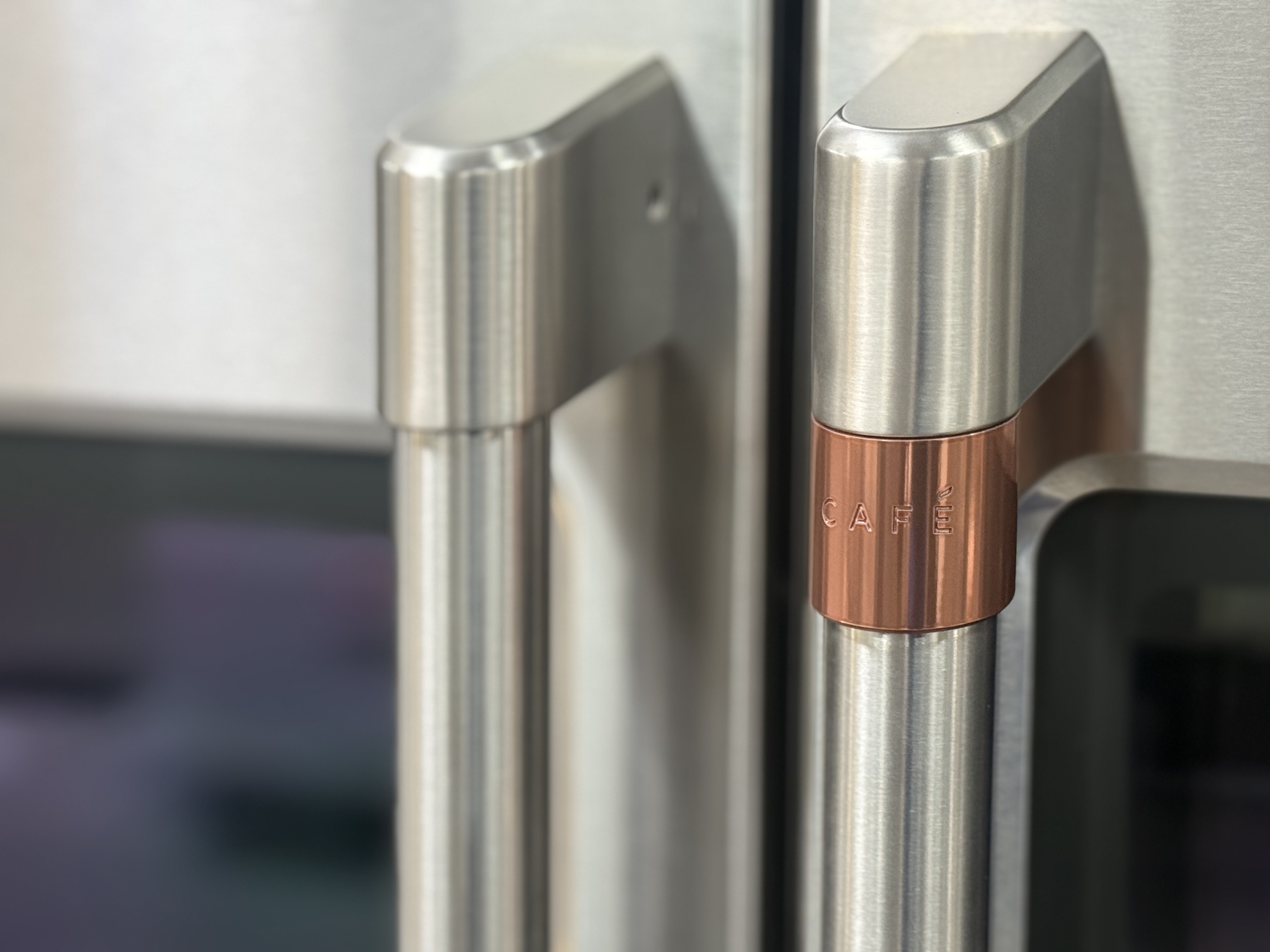

| Handle | CAFé™ Pro Style Customizable |
| Oven Door Features | Drop-Down (Lower) Dual Window French-Door (Upper) |
| Color Appearance | Stainless Steel |
| POWER / RATINGS | |
| Bake Wattage | 2850W |
| Electrical Requirements | 208/240V ; 60Hz ; 40A |
| Amp Rating at 208V | 40 |
| Hertz | 60 |
| Broiler Wattage | 4300W |
| Convection Wattage | 2400W |
| KW Rating at 240V | 9 |
| Amp Rating at 240V | 40 |
| KW Rating at 208V | 6.8 |
| WARRANTY | |
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| ACCESSORIES | |
| Air Fry Basket | Optional- JXAFTRAY1VSS |
| Optional Accessories | UXWORXR30 - 30" Never Scrub Roller Rack |
| Optional Kits | CXWDFHKPMBT Brushed Black CXWDFHKPMBZ Brushed Bronze CXWDFHKPMCG Brushed Brass CXWDFHKPMCU Brushed Copper CXWDFHKPMFB Flat Black CXWDFHKPMSS Brushed Stainless |
| WEIGHTS & DIMENSIONS | |
| Overall Depth | 26.75 in |
| Cabinet Width | 30 in |
| Oven Interior Dimensions (lower) | 25 x 17-3/8 x 20-1/4 |
| Overall Width | 29.75 in |
| Oven Interior Dimensions (upper) | 25 x 17-3/8 x 20-1/4 |
| Cutout Height (in) | 51.8125 in |
| Net Weight | 370 lb |
| Approximate Shipping Weight | 398 lb |
| Cutout Depth (in) | 23.5 |
| Depth with Door Open | 48.75 in |
| Overall Height | 53 in |
| Cutout Width (in) | 28.5 in |
| Cutout Dimensions (w x h x d) (in.) | 28-1/2 x 51-13/16 x 23-1/2 (with pedestal rails); 28-1/2 x 50-1/4 x 23-1/2 (without pedestal rails) |
| FEATURES | |
| Fuel Type | Electric |
| Oven Interior | 2 Halogen Interior Oven Lights (Both Ovens) Black Gloss Finish Hidden Bake |
| Oven Features | 10-Pass Bake Element 10-Pass Dual Broil Element Closed Door Broiling |
| Configuration | French Door |
| Product Type | Double Oven |
| Oven Rack Features | 2 Roller Racks (Upper) 1 Roller Rack and 1 Flat Rack (Lower) |
| Cooking Technology | Convection |
| Self-Clean Oven Door Lock | Automatic |
| Control Type | 7" Full-Color Touch LCD Screen |
| Connected Capabilities | Amazon Alexa Fresco Google Home IFTTT Innit Sonos The Google Assistant |
| Cooking System | True European Convection with Direct Air (Both Ovens) |
| Sabbath Mode | Yes |
| Oven Cooking Modes | Convection Bake Convection Bake Multi-Rack Convection Broil Hi/Lo Convection Roast No-Preheat Air Frying Precision Cooking Modes Proof Thermal Bake Thermal Broil Hi/Lo Turkey Mode Warming |
| OU Certified | No |
| Oven Cleaning Type | Self-Clean with Steam Clean Option |
| WiFi Connect | Built-In |
| Cleaning Time | Variable with Delay Clean Option |
| Oven Control Features | 12-Hour Shut-Off Capability Audible Preheat Signal Auto Recipe Conversion Control Lock Capability Cook Time C° or F° Programmable Delay Time Electronic Clock & Kitchen Timer Mis-Wire Detection Remote Enabled Sabbath Mode Scan-to-cook Temperature Probe |
Built-In WiFi, Powered by SmartHQ AppManage all aspects of your kitchen with the help of the SmartHQ(TM) App or your voice assistant (Select features require WiFi Connection) See detailsPersonalized Features + UpgradesUsher in the latest features by downloading cooking upgrades right to your oven, putting Air Fry and more in your repertoireProfessional design brought to lifeBring unparalleled sophistication to your kitchen with a French-door wall oven that exudes professional style and allows you to personalize the look with customizable handles and finishesFrench door design for more approachable accessBake with ease thanks to the purposeful French-door design, which allows you to open both doors using a single hand, and easily place food insidePrecision is the name of your cooking gameConfidently try new recipes and perfectly execute your favorites, using a smart system that automatically tracks progress, modifies temperatures and adjusts cook timesBrighten up life in the kitchenEasily navigate settings using a stunning full color display that adds an unexpected touch of style to your kitchen, including custom screen backgrounds and weather updatesThe perfect bake is now perfectly easyAchieve unrivaled performance with the only system that delivers top-down true convection for consistent results on special occasion favorites like roasts, chicken, turkey and moreEnjoy convenient temperature control from anywherePreheat while running errands or change oven temperatures while doing yard work with the CAF(EBACK)(TM) Appliances Kitchen appFried taste. Crisp texture. Less oil.Make your favorite “fried” foods healthy, thanks to Air Fry that crisps without using oil for fryingCreate a look that matches your personal styleSelect any combination of premium finishes and hardware options to create a stunning look customized to any owner’s tasteNo preheat, no hassleSave time with a variety of precision cooking modes that eliminate the need for preheatingThe oven rack that handles it allEasily remove heavy dishes with a roller rack that is specially designed to glide smoothlyThe perfect fit you’ve always dreamed ofWhen you’re updating your kitchen, attention to detail is a priority. That’s why CAF(EBACK)(TM) wall ovens are guaranteed for an exact fit or CAF(EBACK)(TM) Appliances will pay up to $300 toward modifications.Clean up has never been easierKeep your oven looking like new at all times with a steam clean option for small spills and a self clean cycle for larger messesPrepare foods to perfect donenessGet roasts and meats just right with a temperature probe that lets you monitor progress on the wall oven screen, eliminating the need to open the oven door during cooking
Image Features
Built-In WiFi, Powered by SmartHQ App
Manage all aspects of your kitchen with the help of the SmartHQ(TM) App or your voice assistant (Select features require WiFi Connection) See details
Personalized Features + Upgrades
Usher in the latest features by downloading cooking upgrades right to your oven, putting Air Fry and more in your repertoire
Professional design brought to life
Bring unparalleled sophistication to your kitchen with a French-door wall oven that exudes professional style and allows you to personalize the look with customizable handles and finishes
French door design for more approachable access
Bake with ease thanks to the purposeful French-door design, which allows you to open both doors using a single hand, and easily place food inside
Precision is the name of your cooking game
Confidently try new recipes and perfectly execute your favorites, using a smart system that automatically tracks progress, modifies temperatures and adjusts cook times
Brighten up life in the kitchen
Easily navigate settings using a stunning full color display that adds an unexpected touch of style to your kitchen, including custom screen backgrounds and weather updates
The perfect bake is now perfectly easy
Achieve unrivaled performance with the only system that delivers top-down true convection for consistent results on special occasion favorites like roasts, chicken, turkey and more
Fried taste. Crisp texture. Less oil.
Make your favorite "fried" foods healthy, thanks to Air Fry that crisps without using oil for frying
Enjoy convenient temperature control from anywhere
Preheat while running errands or change oven temperatures while doing yard work with the Cafe Appliances Kitchen app
The oven rack that handles it all
Easily remove heavy dishes with a roller rack that is specially designed to glide smoothly and stay in the oven during the self-clean cycle, so you never have to handle cumbersome racks again
The perfect fit you've always dreamed of
When you're updating your kitchen, attention to detail is a priority. That's why Caf(eback) wall ovens are guaranteed for an exact fit or Caf(eback) Appliances will pay up to $300 toward modifications.
Clean up has never been easier
Keep your oven looking like new at all times with a steam clean option for small spills and a self clean cycle for larger messes
Prepare foods to perfect doneness
Get roasts and meats just right with a temperature probe that lets you monitor progress on the wall oven screen, eliminating the need to open the oven door during cooking
Features
- Built-In WiFi, Powered by SmartHQ App
- Personalized Features + Upgrades
- Professional design brought to to life
- French door design for more approachable access
- Precision is the name of your cooking game
- Brighten up life in the kitchen
- The perfect bake is now perfectly easy
- Enjoy convenient temperature control from anywhere
- Fried taste. Crisp texture. Less oil.
- Create a look that matches your personal style
- No preheat, no hassle
- The oven rack that handles it all
- The perfect fit you've always dreamed of
- Clean up has never been easier
- Prepare foods to perfect doneness
Item Attributes
