0 people are viewing this product
| Warranty | 3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com |
| Fracci n arancelaria | 8414600100.00 |
| SHIPPING WEIGHT (kg) | 22.00 |
| NET WEIGHT (kg) | 17.02 |
| CARTON LENGHT (mm) | 870.00 |
| CARTON HEIGHT (mm) | 673.00 |
| CARTON WIDTH (mm) | 458.00 |
| VOLUMEN (M3) | 0.23 |
| SHIPPING WEIGHT (lb) | 48.50 |
| NET WEIGHT (lb) | 37.48 |
| CARTON LENGHT | 34.25 |
| CARTON HEIGHT | 26.50 |
| CARTON WIDTH | 18.03 |
| COUNTRY OF MANUFACTURE | MX |
| QTY PACKAGE | 1.00 |
| INTENDED APPROVED USE | Residential use |
| Finish | Stainless Steel |
| Material | Stainless Steel |
| Color | inox |
| Type of Ventilation | Convertible |
| HOODS FEATURES | 3x layer mesh, Led light, CFM reduction system |
| WIDTH (IN) | 30" |
| WIDTH (CM) | 76.00 |
| AIRFLOW (M3/H) | 680.00 |
| CFM (MAX) | 400.00 |
| db (min) | 14.70 |
| db (max) | 53.00 |
| SONES | 0.4 - 5.9 |
| EXHAUST VERSION | Convertible with Kit |
| EXHAUST SIZE | Round 6" |
| DUCT SHAPE | Round |
| EXHAUST LOCATION | Top Only |
| RECTANGULAR DUCTH HEIGHT | NA |
| RECTANGULAR DUCT WIDTH | NA |
| Round duct diameter | 6" |
| ELECTRIC (VOLTS) | 120.00 |
| AMPERAGE | 2.5 A |
| HERTZ | 60.00 |
| WATTS | 265.00 |
| LIGHTING | LED 2 x 2.1 ww 3000 KK |
| BULB TYPE | LED |
| BULB INCLUDED | YES |
| NUMBER OF LIGHTS | 2.00 |
| BULB WATTS | 2.10 |
| KELVINS | 3000.00 |
| GREASE FILTER TYPE | Dishwasher-Safe, Anodized Aluminum Mesh Filter |
| DISHWASHERSAFE FILTER | YES |
| FILTER MATERIAL | Aluminum Mesh |
| BLOWER TYPE | Interior Unit |
| CONTROL TYPE | Electronic Touch Controls with Adjustable Color Backlight |
| SPEED CONTROL | YES |
| NUMBER OF SPEEDS | 4.00 |
| REMOTE CONTROL | NO |
| POWER SOURCE | Hardwired |
| OUTDOOR USE | NO |
| SMUDGE RESISTANT | NO |
| PANEL READY | NO |
| RECIRCULATION KIT NEEDED | YES |
| CFM REDUCTION | YES |
| DIMENSIONS (CM) | 76 cm x 69 cm x76 |
| DIMENSIONS (INCH) | 30 x 19 11/16" x 21 7/ |
| ADJUSTABLE HEIGHT | YES |
| Overall Height - Top to Bottom | 21 7/ |
| Overall Width - Side to Side2 | 30" |
| Overall Depth - Front to Back | 19 11/16" |
| Hood Height | 1 5/8" |
| Min - Max Compatible Ceiling Height (Cover electronic cooking) | 6'11" |
| Min - Max Compatible Ceiling Height ( Cover gas cooking) | 8'11" |
| Minimum Height Above Cooktop (ELECTRIC) | 24 |
| Minimum Height Above Cooktop (GAS) | 30 |
| Maximum Height Above Cooktop | 36" |
| Chimney Width - Side to Side | 13" |
| Chimney Depth - Front to Back | 10 3/4" |
| Chimney Height - Top to Bottom | 33 3/8 |
| RECIRCULATION KIT | NA |
| Long Life Recirculating Carbon Filter | NA |
| Recirculation (400 CFM) 2 round carbon filters | NA |
| Recirculation (400 CFM) Contains 6 deflector & 3 carbon filters | NA |
| Recirculation (600 CFM) Contains 6 deflector, 3 flat carbon filters & clips | NA |
| Recirculation (600 CFM) Contains 6 deflector & 2 carbon filters | KIT0184663 |
| Recirculation (600 CFM) 2 round carbon filters | NA |
| Recirculation (600 CFM) 4 round carbon filters | NA |
| Recirculation (600 CFM) 6 round carbon filters | NA |
| Recirculation (600 CFM) 6 round Deflector | NA |
| Recirculation (1200 CFM) 4 round deflector | NA |
| Recirculation (1200 CFM) 4 round carbon filters | NA |
| Recirculation (1200 CFM) (8 round deflector) | NA |
| Long Chimney Ext/Chimney extension | NA |
| Chimney extension Can reach 8 8 - 12 4 (ducted), 9 0 -12 8 (recirculating) | NA |
| Chimney extension Can reach 7 9 - 10 9 (ducted), 8 1 -11 1 (recirculating) | NA |
| Chimney extension Reaches ceiling heights 8 5 -12 1 (ducted), 9 1 -12 5 (recirculating) | KIT02785 |
| Chimney extension Reaches ceiling heights 7 5 -10 3 (ducted), 8 2 -10 11 (recirculating) | KIT01935 |
| Long Chimney Extension(6 ) | NA |
| Long Chimney Extension(11 ) | NA |
| Long Chimney Extension(12 ) | NA |
| Long Chimney Extension(13 ) | NA |
| Long Chimney Extension (6 with grates) | NA |
| TELESCOPIC DUCT COVER | - |
| DUCT TRANSITION | - |
| TRANSITION REDUCER KIT 10 round down to 8 round - attaches to 10 round transition | - |
| BACKDRAFT DAMPER | - |
| NON RETURN VALVE | - |
| UPGRADE FILTER | GF04YB |
| RECIRCULATION DUCT COVERS | NA |
| RECIRCULATION DEFLECTOR | NA |
| RECIRCULATION FILTERS | NA |
| CFM REDUCTION KIT | - |
| BACKSPLASH KIT | - |
| INTERNAL BLOWER | - |
| INLINE BLOWER | - |
| EXTERNAL BLOWER | - |
| INLINE BLOWER SHELL KIT (600 CFM) | - |
| INLINE BLOWER SHELL KIT (1200 CFM) | NA |
| EXTERNAL BLOWER SHELL KIT | - |
| HEAT LAMPS | - |
| SPACER/LINER | - |
| Hood Liner for 30 | NA |
| Hood Liner for 36 | NA |
| Hood Liner for 48" | NA |
| WALL MOUNT BRACKET | - |
| HIGH CEILING EXTENSION KIT | - |
| REMOTE CONTROL KIT | - |
| Duct cover extension 6 | NA |
| Duct cover extension 18 | NA |
| ELECTRONIC CFM | NA |
| REDUCTION BYPASS | NA |
| ETL | YES |
| UL listed | YES |
| AHAM verified | YES |
| TITLE 24 | YES |
| Prop65 Disclosure | YES |
| ENERGY STAR | NO |
| WIFI CAPABLE | NO |
| COMERCIAL USE APPROVED | NO |
| ADA COMPLIANT | NO |
| APP CAPABLE | NO |
| VENTILATION DIRECTION | HORIZONTAL |
| SMART COMPATIBLE | NO |
| FITLER INDICATOR LIGHT | NO |
| HEAT SENSOR | NO |
| CHAROCAL FILTER | YES |
| VERSION ADVANCES | Button change |
| NOM CERTIFICATION | NA |

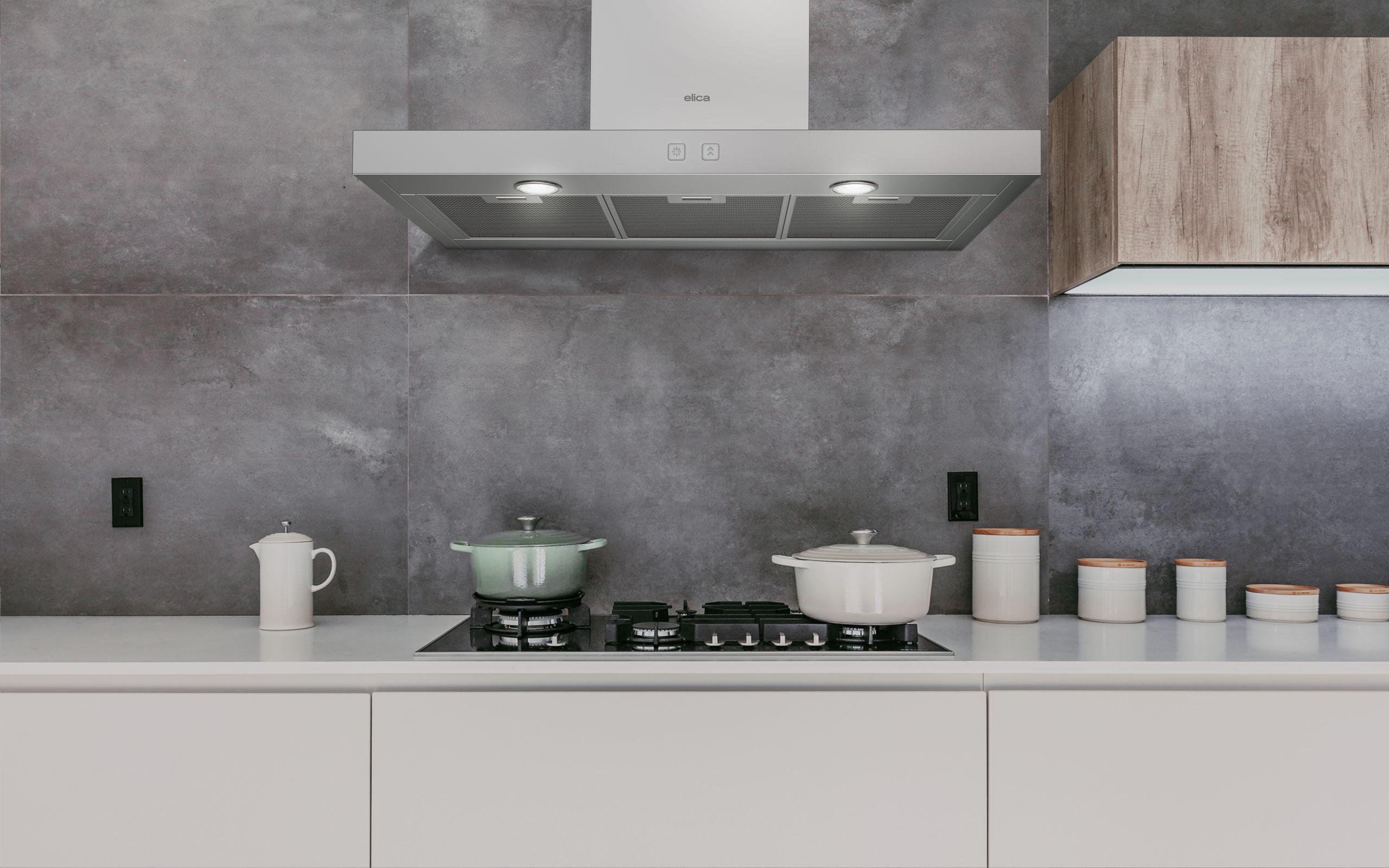

Toblino, with its super sleek hood design that s only 2 high, is the perfect complement for modern kitchen designs featuring sharp, futuristic architectural lines. Available in 30 and 36 widths, Toblino features multiple backlight color touch controls that illuminate in elegant white, green, blue, or red, operating the LED lights and 4-speed blower. Multiple clicking sound options are also available. Designed for standard ducted installation, Toblino can also be installed as a recirculating system using the optional kit.
Features
- 3x layer mesh
- Led light
- CFM reduction system
Item Attributes
| Brand Code: | ELICA |
|---|---|
| Part Number: | ETB430S3 |
| GTIN14: | 190603004441 |
| Category Code: | Kitchen Appliances |
| Sub Category Code: | Kitchen Appliances / Range Hoods |

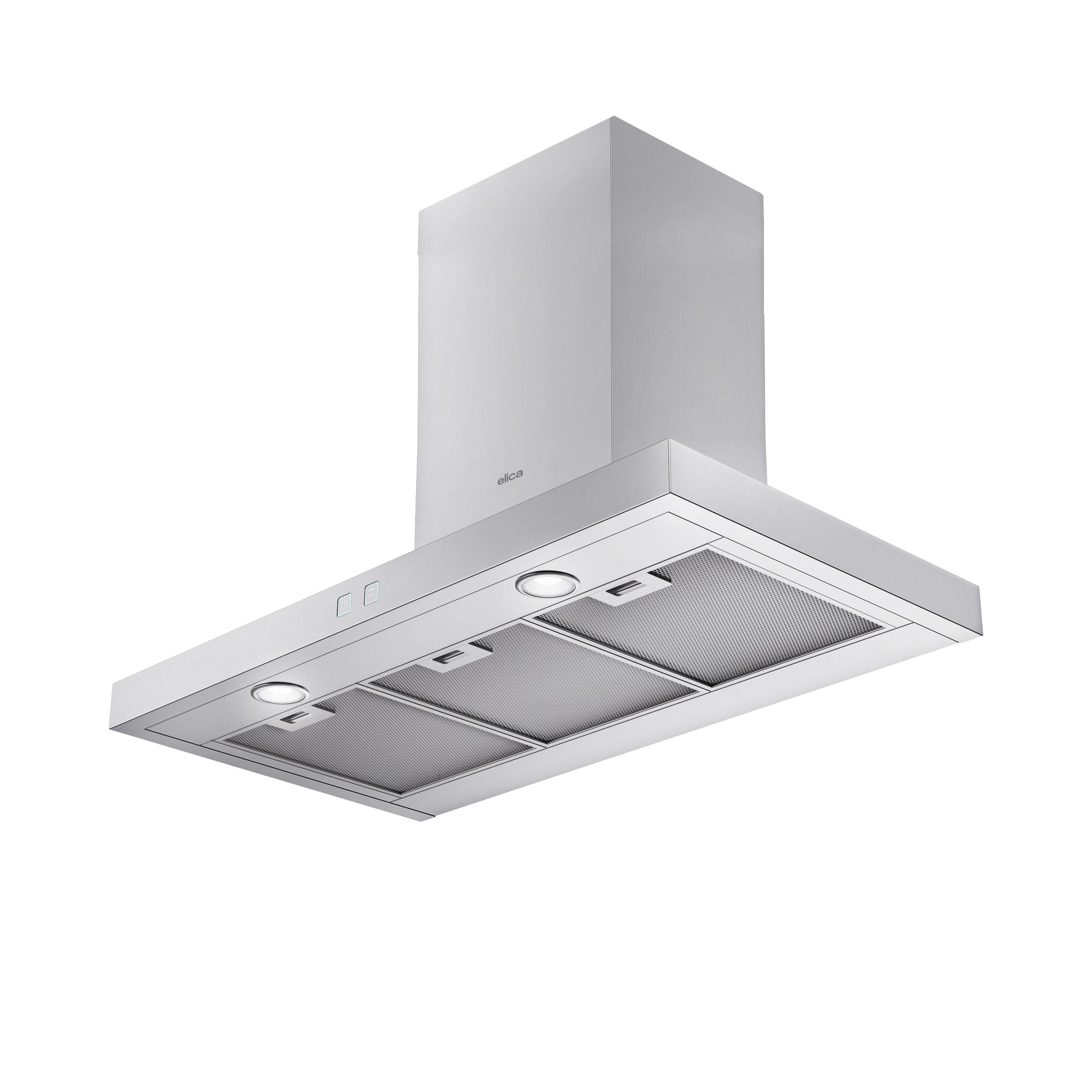

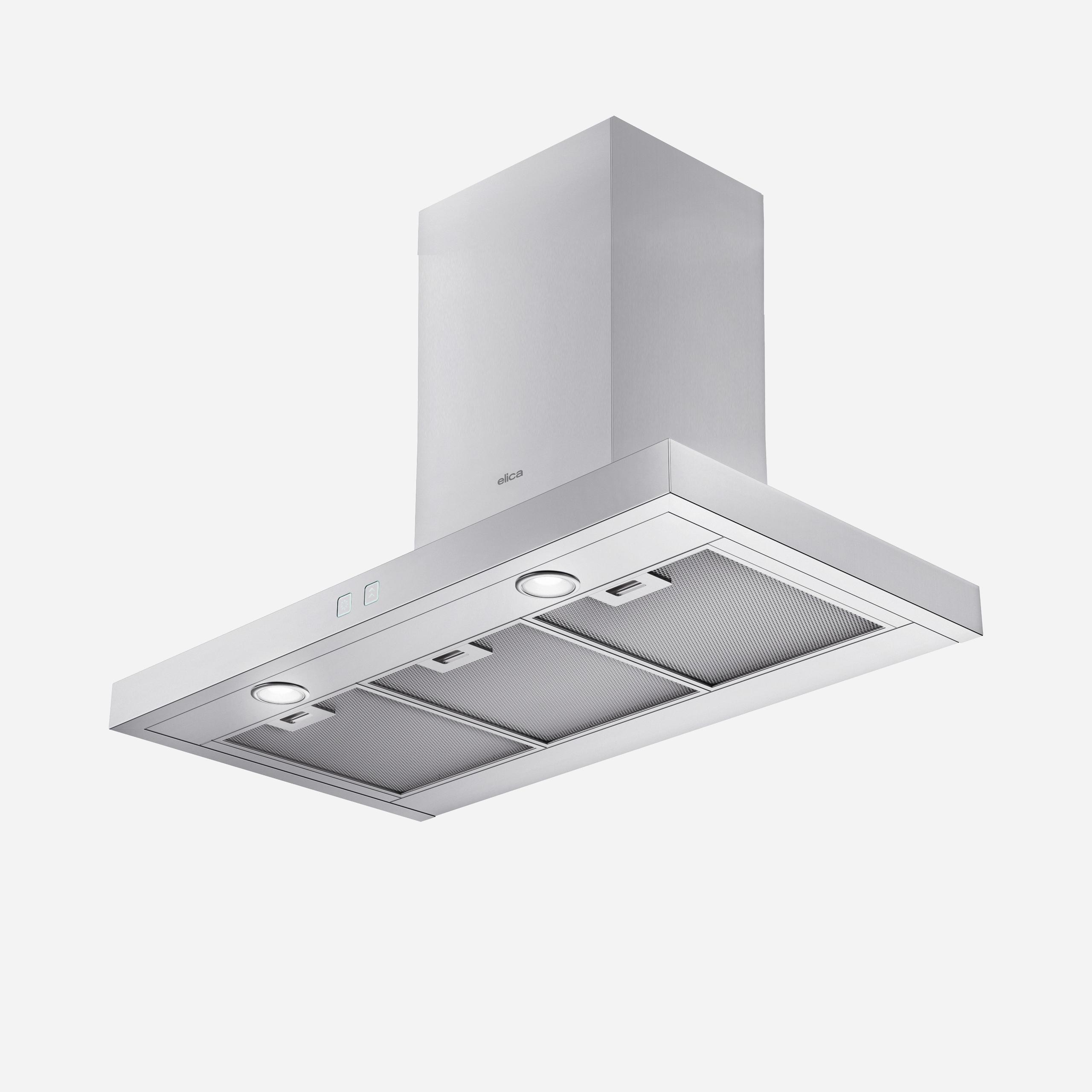

ELICA 400 CFM 30-Inch Wall-Mounted Range Hood Stainless Steel - ETB430S3
- SKU-0000032698
- Model #ETB430S3
MSRP:$759.00Save $301.96
Mardey's Price: Was $457.04
( Last 1 in stock) | Condition | New |
|---|---|
| Type |  |
| Grade | B |
| Product Source |  |

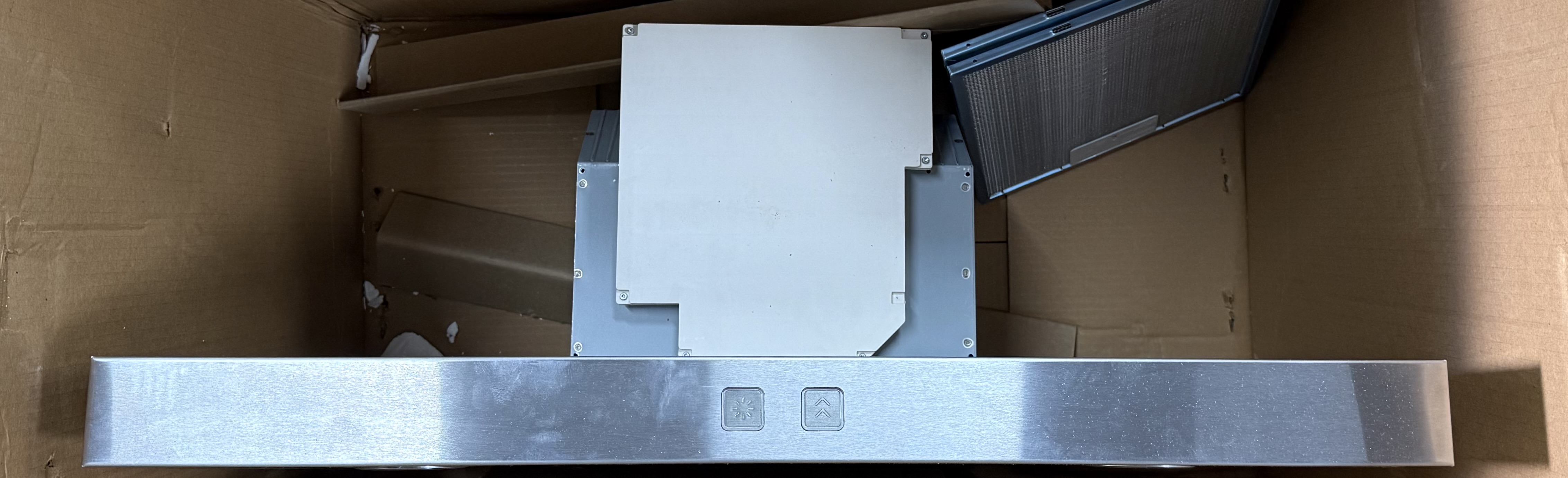

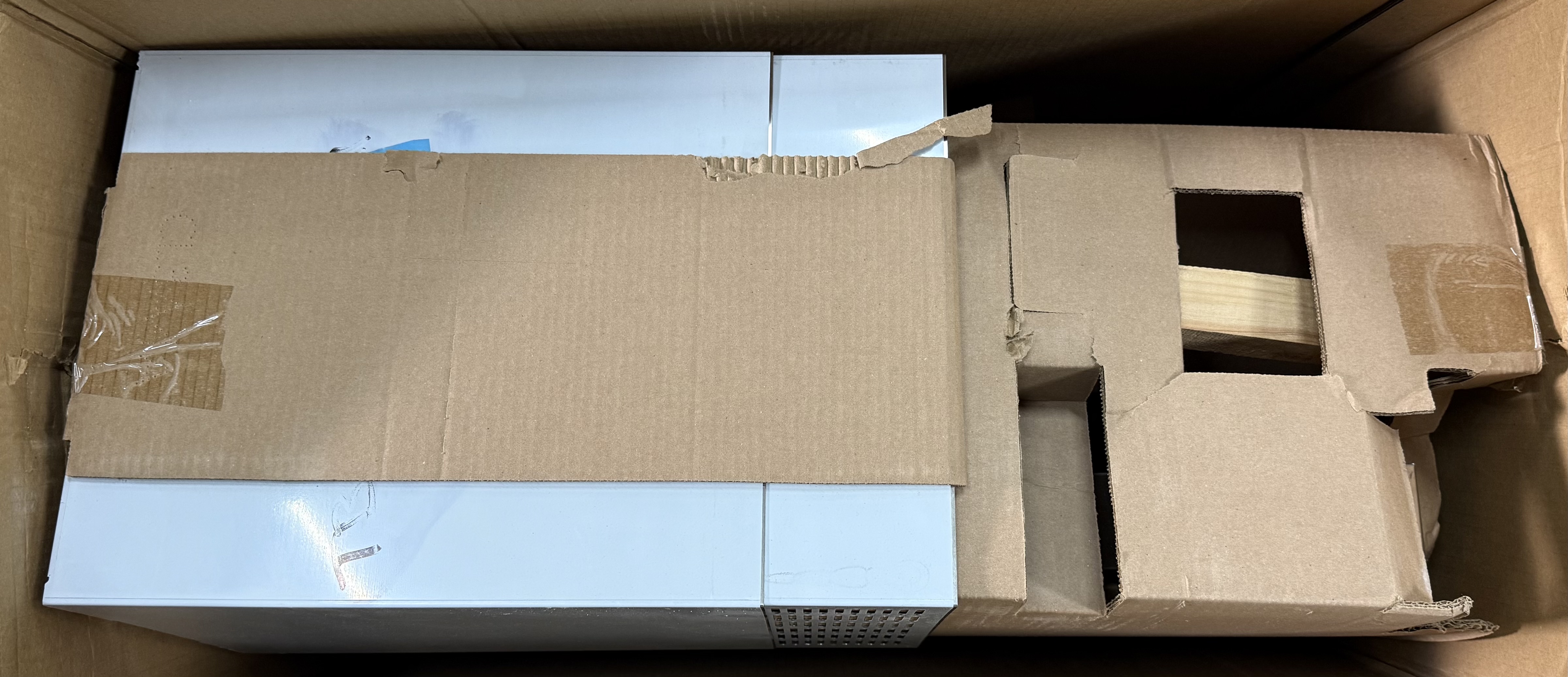

| Additional Info | Minor scratches & Blemishes | Inspected for full functionality. Cosmetic accessories and non-essential hardware from original packaging may not be included |
| Available Quantity | 1 |
7 DAY RETURNS ON ALL PRODUCTS
| Brand | ELICA |
|---|---|
| Category | Kitchen Appliances / Range Hoods |
| Model Number | ETB430S3 |
| UPC/GTIN | 190603004441 |
| Capacity | 400.0000 |
| Color | Stainless Steel |
| Depth | 19 11/16 |
| Width | 30 |
| Height | 20 1/2 |
| Warranty | 3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com |
| Fracci n arancelaria | 8414600100.00 |
| SHIPPING WEIGHT (kg) | 22.00 |
| NET WEIGHT (kg) | 17.02 |
| CARTON LENGHT (mm) | 870.00 |
| CARTON HEIGHT (mm) | 673.00 |
| CARTON WIDTH (mm) | 458.00 |
| VOLUMEN (M3) | 0.23 |
| SHIPPING WEIGHT (lb) | 48.50 |
| NET WEIGHT (lb) | 37.48 |
| CARTON LENGHT | 34.25 |
| CARTON HEIGHT | 26.50 |
| CARTON WIDTH | 18.03 |
| COUNTRY OF MANUFACTURE | MX |
| QTY PACKAGE | 1.00 |
| INTENDED APPROVED USE | Residential use |
| Finish | Stainless Steel |
| Material | Stainless Steel |
| Color | inox |
| Type of Ventilation | Convertible |
| HOODS FEATURES | 3x layer mesh, Led light, CFM reduction system |
| WIDTH (IN) | 30" |
| WIDTH (CM) | 76.00 |
| AIRFLOW (M3/H) | 680.00 |
| CFM (MAX) | 400.00 |
| db (min) | 14.70 |
| db (max) | 53.00 |
| SONES | 0.4 - 5.9 |
| EXHAUST VERSION | Convertible with Kit |
| EXHAUST SIZE | Round 6" |
| DUCT SHAPE | Round |
| EXHAUST LOCATION | Top Only |
| RECTANGULAR DUCTH HEIGHT | NA |
| RECTANGULAR DUCT WIDTH | NA |
| Round duct diameter | 6" |
| ELECTRIC (VOLTS) | 120.00 |
| AMPERAGE | 2.5 A |
| HERTZ | 60.00 |
| WATTS | 265.00 |
| LIGHTING | LED 2 x 2.1 ww 3000 KK |
| BULB TYPE | LED |
| BULB INCLUDED | YES |
| NUMBER OF LIGHTS | 2.00 |
| BULB WATTS | 2.10 |
| KELVINS | 3000.00 |
| GREASE FILTER TYPE | Dishwasher-Safe, Anodized Aluminum Mesh Filter |
| DISHWASHERSAFE FILTER | YES |
| FILTER MATERIAL | Aluminum Mesh |
| BLOWER TYPE | Interior Unit |
| CONTROL TYPE | Electronic Touch Controls with Adjustable Color Backlight |
| SPEED CONTROL | YES |
| NUMBER OF SPEEDS | 4.00 |
| REMOTE CONTROL | NO |
| POWER SOURCE | Hardwired |
| OUTDOOR USE | NO |
| SMUDGE RESISTANT | NO |
| PANEL READY | NO |
| RECIRCULATION KIT NEEDED | YES |
| CFM REDUCTION | YES |
| DIMENSIONS (CM) | 76 cm x 69 cm x76 |
| DIMENSIONS (INCH) | 30 x 19 11/16" x 21 7/ |
| ADJUSTABLE HEIGHT | YES |
| Overall Height - Top to Bottom | 21 7/ |
| Overall Width - Side to Side2 | 30" |
| Overall Depth - Front to Back | 19 11/16" |
| Hood Height | 1 5/8" |
| Min - Max Compatible Ceiling Height (Cover electronic cooking) | 6'11" |
| Min - Max Compatible Ceiling Height ( Cover gas cooking) | 8'11" |
| Minimum Height Above Cooktop (ELECTRIC) | 24 |
| Minimum Height Above Cooktop (GAS) | 30 |
| Maximum Height Above Cooktop | 36" |
| Chimney Width - Side to Side | 13" |
| Chimney Depth - Front to Back | 10 3/4" |
| Chimney Height - Top to Bottom | 33 3/8 |
| RECIRCULATION KIT | NA |
| Long Life Recirculating Carbon Filter | NA |
| Recirculation (400 CFM) 2 round carbon filters | NA |
| Recirculation (400 CFM) Contains 6 deflector & 3 carbon filters | NA |
| Recirculation (600 CFM) Contains 6 deflector, 3 flat carbon filters & clips | NA |
| Recirculation (600 CFM) Contains 6 deflector & 2 carbon filters | KIT0184663 |
| Recirculation (600 CFM) 2 round carbon filters | NA |
| Recirculation (600 CFM) 4 round carbon filters | NA |
| Recirculation (600 CFM) 6 round carbon filters | NA |
| Recirculation (600 CFM) 6 round Deflector | NA |
| Recirculation (1200 CFM) 4 round deflector | NA |
| Recirculation (1200 CFM) 4 round carbon filters | NA |
| Recirculation (1200 CFM) (8 round deflector) | NA |
| Long Chimney Ext/Chimney extension | NA |
| Chimney extension Can reach 8 8 - 12 4 (ducted), 9 0 -12 8 (recirculating) | NA |
| Chimney extension Can reach 7 9 - 10 9 (ducted), 8 1 -11 1 (recirculating) | NA |
| Chimney extension Reaches ceiling heights 8 5 -12 1 (ducted), 9 1 -12 5 (recirculating) | KIT02785 |
| Chimney extension Reaches ceiling heights 7 5 -10 3 (ducted), 8 2 -10 11 (recirculating) | KIT01935 |
| Long Chimney Extension(6 ) | NA |
| Long Chimney Extension(11 ) | NA |
| Long Chimney Extension(12 ) | NA |
| Long Chimney Extension(13 ) | NA |
| Long Chimney Extension (6 with grates) | NA |
| TELESCOPIC DUCT COVER | - |
| DUCT TRANSITION | - |
| TRANSITION REDUCER KIT 10 round down to 8 round - attaches to 10 round transition | - |
| BACKDRAFT DAMPER | - |
| NON RETURN VALVE | - |
| UPGRADE FILTER | GF04YB |
| RECIRCULATION DUCT COVERS | NA |
| RECIRCULATION DEFLECTOR | NA |
| RECIRCULATION FILTERS | NA |
| CFM REDUCTION KIT | - |
| BACKSPLASH KIT | - |
| INTERNAL BLOWER | - |
| INLINE BLOWER | - |
| EXTERNAL BLOWER | - |
| INLINE BLOWER SHELL KIT (600 CFM) | - |
| INLINE BLOWER SHELL KIT (1200 CFM) | NA |
| EXTERNAL BLOWER SHELL KIT | - |
| HEAT LAMPS | - |
| SPACER/LINER | - |
| Hood Liner for 30 | NA |
| Hood Liner for 36 | NA |
| Hood Liner for 48" | NA |
| WALL MOUNT BRACKET | - |
| HIGH CEILING EXTENSION KIT | - |
| REMOTE CONTROL KIT | - |
| Duct cover extension 6 | NA |
| Duct cover extension 18 | NA |
| ELECTRONIC CFM | NA |
| REDUCTION BYPASS | NA |
| ETL | YES |
| UL listed | YES |
| AHAM verified | YES |
| TITLE 24 | YES |
| Prop65 Disclosure | YES |
| ENERGY STAR | NO |
| WIFI CAPABLE | NO |
| COMERCIAL USE APPROVED | NO |
| ADA COMPLIANT | NO |
| APP CAPABLE | NO |
| VENTILATION DIRECTION | HORIZONTAL |
| SMART COMPATIBLE | NO |
| FITLER INDICATOR LIGHT | NO |
| HEAT SENSOR | NO |
| CHAROCAL FILTER | YES |
| VERSION ADVANCES | Button change |
| NOM CERTIFICATION | NA |
Toblino, with its super sleek hood design that s only 2 high, is the perfect complement for modern kitchen designs featuring sharp, futuristic architectural lines. Available in 30 and 36 widths, Toblino features multiple backlight color touch controls that illuminate in elegant white, green, blue, or red, operating the LED lights and 4-speed blower. Multiple clicking sound options are also available. Designed for standard ducted installation, Toblino can also be installed as a recirculating system using the optional kit.
Features
- 3x layer mesh
- Led light
- CFM reduction system
Item Attributes
| Brand Code: | ELICA |
|---|---|

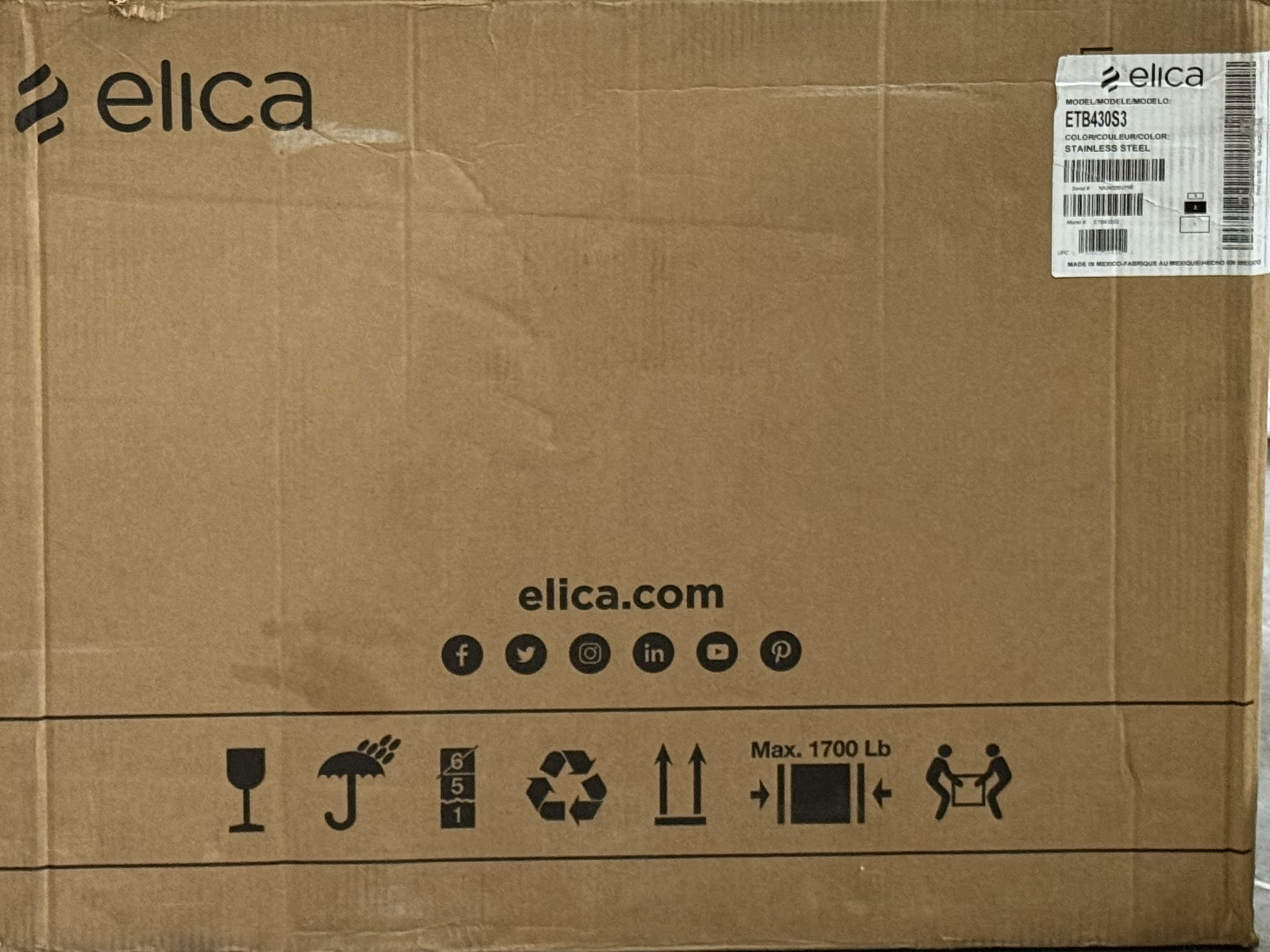

| Part Number: | ETB430S3 |
| GTIN14: | 190603004441 |
| Category Code: | Kitchen Appliances |
| Sub Category Code: | Kitchen Appliances / Range Hoods |
