General Features
- Refrigerant Type:
- R32
- Compressor:
- Standard
- Energy Star:
- No
- Dehumidification (pts/hr):
- NA
- CFMs (@ 0.1 ESP):
- 560
- Includes Heat Mode:
- Yes
- Heat Type:
- Heat Pump with Back-Up Electric
- Electric Heat kW:
- 5.0
Performance @230 Volt
- Cooling BTUs (@230V):
- 17800
- EER2 (@230V):
- 10.6
- SEER2 (@230V):
- 12.1
- Cooling Amps (@230V):
- TBD
- Cooling Watts (@230V):
- 1679
- Heat Pump BTUs (@230V):
- 16200
- COP (@230V):
- TBD
- HSPF2 (@230V):
- 6.7
- Heat Pump Heating Amps (@230V):
- TBD
- Heat Pump Heating Watts (@230V):
- TBD
Features
- Vent Location:
- Ducted Into Room
- Make-Up Air:
- No
- Energy Saver Mode:
- No
- Fan Speeds:
- High or Low
- Control Type:
- Wall Thermostat Required (NOT INCLUDED)
- Connectivity:
- Not WiFi Compatible
- Fresh Air Intake:
- No
Weights and Dimensions
- Overall Depth (in.):
- 23
- Overall Width (in.):
- 23
- Overall Height (in.):
- 47
- Weight (lbs.):
- NA
Electrical Requirements
- Voltage:
- 208-230V
- Circuit Breaker Size (Amps):
- 30

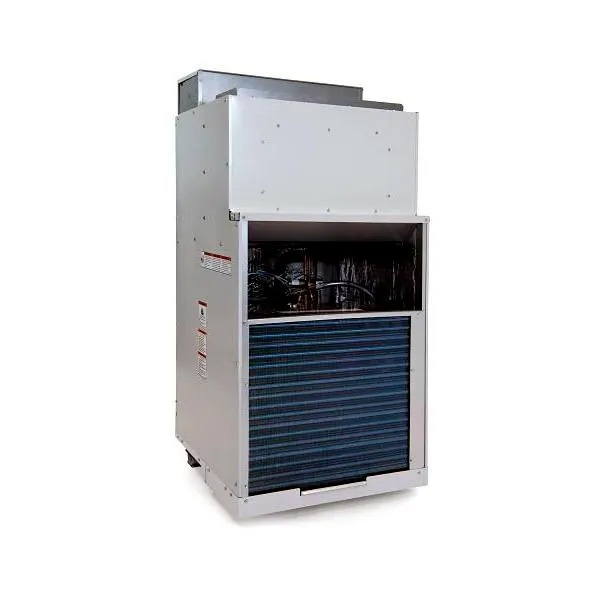

Give your property a homelike appearance with a Vert-I-Pak Vertical Packaged Air System – a simpler way to condition multiple rooms. Vert-I-Pak fits neatly into a typical mechanical closet, so you can create indoor living spaces that are more versatile. Since the system fits into a closet with an outside wall, guests and tenants will enjoy a quieter, visually appealing living space, without giving up individual, in-room temperature control or access to windows. Even quieter operating sound levels may be achieved by insulating the closet. Additionally, to help further eliminate vibration noise, the unit slides into the wall plenum and is sealed with a gasket. The unit also includes extra thick grommets, mounted on the base.
Features
- R-32 refrigerant
- Compact and lightweight
- Unique free-floating chassis
- Easy to connect right, left or rear drain connection
- Corrosion resistant interior
- Easy to install front, left or right hand into closet on an outside wall
- Remote thermostat ready; 24V transformer
- Standard safety power disconnect
- Electronic control panel on unit for easy diagnostics and servicing
- Compatible with single stage thermostats (WRT2, RT7 and RT7P), wired and wireless energy management systems
- Return air grilles and (VPRG4) are available separately
- Architectural louvers are required and available in standard extruded aluminum (VPAL2) or as a custom color option requiring special handling (VPSC2)
- Eliminates the clutter of split systems and the need for multiple PTACs
Item Attributes
| Brand Code: | Friedrich |
|---|---|
| Part Number: | VHA18K50RCQ |
| GTIN14: | 724587448511 |
| Category Code: | Air Conditioners |
| Sub Category Code: | Air Conditioners |
Friedrich Vert I Pak 18000 Btu Class Vtac With Heat Pump 5.0 Kw Electric Heat VHA18K50RCQ
- SKU-0000039991
- Model #VHA18K50RCQ
| Condition | New |
|---|---|
| Type |  |
| Grade | C |
| Product Source |  |

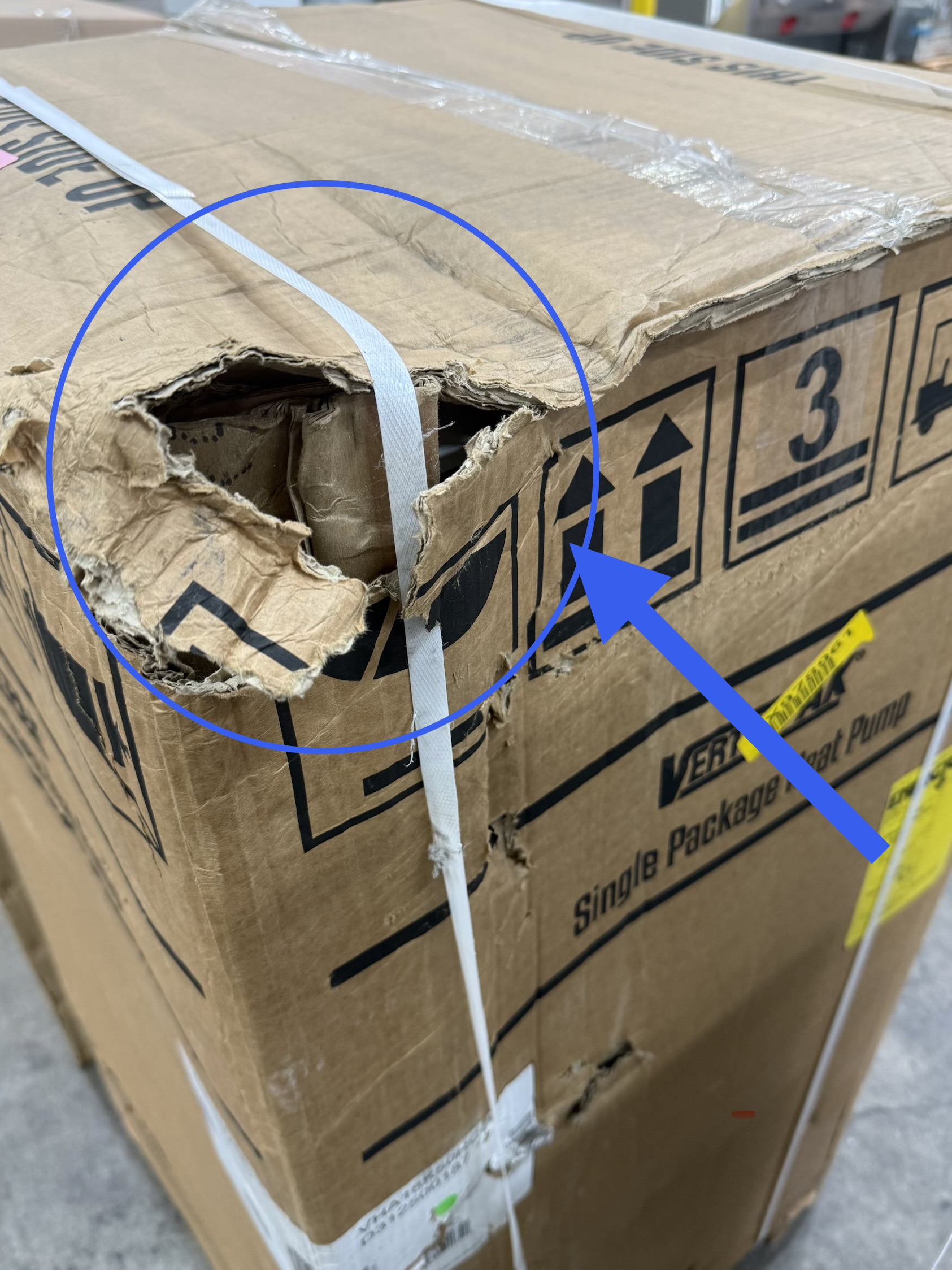

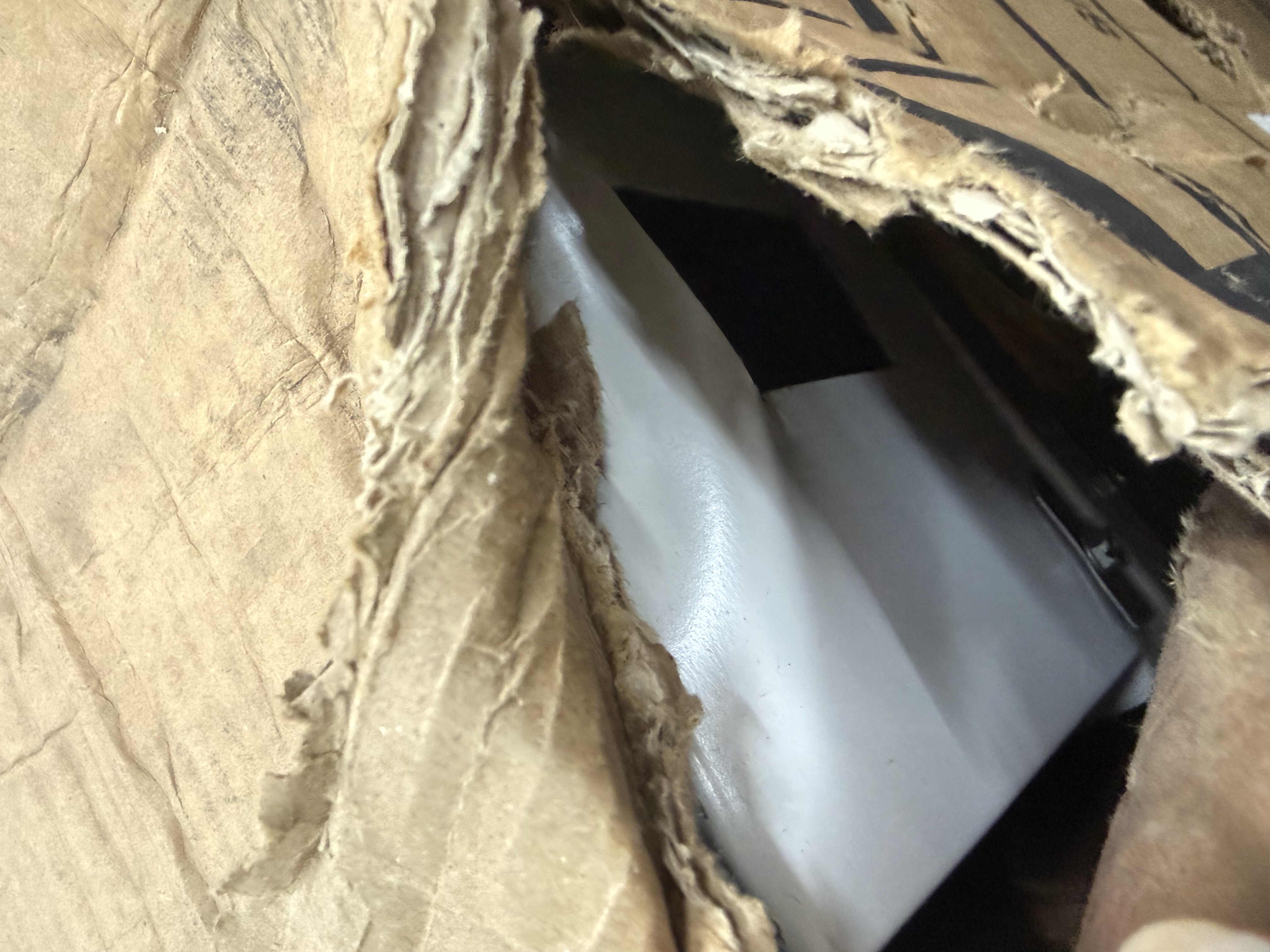

| Additional Info | Scratch & Dent | New In Box | Warehouse Damage | Signs Of Handling | Dent On Casing |
7 DAY RETURNS ON ALL PRODUCTS
| Brand | Friedrich |
|---|---|
| Category | Air Conditioners |
| Model Number | VHA18K50RCQ |
| UPC/GTIN | 724587448511 |
| Capacity | 18000.0000 |
| Color | White |
| Depth | 23 |
| Width | 23 |
| Height | 47 |
