Additional Specs
Capacity:
13 place settings
Wine Glass Capacity:
23
Plate Size:
13" Maximum
Total Annual Energy Consumption:
269 kWh
Water Usage:
2.5 gallons
TFT Display:
Yes
Sound Level:
42 dBA
Aqua Stop:
Yes
Aqua Sensor:
Yes
Aqua Load:
Yes
Delay Timer:
Yes
Glass Protection:
Yes
Automatic Detergent Function:
Yes
Regeneration Electronics:
Yes
Flow-Through Water Heater:
Yes
Filter System:
Triple Filter
Racks:
3
Spray Arms:
2
Cutlery Rack:
Yes
Adjustable Racks:
Yes
Folding Tines:
2 Upper/4 Lower
Folding Racks:
2 Upper/2 Lower
Auto Temperature:
150°F-160°F
Auto Wash Temperature:
130°F-150°F
Standard Eco Temperature:
113°F-131°F
Quick wash Temperature:
113°F, (29 min.)
Glassware Temperature:
122°F
Pre-rinse Temperature:
122°F
Power Boost:
Yes
Intensive Wash:
Yes
Electrical Specifications
Total Amps:
12 Amps
Electrical:
120V / 60Hz
ENERGY STAR Qualified:
Yes
Total Rating:
1.3 kW
Dimensions & Weight
Overall Width:
24"
Overall Depth:
21 5/8"
Overall Height:
34 1/8"
Weight:
132 lbs.
Basic Information Appliance type 020 Overall appliance dimensions (HxWxD) 867 x 598 x 550 mm Color Galvanized Quick Wash Option No Comfort Status indicator End of program audible, Water inlet Time Remaining PowerBeam Yes sideLight No emotionLight No emotionlight pro No Connection Watts 1,440 W Power cord length 120.0 cm Fuse protection 12 A Length inlet hose 165 cm Length outlet hose 190 cm Plug type Nema5-15P Size and weight Overall appliance dimensions (HxWxD) 867 x 598 x 550 mm Depth with open door 90 degree 1,205 mm Maximum height for installation (in.) 927 mm Minimum width for installation 610 mm Maximum width for installation 618 mm Depth for installation 550 mm Height of removable worktop 0 mm Net weight 55.1 kg Weight furniture front (min – max) 3 – 10 kg Size and weight Previous Next Previous Next Operation TFT display indicating remaining or end time, refill for salt and rinsing agent, inflow of water. Touch key operation. Flexible cycle time reduction, even during an active cycle. Personalization function for storing individual combinations of programs. Temporary noise reduction (only available with active Home Connect functionality). Information key with use indicators. Sanitized indicator in the control panel. Time delay up to 24 hours. Visual and acoustic end of program indicator. Remaining time projection. Technical Features Perfectly illuminated interior. Glass protection with zeolite. Aqua sensor. Load sensor. Automatic detergent function. Yes Flow-Through Water Heater(TM) Triple filter system. Soft lock. Aqua stop. Home network integration for digital services (Home Connect) wireless via WiFi. The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com. Programs 8 programs:Auto 150-160 (degree)F. Auto 127-140 (degree)F. Auto 113-122 (degree)F. Eco 113-136 (degree)F. Wash and Dry 122(degree)F. Quick Wash 113 (degree)F (30 min). Glass Care 122 (degree)F. Personalization function (default setting: Pre-rinse). 6 options:Remote Start Intensive. Power. Sanitize. Extra Dry with zeolite. Machine Care. Features Flexible rack system with smooth running rails on all levels and soft-closing system of the upper and lower rack. 3rd rack for cutlery. Upper basket:Over extension. Optional extra cleaning area by activating additional spray nozzles. Rackmatic with 3 levels, adjustable in height up to 2″ (5 cm). 6 folding spines. 4 folding racks for optimal protection of glass. Lower basket:8 folding spines. 2 folding racks for optimal protection of glass. Dividable glass support. Cutlery basket. Holder for long-stemmed glasses. 13 place setting capacity. Maximum glass loading capacity 23 wine glasses. Consumption data Energy Star certified Total annual energy consumption 269 kWh. Noise level 42 dB (re 1 pW). Planning notes Height-adjustable feet. Appliance toe-kick recess 3 15/16″ (see drawing). To display the remaining time projection, a minimum toe-kick protrusion is required (1 9/16″ + thickness of the cabinet front). The maximum toe-kick height must be reduced by 1 1/16″ to provide an optimal display of the remaining time projection. Rear feet adjustable at front. Door weight up to 22 lb. Door panel dimension dependent on toe-kick height of kitchen cabinetry. Installation and usage also with custom cabinet handle possible. The push-to-open function remains active. Rating Total rating: 1440 W. Connection to hot or cold water possible. Connecting cable 47 1/4″ with three-prong plug (NEMA 5-15P). Show All Technical Information
Features
- Optimal protection for sensitive glassware by low temperature drying with zeolite, optimized basket design and intelligent water softening
- 8 programs with aqua sensor and 6 options, such as Power for cleaning and drying dishes in 57 minutes and Intensive for particularly thorough cleaning in the lower basket

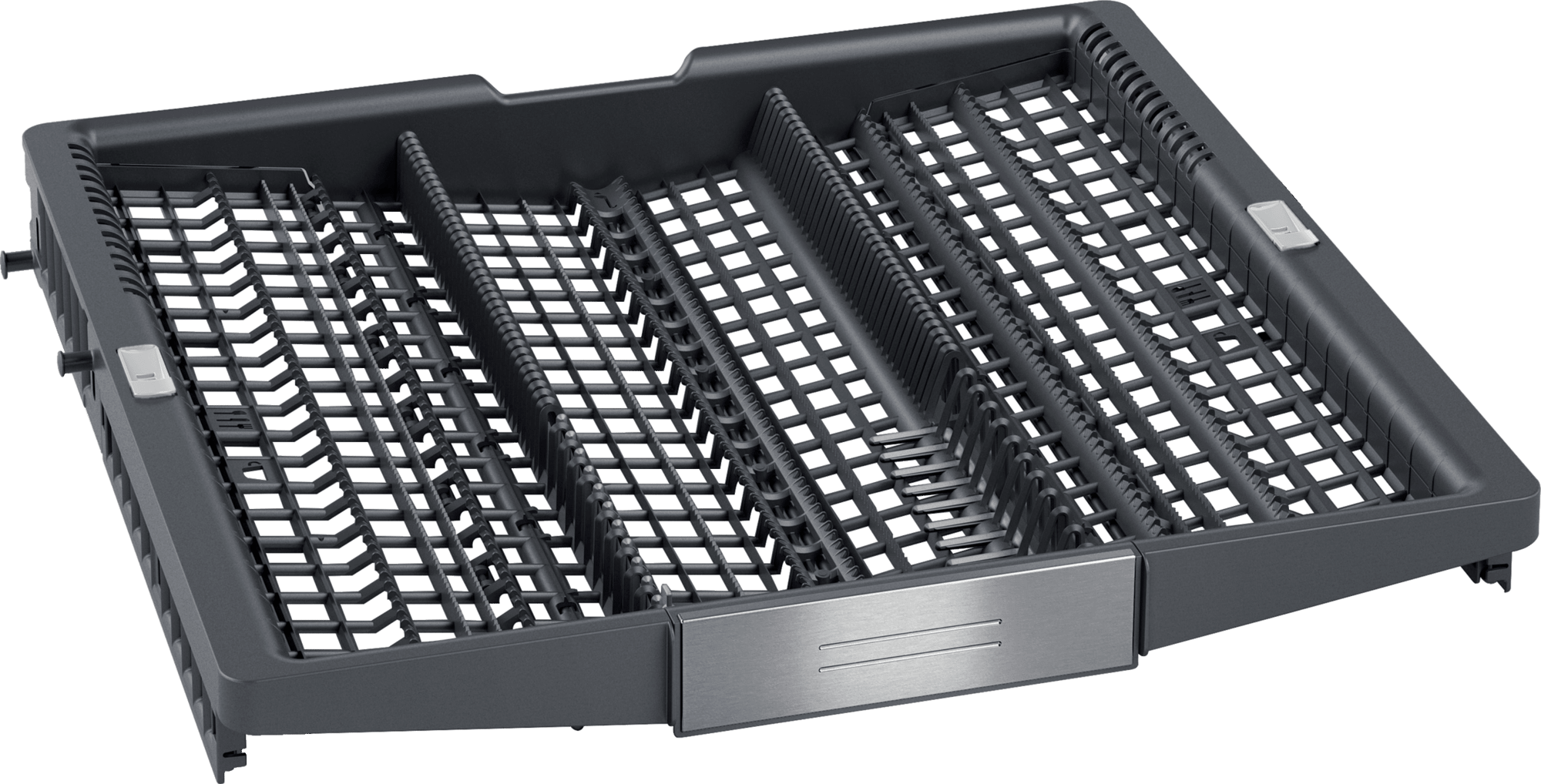

- Flexible basket system with smooth running rails on all levels and cushioned closing of the upper and lower baskets
- Perfectly illuminated interior
- Push-to-open function for perfect integration into custom cabinet fronts
Item Attributes
| Brand Code: | GAGGENAU |
|---|---|
| Part Number: | DF481700 |
| GTIN14: | 825225965060 |
| Category Code: | Dishwashers |
| Sub Category Code: | Dishwashers / Kitchen Appliances |
GAGGENAU 400 Series Dishwasher 24 DF481700
- SKUI-0000062562
- Model #DF481700
| Condition | New |
|---|---|
| Type |  |
| Grade | A |
| Product Source |  |
| Additional Info | New In Box | Overstock Clearance | Panel Ready | Panel & Handle Sold Separately | FAST SELLER |
| Available Quantity | 1 |
7 DAY RETURNS ON ALL PRODUCTS
| Brand | GAGGENAU |
|---|---|
| Category | Dishwashers / Kitchen Appliances |
| Model Number | DF481700 |
| UPC/GTIN | 825225965060 |
| Capacity | 1.0000 |
| Color | Panel Ready |
| Depth | 22 1/2 |
| Width | 23 9/16 |
| Height | 34 1/8 |
