Overview
Color:
Stainless Steel
Type:
Extraction
Air Extraction:
600 CFM
Installation Type:
Exterior
Output Levels:
3 with 1 Intensive Mode
Electrical Specifications
Total Rating:
170 W
Amps:
2
Electrical Requirements:
120V/60Hz

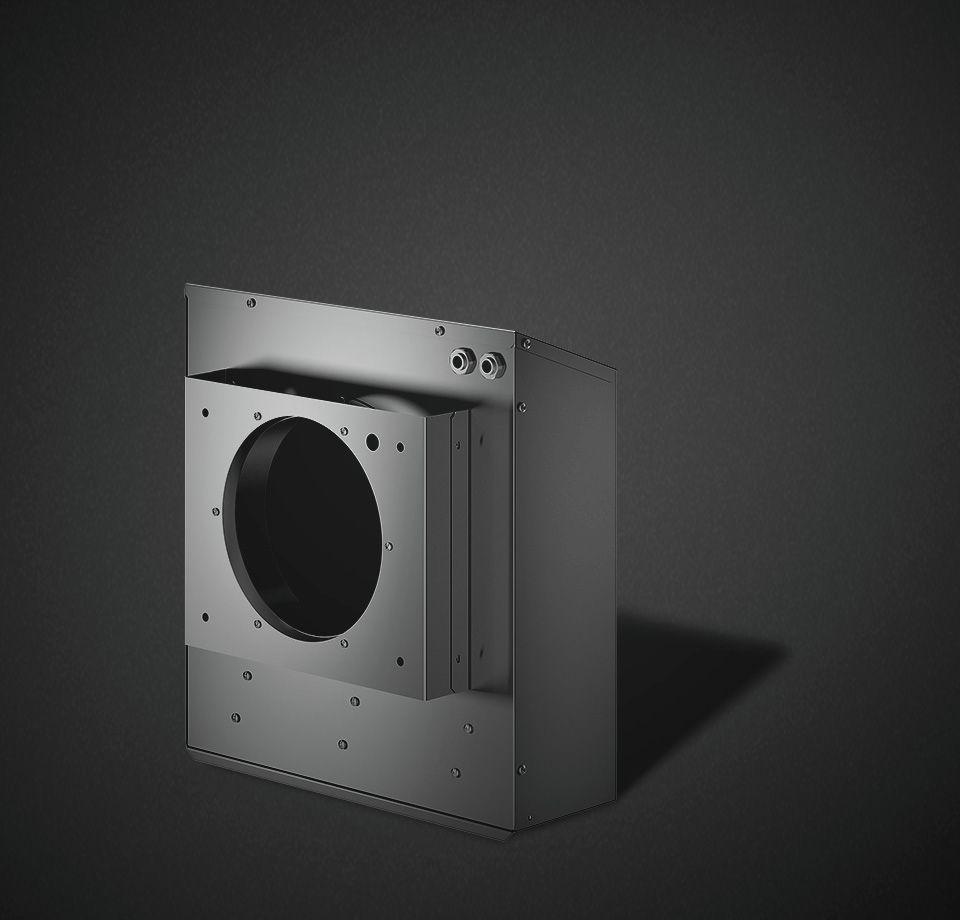

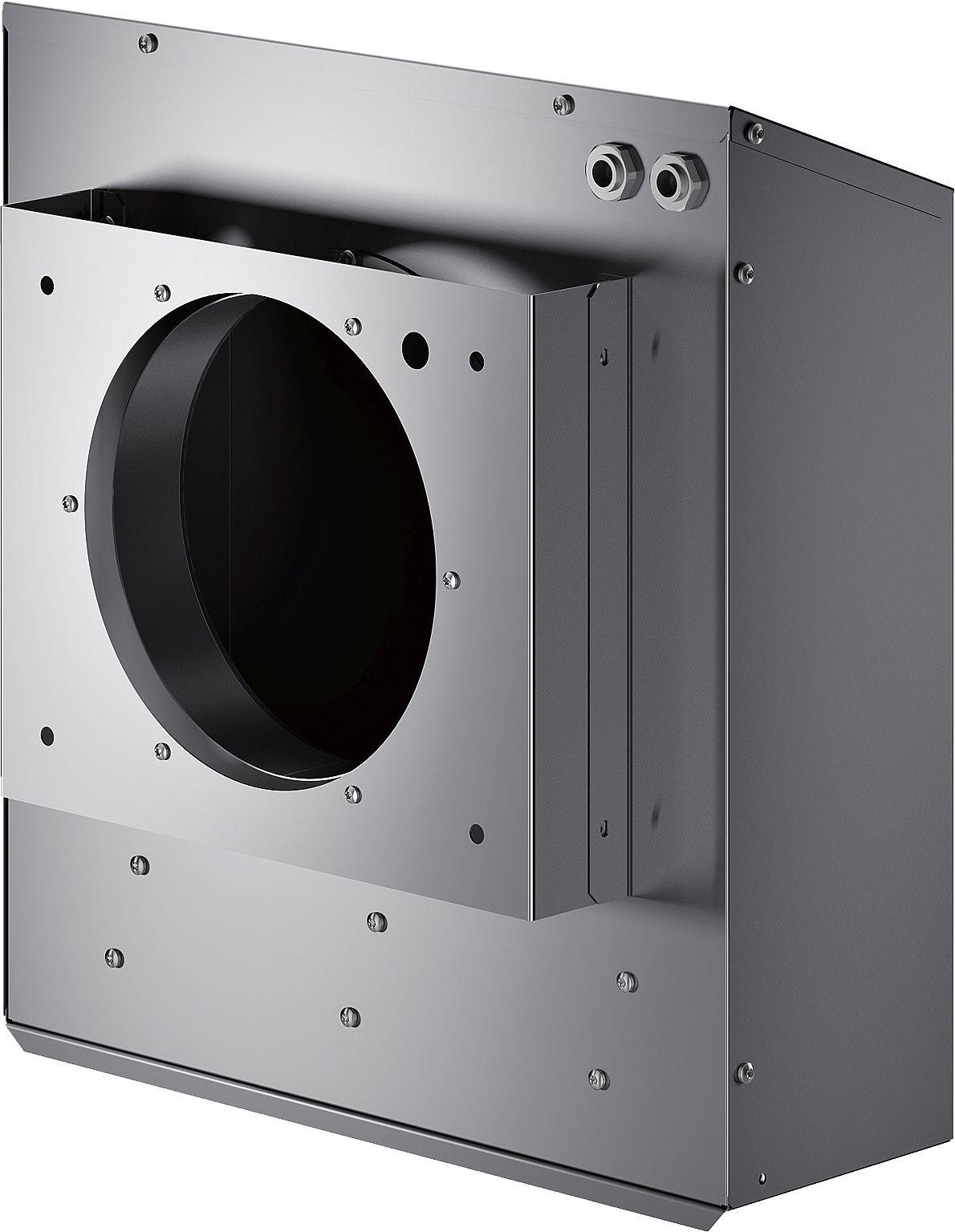

Output Power levels depend on the ventilation system. Features 3 electronically controlled power levels and one intensive mode. Fan technology with highly efficient, brushless DC motor (BLDC). Including sound insulation to minimise the noise level. Stainless steel housing. Retaining bracket for installation on an outside wall enclosed. Planning notes Remote fan unit in combination with motorless appliances 400 series. Connection to the respective appliances via network cable. Installation in an exterior area allows for a reduced noise level in the kitchen Installation on an outside wall.Control box must be installed indoors. Acceptable temperature range for installation of the control box: -13 to 140 F. Distance for free air space from ground (or other object) to center of the pipe: min 60 cm When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the power supply line of the ventilation appliance needs a suitable safety switch. Rating 120 V / 60 Hz. Connecting cable 35.4″ with plug. 16′ network cable included.
Features
- Powerful blower for combination with 400 series ventilation systems
- Efficient BLDC technology
- Power levels depend on the ventilation system.
- 3 electronically controlled power levels and one intensive mode.
- Fan technology with highly efficient, brushless DC motor (BLDC).
Item Attributes
| Brand Code: | GAGGENAU |
|---|---|
| Part Number: | AR401742 |
| GTIN14: | 825225910206 |
| Category Code: | Kitchen Appliances |
| Sub Category Code: | Kitchen Appliances / Range Hoods |
Gaggenau 600 CFM 17-Inch Insert Range Hood Stainless Steel - AR401742
- SKU-0000029514
- Model #AR401742
| Condition | New |
|---|---|
| Type |  |
| Grade | A |
| Product Source |  |
| Additional Info | New In Box| Cosmetic accessories and non-essential hardware from original packaging may not be included |
| Available Quantity | 1 |
7 DAY RETURNS ON ALL PRODUCTS
| Brand | GAGGENAU |
|---|---|
| Category | Kitchen Appliances / Range Hoods |
| Model Number | AR401742 |
| UPC/GTIN | 825225910206 |
| Capacity | 600.0000 |
| Color | Stainless Steel |

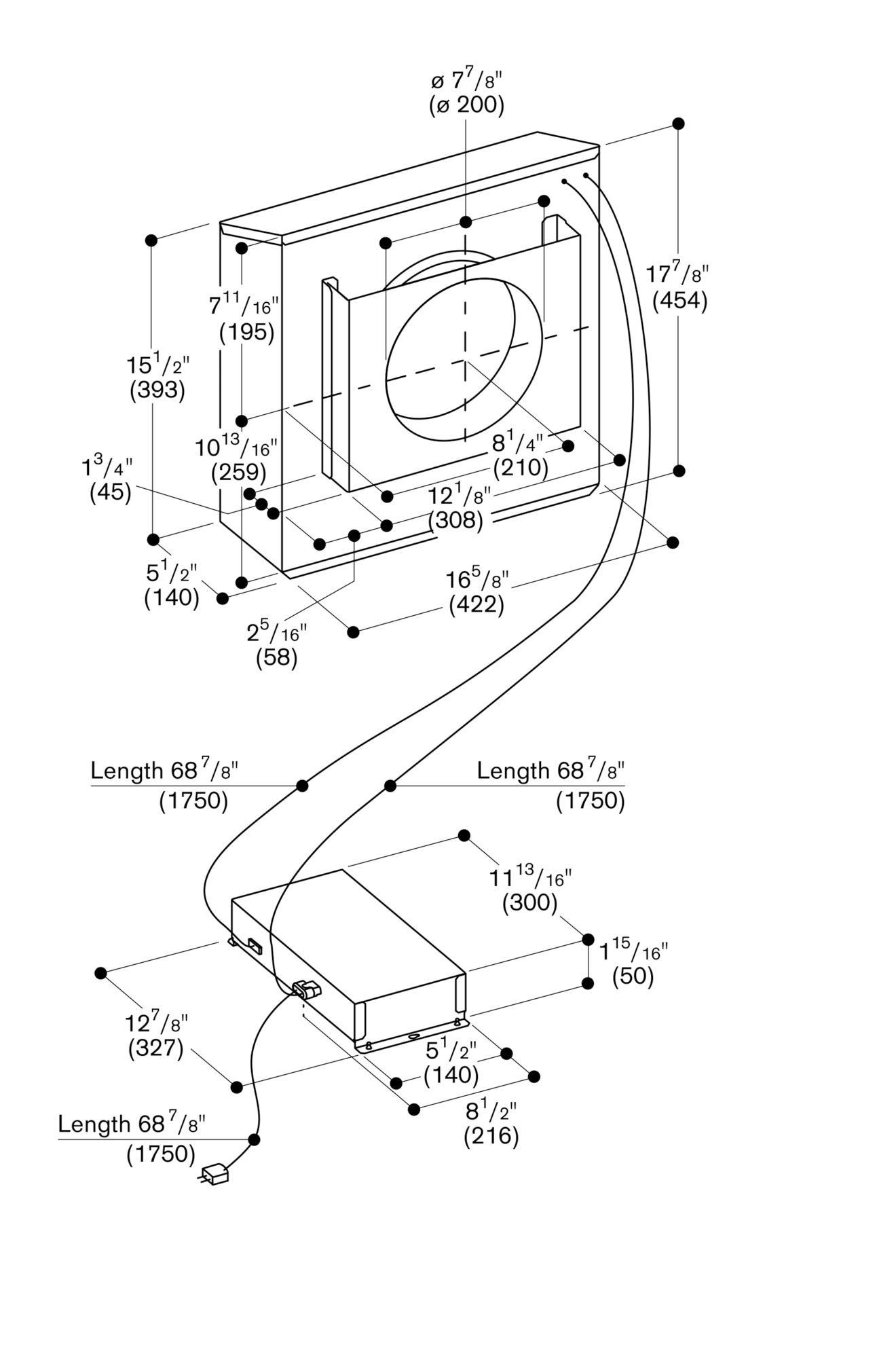

| Depth | 5 1/2 |
| Width | 16 5/8 |
| Height | 17 7/8 |
