| FEATURES | |
| Configuration | Range with Storage Drawer |
| Cooking Technology | Convection |
| Ignition System | Electronic |
| Oven Cleaning Type | Self-Clean with Steam Clean Option |
| Cleaning Time | Variable with Delay Clean Option |
| Self-Clean Oven Door Lock | Automatic |
| Oven Rack Features | 3 Self-Clean Oven Racks 6 Rack Positions |
| Cooktop Burner Type | Sealed |
| Cooktop Surface | Deep Recessed Stainless Steel |
| Burner - Left Front | 21,000 BTU Tri-ring Burner |
| Burner - Left Rear | 5,000 BTU Precise Simmer |
| Burner - Right Front | 15,000 BTU |
| Burner - Right Rear | 12,000 BTU |
| Burner - Center | 9,500 BTU Front / 9,500 BTU Rear |
| Control Type | Backlit Glass Touch |
| Oven Control Features | Audible Preheat Signal Auto Oven Shut-Off Auto Self Clean Automatic Oven Timer (Time Bake) Certified Sabbath Mode Chef Connect Control Lock Capability Delay Bake Option (Time Bake) Delay Clean Option Digipad Numeric Entry Electronic Clock and Timer Front Controls In-Oven Broiling Self-Clean Cool Down Time Display Temperature Probe |
| Oven Cooking Modes | Convection Bake Convection Roast |
| Control Location | Front controls |
| Cooktop Burner Grate Features | Heavy-Cast Edge-to-Edge Grates |
| Cooktop Burner Grate Material | Cast-Iron |
| Dishwasher Safe Knobs | Yes |
| Product Type | Slide-In Single Oven |
| Valves (Degree of Turn) | 270 |
| Connected Capabilities | Amazon Alexa DiGiorno Drop IFTTT Innit Nest The Google Assistant |
| Fuel Type | Natural Gas (factory set) |
| Leveling System | 4 Leveling Legs |
| Style | Commercial |
| Cooking System | True Convection |
| Oven Interior | 1 Oven Interior Light Black |
| WiFi Connect | Built-In |
| CAPACITY | |
| Total Capacity (cubic feet) | 5.6 cu ft |
| APPEARANCE | |
| Color Appearance | Matte White |
| Control Knobs | Brushed Bronze |
| Cooktop Burner Grate Color | Matte Black |
| Handle | Consumer Removable Customizable Professional Style |
| Handle Color | Brushed Bronze |
| Handle Design | Café |
| Installation | Flush Appearance Free-standing cut-out |
| Oven Door Features | Big Clear View Oven Window |
| Textured Steel Side Panels | Yes |
| WEIGHTS & DIMENSIONS | |
| Approximate Shipping Weight | 291 lb |
| Cabinet Width | 30 in |
| Net Weight | 224 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19-1/2 x 20-5/8 |
| Overall Depth | 29 1/2 in |
| Overall Height | 37 3/8 in |
| Overall Width | 29 7/8 in |
| Height to Cooking Surface (in.) | 36 1/4 +/- 1/4 |
| Height to Top of Rear Vent Trim | 37 3/8 in |
| Depth with Door Open | 47 1/2 in |
| Depth Without Handle | 26 7/8 in |
| POWER / RATINGS | |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 13.5 Broiler |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 16.5 Broiler |
| Convection Wattage | 1200W |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 18.0 Tri-Ring; (1) 15.0; (1) 12.0; (2) 9.5; (1) 5.0; |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 21.0 Tri-Ring; (1) 15.0; (1) 12.0; (2) 9.5; (1) 5.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| CLAIMS & CERTIFICATIONS | |
| ADA Compliant | |
| CSA | |
| Star-K | |
| California Prop 65 | |
| ACCESSORIES | |
| Optional Kits | CXFCGHKPMBT Brushed Black CXFCGHKPMCU Brushed Copper CXFCGHKPMSS Brushed Stainless |
| Grates | Included Center Grate |
| Grill | Integrated Cast Iron JXCGRILL1 Optional |

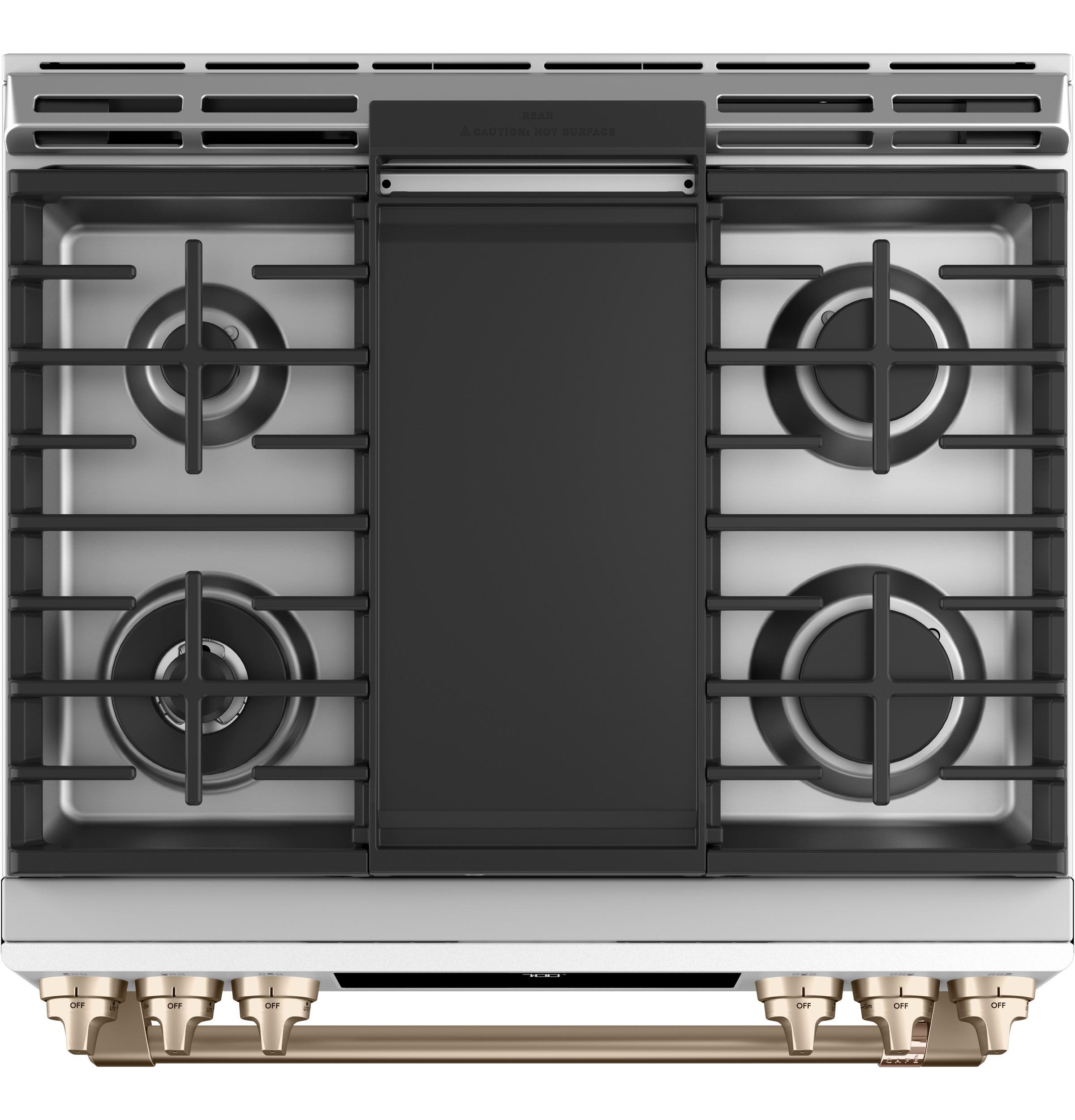

| Griddle | Included Integrated Cast Iron |
| Trim Kit | JXFILLR1SS Optional |
| LP Conversion Kit | Included |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
Built-In WiFi, Powered by SmartHQ AppManage all aspects of your kitchen with the help of the SmartHQ(TM) App or your voice assistant (Select features require WiFi Connection) See detailsPersonalized Features + UpgradesUsher in the latest features by downloading cooking upgrades right to your oven, putting Air Fry and more in your repertoireNo-Preheat Air FryCook healthier, crispier versions of your favorite foods in less time, thanks to an air fryer right in your oven that doesn’t require preheating, a basket or a special tray (WiFi Enabled)Expansive six-burner cooktop helps you entertain with easeEntertaining for large groups is easy with the industry’s first six burner, edge-to-edge cooktop that can accommodate cookware of all sizes and a cast-iron integrated griddle that provides enough room to perfectly flip crab cakes, arepas and other crowd favoritesShare favorite creations with your favorite peopleCreate an unforgettable dinner, using a 21K triple ring burner to do everything from searing scallops to simmering a lemon caper white wine sauce and a 15K power boil burner to boil water quickly for al dente angel hair pastaThe perfect bake is now perfectly easyAchieve unrivaled performance with a system that delivers true convection for consistent results on special occasion favorites like roasts, chicken, turkey and morePrepare foods to perfect donenessGet roasts and meats just right with a temperature probe that lets you monitor progress without opening the oven doorAn attractive appearance at all timesEvery detail of your kitchen is designed to delight, thanks to a sleek backlit glass touch control panel that visually disappears when not in use and wakes up when promptedCreate a look that matches your personal styleSelect any combination of premium finishes and hardware options to create a stunning look customized to any owner’s tasteDurable racks that make cleaning easyEasily remove everything from heavy roasts to delicate desserts with self- clean racks that stay in the oven during the self-clean cycleAllow your appliances to interact with one anotherCreate a chef-like experience with Chef Connect, which can synchronize your appliance clocks and surface lights and vent when a range burner is in use, and even your microwave and range clocksChoose the range you want with total confidenceWhen you’re updating your kitchen, attention to detail is a priority. That’s why CAF(EBACK)(TM) 30″ slide-in ranges are guaranteed for an exact fit or CAF(EBACK)(TM) Appliances will pay up to $300 toward modifications.
Image Features

Built-In WiFi, Powered by SmartHQ App
Manage all aspects of your kitchen with the help of the SmartHQ(TM) App or your voice assistant (Select features require WiFi Connection) See details

Personalized Features + Upgrades
Usher in the latest features by downloading cooking upgrades right to your oven, putting Air Fry and more in your repertoire

No-Preheat Air Fry
Cook healthier, crispier versions of your favorite foods in less time, thanks to an air fryer right in your oven that doesn't require preheating, a basket or a special tray (WiFi Enabled)

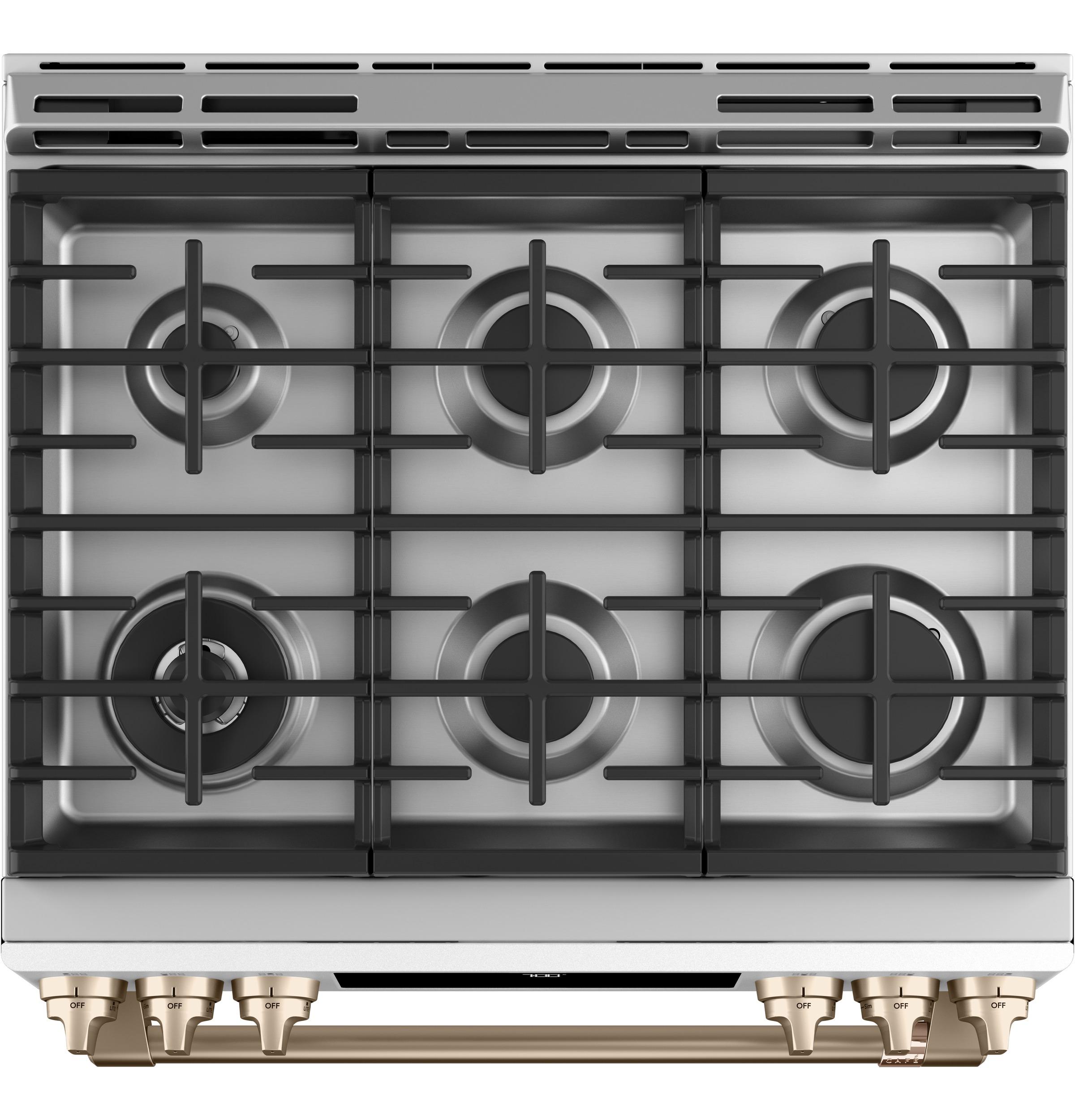

Expansive six-burner cooktop helps you entertain with ease
Entertaining for large groups is easy with the industry's first six burner, edge-to-edge cooktop that can accommodate cookware of all sizes and a cast-iron integrated griddle that provides enough room to perfectly flip crab cakes, arepas and other crowd favorites

Share favorite creations with your favorite people
Create an unforgettable dinner, using a 21K triple ring burner to do everything from searing scallops to simmering a lemon caper white wine sauce and a 15K power boil burner to boil water quickly for al dente angel hair pasta

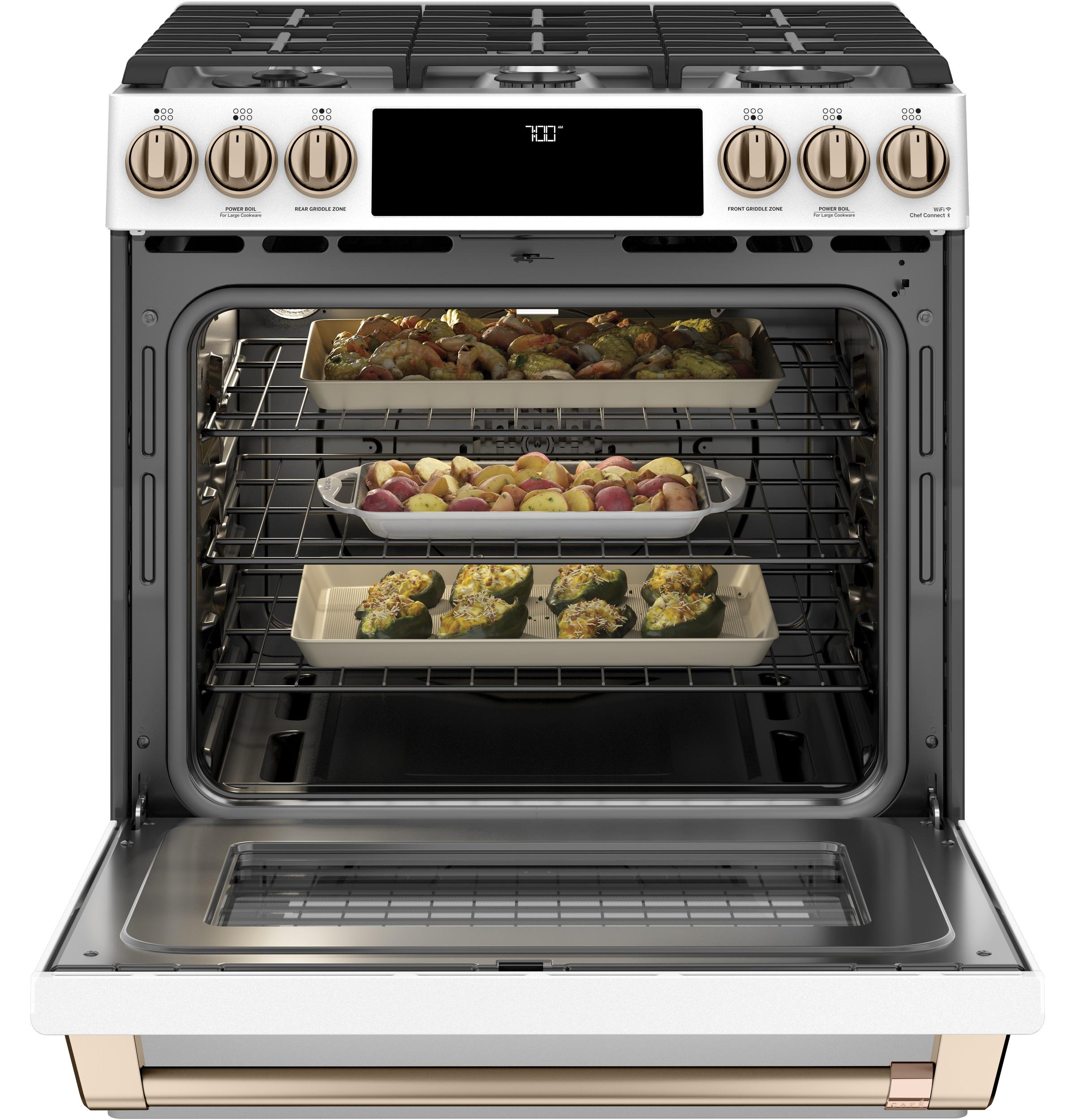

The perfect bake is now perfectly easy
Achieve unrivaled performance with a system that delivers true convection for consistent results on special occasion favorites like roasts, chicken, turkey and more

Prepare foods to perfect doneness
Get roasts and meats just right with a temperature probe that lets you monitor progress without opening the oven door

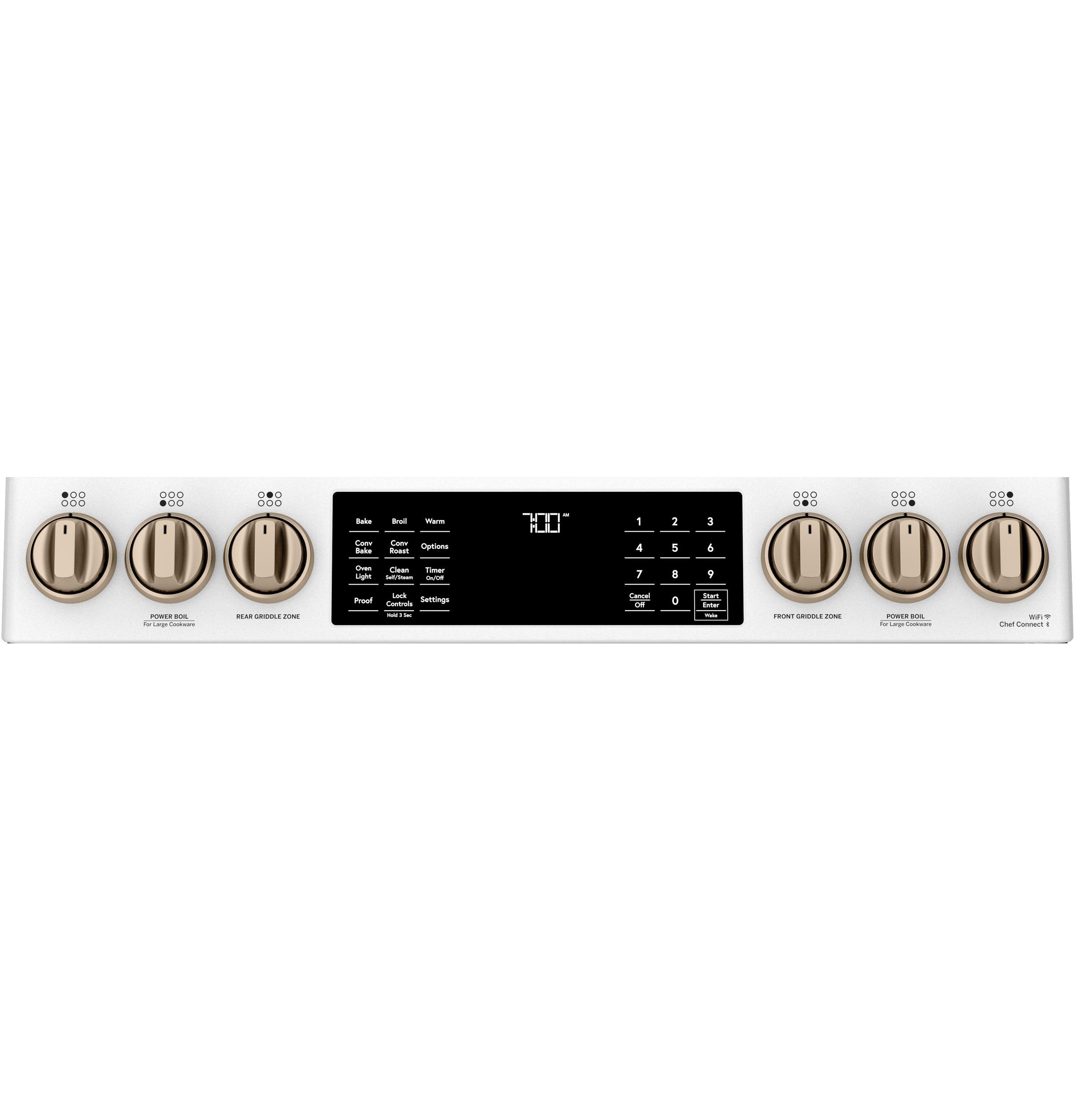

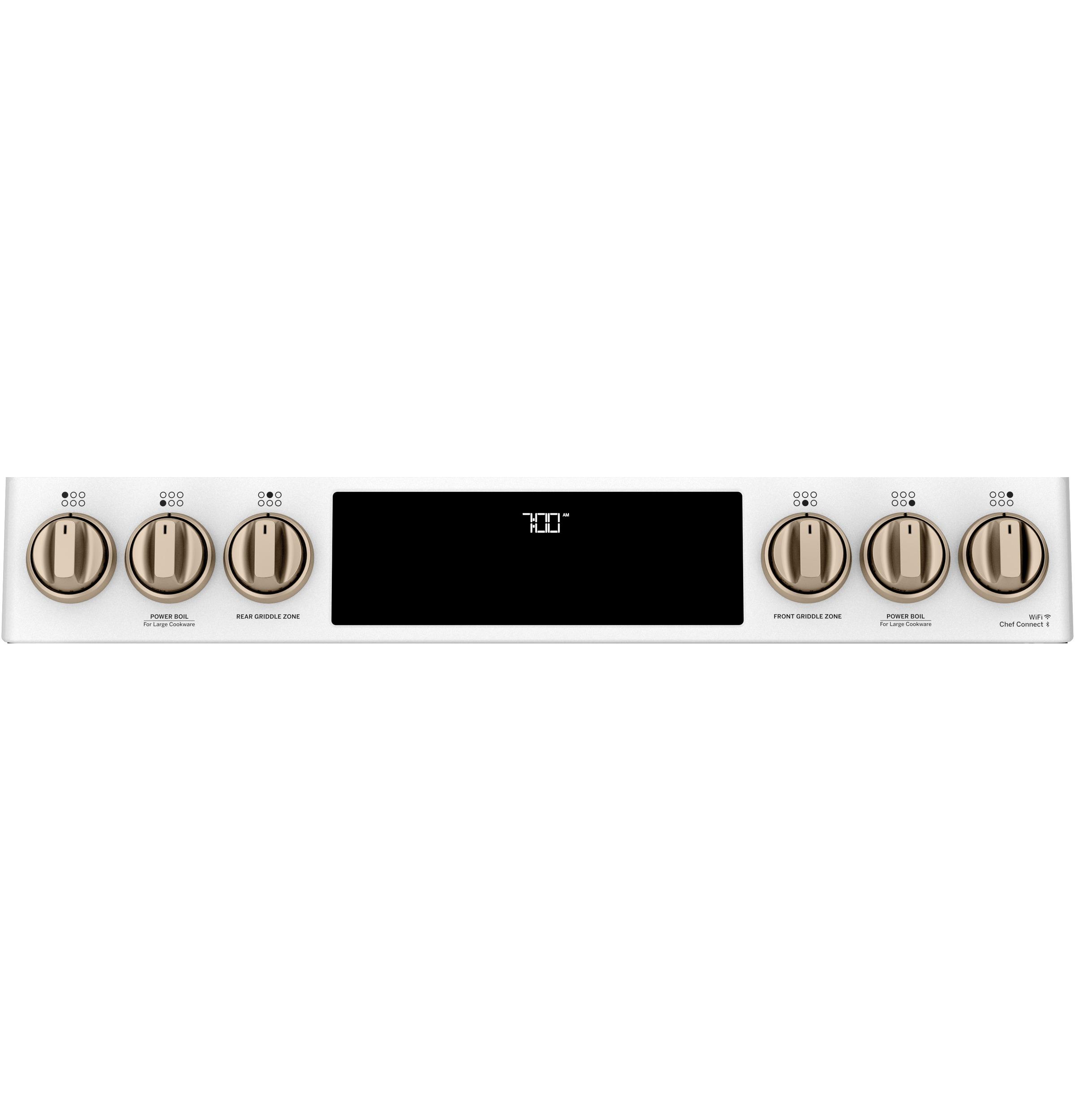

An attractive appearance at all times
Every detail of your kitchen is designed to delight, thanks to a sleek backlit glass touch control panel that visually disappears when not in use and wakes up when prompted

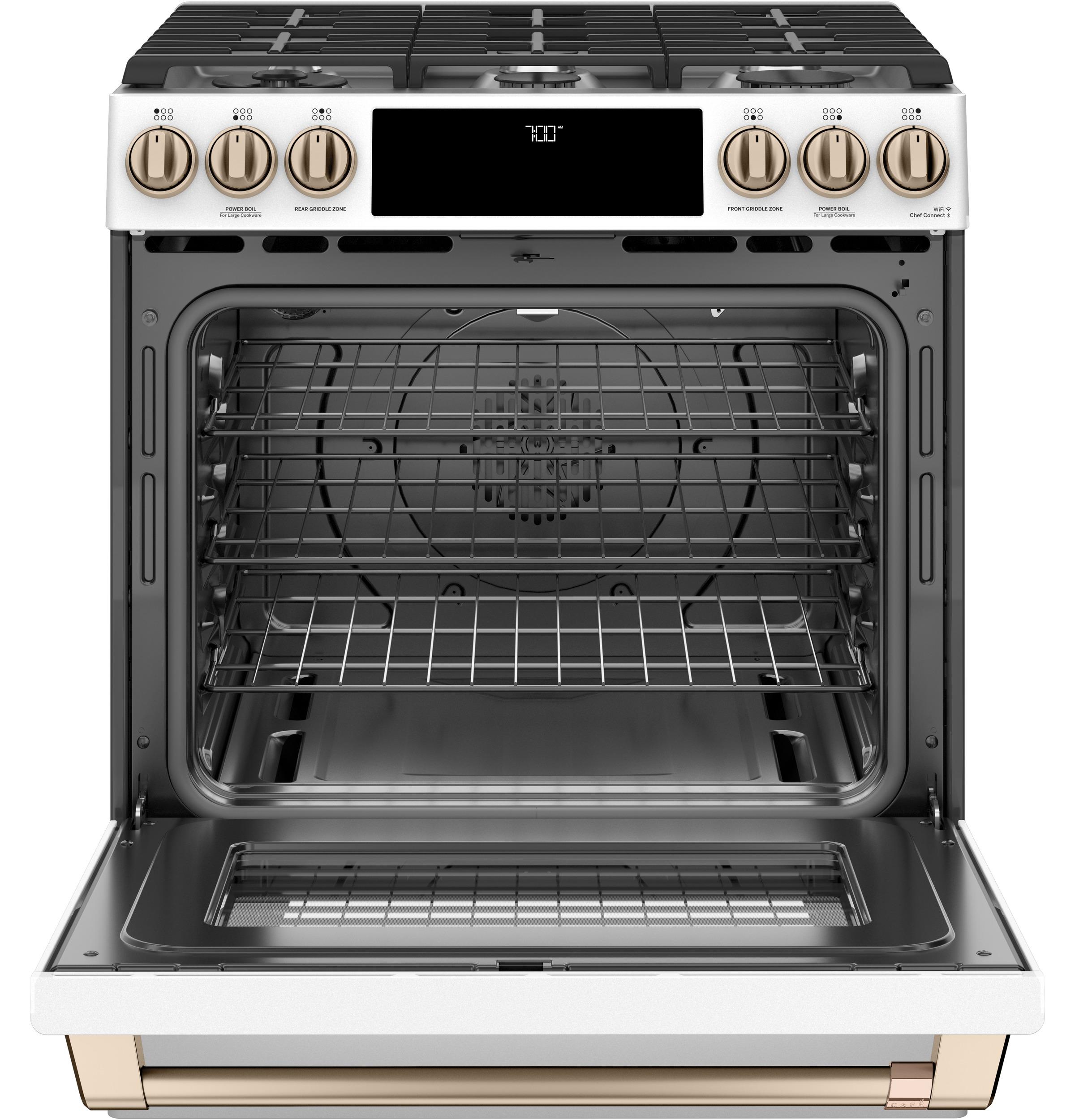

Durable racks that make cleaning easy
Easily remove everything from heavy roasts to delicate desserts with self- clean racks that stay in the oven during the self-clean cycle

Allow your appliances to interact with one another
Create a chef-like experience with Chef Connect, which can synchronize your appliance clocks and surface lights and vent when a range burner is in use, and even your microwave and range clocks
Features
Item Attributes
| Brand Code: | CAFE |
|---|---|
| Part Number: | CGS700P4M5W2 |
| GTIN14: | 084691846703 |
| Category Code: | Cooking |
| Sub Category Code: | Cooking / Kitchen Appliances / Ranges |
CAFE 30" Slide In Front Control Gas Oven With Convection Range CGS700P4M5W2
- SKU-0000033593
- Model #CGS700P4M5W2
| Condition | New |
|---|---|
| Type | ![]() |
| Grade | B |
| Product Source | ![]() |
| Additional Info | All Gas | Minor Indentations On Rear & On Both Top Side Trim (Minimal) |
7 DAY RETURNS ON ALL PRODUCTS
| Brand | CAFE |
|---|---|
| Category | Cooking / Kitchen Appliances / Ranges |
| Model Number | CGS700P4M5W2 |
| UPC/GTIN | 084691846703 |
| Capacity | 5.6000 |
| Color | White |
| Depth | 29 1/2 |
| Width | 29 7/8 |
| Height | 37 3/8 |
