| CAPACITY | |
| Total Capacity (cubic feet) | 10 cu ft |
| Capacity (Cu. Ft.) | 5.0 Upper / 5.0 Lower |
| FILTER | |
| App Filter - Product Type | Wall Oven Double |
| App Filter - Control Type | Electronic touchpad |
| App Filter - WiFi Connect | Built-In |
| App Filter - Cooking Technology | Convection |
| App Filter - Cabinet Width | Cooking 30 in. (Standard) |
| App Filter - Fuel Type | Electric |
| App Filter - Convection | Yes |
| App Filter - Cleaning Type | Steam and Self-Clean |
| APPEARANCE | |
| Door Swing | Left-Swing |
| Handle Color | Brushed Stainless |
| Installation | Above Warming Drawer Side-by-Side |
| Handle | Designer Style |
| Oven Door Features | Big View Oven Window |
| Color Appearance | Stainless Steel |
| POWER / RATINGS | |
| Bake Wattage | 2850W |
| Electrical Requirements | 208/240V ; 60Hz ; 40A |
| Amp Rating at 208V | 40 |
| Hertz | 60 |
| Broiler Wattage | 4300W |
| Convection Wattage | 2400W |
| KW Rating at 240V | 9 |
| Amp Rating at 240V | 40 |
| KW Rating at 208V | 6.8 |
| WARRANTY | |
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| ACCESSORIES | |
| Air Fry Basket | Optional- JXAFTRAY1VSS |
| Optional Accessories | UXWORXR30 - 30" Never Scrub Roller Rack |
| WEIGHTS & DIMENSIONS | |
| Overall Depth | 26.75 in |
| Cabinet Width | 30 in |
| Oven Interior Dimensions (lower) | 25 x 17-3/8 x 20-1/4 |
| Overall Width | 29.75 in |
| Oven Interior Dimensions (upper) | 25 x 17-3/8 x 20-1/4 |

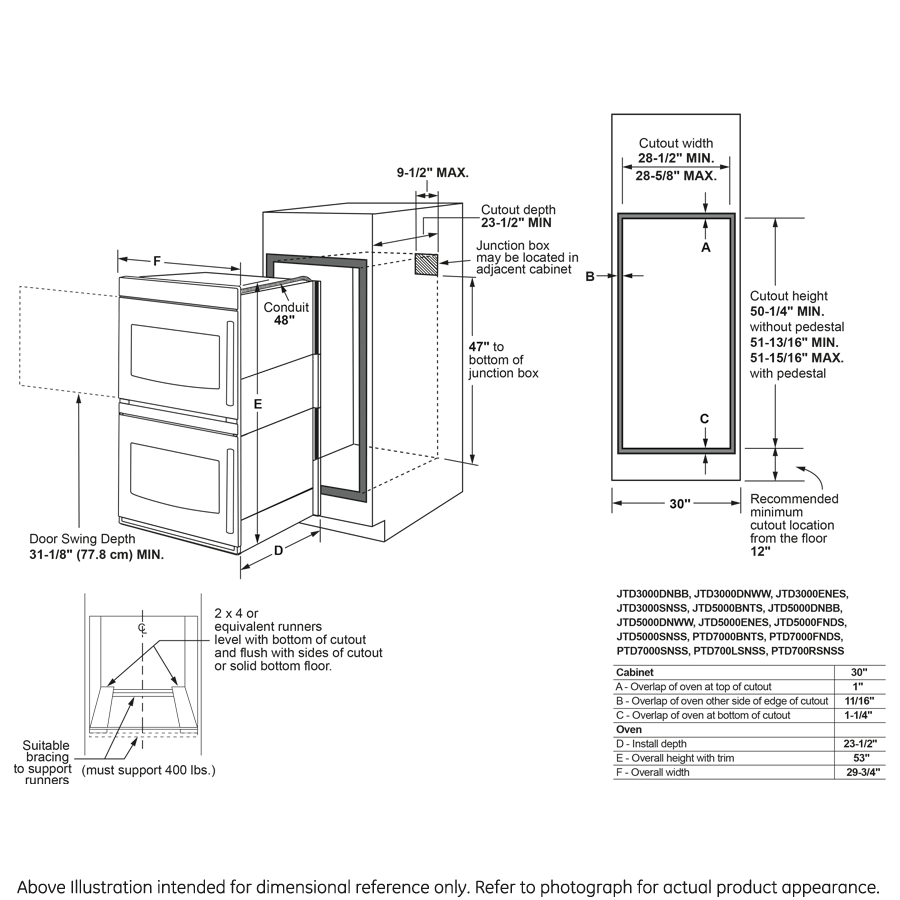

| Cutout Height (in) | 51.8125 in |
| Net Weight | 284 lb |
| Approximate Shipping Weight | 308 lb |
| Cutout Depth (in) | 23.5 |
| Overall Height | 53 in |
| Cutout Width (in) | 28.5 in |
| Cutout Dimensions (w x h x d) (in.) | 28-1/2 x 51-13/16 x 23-1/2 |
| FEATURES | |
| Fuel Type | Electric |
| Oven Interior | 2 Halogen Interior Oven Lights (Both Ovens) Black Gloss Finish Hidden Bake |
| Oven Features | 10-Pass Bake Element 10-Pass Dual Broil Element Closed Door Broiling |
| Configuration | Double Oven |
| Product Type | Double Oven |
| Oven Rack Features | 2 Heavy-Duty Flat Oven Racks 2 Heavy-Duty Roller Racks Embossed Rack Positions (Both Ovens) |
| Cooking Technology | Convection |
| Self-Clean Oven Door Lock | Automatic |
| Control Type | 7" Full-Color Touch LCD Screen |
| Connected Capabilities | Amazon Alexa Fresco Google Home IFTTT Innit Sonos The Google Assistant |
| Cooking System | True European Convection (Lower) True European Convection with Direct Air (Upper) |
| Sabbath Mode | Yes |
| Oven Cooking Modes | Convection Bake Convection Bake Multi-Rack Convection Broil Hi/Lo Convection Roast No Preheat Air Fry Precision Cooking Modes Thermal Bake Thermal Broil Hi/Lo |
| OU Certified | No |
| Oven Cleaning Type | Self-Clean with Steam Clean Option |
| WiFi Connect | Built-In |
| Cleaning Time | Variable with Delay Clean Option |
| Oven Rack Positions (Single or Upper/Lower) | 6 / 6 |
| Oven Control Features | 12-Hour Shut-Off Capability Audible Preheat Signal Auto Recipe Conversion (Upper) Certified Oven Kosher Separation Control Lock Capability Cook Time C° or F° Programmable Delay Time Electronic Clock & Kitchen Timer Mis-Wire Detection Proof Mode Remote Enabled Sabbath Mode Scan-to-cook Temperature Probe Warm Mode |
Built-In WiFi, Powered by SmartHQ AppConnect, control and manage your oven from anywhere with your smartphone or tablet (Select features require WiFi Connection) See detailsGE Profile Connect +Ensure your oven always has the latest features, like new Air Fry modes, with downloadable software upgradesSwing DoorAn innovative door design that opens to the side instead of down, eliminating awkward reachingPrecision Cooking ModesSimplify the cooking process with precision cooking modes that automatically track progress, and make time and temperature adjustmentsNo Preheat Air FryCook healthier, crispier versions of your favorite foods in less time, thanks to an air fryer right in your oven that doesn’t require preheating, a basket or a special trayNo PreheatEliminate the need for preheating and save time with a variety of precision cooking modesBrilliant Touch 7″ DisplayA bright, interactive touch screen is easy to use and includes custom screen backgrounds, weather updates and a pop of intrigue with fun food factsTrue European Convection with Direct AirThis oven features True European Convection, an advanced convection system that uses a third heating element and reversing fan for the highest level of heat and air circulationEasy-Glide, Heavy-duty rackEasily access items with a rack that glides smoothlyTemperature ProbeA precision temperature probe connects to the oven to ensure your food is properly cookedSelf-Clean with Steam CleanThis self-cleaning oven uses optional steam cleaning for light soils to clean the oven cavity with less heat and odorFit GuaranteeThis oven will fit your existing cut-out, or GE Appliances will help pay for modifications up to $300 See offer criteria and details
Image Features

Built-In WiFi, Powered by SmartHQ App
Connect, control and manage your oven from anywhere with your smartphone or tablet (Select features require WiFi Connection) See details

GE Profile Connect +
Ensure your oven always has the latest features, like new Air Fry modes, with downloadable software upgrades

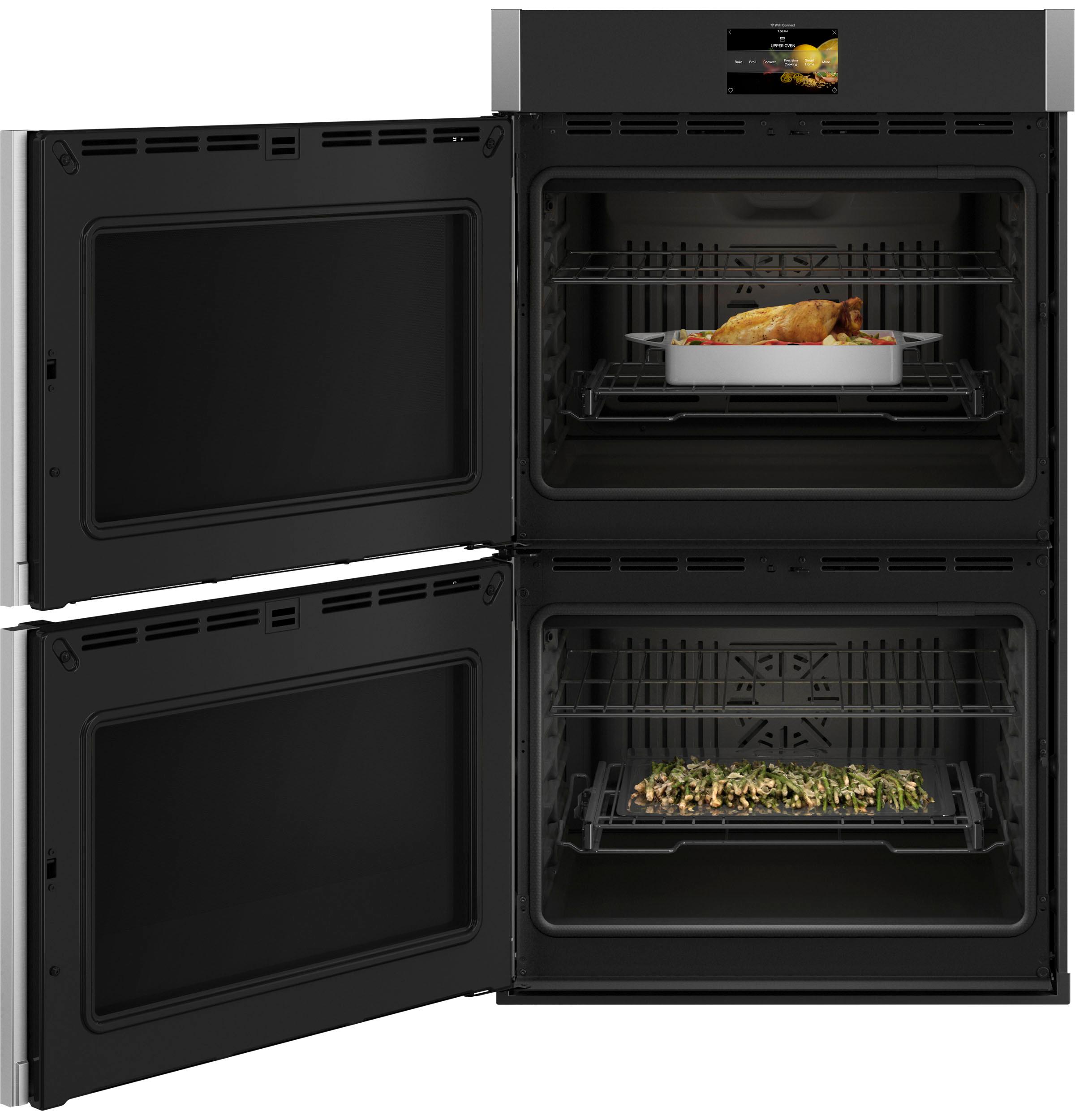

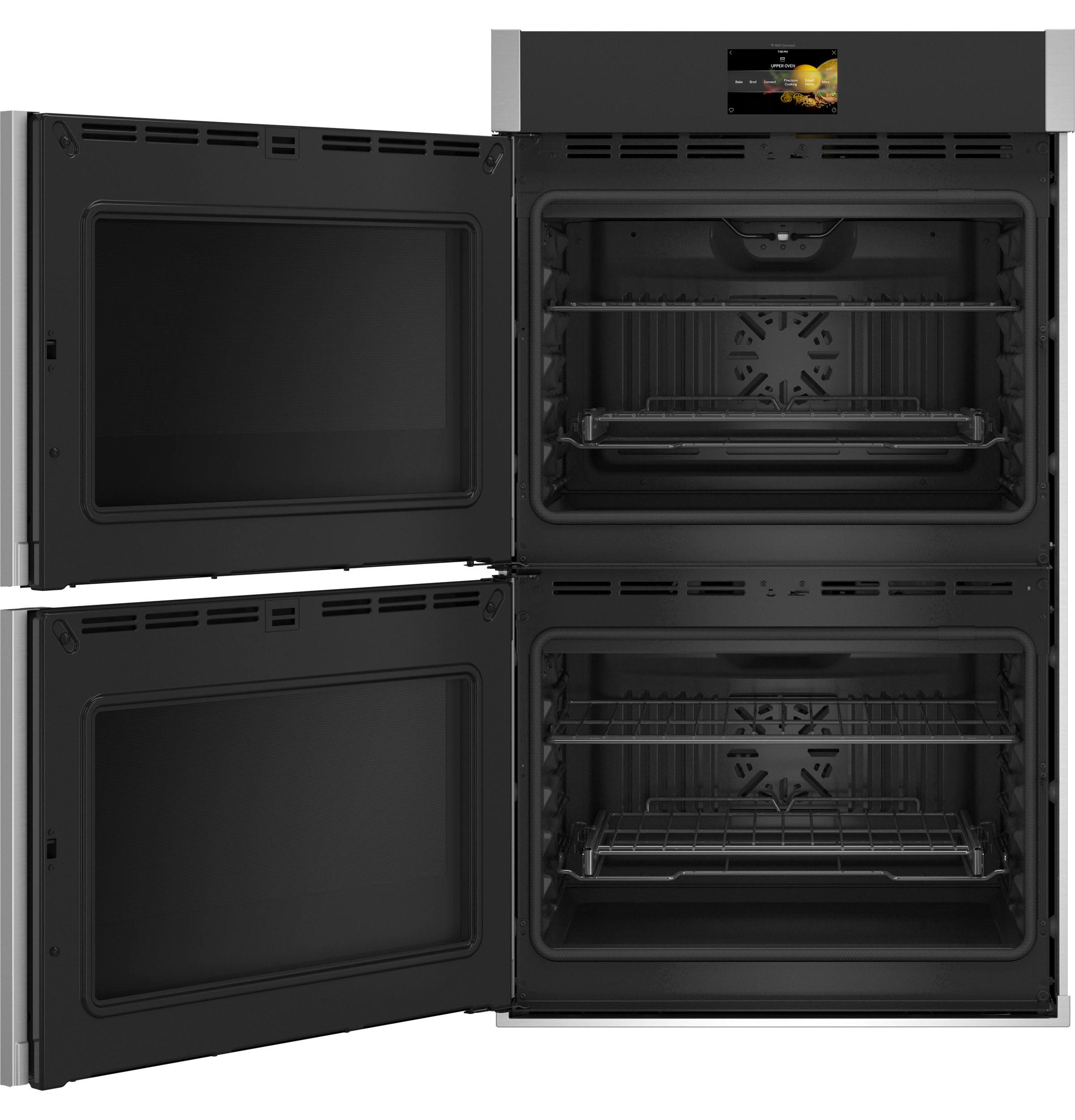

Swing Door
An innovative door design that opens to the side instead of down, eliminating awkward reaching

Precision Cooking Modes
Simplify the cooking process with precision cooking modes that automatically track progress, and make time and temperature adjustments

No Preheat Air Fry
Cook healthier, crispier versions of your favorite foods in less time, thanks to an air fryer right in your oven that doesn't require preheating, a basket or a special tray

No Preheat
Eliminate the need for preheating and save time with a variety of precision cooking modes

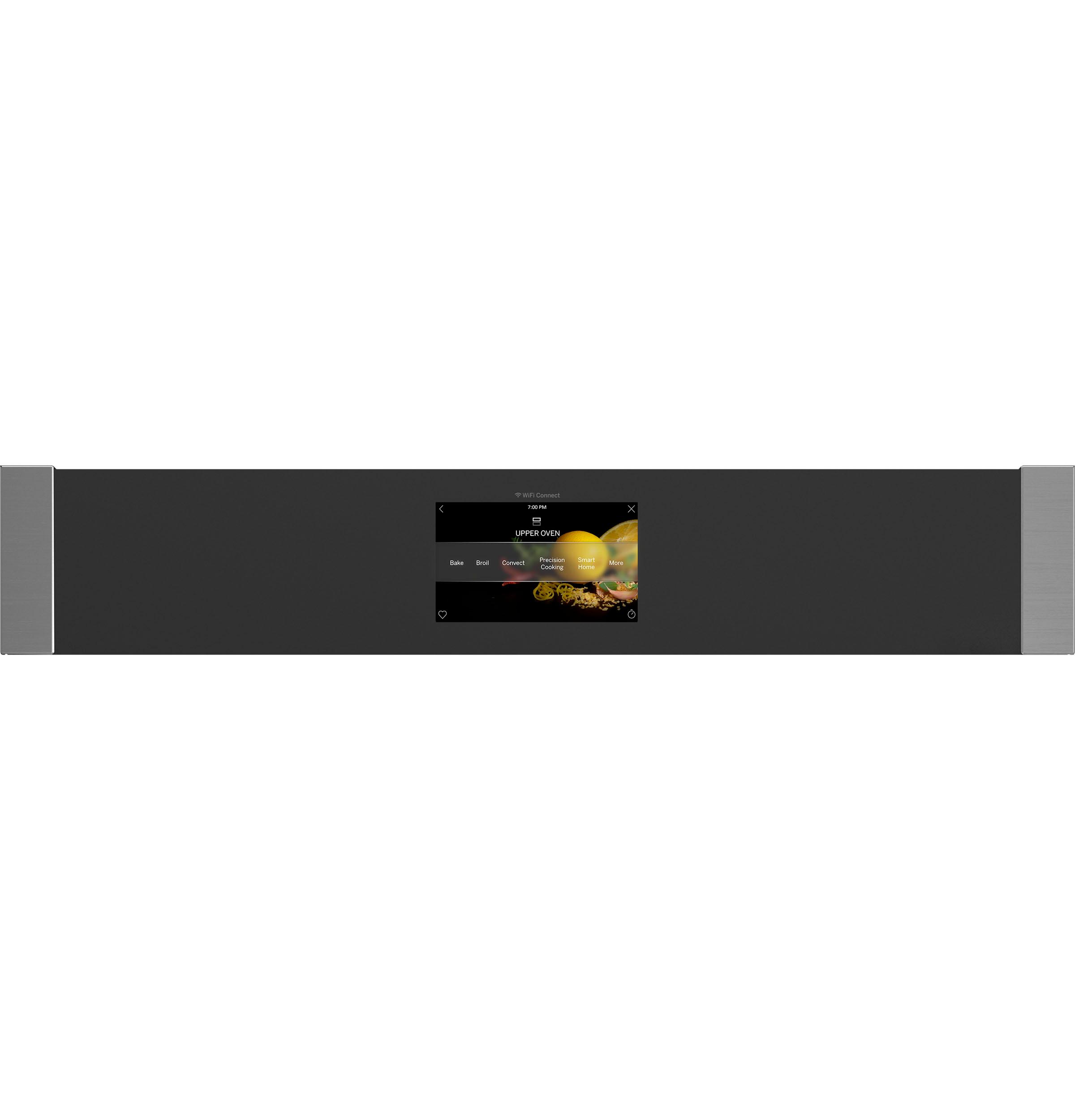

Brilliant Touch 7" Display
A bright, interactive touch screen is easy to use and includes custom screen backgrounds, weather updates and a pop of intrigue with fun food facts

True European Convection with Direct Air
This oven features True European Convection, an advanced convection system that uses a third heating element and reversing fan for the highest level of heat and air circulation

Easy-Glide, Never-Scrub Rack
This smooth-gliding oven rack can be left in the oven during the self-clean cycle so you never have to scrub

Self-Clean with Steam Clean
This self-cleaning oven uses optional steam cleaning for light soils to clean the oven cavity with less heat and odor

Fit Guarantee
This oven will fit your existing cut-out, or GE Appliances will help pay for modifications up to $300 See offer criteria and details
Features
- Built-In WiFi, Powered by SmartHQ App
- GE Profile Connect +
- Swing Door
- Precision Cooking Modes
- No Preheat Air Fry
- No Preheat
- Brilliant Touch 7" Display
- True European Convection with Direct Air
- Easy-Glide, Heavy-duty rack
- Temperature Probe
- Self-Clean with Steam Clean
- Fit Guarantee
Item Attributes
| Brand Code: | GE |
|---|---|
| Part Number: | PTD700LSNSS |
| GTIN14: | 084691842385 |
| Category Code: | Cooking |
| Sub Category Code: | Cooking / Kitchen Appliances / Ovens |

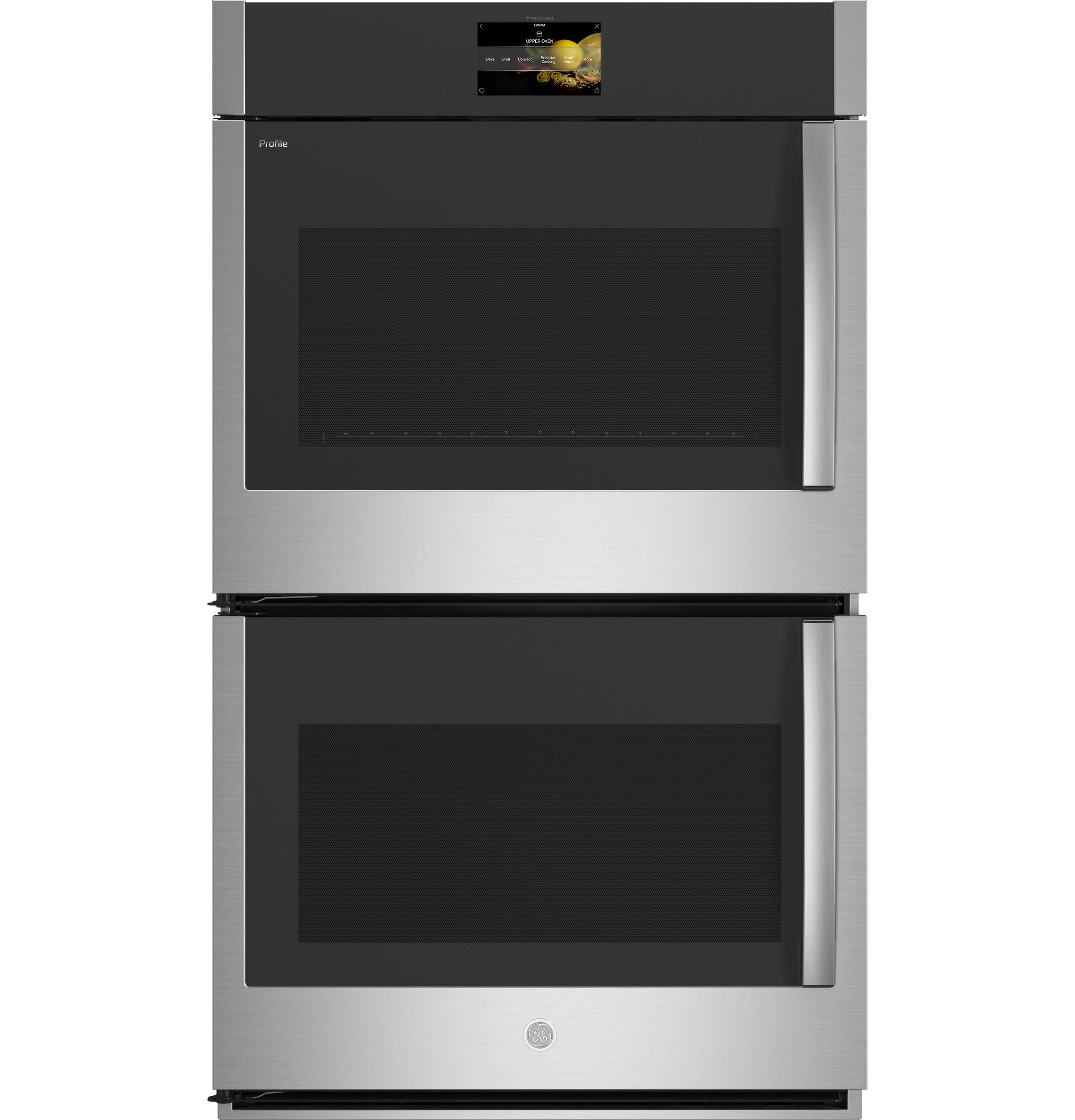

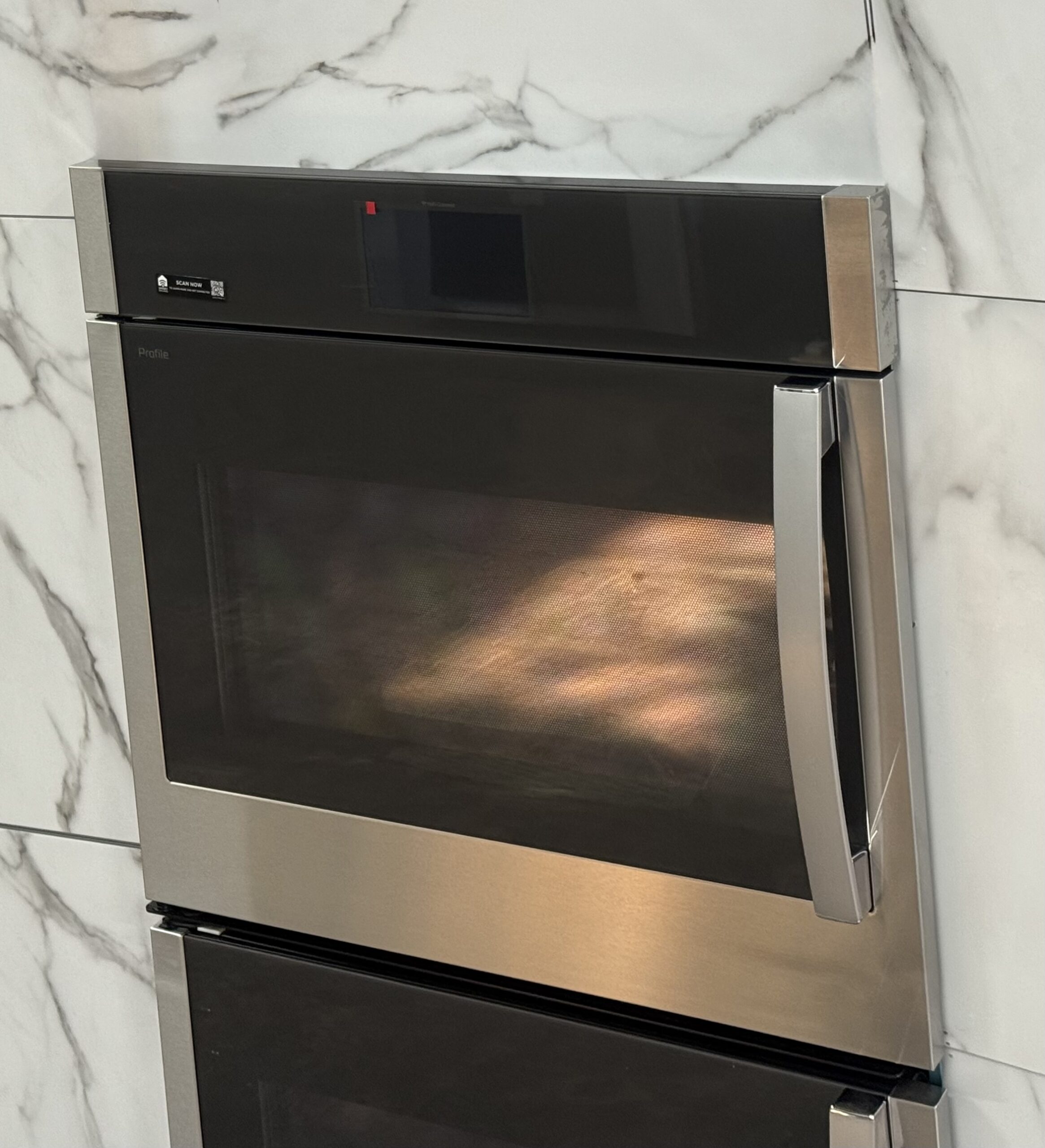

GE Profile(tm) 30" Smart Built In Convection Double Wall Oven With Left Hand Side Swing Doors PTD700LSNSS
- SKU-0000029462
- Model #PTD700LSNSS

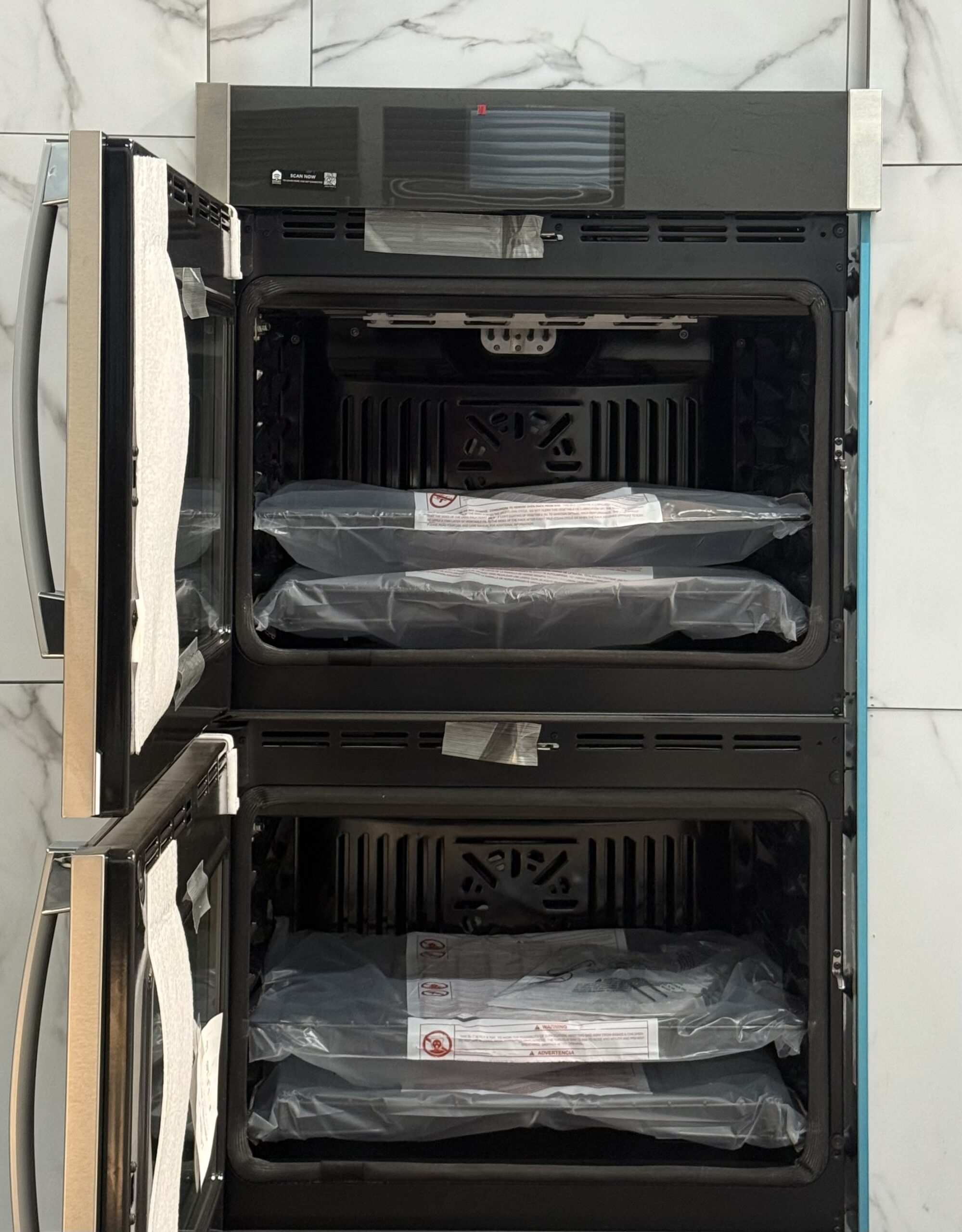

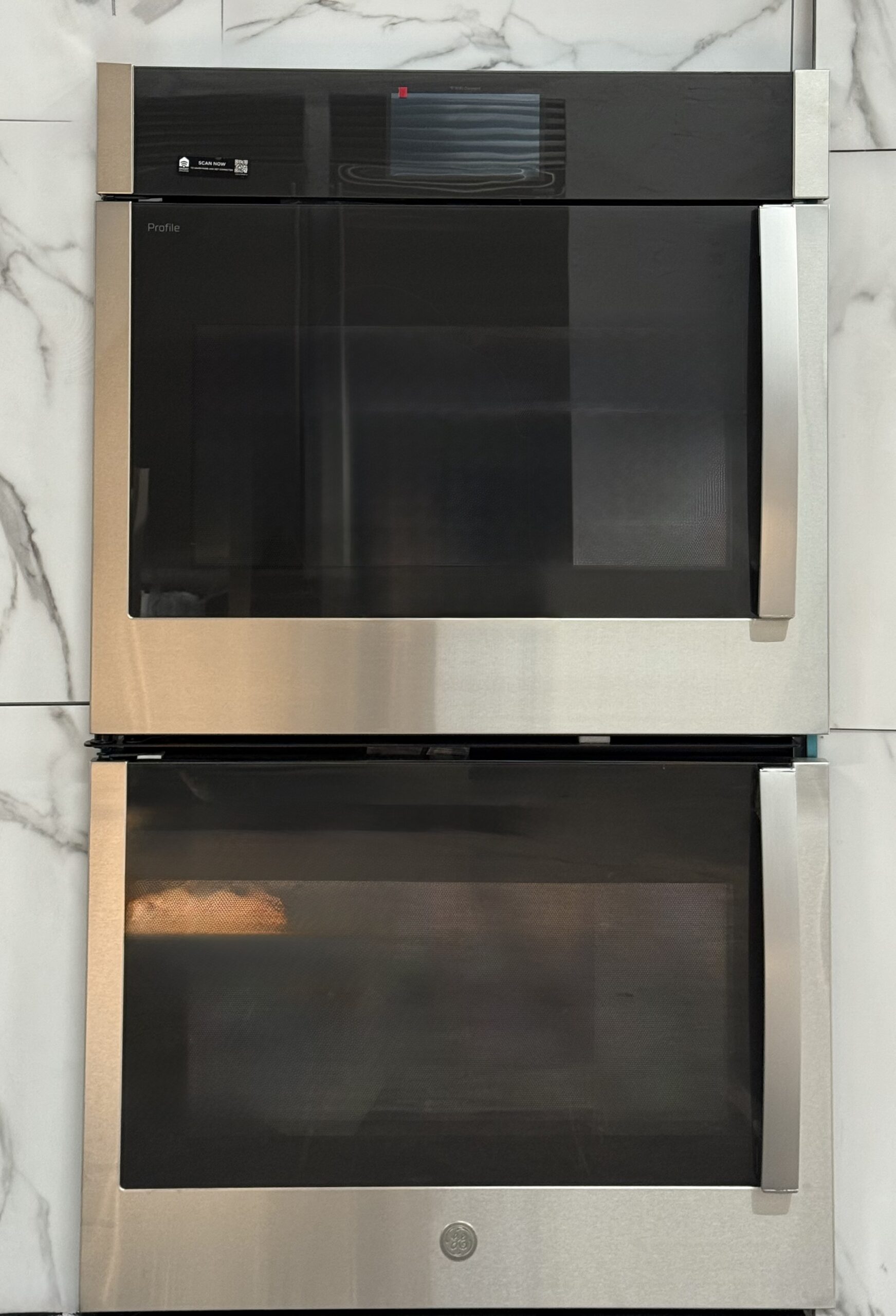

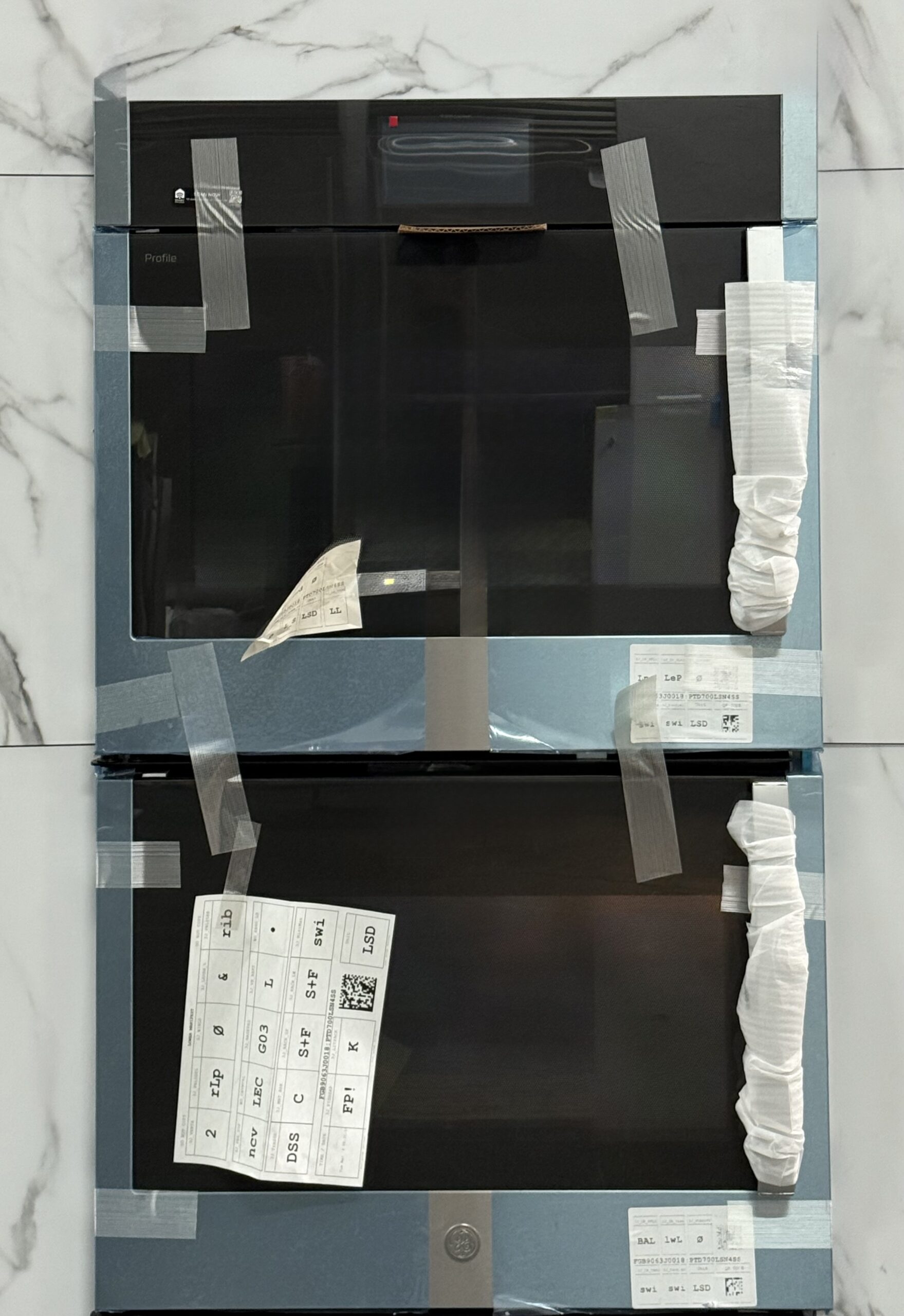

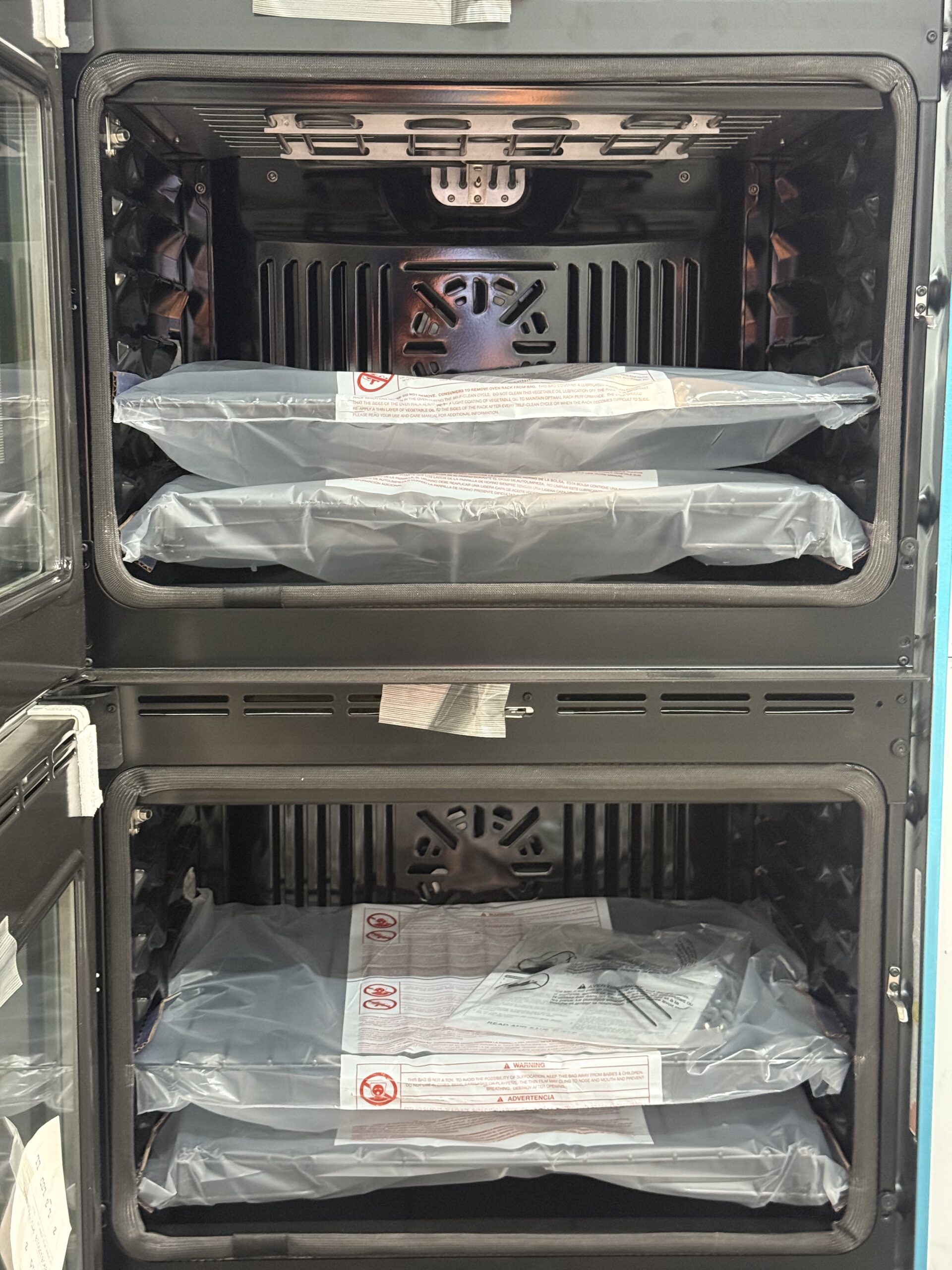

| Condition | New |
|---|---|
| Type | ![]() |
| Grade | A |
| Product Source | ![]() |
| Additional Info | No Forward Facing Imperfections | Rear Dents |
7 DAY RETURNS ON ALL PRODUCTS
| Brand | GE |
|---|---|
| Category | Cooking / Kitchen Appliances / Ovens |
| Model Number | PTD700LSNSS |
| UPC/GTIN | 084691842385 |
| Capacity | 5.0000 |
| Color | Stainless Steel |
| Depth | 26 3/4 |
| Width | 29 3/4 |
