- Capacity: 70 lb
- Collection: 8000 Series
- End Connection 1: FPT
- End Connections: FPT
- Fitting Size 1: 3 in
- Fitting Sizes: 3 in
- Flow Rate: 35 gpm
- Height: 21 in
- Product Type: Grease Interceptor
- Proposition 65: Warning: Cancer and Reproductive Harm www.P65Warnings.ca.gov
- UPC: 727753247925
- Width: 18-1/4 in

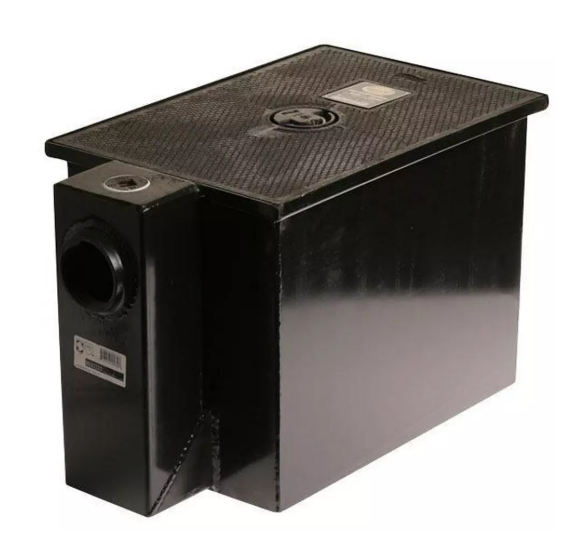

Used in kitchens, restaurants, institutions, and all types of food processing areas where waste water contains grease, fats and oil. Rate of flow into interceptor is controlled by a flow control fitting, thus enabling the interceptor to collect over 90% of the grease which flows into it. Uni-lock cover design permits fast cover removal for periodic cleaning. Interceptor may be set on floor, semi-recessed in floor or fully recessed with cover flush with finished floor. Fig. 8100 Series are extra low designs adaptable for use with dishwashers or low roughing sinks.
Features
- Rate of flow into interceptor is controlled by a flow control fitting, thus enabling the interceptor to collect over 90% of the grease which flows into it

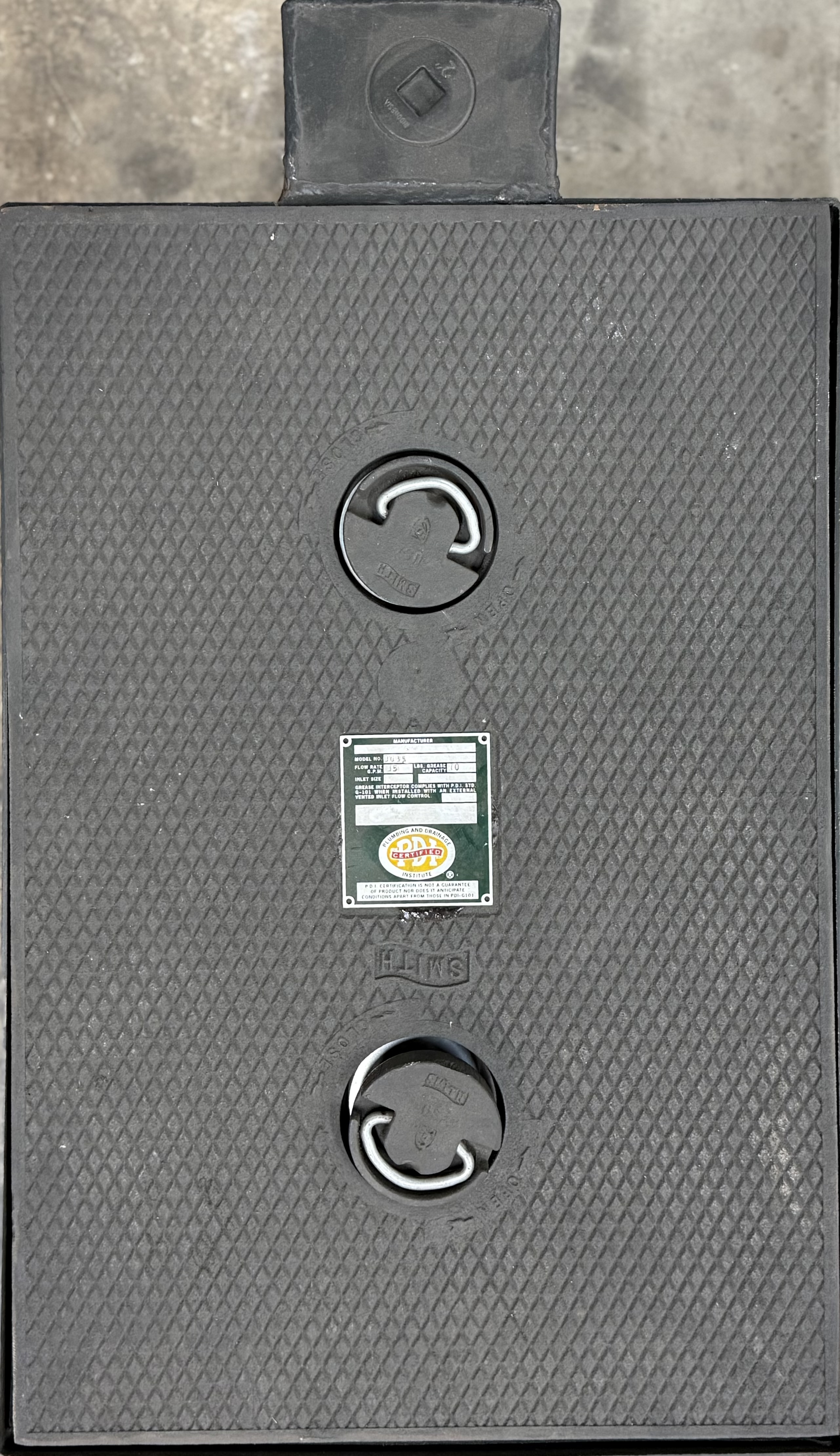

- Uni lock cover design permits fast cover removal for periodic cleaning
- Interceptor may be set on floor, semi-recessed in floor or fully recessed with cover flush with finished floor
- Steel interceptor with gray duco coating inside and outside and flow control fitting
- Upon request, Jay R. Smith Mfg Co will provide the weight of the specific unit, additional weight must be added to compensate for the weight of the liquid/grease when full and in the flowing mode of operation
- Note: it is the responsibility of the installer to check all parts (internal and external) to verify they are in their proper operating order and location
- Whenever an interceptor is to be installed suspended in a floor slab with cradle or independently, proper support is essential for safety and functional integrity of the installation
Item Attributes
| Brand Code: | Jay R. Smith |
|---|---|
| Part Number: | 8035 |
| GTIN14: | 727753247925 |
| Category Code: | Drainage & Waste |
| Sub Category Code: | Drainage & Waste |
Jay R. Smith Carre Solid Brass Rose Right Handed Dummy Door Lever Lever Set With Portofino Lever 8035
- SKUI-0000097529
- Model #8035
| Condition | New |
|---|---|
| Type |  |
| Grade | A |
| Product Source |  |
| Additional Info | New In Box |
| Available Quantity | 1 |
7 DAY RETURNS ON ALL PRODUCTS
FAST Nationwide Shipping (Ships Same/Next Business Day)
Same Day Pick Up (Fort Lauderdale FL).
Same Day | Next Day Local Delivery Available.
Flexible Delivery — Hold Up to 90 Days
Not ready yet? We'll delay shipping your order for up to 90 days.
| Brand | Jay R. Smith |
|---|---|
| Category | Drainage & Waste |
| Model Number | 8035 |
| UPC/GTIN | 727753247925 |
| Capacity | 35.0000 |
| Color | Gray steel coating |
| Depth | 21 |
| Width | 18 1/4 |
| Height | 21 |
- Capacity: 70 lb
- Collection: 8000 Series
- End Connection 1: FPT
- End Connections: FPT
- Fitting Size 1: 3 in
- Fitting Sizes: 3 in
- Flow Rate: 35 gpm
- Height: 21 in
- Product Type: Grease Interceptor
- Proposition 65: Warning: Cancer and Reproductive Harm www.P65Warnings.ca.gov
- UPC: 727753247925
- Width: 18-1/4 in
Used in kitchens, restaurants, institutions, and all types of food processing areas where waste water contains grease, fats and oil. Rate of flow into interceptor is controlled by a flow control fitting, thus enabling the interceptor to collect over 90% of the grease which flows into it. Uni-lock cover design permits fast cover removal for periodic cleaning. Interceptor may be set on floor, semi-recessed in floor or fully recessed with cover flush with finished floor. Fig. 8100 Series are extra low designs adaptable for use with dishwashers or low roughing sinks.
Features
- Rate of flow into interceptor is controlled by a flow control fitting, thus enabling the interceptor to collect over 90% of the grease which flows into it
- Uni lock cover design permits fast cover removal for periodic cleaning
- Interceptor may be set on floor, semi-recessed in floor or fully recessed with cover flush with finished floor
- Steel interceptor with gray duco coating inside and outside and flow control fitting
- Upon request, Jay R. Smith Mfg Co will provide the weight of the specific unit, additional weight must be added to compensate for the weight of the liquid/grease when full and in the flowing mode of operation
- Note: it is the responsibility of the installer to check all parts (internal and external) to verify they are in their proper operating order and location
- Whenever an interceptor is to be installed suspended in a floor slab with cradle or independently, proper support is essential for safety and functional integrity of the installation
Item Attributes
| Brand Code: | Jay R. Smith |
|---|---|
| Part Number: | 8035 |
| GTIN14: | 727753247925 |
| Category Code: | Drainage & Waste |
| Sub Category Code: | Drainage & Waste |
