Door Panel Dimensions (approx) Height: 79.88 in (≈ 203 cm) — per vendor listing for similar 29.75–30″ panel
Width: ~29.75 in (~75.6 cm) for inset-style; but for frameless installation, nominal 30 in (≈ 76.2 cm) fit width per cut-out specs
Panel Depth / Thickness: recommended between 5/8 in (16 mm) — 1 in (25.4 mm)
Panel & Handle Max Weight Max combined weight of door panel + handle: 77 lbs (≈ 35 kg)
Pre-Drilled Hinge / Handle Hole Spacing Typical hole spacing for door & drawer panels: centers ~ 30 5/16 in (≈ 770 mm) for handle/hinge mounting — as per listing for Monolith panel set.
Finish / Material Stainless steel, brushed finish (matching Monolith stainless-steel aesthetic)
Included in Panel Kit Only the door panel itself (for custom or built-in installation). Handles, toe kick, and additional accessories are sold separately under Monolith accessory SKUs.
Installation Notes - For “Inset” installation: use panel dimensions W ≈ 29.75 in.
- For “Frameless” installation: panel overlaps sides/top; ensure width ≈ 30 in to allow overlap.
- Panel thickness between 5/8 in and 1 in; exceeding weight limit (77 lbs) may void fit or require different hinges.

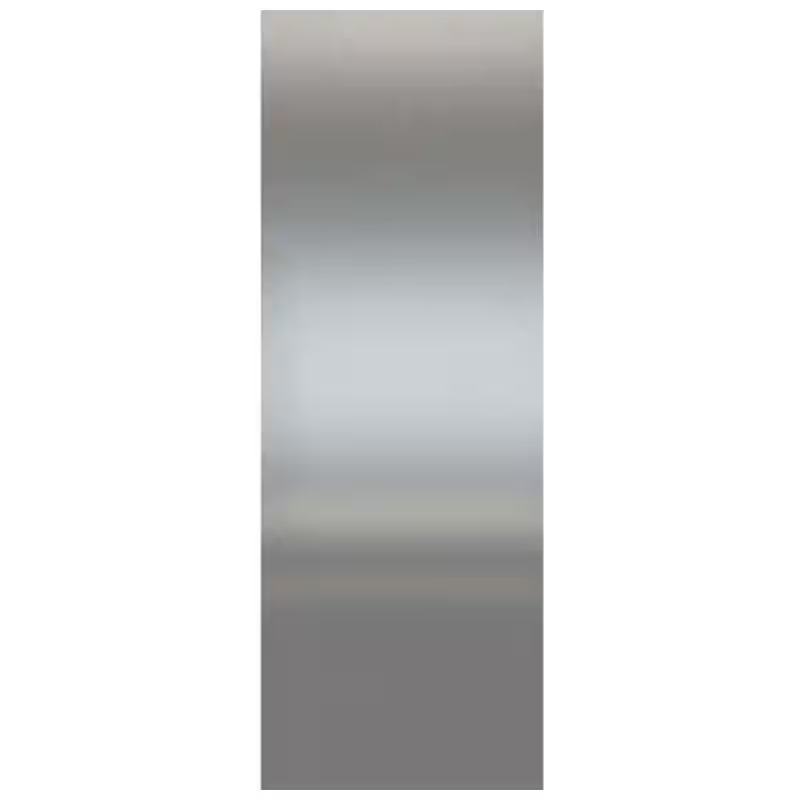

The Liebherr 9901 872-02 is a 30-inch stainless steel door panel designed for Liebherr Monolith column refrigerators and freezers. This panel allows for a seamless integration with cabinetry, providing a custom, built-in appearance.
Features
Material: High-quality stainless steel for durability and a sleek finish
Design: Custom panel designed to match Liebherr Monolith column refrigerators and freezers
Finish: Brushed stainless steel
Compatibility: Specifically designed for Liebherr Monolith 30-inch column models
Installation Style: Inset installation with overlapping dimensions
Panel Thickness: Minimum 5/8 inch (16 mm), maximum 1 inch (25.4 mm)
Weight Capacity: Maximum panel and handle weight of 66 lbs (30 kg)
Item Attributes
| Brand Code: | LIEBHERR |
|---|---|
| Part Number: | 9901 872-02 |
| GTIN14: | 9005382245996 |
| Category Code: | Kitchen Appliances |
| Sub Category Code: | Kitchen Appliances / Refrigeration / Refrigerators |
Liebherr 30-Inch Refrigerator Stainless Steel - 9901 872-02
- SKUI-0000089971
- Model #9901 872-02
| Type |  |
|---|---|
| Grade | A |
| Product Source |  |
| Additional Info | Part brand new in box |
7 DAY RETURNS ON ALL PRODUCTS
| Brand | LIEBHERR |
|---|---|
| Category | Kitchen Appliances / Refrigeration / Refrigerators |
| Model Number | 9901 872-02 |
| UPC/GTIN | 9005382245996 |
| Capacity | 1.0000 |
| Depth | 3/4 |
| Width | 30 |
| Height | 80 |
Door Panel Dimensions (approx) Height: 79.88 in (≈ 203 cm) — per vendor listing for similar 29.75–30″ panel
Width: ~29.75 in (~75.6 cm) for inset-style; but for frameless installation, nominal 30 in (≈ 76.2 cm) fit width per cut-out specs
Panel Depth / Thickness: recommended between 5/8 in (16 mm) — 1 in (25.4 mm)
Panel & Handle Max Weight Max combined weight of door panel + handle: 77 lbs (≈ 35 kg)
Pre-Drilled Hinge / Handle Hole Spacing Typical hole spacing for door & drawer panels: centers ~ 30 5/16 in (≈ 770 mm) for handle/hinge mounting — as per listing for Monolith panel set.
Finish / Material Stainless steel, brushed finish (matching Monolith stainless-steel aesthetic)
Included in Panel Kit Only the door panel itself (for custom or built-in installation). Handles, toe kick, and additional accessories are sold separately under Monolith accessory SKUs.
Installation Notes - For “Inset” installation: use panel dimensions W ≈ 29.75 in.
- For “Frameless” installation: panel overlaps sides/top; ensure width ≈ 30 in to allow overlap.
- Panel thickness between 5/8 in and 1 in; exceeding weight limit (77 lbs) may void fit or require different hinges.
The Liebherr 9901 872-02 is a 30-inch stainless steel door panel designed for Liebherr Monolith column refrigerators and freezers. This panel allows for a seamless integration with cabinetry, providing a custom, built-in appearance.
Features
Material: High-quality stainless steel for durability and a sleek finish
Design: Custom panel designed to match Liebherr Monolith column refrigerators and freezers
Finish: Brushed stainless steel
Compatibility: Specifically designed for Liebherr Monolith 30-inch column models
Installation Style: Inset installation with overlapping dimensions
Panel Thickness: Minimum 5/8 inch (16 mm), maximum 1 inch (25.4 mm)
Weight Capacity: Maximum panel and handle weight of 66 lbs (30 kg)
