| General information | |
| Model number | DAR 1150 |
| Manufacturer material number | 09753510 |
| EAN number | 4002515446829 |
| Design | |
| Insert ventilation hood | Yes |
| Required accessories | |
| Blower | Yes |
| Operating modes | |
| Recirculated mode | Exhaust air |
| External operation possible | Yes |
| User convenience | |
| Rotary knob | Yes |
| Power levels (number excl. Intensive) | 3 |
| Temperature sensor | Yes |
| Cleaning convenience | |
| Easy to clean canopy interior CleanCover | Yes |
| Dishwasher-safe grease collection channel | Yes |
| Filter system | |
| Number of dishwasher-safe stainless steel baffle filters | 4 |
| Lighting | |
| LED | Yes |
| Number x W | 4 x 3 W |
| Fan option (buy separately) | |
| DRIB XXL internal blower in CFM (m /h) | 1869 |
| DREB XXL external blower in CFM (m /h) | 1869 |
| Technical data | |
| Canopy width in in.(mm) | 45 1/2 (1155) |
| Canopy width in inches | 47 15/16 |
| Canopy height in in.(mm) | 17 3/4 (449) |
| Canopy depth in in.(mm) | 22 7/8 (579) |
| Net weight in lbs. (kg) | 56 (25.0) |
| Length of electrical wire in ft (m) | 2 (0.8) |
| Standard plug fitted | Yes |
| Total connected load in kW | 0.812 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Number of phases | 1 |
| Plug type | NEMA plug: 5-15 |
| Installation note | |
| Vent connection at top | Yes |
| Diameter of vent connection in in.(mm) | 9 7/8 (250) |
| Standard accessories | |
| Non-return flap | Yes |
| EAN | |
| EAN | 4002515446829 |
Consistent, Professional Results
Their complete collection of Range Wall Hoods and Inserts is the finishing touch to their Range series. Hand-sculpted by experienced craftsmen, each ventilation hood meets their exacting high standards.
Miele Philosophy
Miele is a German manufacturer of high quality domestic appliances and machines for commercial applications. The company was founded over 110 years ago in 1899 by Carl Miele and Reinhard Zinkann and has always been a family-owned, family-run company.
Image Features

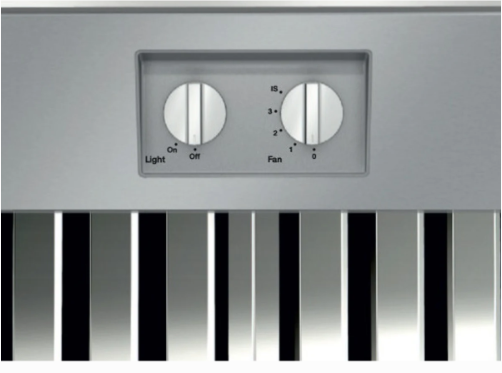

Knob controls
Beautiful and functional: Metal rotary controls complement the harmonious design of the range hoods.

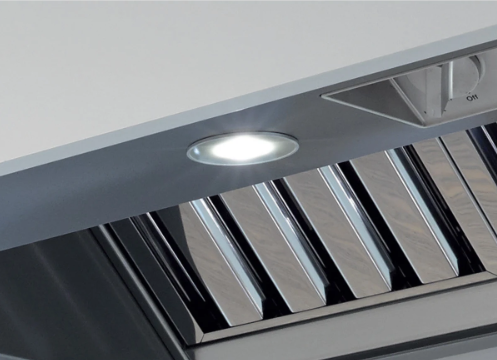

LED ClearView lighting
Eco-friendly and very durable: With up to 4 x 2 W, they provide the cooktop with uniform, warm downlighting.
Temperature sensor
Continuous monitoring: the temperature sensor ensures safety and prevents unnecessary energy consumption.
Miele CleanCover
Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
Features
- Customized kitchen design - fully integrated in 45 1/2 (1155) in (mm)
- Perfect illumination - LED ClearView lighting
- Dishwasher-safe - 4 high-quality stainless steel grease filters
- Safe and easy to clean - Miele CleanCover
- Auto-vent safety sensor - protects against overheating
- View manufacturer details: Miele & Cie. KG
- Safety information
Item Attributes
| Brand Code: | MIELE |
|---|---|
| Part Number: | DAR1150 |
| GTIN14: | 04002515446829 |
| Category Code: | Kitchen Appliances |
| Sub Category Code: | Kitchen Appliances / Range Hoods |
MIELE 1100 CFM 48-Inch Insert Range Hood - DAR1150
- SKU-0000024867
- Model #DAR1150
| Condition | New |
|---|---|
| Type |  |
| Grade | C |
| Product Source |  |
| Additional Info | Surface Blemishes & Scratches Around Trim | Missing All Four Baffle Filter & Maybe Missing Additional Accessories | Inspected for full functionality. Cosmetic accessories and non-essential hardware from original packaging may not be included |
| Available Quantity | 1 |
7 DAY RETURNS ON ALL PRODUCTS
| Brand | MIELE |
|---|---|
| Category | Kitchen Appliances / Range Hoods |
| Model Number | DAR1150 |
| UPC/GTIN | 04002515446829 |
| Capacity | 1.0000 |
| Color | Stainless Steel |
| Depth | 22 13/16 |
| Width | 45 1/2 |
| Height | 17 11/16 |
