Miele 24" Extra Slim Hood Insert With 625 Cfm DA2360
- SKU-0000025622
- Model #DA2360
| Condition | New |
|---|---|
| Type |  |
| Grade | B |
| Product Source |  |

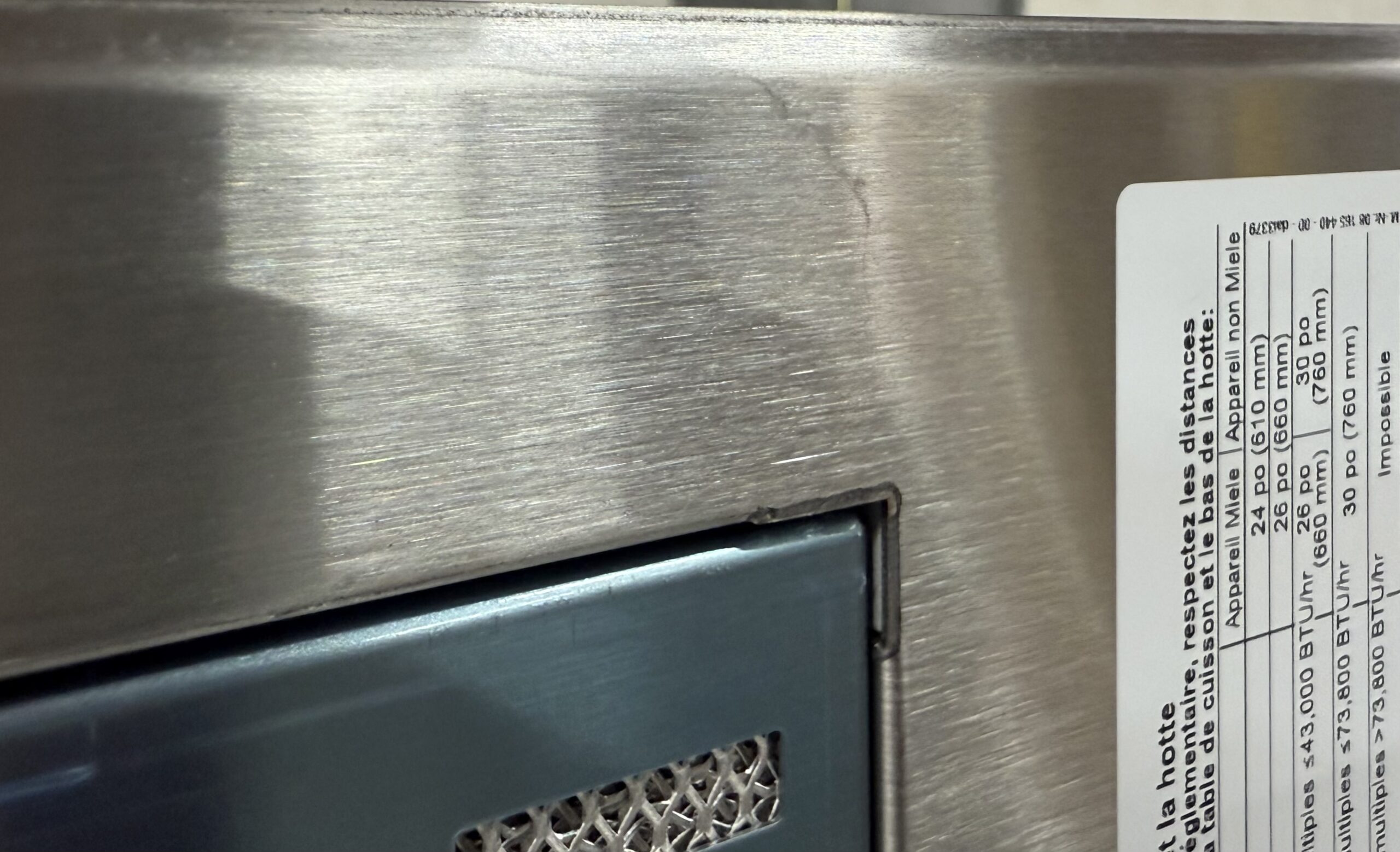

| Additional Info | Minor Surface Blemishes |
7 DAY RETURNS ON ALL PRODUCTS
FAST Nationwide Shipping (Ships Same/Next Business Day)
Same Day Pick Up (Fort Lauderdale FL).
Same Day | Next Day Local Delivery Available.
| Brand | Miele |
|---|---|
| Category | Kitchen Appliances / Range Hood |
| Model Number | DA2360 |
| UPC/GTIN | 04002515949887 |
| Capacity | 625.0000 |
| Color | Stainless Steel |
| Width | 23 |
| Height | 2 1/2 |
| Design | |
| Insert ventilation extractor | Yes |
| Operating modes | |
| Recirculated mode | Can be retrofitted |
| Recirculation conversion kit (order separately) | DUU 151 |
| OdorFree charcoal filter (order separately) | DKF 19-P |
| Design | |
| Color | Stainless steel |
| User convenience | |
| Electronic controls | Yes |

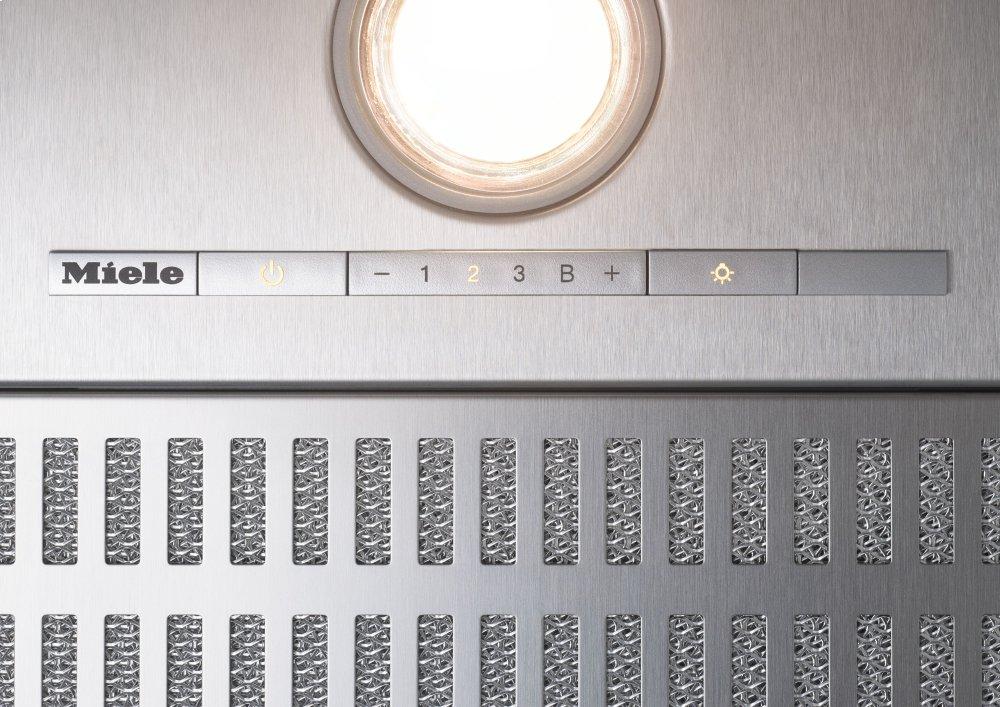

| Operation | Light-touch switches with LEDs |
| Power levels (number excl. Intensive) | 3 |
| Booster levels | 1 |
| CleanCover | Yes |
| Cleaning convenience | |
| Easy-to-clean canopy interior - CleanCover | Yes |
| Filter system | |
| Number of dishwasher-safe stainless steel grease filters (10-ply) | 1 |

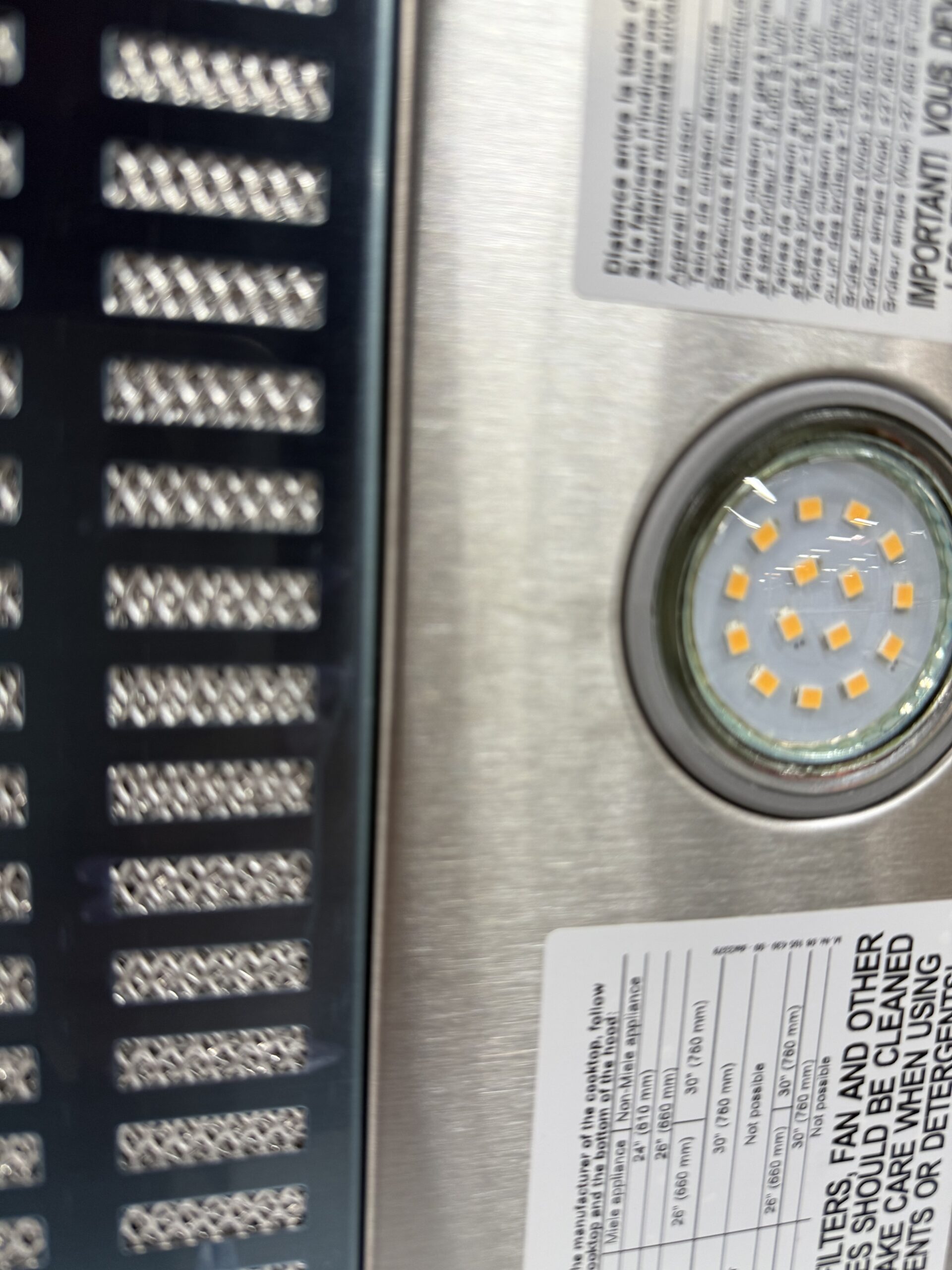

| Lighting | |
| Number x W | 2 x 3 W |
| Light intensity in Lx | 350 lx |
| Color temperature in K | 3000 Kelvin |
| Blower | |
| Dual-action blower | Yes |
| Exhaust air | |
| Air throughput in CFM in Booster | 483 |
| Air throughput | Values upon request |
| Air throughput with Booster level 1 (m /h) according to EN 61591 | 482.64 (820) |
| Safety | |
| Safety shut-off | Yes |
| Technical data | |
| Canopy width in in. (mm) | 23 (584) |
| Canopy height in in. (mm) | 2 1/2 (63) |
| Depth of hood canopy in in. (mm) | 11 3/4 (297) |
| Minimum height above electric cooktops in mm | 24 1/8 (610) |
| Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner 4.5 kW) in mm | 26 (660) |
| Net weight in lbs. (kg) | 25 (11.0) |
| Length of electrical wire in ft. (m) | 4 (1.5) |
| Standard plug fitted | Yes |
| Total connected load in kW | 0.356 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Frequency in Hz | 60 |
| Number of phases | 1 |
| Installation note | |
| Vent connection at top | Yes |
| Diameter of vent connection in in. (mm) | 6 (150) |
| Standard accessories | |
| Non-return flap | Yes |
| EAN | |
| EAN | 4002515949887 |
What’s included Non-return flap
Image Features
Handcrafted in Germany
Know-how and craftsmanship: Our expertise goes into every ventilation hood, from development to finished product.
Safety turn off
Sensible, even in case of operating errors: The ventilation hood will switch off automatically after 10 hours.

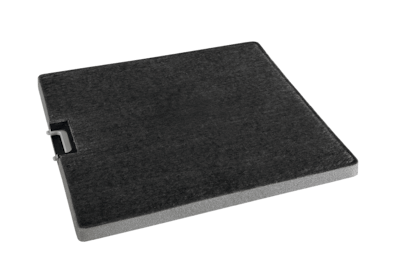

Active AirClean filter
Efficient odor absorption: The disposable filter with active charcoal must be replaced regularly.

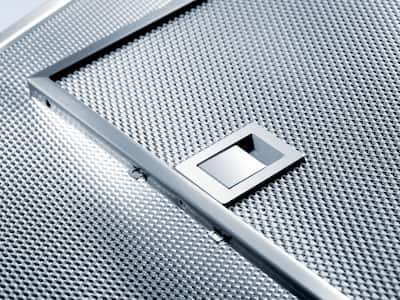

Stainless-steel grease filters (10-layer)
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.

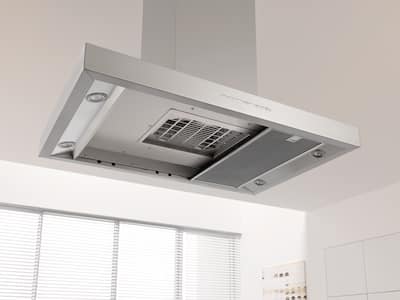

Miele CleanCover
Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
Features
- Customized kitchen design - fully integrated in 23 (584) in (mm) width
- Space saving - suitable for narrow wall units from 11.8" deep
- Powerful - 482.64 (820) ft /min (m3/h) in Booster level
- Efficient filtration- 10-ply stainless steel grease filters
- Safe and easy to clean - Miele CleanCover
- Manufactured with great care by Miele & Cie. KG
- Safety information
