| Specification | Value |
|---|---|
| Brand | Miele |
| Collection | ProfiLine |
| Model | PFD 104 SCVi XXL |
| Product Number | 11605520 |
| Product Type | Professional full-size dishwasher |
| Installation Type | Fully integrated |
| Panel Configuration | Panel ready; decorative front not included |
| Dishwasher Size | 24" |
| Dishwasher Height Class | XXL |
| Wash System | Fresh-water front loader |
| Place-Setting Capacity | 16 |
| Number of Wash Programs | 8 |
| Wash Programs | Normal Plus, Normal, SaniWash, Cold/Pre-Wash, Glasses, Plastics, Eco and Intensive |
| Shortest Program Duration | 24 minutes |
| Maximum Final-Rinse Temperature | 180°F |
| Tested Service Life | 12,500 wash cycles |
| Control Type | Electronic controls |

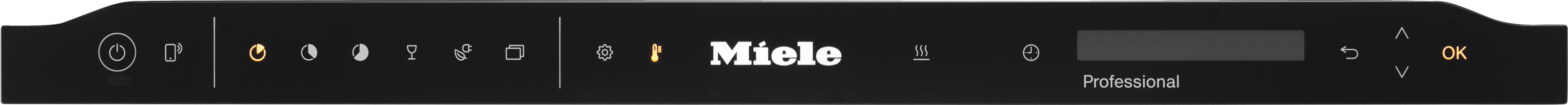

| Control Panel Color | Obsidian Black |
| Delay Start | Up to 24 hours |
| Countdown Display | Yes |
| Program-Sequence Indicator | Yes |
| Selectable Display Languages | Yes |
| Filter-Check Indicator | Yes |
| Knock2open | Yes |
| AutoClose | Yes |
| AutoOpen Drying | Yes |
| Additional Drying | Yes |
| Active Condensation Drying | Yes |
| Interior Lighting | BrilliantLight LED |
| Wi-Fi Connectivity | Yes |
| Miele MOVE Compatibility | Yes |
| EcoFeedback | Yes |
| SmartStart | Yes |
| FlexiTimer with EcoStart | Yes |
| Interior Material | Stainless steel |
| Cutlery Tray | 3D MultiFlex Tray |
| Basket Design | MaxiComfort P with FlexLine |
| Upper Basket | Height adjustable |
| FlexCare Glass Holders | 4 |
| FlexCare Cup Racks | 2 |
| Integrated Water Softener | Yes |
| Maximum Supported Water Hardness | 38.025 gpg |
| Water Connection | One hot- or cold-water connection |
| Required Flow Pressure | 1–10 bar |
| Water Protection System | Waterproof system |
| Water Inlet Hose Length | 59 1/8" |
| Drain Hose Length | 59 1/8" |
| Drain Hose Diameter | DN 22 |
| Maximum Drain-Pump Delivery Head | 39 3/8" |
| Standard Electrical Connection | 2N AC 120/208–240 V, 60 Hz |
| Standard Heater Rating | 3.5–3.8 kW |
| Standard Connected Load | 3.7–4.0 kW |
| Standard Circuit Requirement | 30 A |
| Standard Plug Type | NEMA 14-30 |
| Alternative Electrical Connection | 120 V AC, 60 Hz |
| Alternative Heater Rating | 1.3 kW |
| Alternative Connected Load | 1.4 kW |
| Alternative Circuit Requirement | 15 A |
| Power Cord Length | 5' |
| Overall Width | 23 9/16" |
| Overall Height | 33 5/16" |
| Overall Depth | 21 11/16" |
| Required Niche Width | 23 5/8" |
| Wash-Cabinet Width | 22 7/8" |
| Wash-Cabinet Height | 20 1/8" |
| Upper-Basket Usable Depth | 17 3/4" |
| Lower-Basket Usable Depth | 17 3/4" |
| Minimum Custom Panel Weight | 11 lb. |
| Maximum Custom Panel Weight | 26 lb. |
| Net Weight | 106 lb. |
| Gross Weight | 126 lb. |
| Packaged Width | 26 7/16" |
| Packaged Height | 38 1/4" |
| Packaged Depth | 27 3/16" |
| Workplace Sound Pressure | 33 dB(A) |
| Sound Power Level | 45 dB(A) |
| Certifications | UL, CE, VDE, DIN EN 17735 and EN 1717 |
| EAN | 4002516366942 |

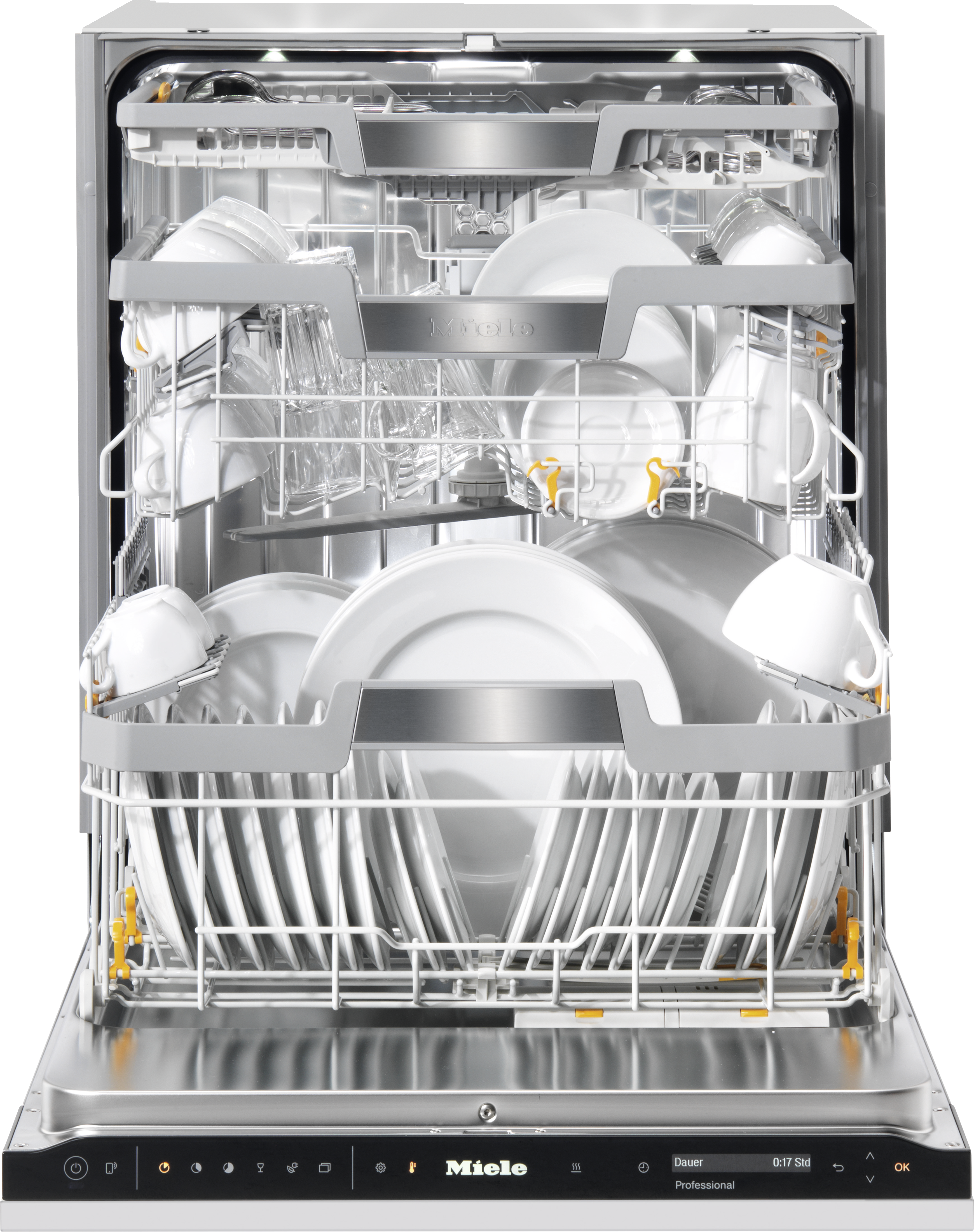

The Miele PFD 104 SCVi XXL is a 24″ panel-ready, fully integrated professional dishwasher designed for frequent use in homes, offices, small businesses, educational facilities, care environments, and other applications with large daily dishwashing loads. Its fresh-water wash system accommodates up to 16 place settings and can complete its shortest program in only 24 minutes when connected to the higher-performance 208–240V electrical supply. Eight wash programs, a maximum final-rinse temperature of 180°F, an integrated water softener, and certified hygiene performance provide thorough cleaning for everyday dishes, glassware, plastics, and heavily soiled cookware. The adjustable FlexLine baskets and 3D MultiFlex Tray offer flexible loading space, while Brilliant GlassCare protects delicate stemware. AutoOpen assisted drying automatically releases the door at the end of the program, and Knock2open allows the handleless dishwasher to open after two knocks on the custom panel. Additional conveniences include AutoClose, BrilliantLight interior illumination, a 24-hour delay start, time-remaining display, selectable languages, Wi-Fi connectivity, Miele MOVE networking, water-consumption feedback, and a Waterproof system. The dishwasher is supplied without a decorative front panel and supports custom panels weighing between 11 and 26 lb.
Features
Professional Washing Performance
- Capacity for 16 place settings
- Shortest program duration of 24 minutes
- Fresh-water wash system with repeated water changes
- Eight wash programs
- Maximum final-rinse temperature of 180°F
- Powerful integrated heater pump
- Certified hygiene performance
- Removes more than 99.9% of viruses
- Removes 99.999% of most bacteria
- Tested service life of 12,500 wash cycles
- Adjustable final-rinse temperature
- Highly effective filtration system
Wash Programs
- Normal Plus
- Normal
- SaniWash
- Cold/Pre-Wash
- Glasses
- Plastics
- Eco
- Intensive

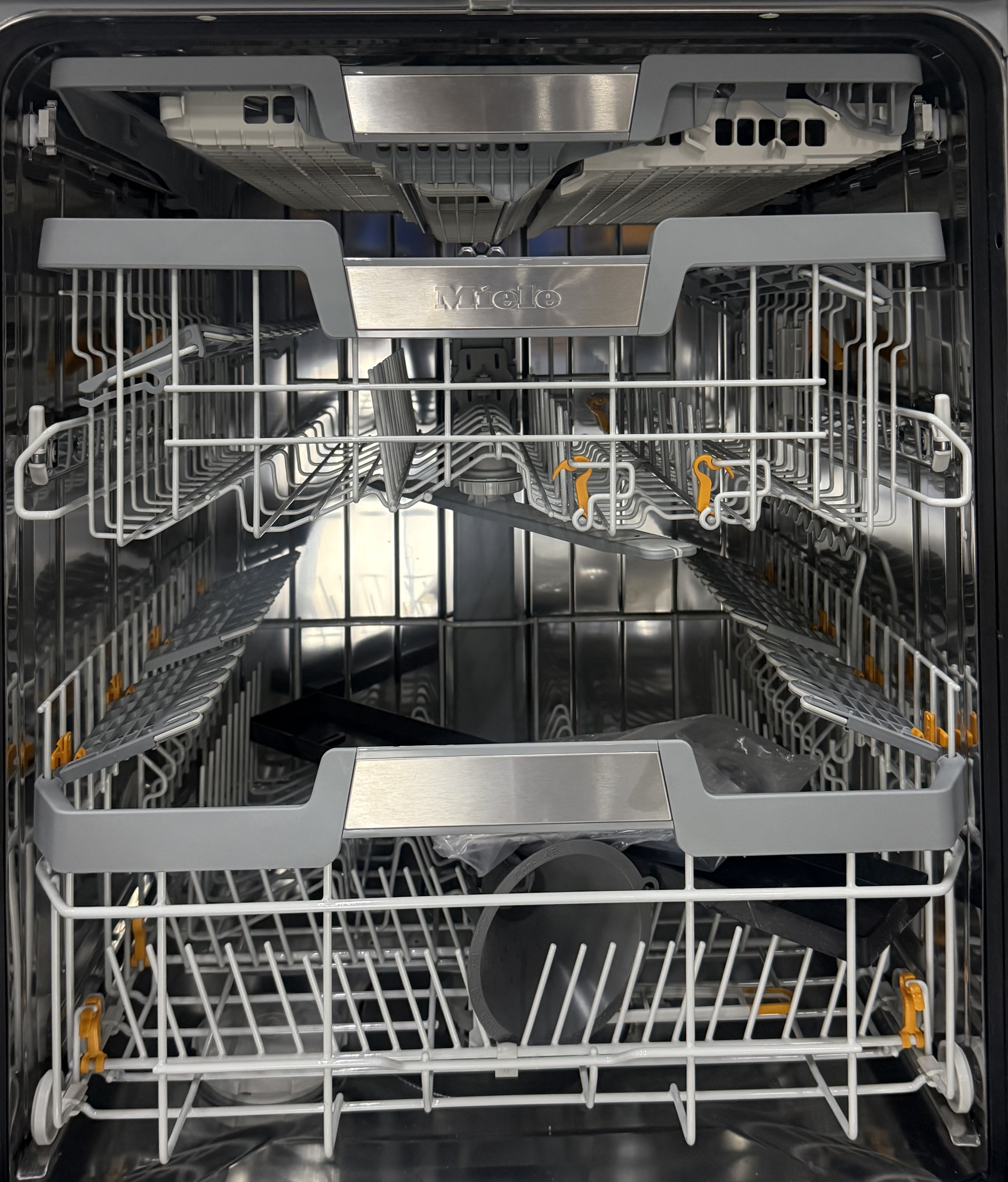

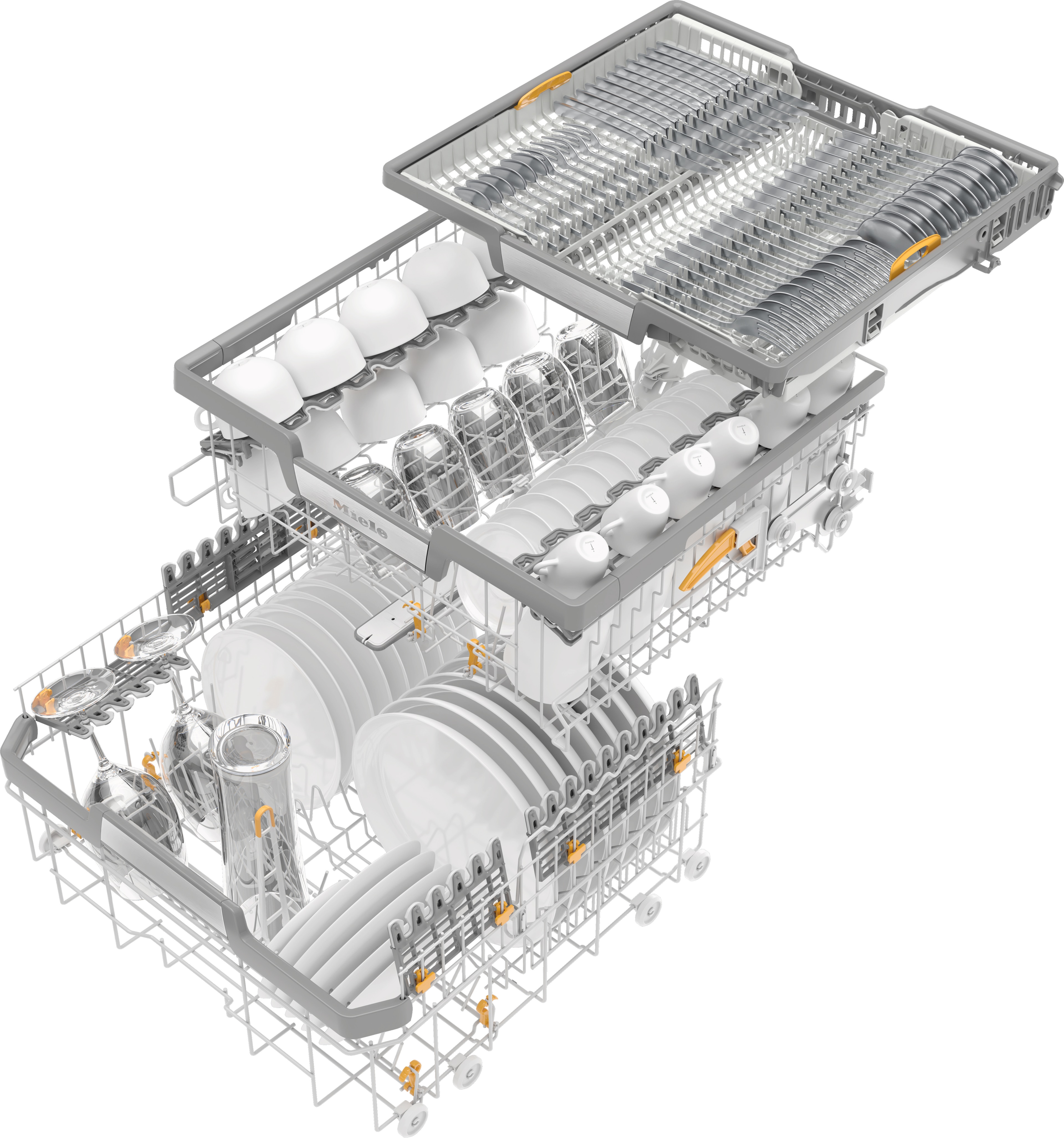

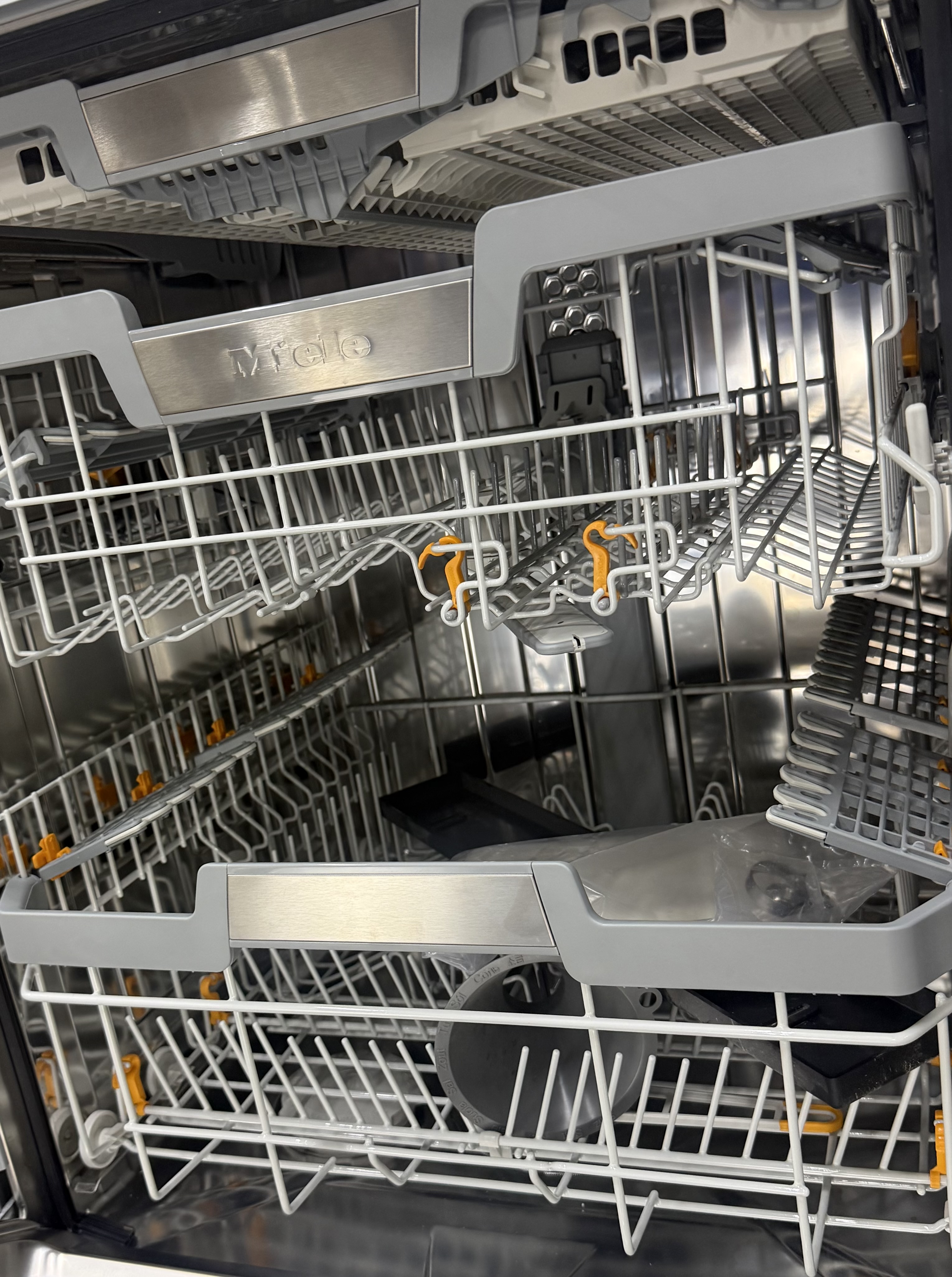

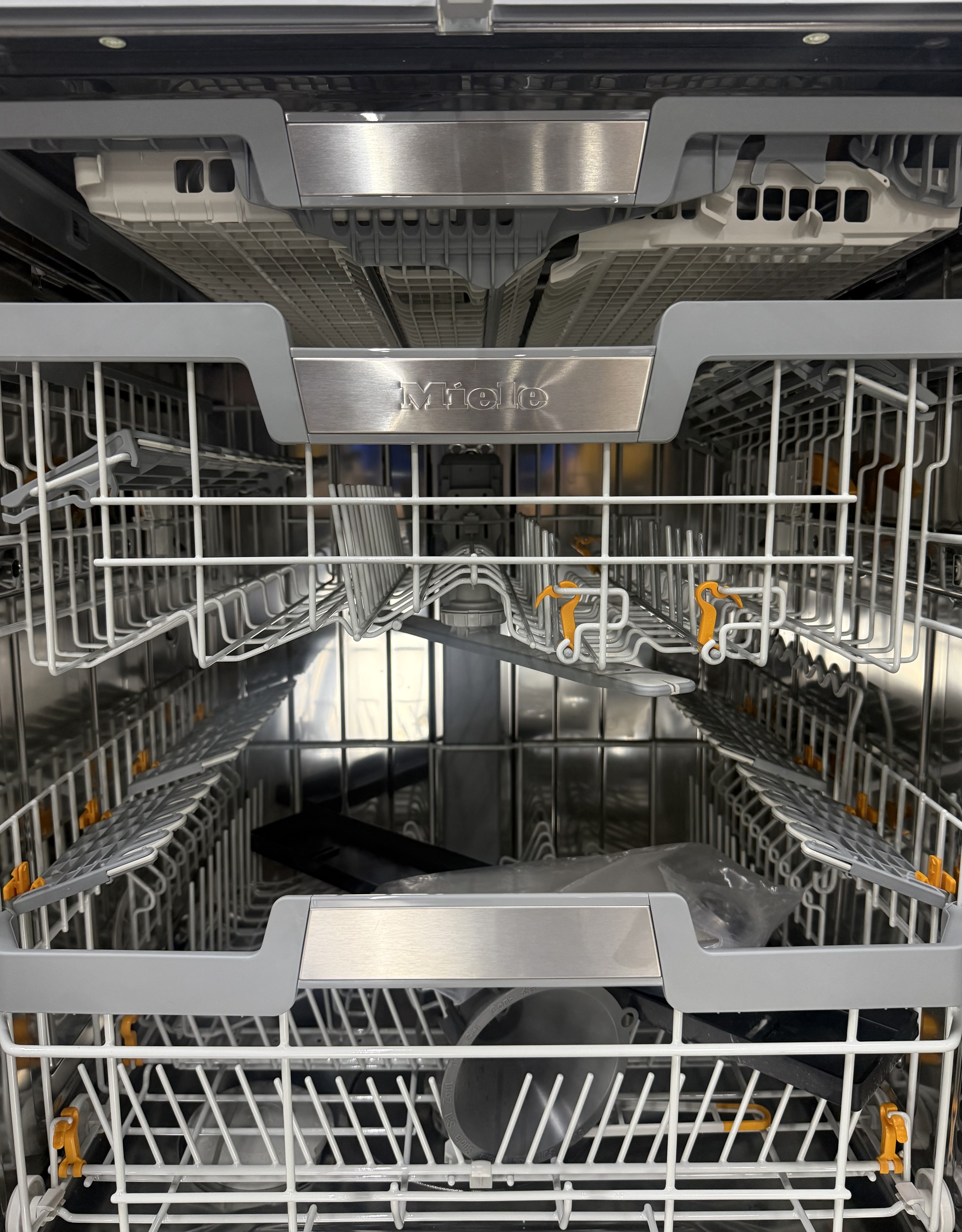

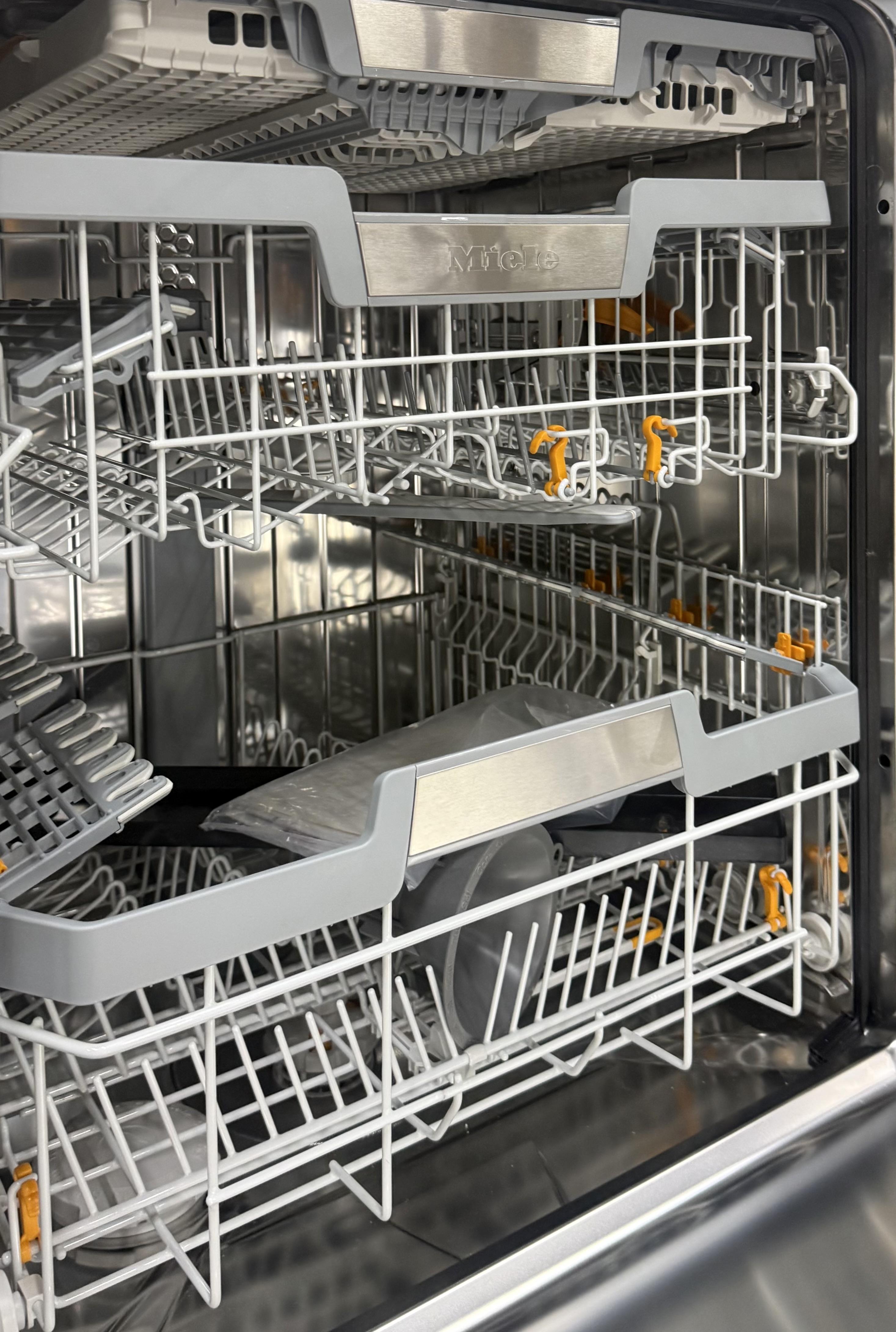

Loading and Organization
- Patented 3D MultiFlex Tray
- Flexible MaxiComfort P basket system
- Height-adjustable upper basket
- Four FlexCare glass holders
- Two FlexCare cup racks
- FlexLine adjustable basket design
- Accommodates up to 16 place settings
- Compatible with optional APFD 210 bottle basket
Drying and Interior Care
- AutoOpen assisted drying
- Additional drying option
- Active condensation drying
- Brilliant GlassCare for delicate glassware
- Stainless steel wash cabinet
- BrilliantLight LED interior illumination
- Combi dispenser for powder and liquid detergent

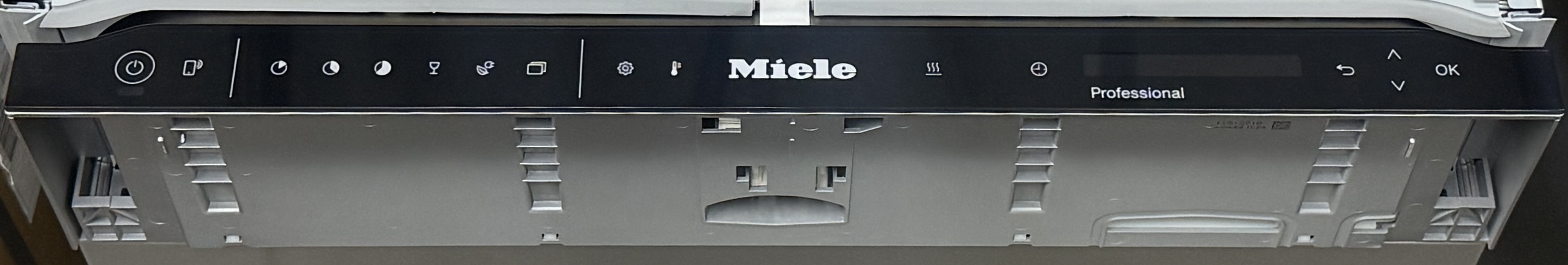

Controls and Convenience
- Fully integrated electronic controls
- Knock2open handleless door opening
- AutoClose automatic door closing
- 24-hour delay start
- Countdown and program-sequence indicators
- Selectable display languages
- Filter-check indicator
- EcoFeedback consumption display
- SmartStart
- FlexiTimer with EcoStart
- Optical service interface
Connectivity and Protection
- Wi-Fi connectivity
- Miele MOVE network compatibility
- Waterproof protection system
- Integrated water softener
- Suitable for hot- or cold-water connection
- Maximum drain-pump delivery head of 39 3/8"
Panel-Ready Design
- Supplied without a decorative front
- Designed for a custom cabinetry panel
- Custom panel weight range of 11–26 lb.
- Obsidian Black concealed control panel
- Fully integrated installation
- XXL-height wash cabinet
Item Attributes
| Brand Code: | MIELE |
|---|---|
| Part Number: | PFD104SCViXXL |
| GTIN14: | 4002516366942 |
| Category Code: | Dishwashers |
| Sub Category Code: | Dishwashers / Kitchen Appliances |
MIELE 24" Panel Ready Professional Dishwasher 16 Place Settings Fully Integrated PFD104SCViXXL
- SKU-0000045243
- Model #PFD104SCViXXL
| Condition | New |
|---|---|
| Type |  |
| Grade | A |
| Product Source |  |
| Additional Info | Panel Ready | Handle & Panel Sold Separately | Former Showrom Display | Minimal Signs Of Handling | Rare Find | Great Savings| Cosmetic accessories and non-essential hardware from original packaging may not be included |
| Available Quantity | 1 |
7 DAY RETURNS ON ALL PRODUCTS
| Brand | MIELE |
|---|---|
| Category | Dishwashers / Kitchen Appliances |
| Model Number | PFD104SCViXXL |
| UPC/GTIN | 4002516366942 |
| Capacity | 1.0000 |
| Color | Panel Ready |
| Depth | 21 11/16 |
| Width | 23 9/16 |
| Height | 33 5/16 |
