| Specification | Value |
| Brand | Miele |
| Model | KM 5840 208V |
| Manufacturer Material Number | 7821750 |
| Product Type | Electric Cooktop |
| Nominal Width | 30" |
| Installation | Drop-In / Surface-Mounted |
| Heating Type | Radiant Electric |
| Cooking Zones | 4 |
| Control Type | DirectControl Plus Touch Sensors |
| Display Color | Red |
| Height | 2 1/2" |
| Width | 30 5/8" |
| Depth | 21 1/2" |
| Dimensions (H × W × D) | 2 1/2" × 30 5/8" × 21 1/2" |
| Installation Height Including Connection Box | 2 3/4" |
| Cutout Width | 28 5/8" |
| Cutout Depth | 20 1/2" |
| Weight | 35 lb |
| Front Left Zone | Dual-Circuit; 1,600 / 2,500 W |
| Rear Left Zone | Single-Circuit; 1,200 W |
| Rear Center Zone | Dual-Circuit; 700 / 1,800 W |
| Front Right Zone | Dual-Circuit; 1,600 / 2,500 W |
| Voltage | 208V |
| Frequency | 60 Hz |
| Total Rated Load | 8.0 kW |
| Electrical Connection | Supplied Lead with Wire-End Ferrules |
| Surface Color | Black |
| Surface Detailing | Basalt Grey |
| Frame Finish | Stainless Steel |
| Included Accessories | Glass Scraper and Power Cable |
| EAN / GTIN | 4002514866680 |
The Miele KM 5840 is a 208V electric cooktop with four radiant cooking zones, DirectControl Plus touch controls, and an easy-to-clean black ceramic glass surface with a stainless steel frame. Variable-size heating rings, Auto heat-up, Stop & Go, and a timer provide flexible cooking control.
Image Features
Residual heat indicator
(B)Absolutely safe(/B) Miele cooktops have a residual heat indicator for every cooking zone. It reminds you not to touch a hot cooking zone or to place any heat-sensitive items on it. Also, it enables you to use the residual heat in order to save energy.
Safety turn off
(B)Safe is safe(/B) A maximum operating duration is defined for each power level. If a cooking zone is operated for an unusually long time at the same power level, it switches off automatically. (BR)
Safety and system lock
(B)Safety for all(/B) The safety lock function prevents inadvertent changes to the chosen power levels during cooking. The system lock protects from accidental or unauthorized switching on, by children, for example. This function can be activated on a cooktop that is switched off.
Overheating protection and fault monitoring
(B)To ensure the appliance has a long service life(/B) Every cooking zone is equipped with overheating protection. This automatically switches off the heating element of the cooking zone in the case of extreme use before the ceramic glass or other components can overheat. If liquid or another item gets onto the surface by mistake, the cooktop automatically switches off as well. So you are always protected from unintentional power adjustment.

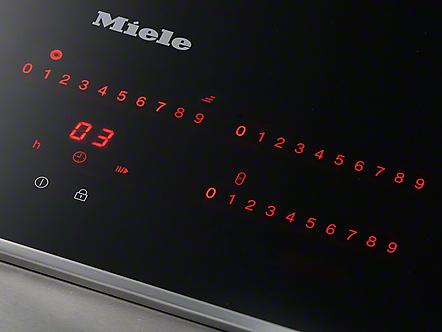

DirectSelection Plus
(B)DirectSelection plus - exclusive to Miele(/B) This feature allows you to select power settings and times quickly and intuitively. For each individual cooking zone there is a backlit numerical display. The numerical display is not visible when the cooktop is switched off - for a minimalist, elegant appearance.
Stop & Go
(B)A safety plus(/B) Is there somebody at the door? With the Stop&Go function all cooking zones can be reduced to power level one with the single touch of a button. In this way the cooktop can be left unattended for a short period without food overcooking or burning. When you return to the Cooktop, the previously set power levels can be reactivated with another touch of a button.
Auto heat-up
(B)Saves not just energy(/B) This Miele automatic setting turns down the heat from its initial power (for fast heating up) to a lower temperature (for further cooking). This way you won't forget to turn down the heat in time, and food will not burn. It also saves energy.
Timer
(B)Makes cooking easier(/B) The cooktop timer helps to make everyday life in the kitchen more relaxed. For example, depending on model, you can set the duration for your cooking zones separately so that they switch off automatically or you can use the minute minder independently of the cooktop functions.

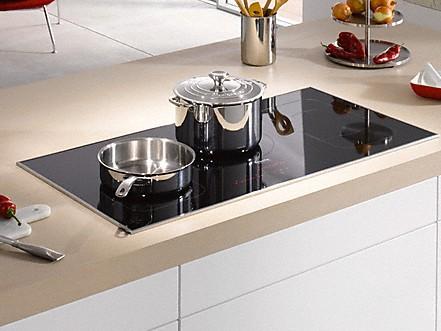

Versatile cooking zone configuration
(B)Practical for everyday use(/B) Miele cooktops offer cooking zones and burners in different shapes and sizes. This allows you to use pans of every shape and size on the Cooktop. Many cooktops offer additional large extended zones.
Features
Cooking Performance
- Four cooking zones with variable-size heating rings
- Auto heat-up for each cooking zone
- Extended cooking zone for flexible cookware use
Controls and Convenience
- DirectControl Plus numerical touch controls
- Stop & Go function
- Timer with individual cooking-zone settings
- Red control display
Design and Cleaning
- Black ceramic glass with basalt grey detailing
- All-around stainless steel frame
- Easy-to-clean surface
- Glass scraper included
Safety
- Residual heat indicators
- Automatic safety shut-off
- Safety lock and system lock
- Overheating protection
Item Attributes
| Brand Code: | MIELE |
|---|---|
| Part Number: | KM5840208V |
| GTIN14: | 00007821750. |
| Category Code: | Cooking |
| Sub Category Code: | Cooking / Cooktops / Kitchen Appliances |

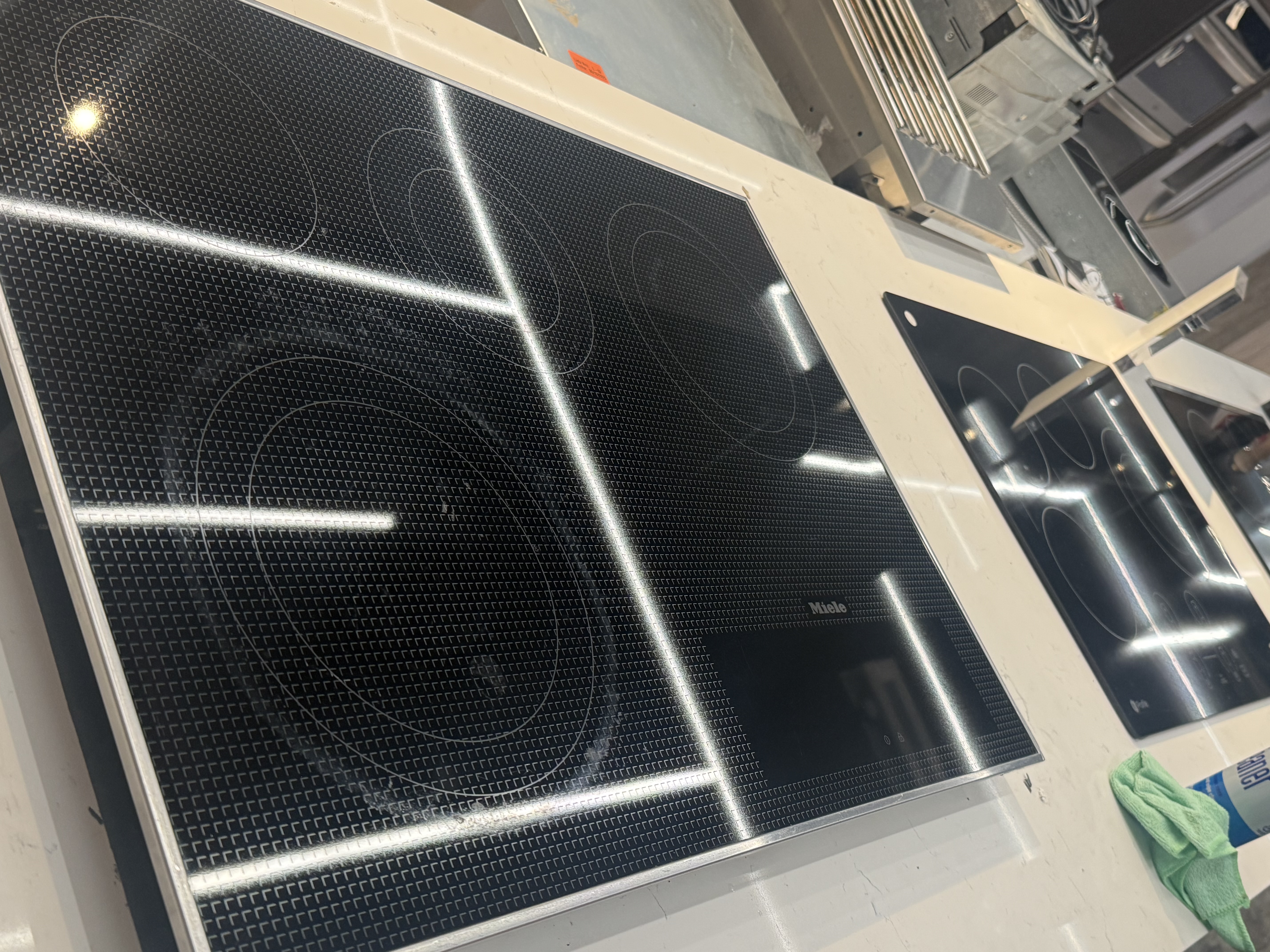

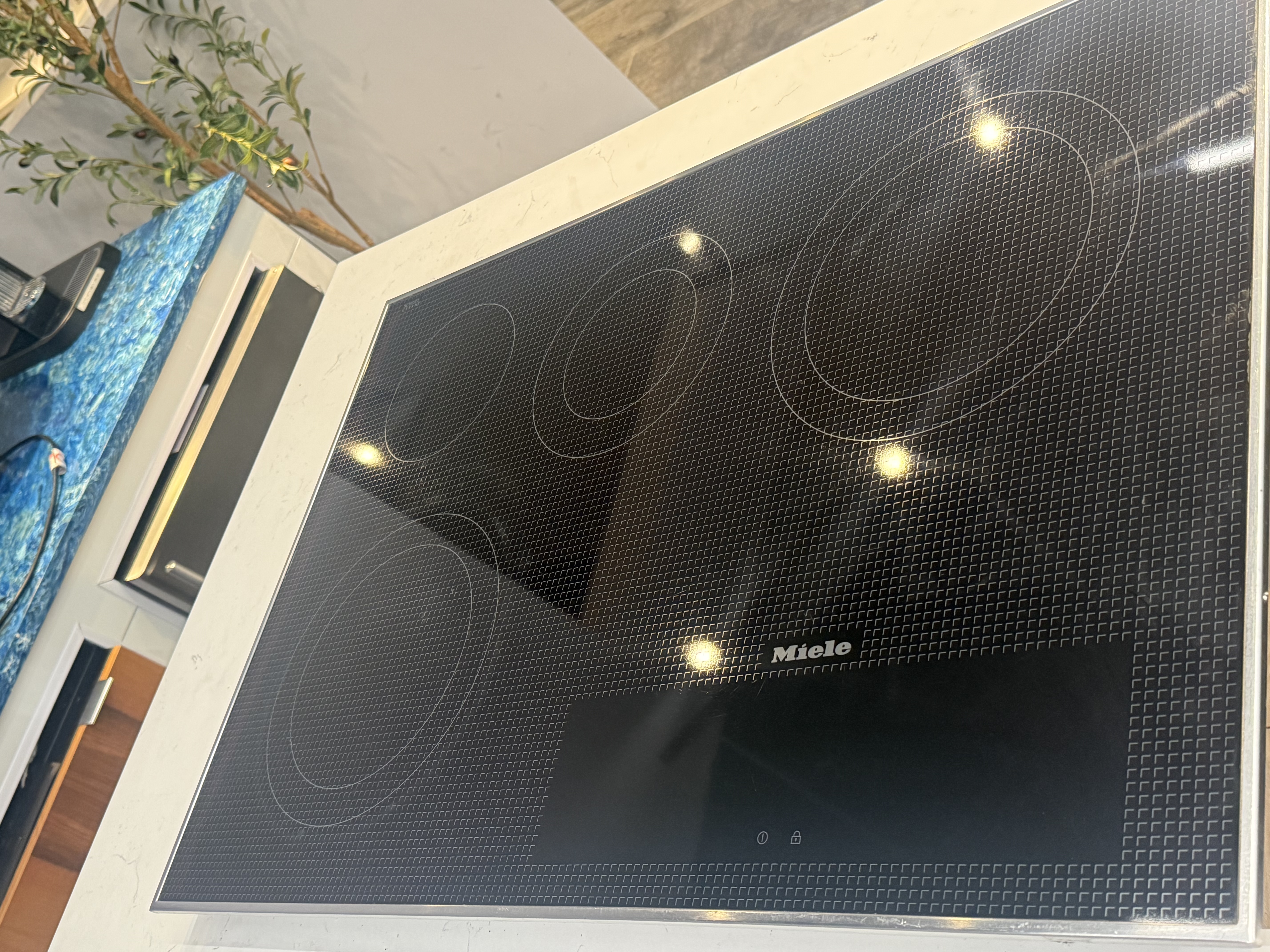

MIELE 30" Electric Cooktop With 4 Cooking Zones Black With Stainless Steel Frame KM5840208V
- SKU-0000045117
- Model #KM5840208V
| Condition | New |
|---|---|
| Type |  |
| Grade | B |
| Product Source |  |
| Additional Info | Signs of Handling | Floor Model | Great Savings | Volts 208V | FAST SELLER| Cosmetic accessories and non-essential hardware from original packaging may not be included |
| Available Quantity | 1 |
7 DAY RETURNS ON ALL PRODUCTS
| Brand | MIELE |
|---|---|
| Category | Cooking / Cooktops / Kitchen Appliances |
| Model Number | KM5840208V |
| UPC/GTIN | 00007821750. |
| Capacity | 4.0000 |
| Color | Black |
| Depth | 20 15/16 |
| Width | 30 1/16 |
| Height | 1 1/2 |
