| CAPACITY | |
| Total Capacity (cubic feet) | 10 cu ft |
| Capacity (Cu. Ft.) | 5.0 Upper / 5.0 Lower |
| FILTER | |
| App Filter - WiFi Connect | Built-In |
| App Filter - Cabinet Width | Cooking 30 in. (Standard) |
| APPEARANCE | |
| Design Style | Minimalist Collection |
| Frameless Oven Door(s) | Stainless Steel Finish/Appearance |
| Oven Door Features | Drop-Down Oven Window Push/Voice-to-Open |
| Color Appearance | Stainless Steel |
| Installation | Flush Appearance Over Warming Drawer Side-by-Side |
| POWER / RATINGS | |
| Bake Wattage | 2850W |
| Convection Wattage | 1300W |
| Electrical Requirements | 240V/208V; 60Hz; 40A |
| KW Rating at 240V | 9 |
| Amp Rating at 208V | 40 |
| Broiler Wattage | 4300W; Dual Element |
| Hertz | 60 |
| Amp Rating at 240V | 40 |
| KW Rating at 208V | 6.8 |
| WARRANTY | |
| Labor Warranty | Limited 2-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 2-year entire appliance |
| ACCESSORIES | |
| Optional Accessories | ZX30VT2 Flush Vent Trim Accessory |
| WEIGHTS & DIMENSIONS | |
| Overall Depth | 24.6875 in |
| Cabinet Width | 30 in |
| Net Weight | 364 lb |
| Oven Interior Dimensions (upper) | 25 x 17-3/8 x 20 1/4 |
| Overall Width | 29.75 in |
| Cutout Dimensions (w x h x d) (in.) | 28-5/8 x 50-1/4 x 23-1/2 |
| Oven Interior Dimensions (lower) | 25 x 17-3/8 x 20 1/4 |
| Approximate Shipping Weight | 390 lb |
| Overall Height | 51.1875 in |
| FEATURES | |
| WiFi Connect | Built-In |
| Oven Cooking Modes | Convection Bake Multi-Rack Convection Broil Hi/Lo Convection Roast Dehydrate Keep Warm No-Preheat Air Frying Precision Cooking Modes Proof Thermal Bake Thermal Broil Hi/Lo |
| Fuel Type | Electric |
| Product Type | Double Oven |
| Oven Interior | 2 LED Light Columns (Both Ovens) Black Gloss Finish True Hidden Bake Element (Both Ovens) |
| Cooking Technology | Convection |
| Oven Features | 10-Pass Bake Element 10-Pass Dual Broil Element Closed Door Broiling |
| Cleaning Time | Variable with Delay Clean Option |
| Configuration | Double Oven |
| Oven Rack Positions (Single or Upper/Lower) | 6 / 6 |
| Oven Control Features | 12-Hour Shut-Off Capability Audible Preheat Signal Auto Recipe Conversion Control Lock Capability Cook Time C° or F° Programmable Delay Time Electronic Clock & Kitchen Timer Mis-Wire Detection Proof Mode Remote Enabled Sabbath Mode Temperature Probe Warm Mode |
| Collection | Minimalist |
| Short Description | 30" Convection Double Wall Oven |
| Oven Rack Features | 1 Self-Clean Heavy-Duty Rack (Both Ovens) 2 Self-Clean Heavy-Duty, Full Extension Oven Racks (Both Ovens) Ladder-Rack Positions (Both Ovens) |
| Self-Clean Oven Door Lock | Automatic |
| Cooking System | Twin Fan, True European Convection with Direct Air (Both Ovens) Variable Speed, Reverse Air Convection (Both Ovens) |
| Control Type | 7" Full-Color Touch LCD Screen |
| Connected Capabilities | Amazon Alexa Fresco Google Home IFTTT Innit Sonos The Google Assistant |
| Oven Cleaning Type | Self-Clean with Steam Clean Option |
The Monogram Minimalist CollectionStreamlined design and precisely machined metals create a contemporary yet functional aestheticVoice ControlSleek handle-less design now benefits from the convenience of voice control. Once programmed, you can use your voice to open the oven door, preheat the oven and more, all without raising a fingerLCD controlsAdjust oven settings with little effort with a Brilliant 7″ LCD display that allows you to customize backgrounds and receive weather updatesWiFi powered by SmartHQ(TM)Perfectly in sync with a busy lifestyle, Alexa or Google Home can be used to control an array of oven functions from both inside and outside the homePrecision cooking modesMaster new recipes and perfectly execute favorite dishes using this ultra-smart system that automatically tracks cooking progress, modifies temperatures and adjusts cook timesNo-Preheat Air FryA must-have for health-conscious cooks, the No-Preheat Air Fry mode crisps food to crunchy perfection, without using oils or butterTwin Convection with Direct AirAchieve beautifully cooked and delicious meals every time with this expertly designed, third heating element and fan combination10.0 cubic foot oven capacity (5.0 each oven)Easily accommodates even the largest mealsExclusive self-clean, (4 full-extension, 2 regular) oven racksGlide in and out smoothly on stainless steel ball bearings, and are designed to be left in the oven during the self-clean cycleTen-pass bake elementCovers more surface area for more even baking resultsTen-pass dual broil elementEvenly browns dishes of all types and sizesSelf-clean with Steam Clean optionGives you flexible options for thorough oven cleaningPush-to-open doorsHandle-free, push-to-open door adds a touch of elegant simplicity and stylish convenience to your wall oven
Image Features

The Monogram Minimalist Collection
Streamlined design and precisely machined metals create a contemporary yet functional aesthetic

Voice Control
Sleek handle-less design now benefits from the convenience of voice control. Once programmed, you can use your voice to open the oven door, preheat the oven and more, all without raising a finger

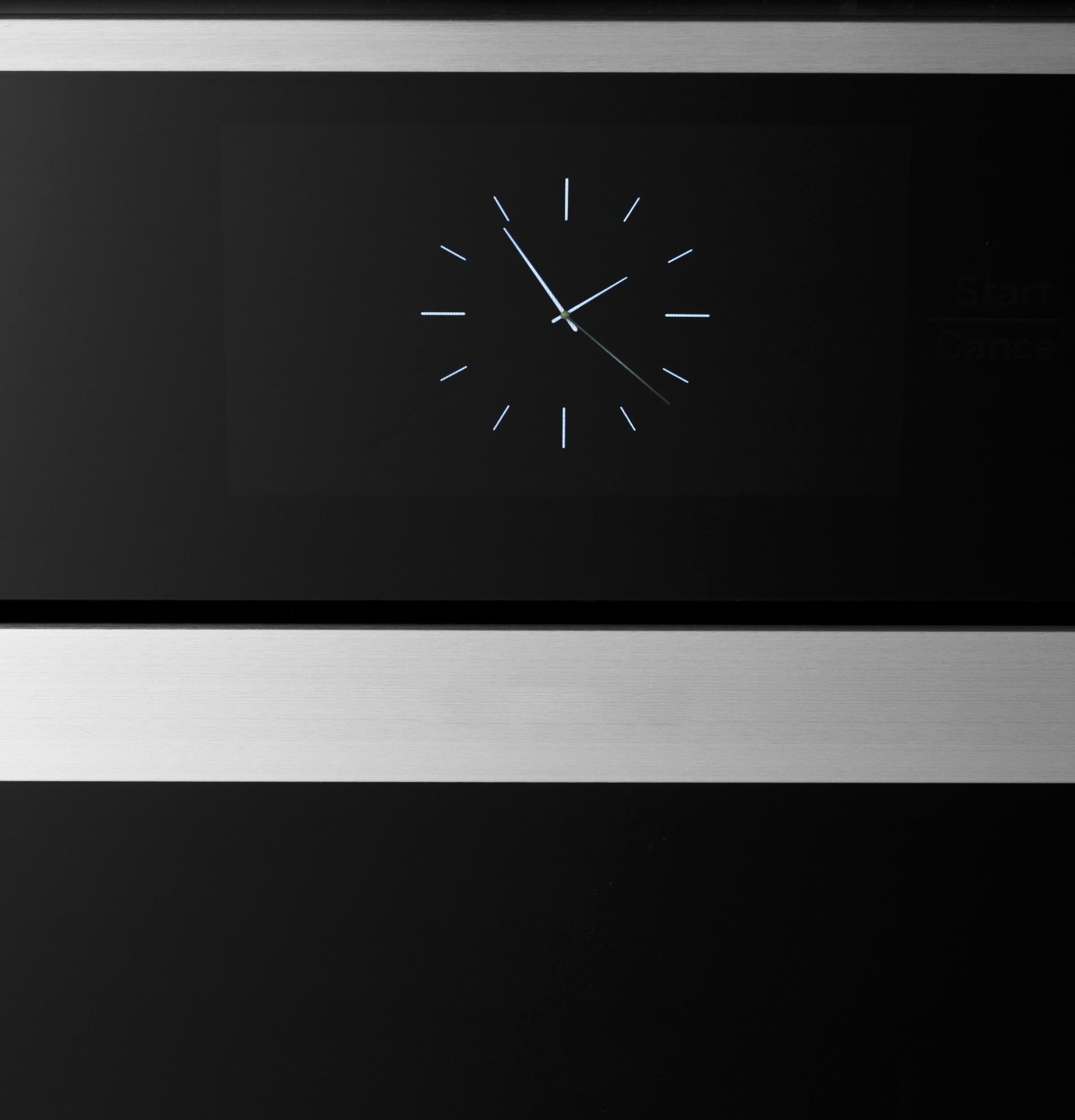

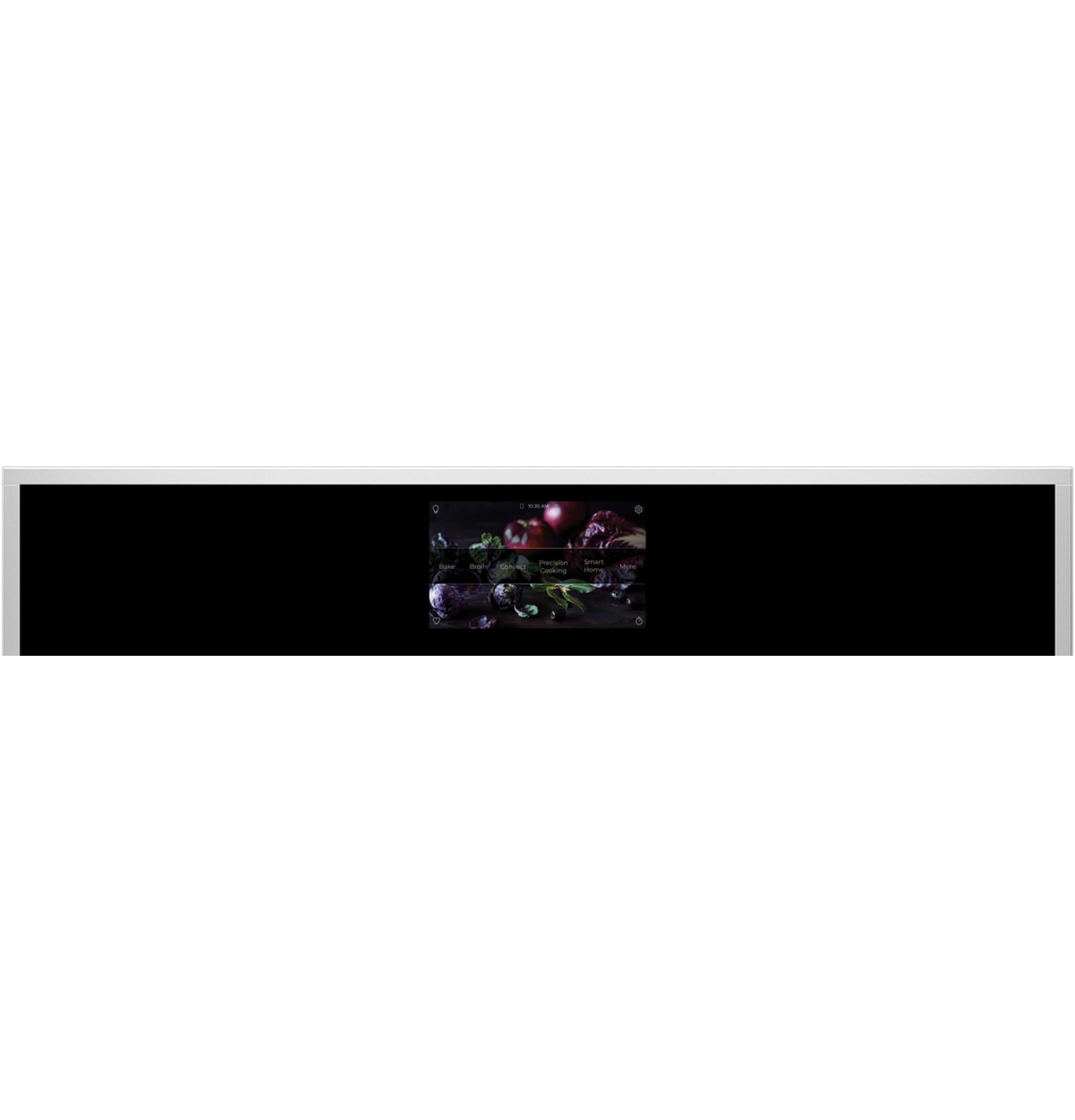

LCD controls
Adjust oven settings with little effort with a Brilliant 7" LCD display that allows you to customize backgrounds and receive weather updates

WiFi powered by SmartHQ(TM)
Perfectly in sync with a busy lifestyle, Alexa or Google Home can be used to control an array of oven functions from both inside and outside the home

Precision cooking modes
Master new recipes and perfectly execute favorite dishes using this ultra-smart system that automatically tracks cooking progress, modifies temperatures and adjusts cook times

Scan to cook
Innovative and time saving, scan-to-cook technology ensures that packaged foods are always prepared correctly. A simple scan of the barcode with a smartphone delivers consistently, delicious results

Exclusive self-clean, (4 full-extension, 2 regular) oven racks
Glide in and out smoothly on stainless steel ball bearings, and are designed to be left in the oven during the self-clean cycle

Ten-pass bake element
Covers more surface area for more even baking results

Ten-pass dual broil element
Evenly browns dishes of all types and sizes

Self-clean with Steam Clean option
Gives you flexible options for thorough oven cleaning
Features
- The Monogram Minimalist Collection
- Self-clean with Steam Clean option
- Precision Cooking Modes
- Twin Convection with Direct Air
- Voice Control
Item Attributes
| Brand Code: | MONOGRAM |
|---|---|
| Part Number: | ZTDX1DSSNSS |
| GTIN14: | 084691841951 |
| Category Code: | Cooking |
| Sub Category Code: | Cooking / Kitchen Appliances / Ovens |

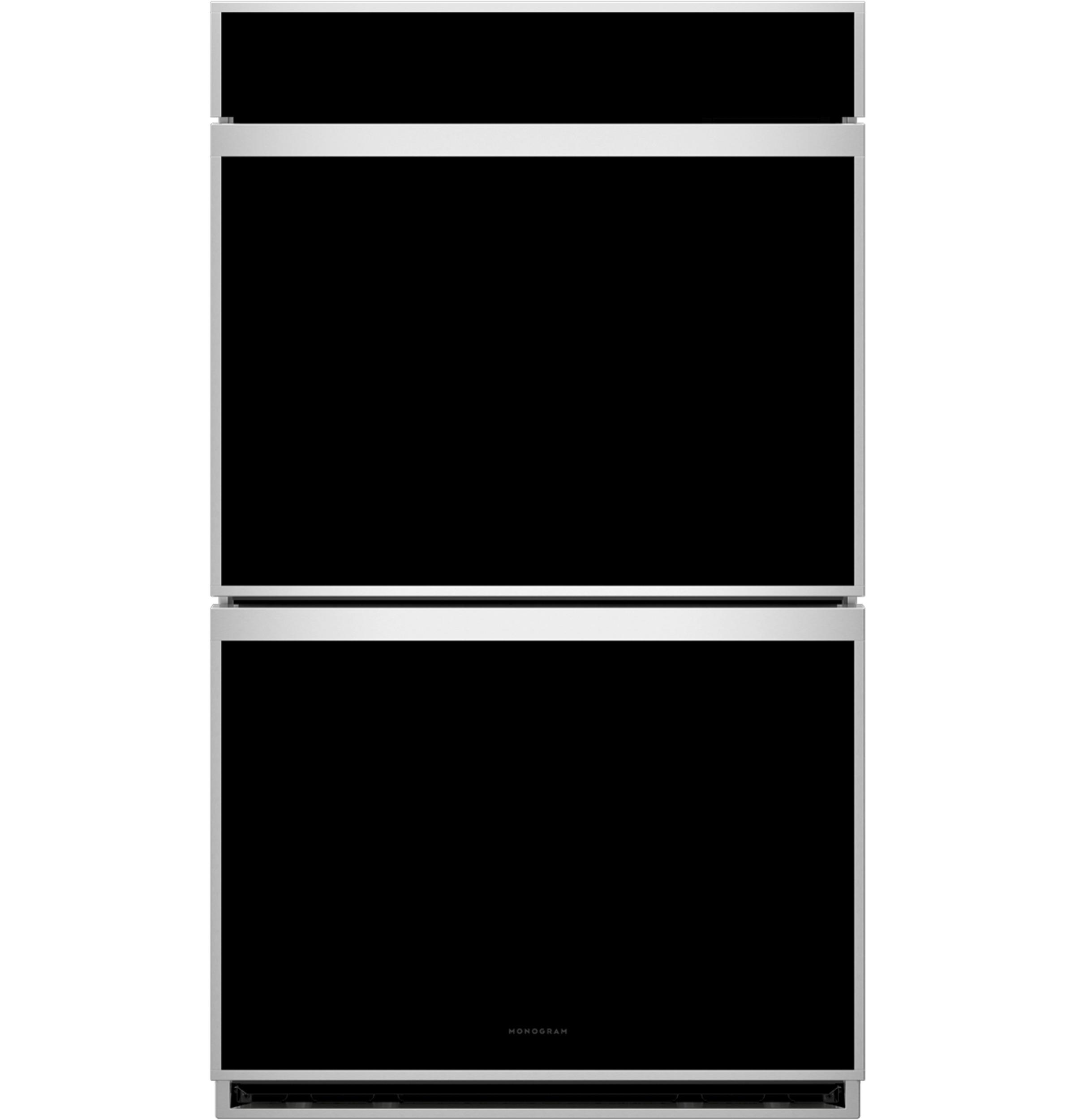

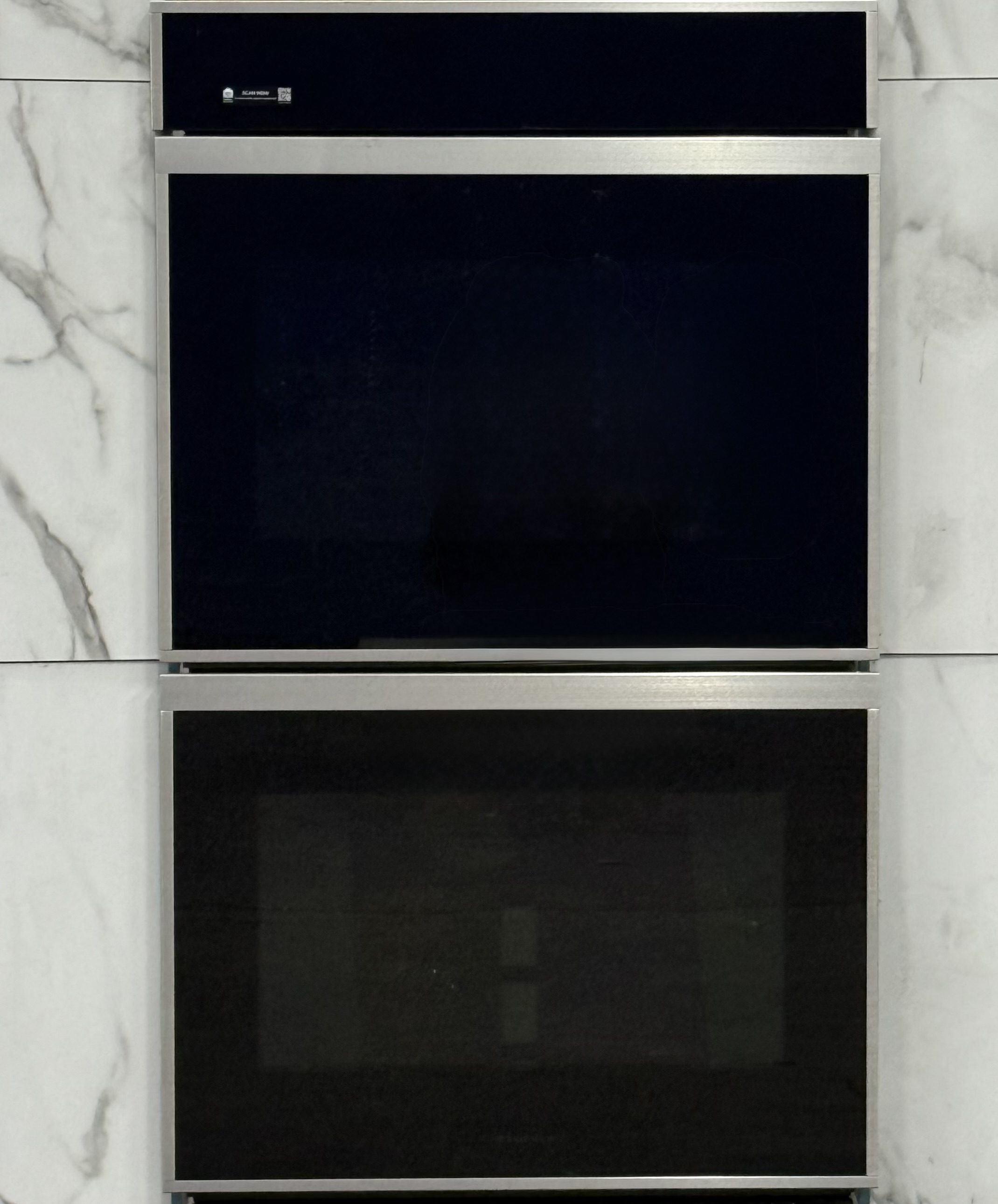

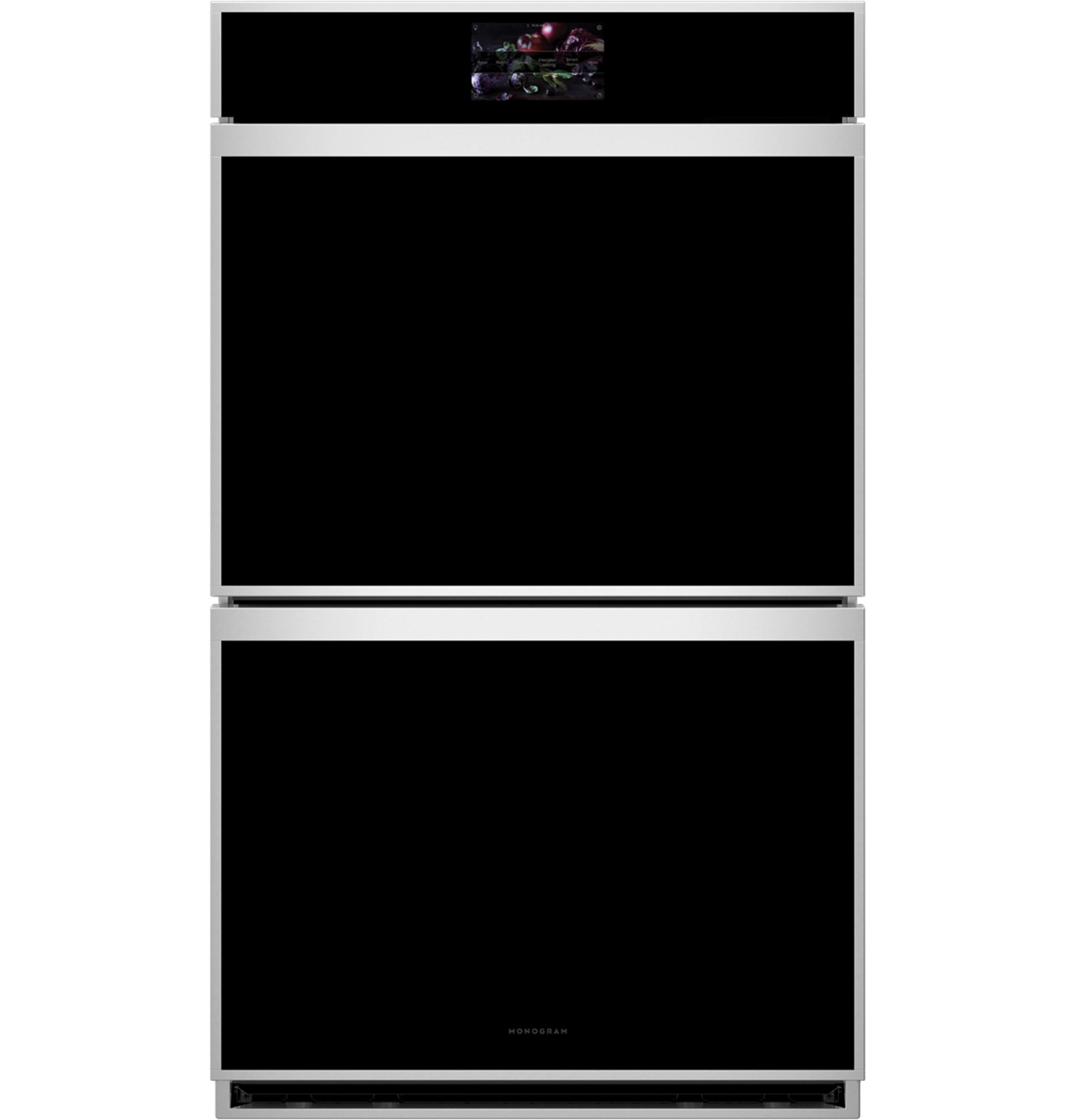

MONOGRAM 30" Minimalist Double Wall Oven ZTDX1DSSNSS
- SKU-0000032783
- Model #ZTDX1DSSNSS
| Condition | New |
|---|---|
| Type | ![]() |
| Grade | B |
| Product Source | ![]() |

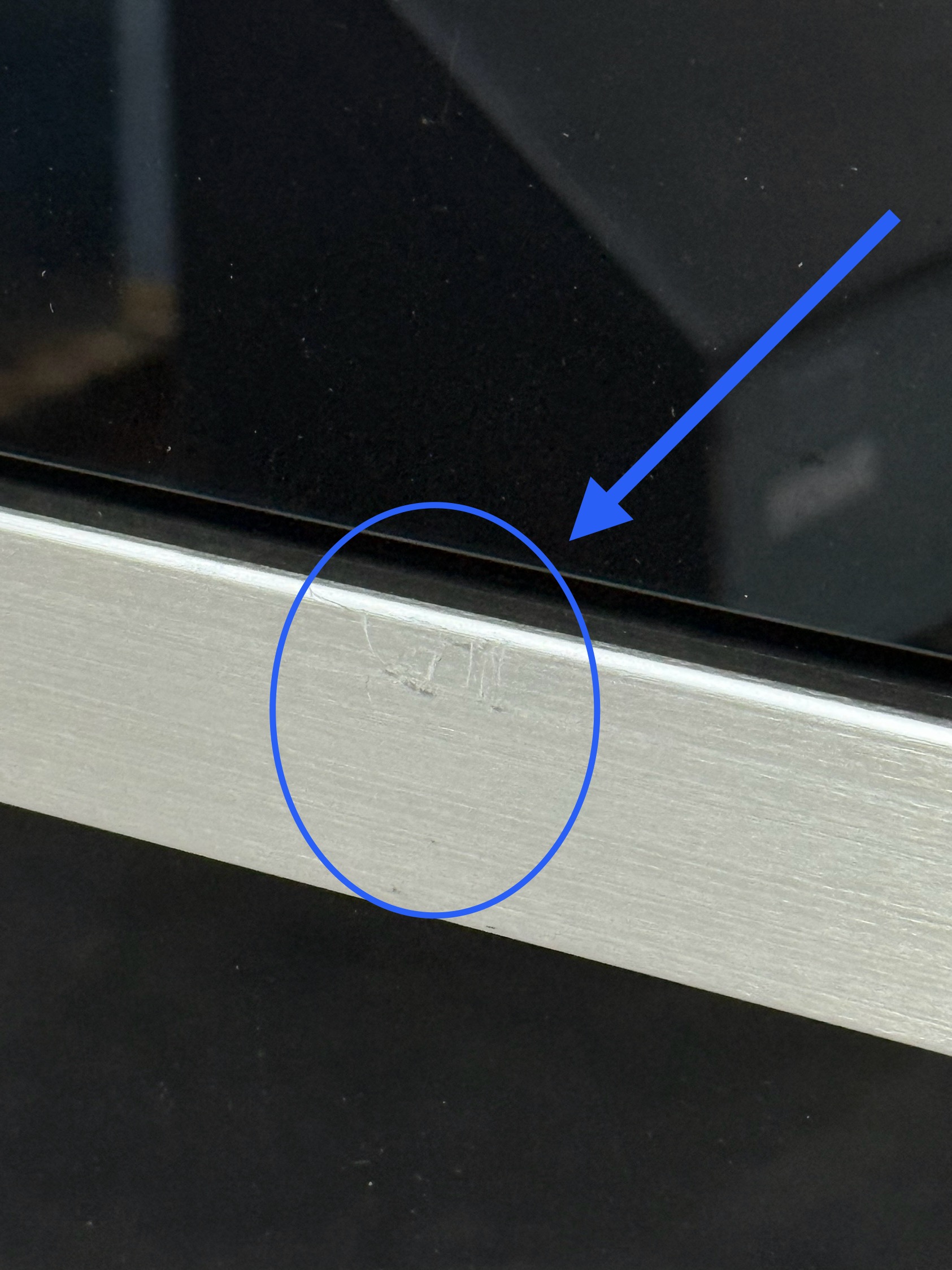

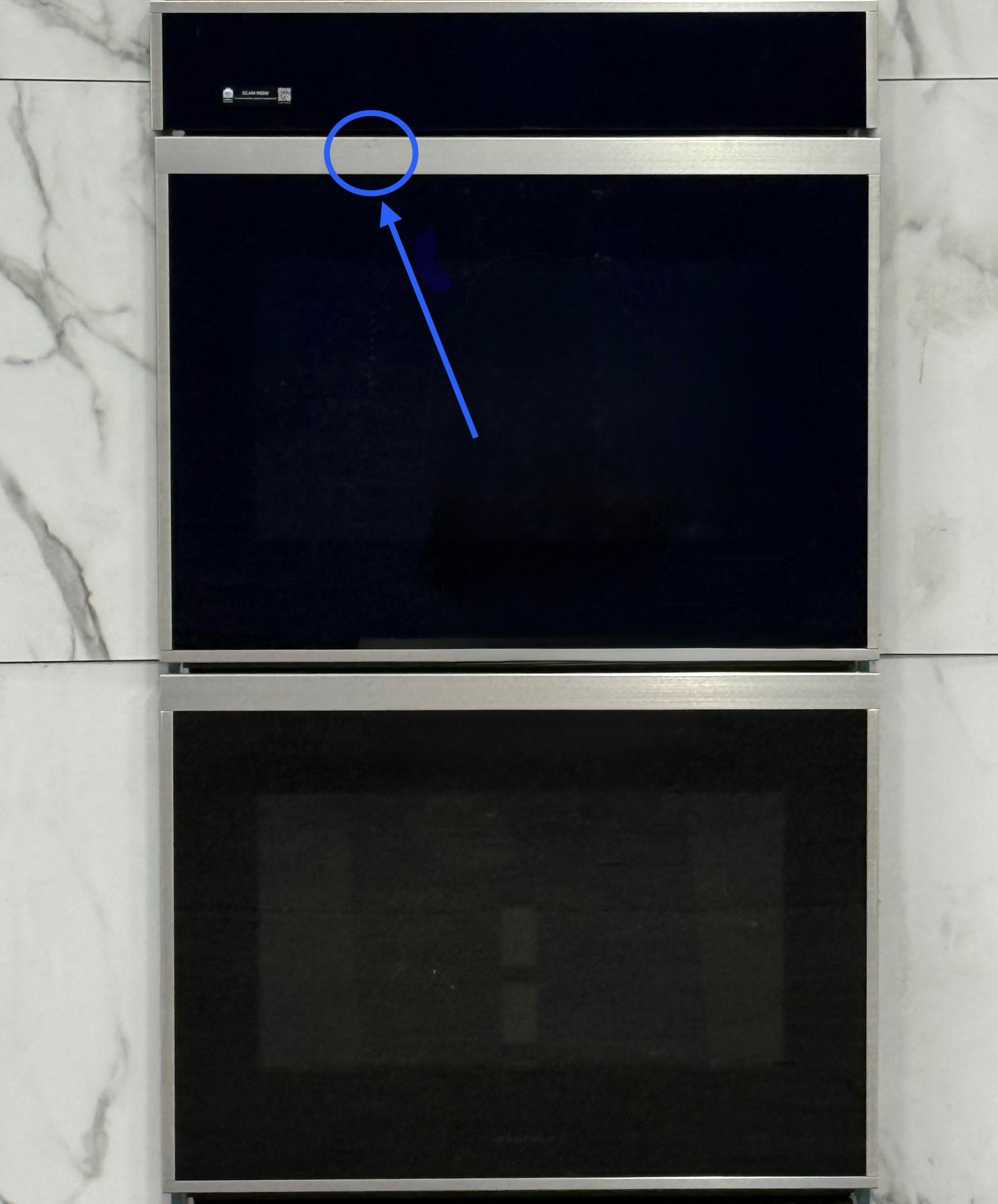

| Additional Info | Surface Scratches Top Door Highlighted In Photo |
7 DAY RETURNS ON ALL PRODUCTS
| Brand | MONOGRAM |
|---|---|
| Category | Cooking / Kitchen Appliances / Ovens |
| Model Number | ZTDX1DSSNSS |
| UPC/GTIN | 084691841951 |
| Capacity | 5.0000 |
| Color | Stainless Steel |
| Depth | 24 11/16 |
| Width | 29 3/4 |
| Height | 51 13/64 |
