| CAPACITY | |
| Fresh Food Capacity | 13.71 cu ft |
| Total Capacity (cubic feet) | 20.1 cu ft |
| Convertible Drawer Capacity | 2.91 cu ft |
| Freezer Capacity | 3.45 cu ft |
| APPEARANCE | |
| Panel Capability | SS Door Panel Kit ZK4SN360WSS |
| Adjustable Rollers | 2 |
| Door Style | Solid Door |
| Door Stops | 90 Degree and 115 Degree |
| Design Style | Custom Panel & Handles |
| Handle Purchased Separately | Requires Statement Handle Kit (ZKSB4H4PVSS) or Minimalist Handle Kit (ZKSB4H4CVSS) |
| Installation | Fully Integrated Installation |
| Door Swing | Hinges on Left & Right |

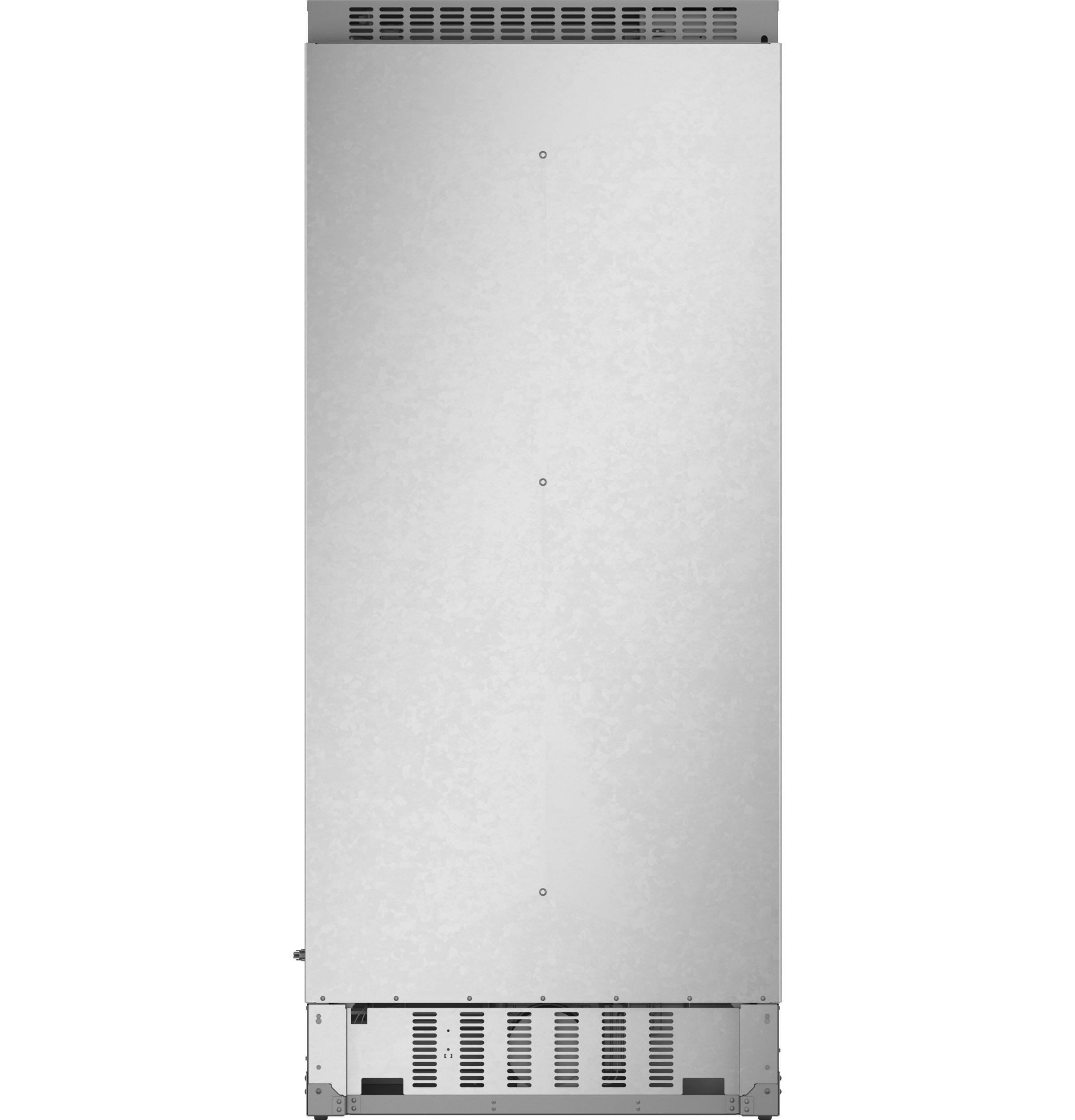

| Coil-Free Back | Yes |
| Color Appearance | Panel Ready |
| Hidden Door Hinge(s) | Yes |
| POWER / RATINGS | |
| Energy Consumption (kWh/year) | 654 |
| Electrical Requirements | 115V; 60Hz; 20A |
| Hertz | 60 |
| WARRANTY | |
| Warranty Notes | Extended 12-Year Sealed System Parts Only Limited 5-Year Sealed System See written warranty for full Details |
| Labor Warranty | Limited 2-year entire appliance |
| Parts Warranty | Limited 2-year entire appliance |
| ECONOMICAL / QUIET | |
| Quiet Package | 36 dBA |
| ACCESSORIES | |
| Side by Side Install Toe-Kick Kit | 54" ZKK54P 60" ZKK60P 66" ZKK66R 72" ZKK72R |
| Handle Stud Kit | ZKPN |
| Trim Kit | 36" Trim Kit for 24" deep cabinets ZKW36V 72" Trim Kit for 24" deep cabinets ZKW72V |
| SxS Install Heater/Unification Kit | ZKMV |
| WEIGHTS & DIMENSIONS | |

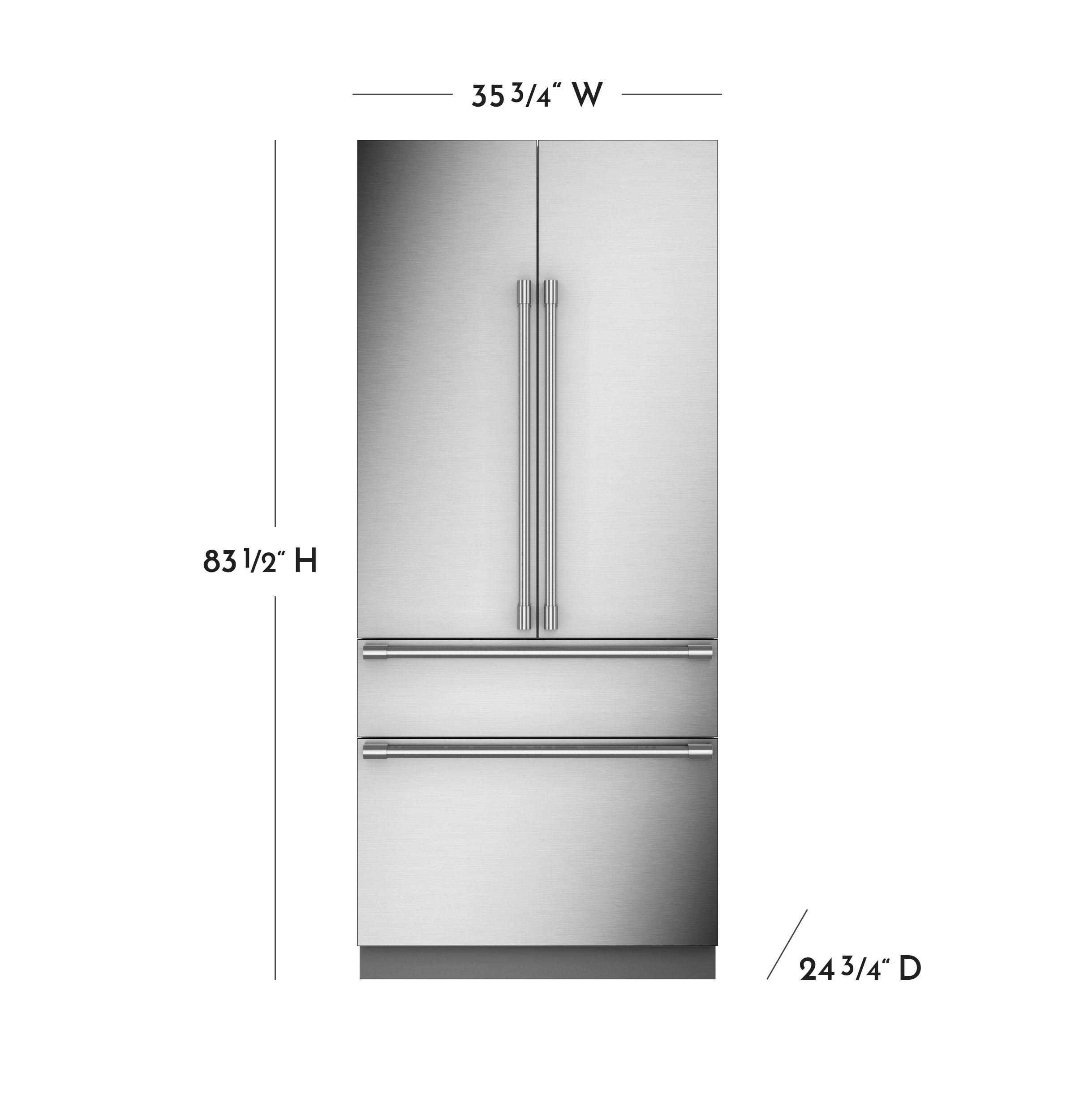

| Overall Depth | 24.75 in |
| Height to Top of Hinge | 83.5 in |
| Net Weight | 550 lb |
| Overall Width | 35.75 in |
| Approximate Shipping Weight | 621 lb |
| Overall Height | 83.875 in |
| FEATURES | |
| Temperature Management Features | Dual Evaporator Independent Temperature Controls |

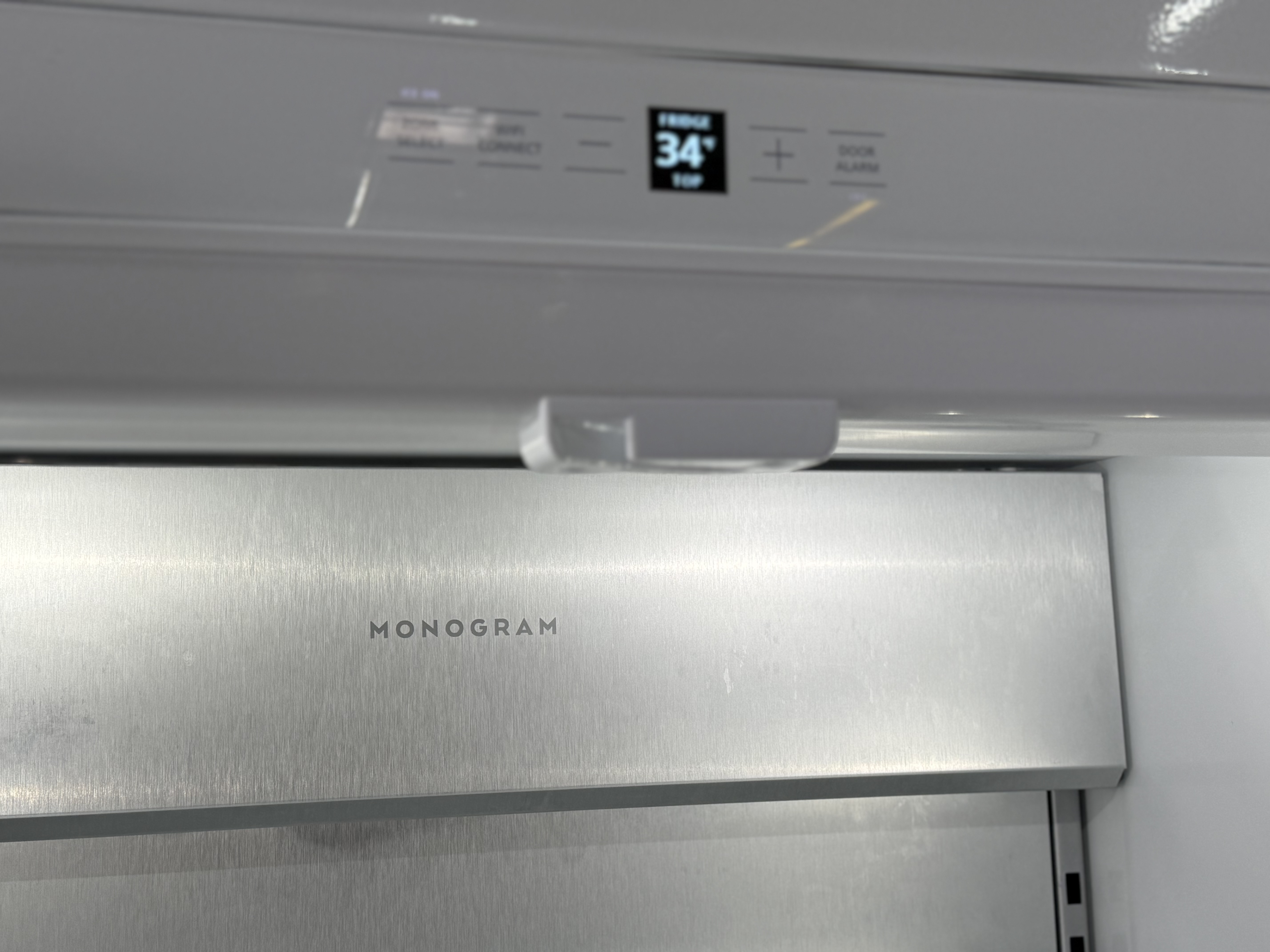

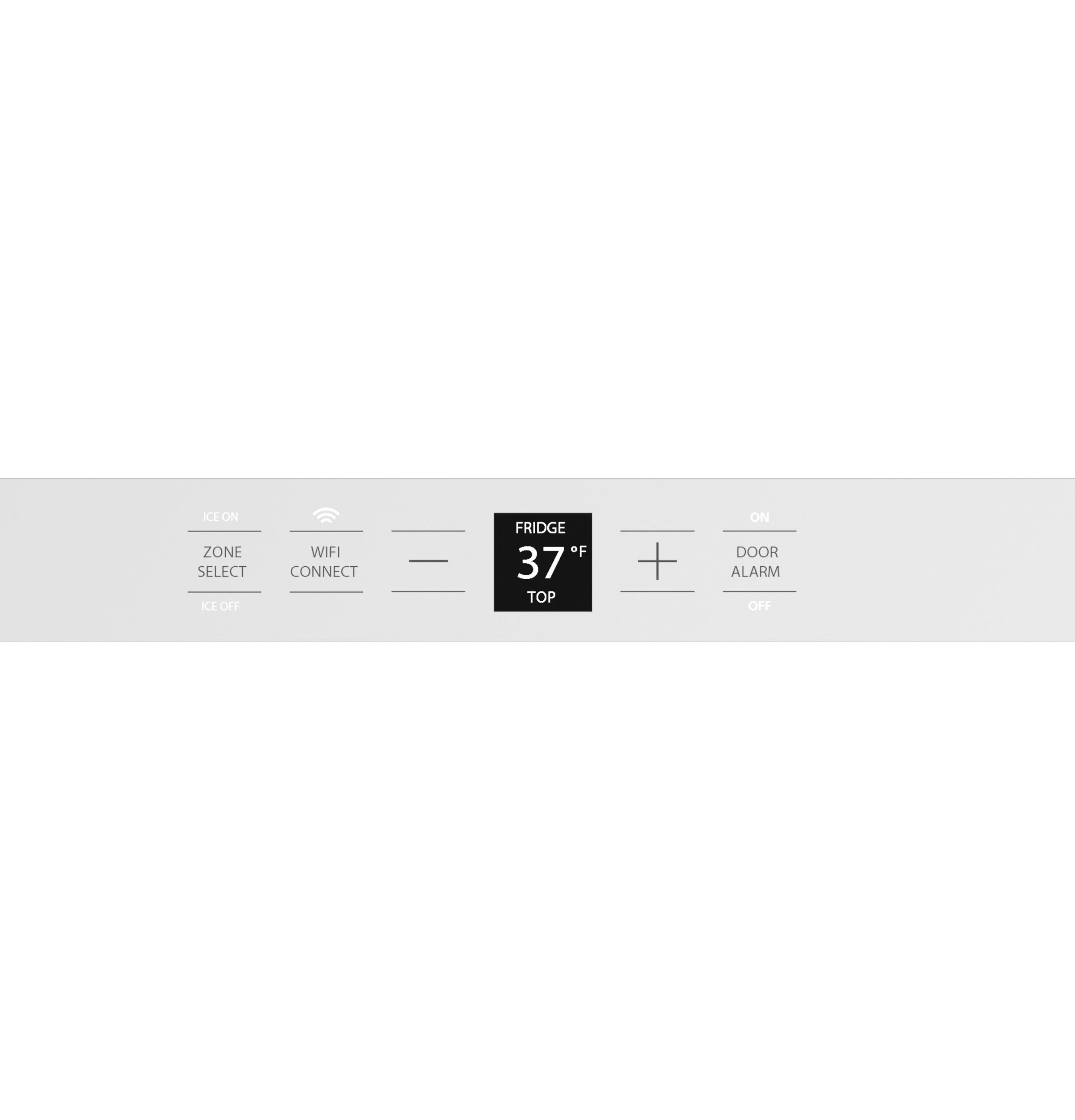

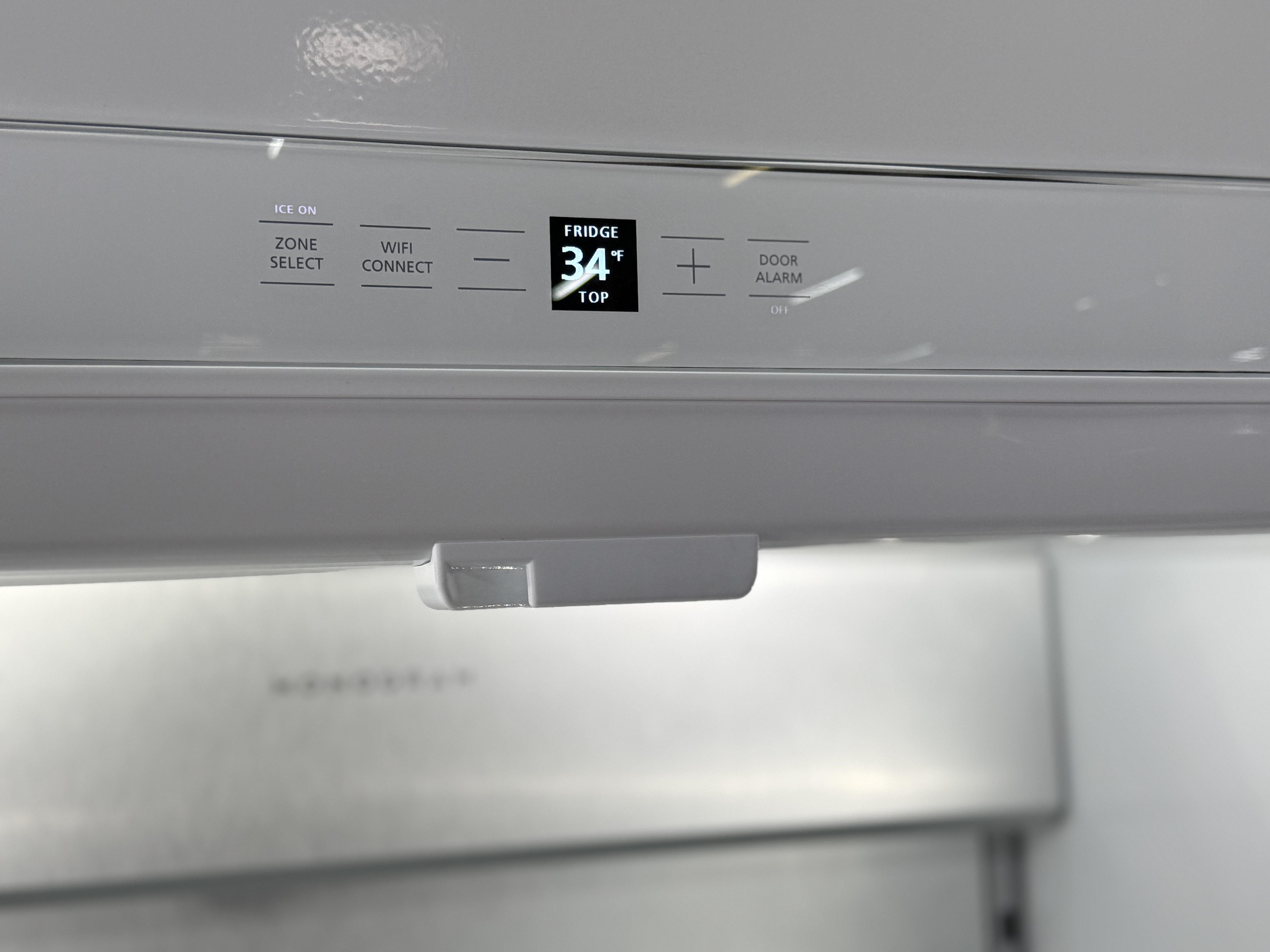

| Control Type | Integrated Upfront Capacitance Touch Controls |
| Custom Panel Ready | Integrated Panels |

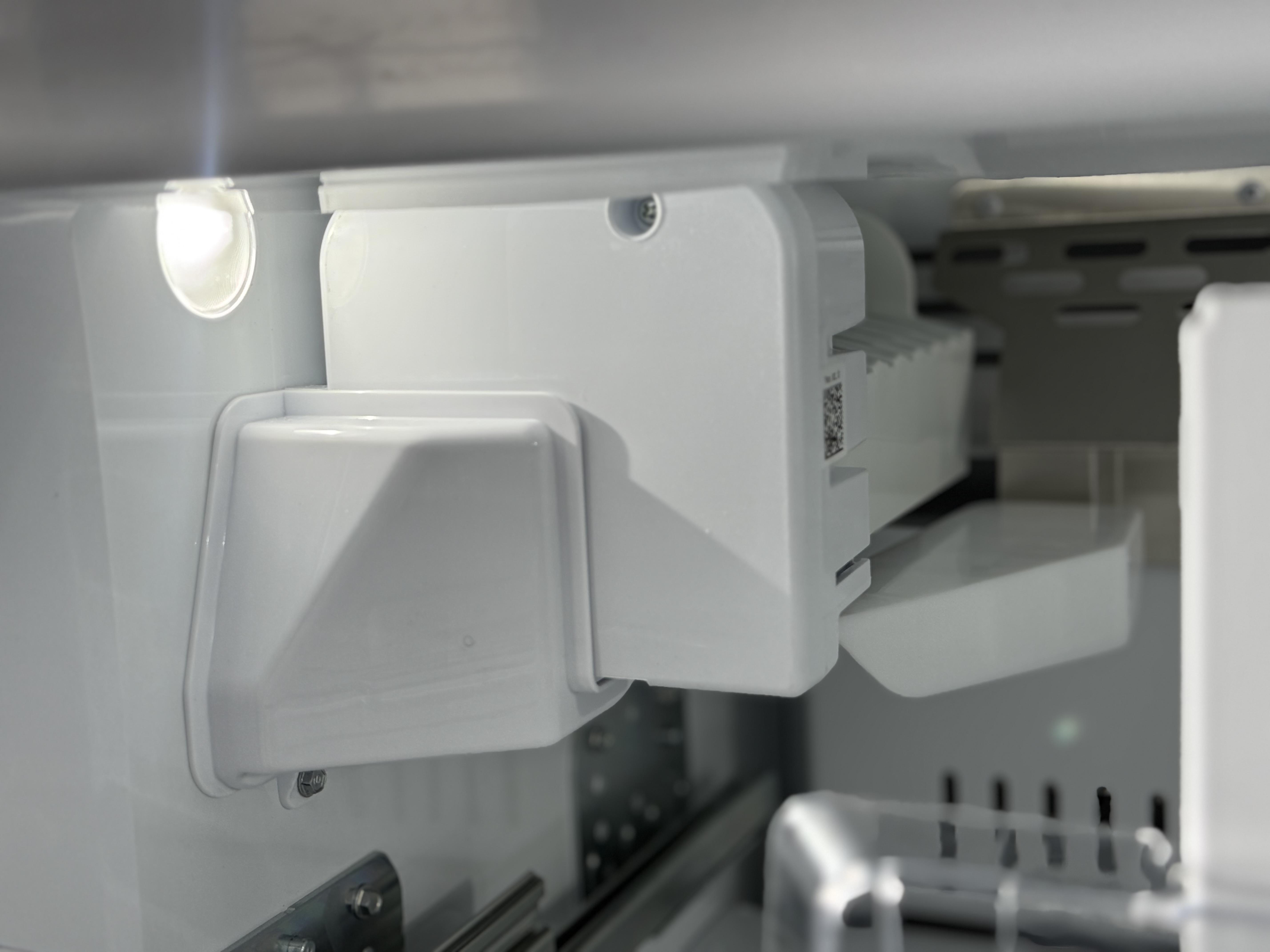

| Icemaker | Factory-Installed |
| WiFi Connect | Built-In |
| Filter Change Indicator | Display water filter status @ 90% usage |
| Sabbath Mode | Yes |
| Door Alarm | Yes |
| Interior Lighting | LED |
| Connected Capabilities | Amazon Alexa Google Home |
| Defrost Type | Automatic Defrost |
| Fresh Food Door Features | 6 Adjustable Full-Width |
| Leveling System | 4 Point (2 adjustable back rollers, 2 adjustable front legs) |
| Fresh Food Cabinet Shelves | 2 Full Width, LED Shelves |
| Middle Drawer | 6 Settings (Hard Freeze [sync w/freezer], Soft Freeze/Gelato, Meats, Cold Beverages, FF/Snack, Produce Yes, Convertible; Metal Interior with Mat |

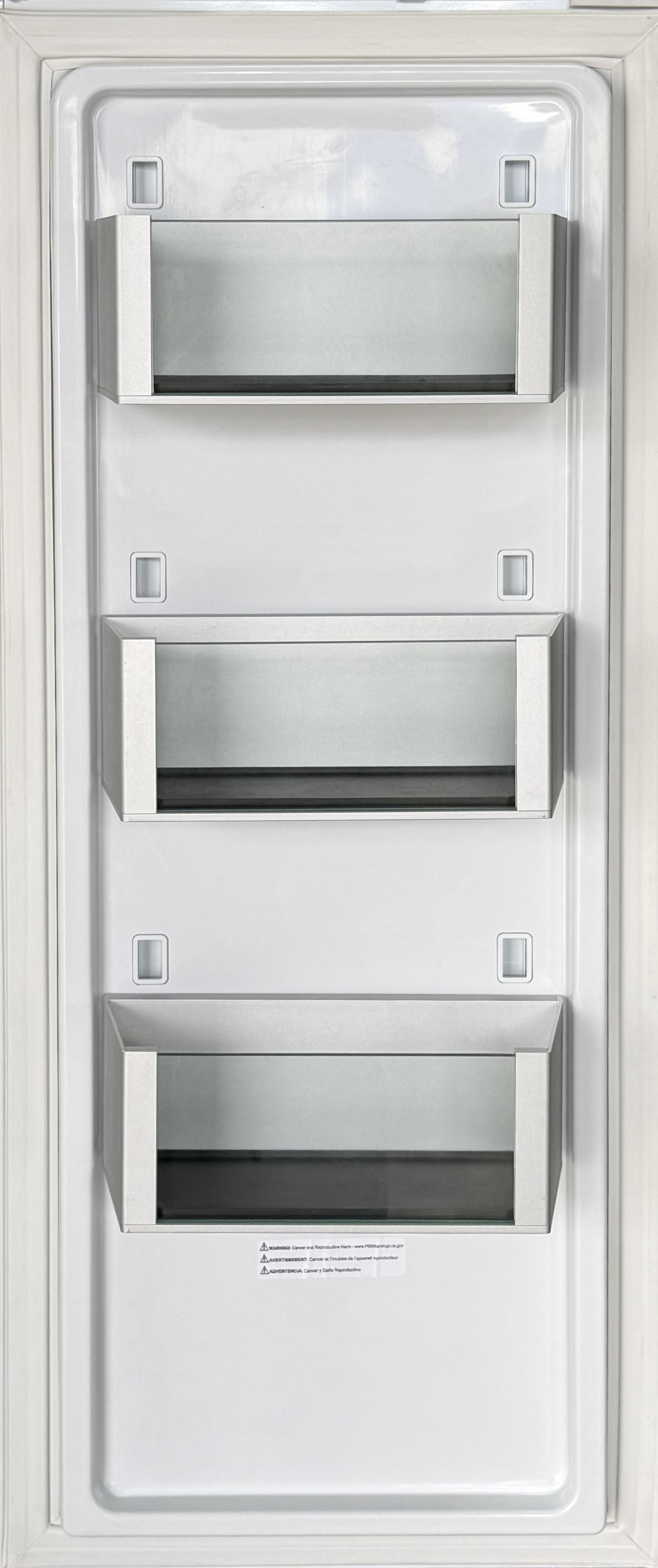

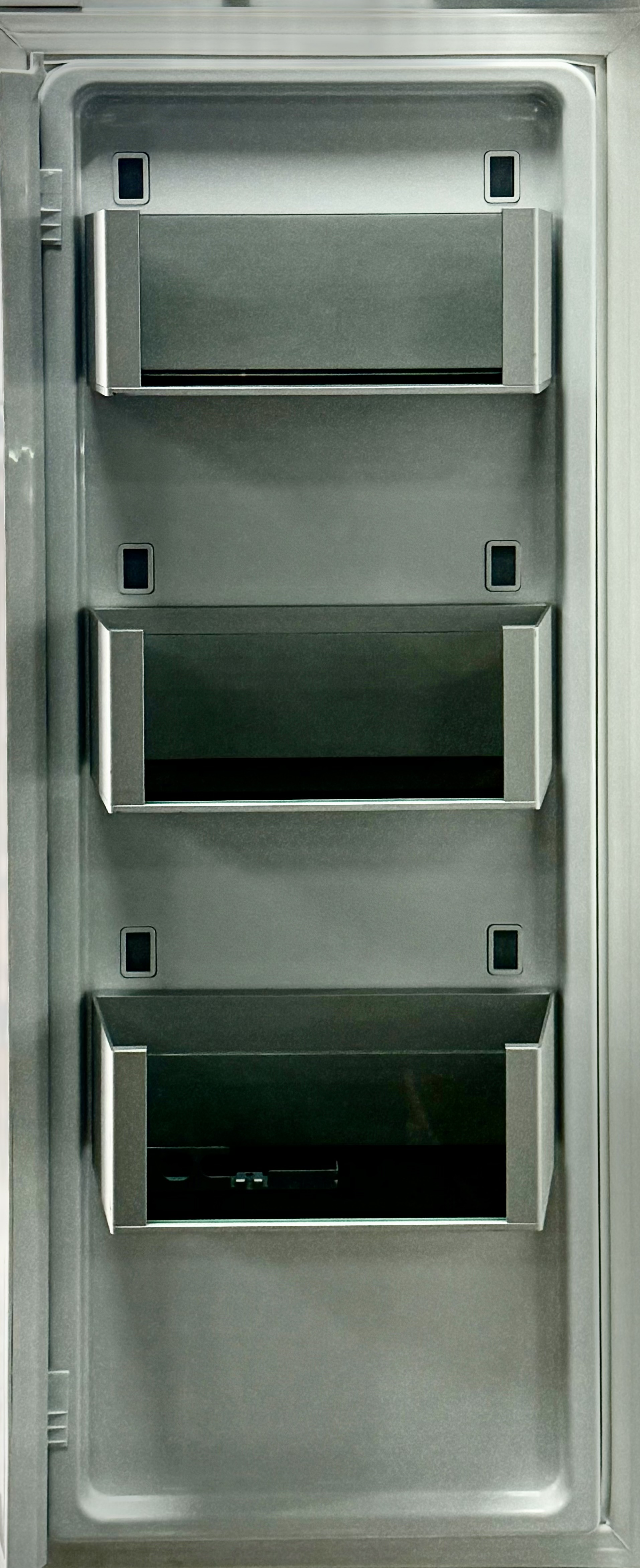

| Fresh Food Door Bins | 6 with glass and metal design |
| Freezer Features | Freezer Drawer with Full Extension Slides Soft-Close |
| Exterior Style | Built-In Standard Depth |

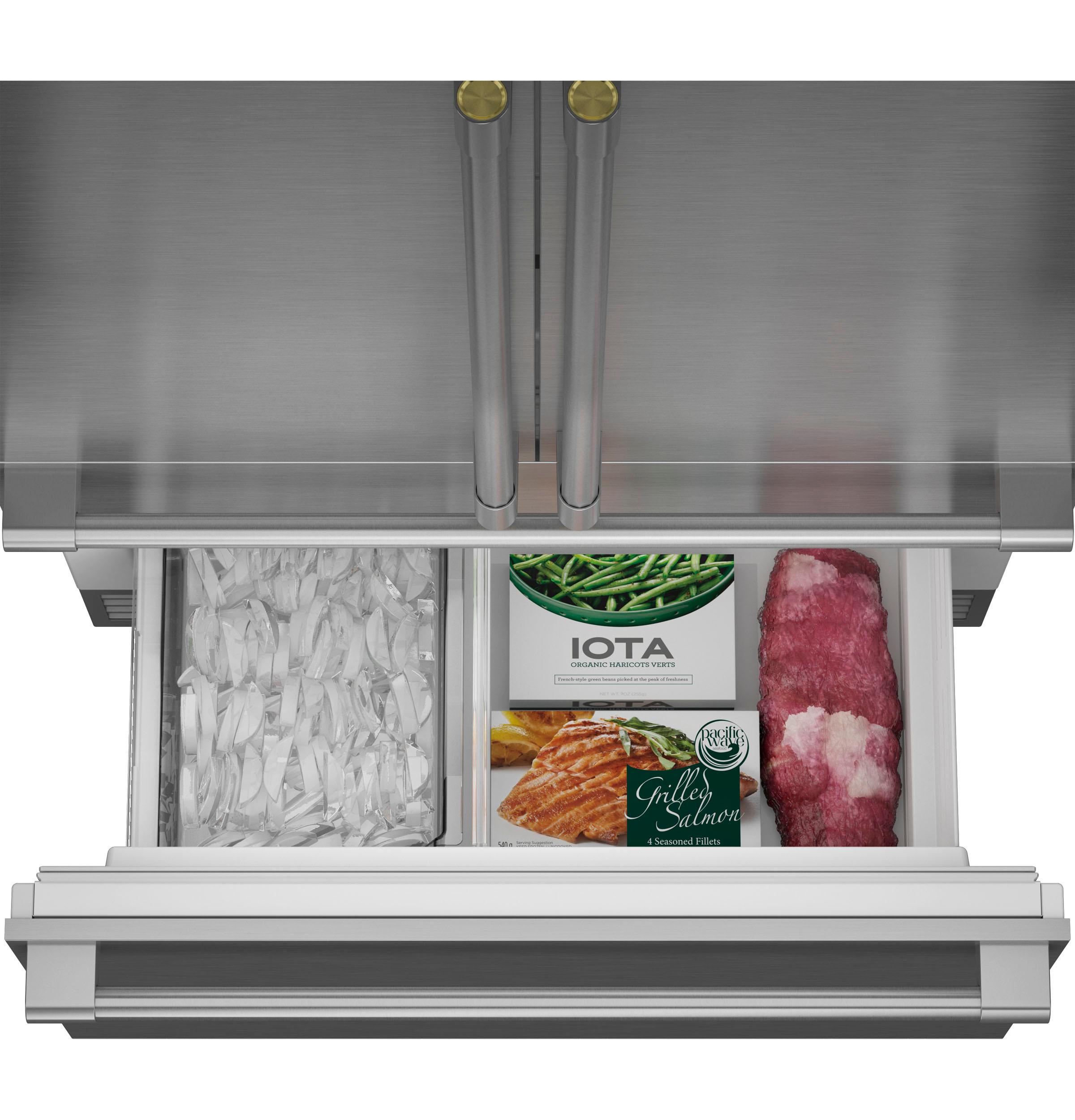

| Bottom Drawer | Metal Interior with Mat One Adjustable Divider Yes, Freezer w/IM |
| Fresh Food Features | Display Temp Setpoint Door Alarm Filter-Change Indicator Interior Lighting - Ramp Up LED 4 Sabbath Mode Status |

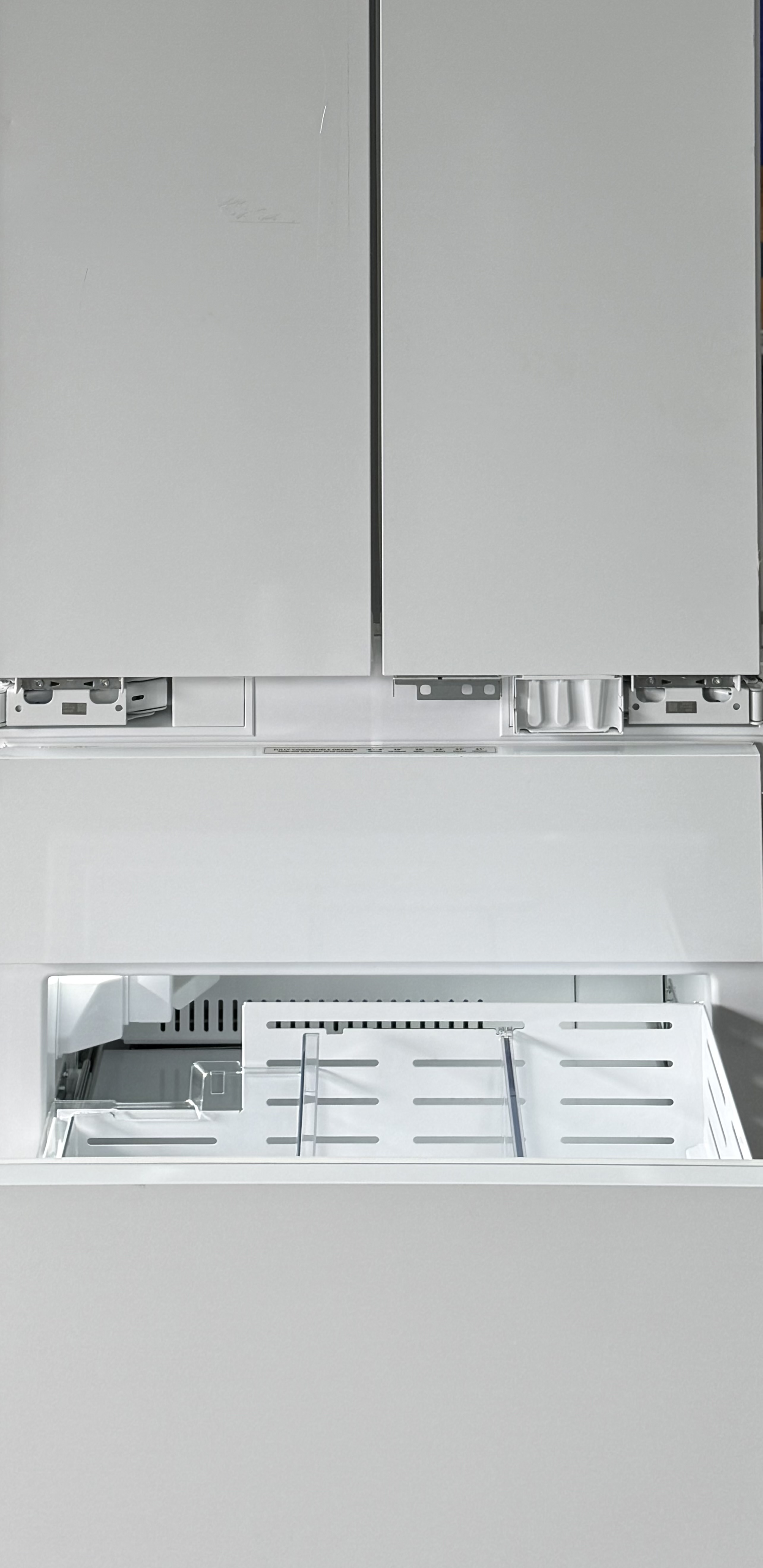

| Configuration | French Door & Double Drawer |
| Refrigerant Type | R600a |
| Dispenser | Internal Water |
| Fresh Food Cabinet Shelf Features | Lighted Glass Shelves |
| Collection | Minimalist Statement |

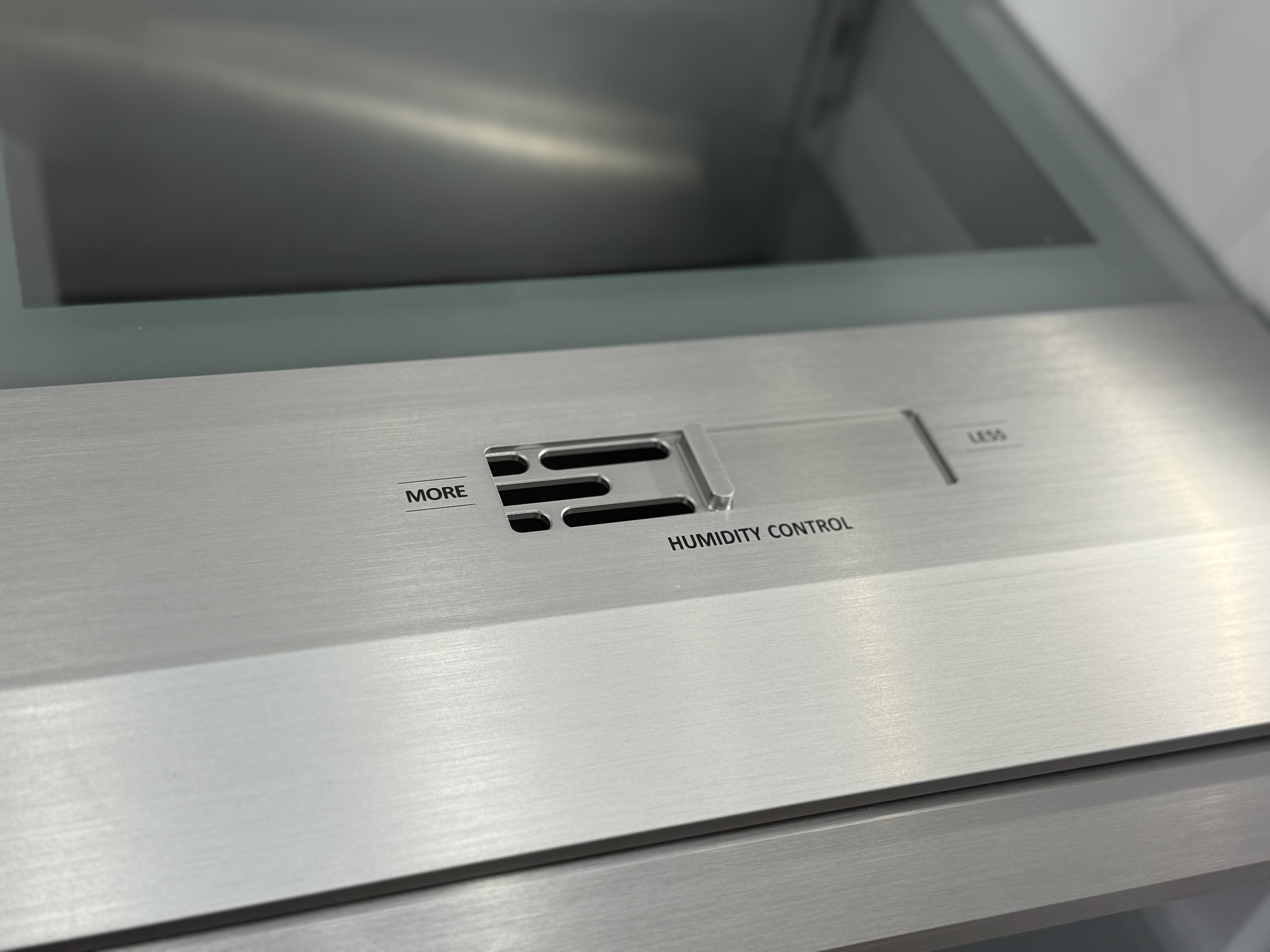

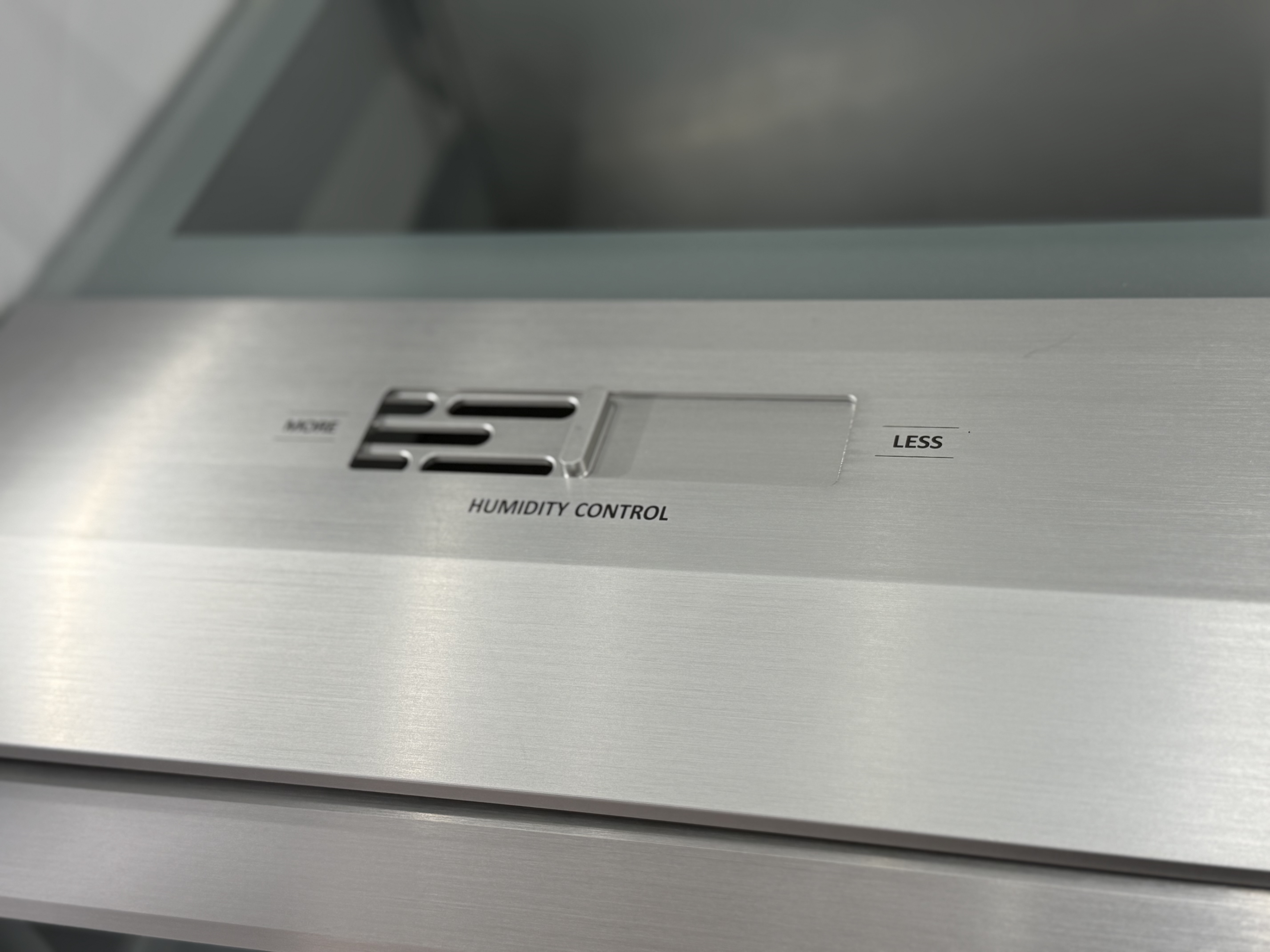

| Fresh Food Cabinet Drawers | 2 Half-Width Adjustable Humidity Drawers Full-Extension Soft-Close Slides |

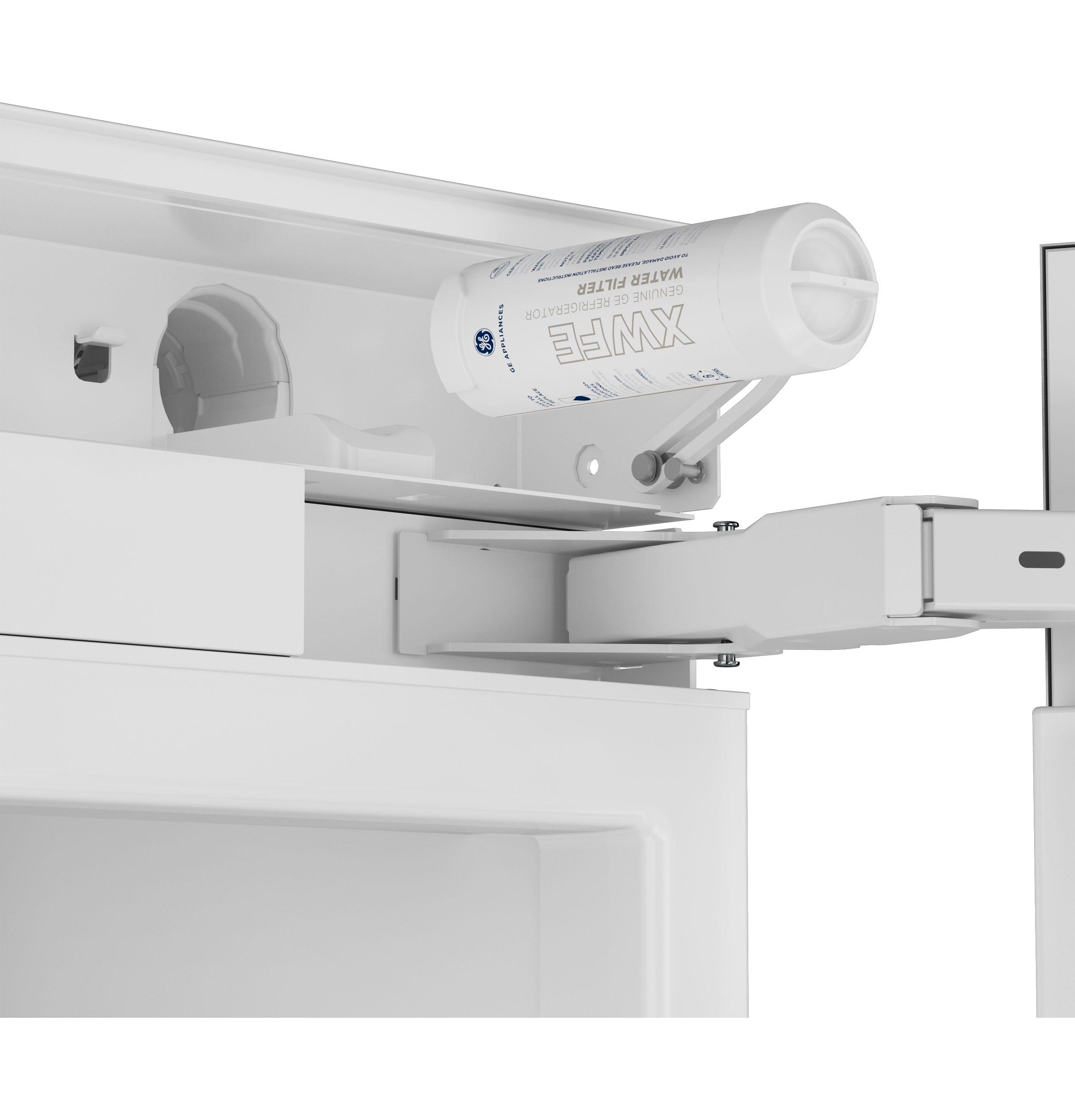

| Water Filtration | GE Water Filtration (XWFE Filter) |
| Product Type | Bottom Freezer Refrigerator Built-In Refrigerator French-Door Refrigerator |
| OU Certified | OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately |

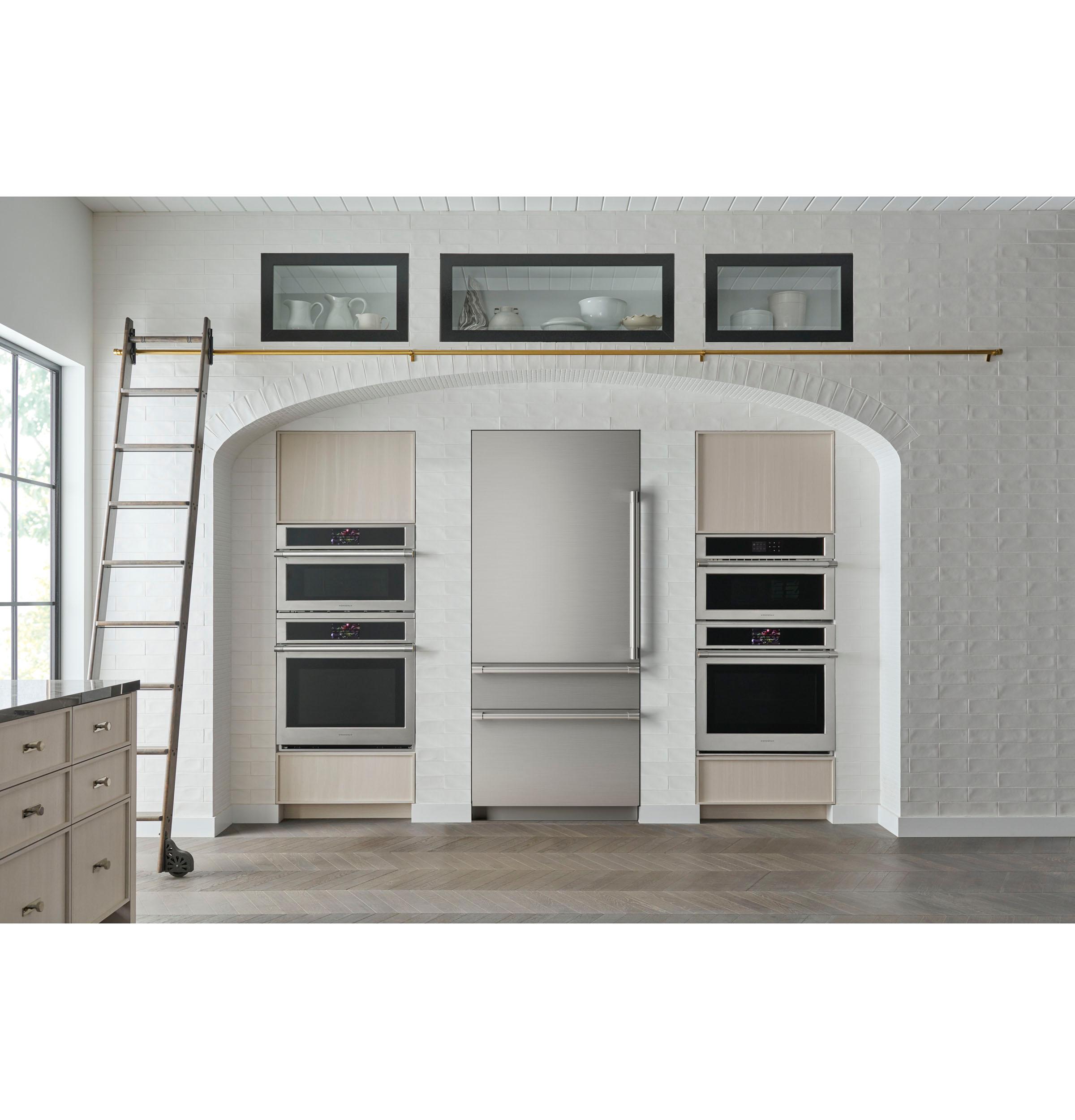

Bottom Freezer with Flush Inset InstallationSleek design allows the refrigerator to be installed flush with adjacent cabinetry6-Temperature Setting Convertible DrawerThe convertible middle drawer with 6 temperature settings allows you to choose temperatures best suited for storing cold drinks, meat, snacks, ice cream, produce or frozen itemsWiFi Connected RefrigeratorThe WiFi refrigerator allows you to wirelessly control refrigerator settings from your smartphone, using an available app2 Humidity-Controlled Vegetable DrawersEnjoy additional storage flexibility with pre-programmed settings that help to preserve food freshnessGlass Front Refrigerator Door BinsThe clear design makes it easy to see and access quick-grab items from refrigerator binsRefrigerator with Ramp-Up LED Interior ShelvesExceptional illumination throughout the refrigerator compartment accentuates the sophisticated interior and allows easy viewing of contentsRefrigerator Air Filtration Odor Reducing SystemThe refrigerator deodorizer air filtration system helps keep your refrigerator fresh by scrubbing the air of food odors and gasesRefrigerator with Internal Water DispenserThe water dispenser on the inside of the refrigerator leaves the outside looking clean and unclutteredFactory Installed Ice MakerCreate all the ice you want, anytime you like, with this refrigerator with ice makerRefrigerator Organization Bins6 half-width door bins allow you to organize your refrigerator with ease
Image Features

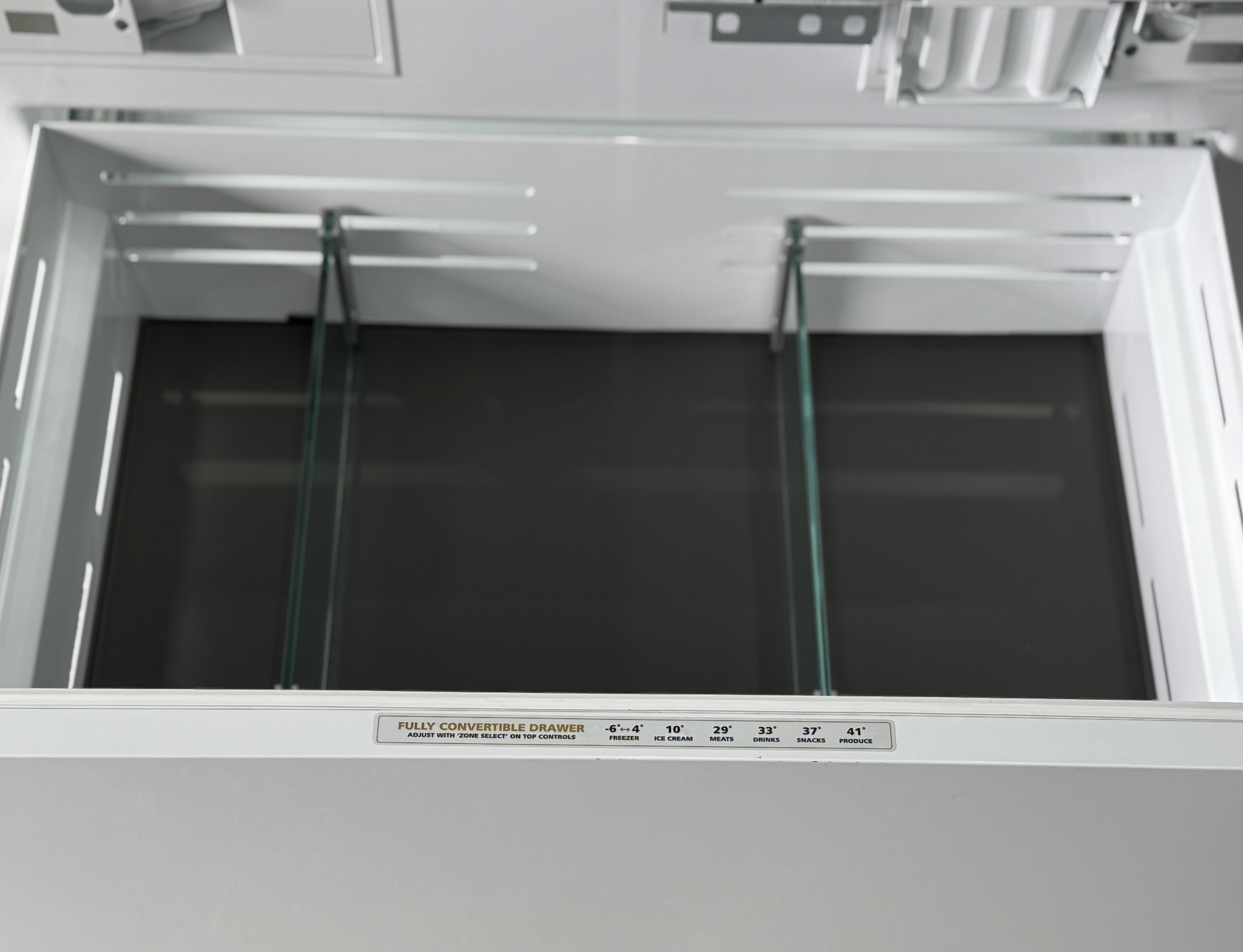

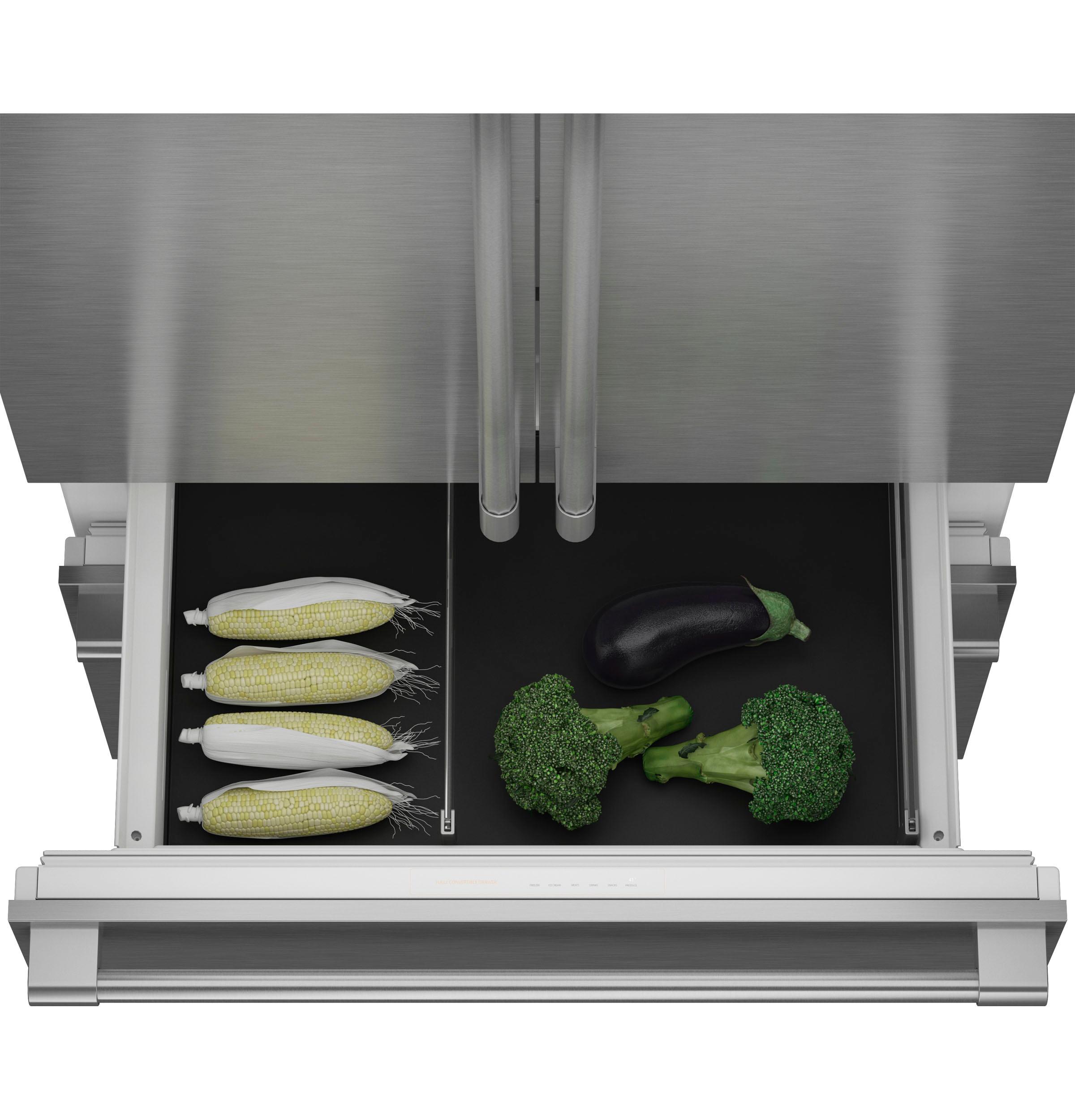

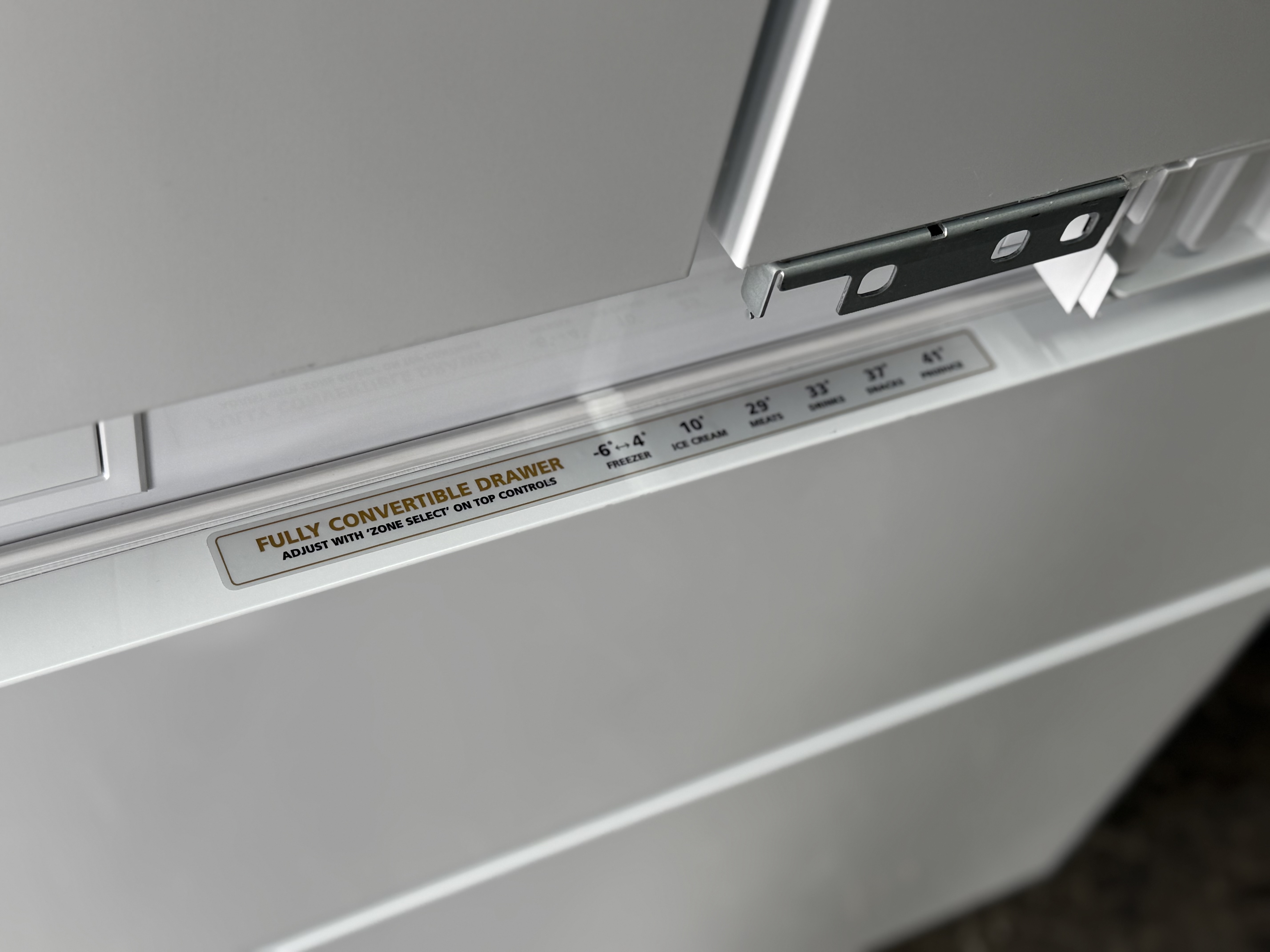

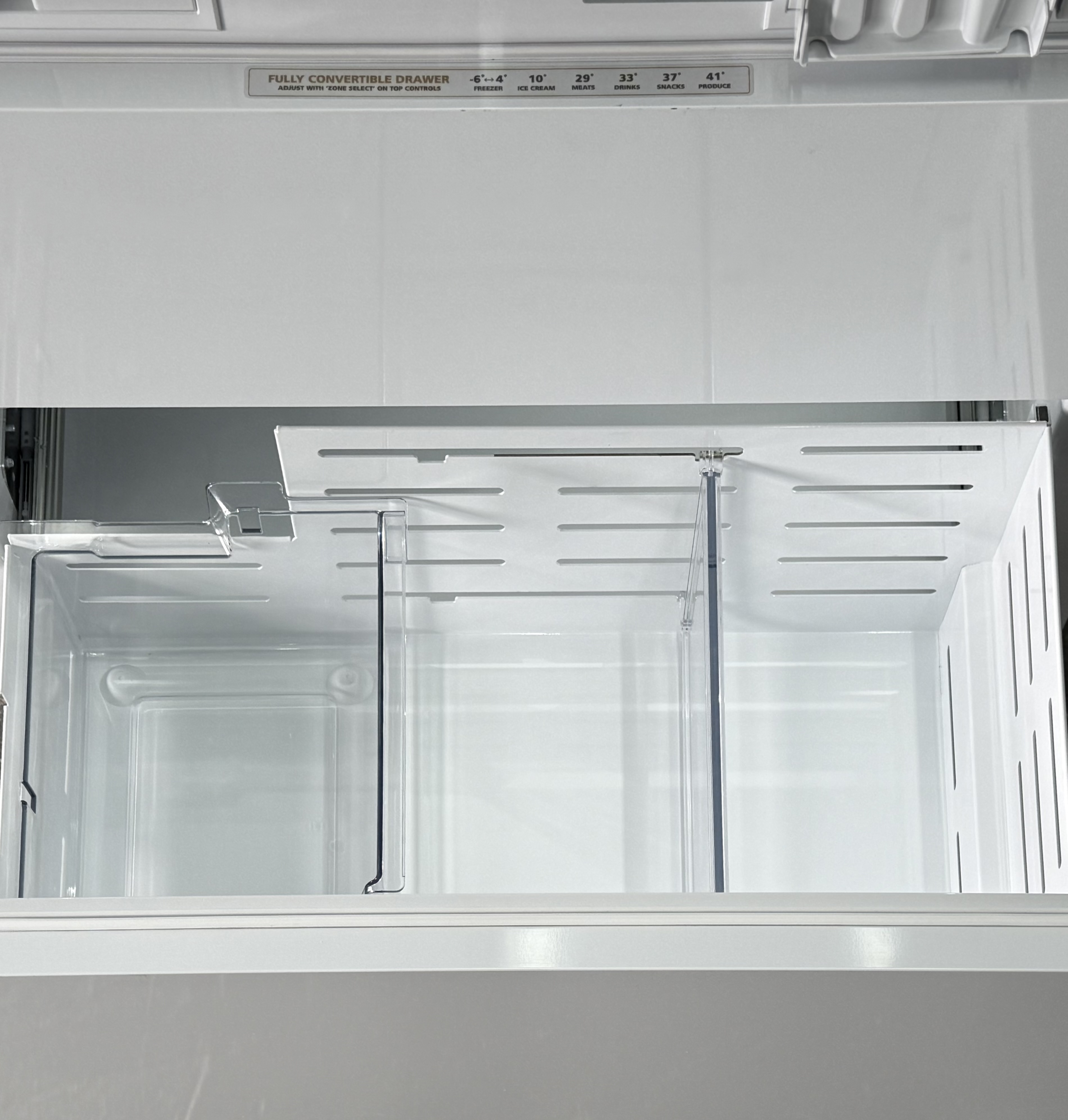

6-Temperature Setting Convertible Drawer
The convertible middle drawer with 6 temperature settings allows you to choose temperatures best suited for storing cold drinks, meat, snacks, ice cream, produce or frozen items

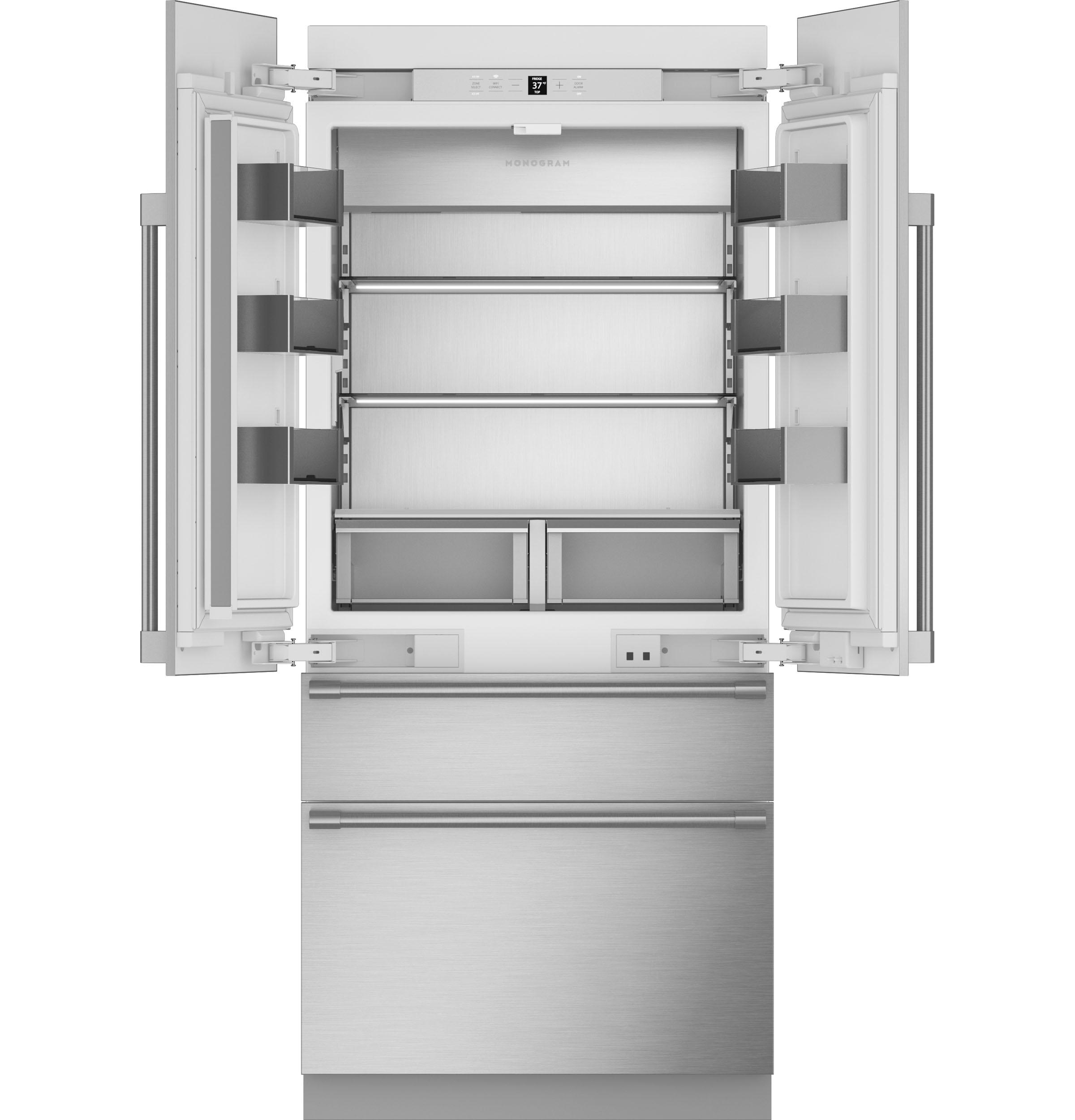

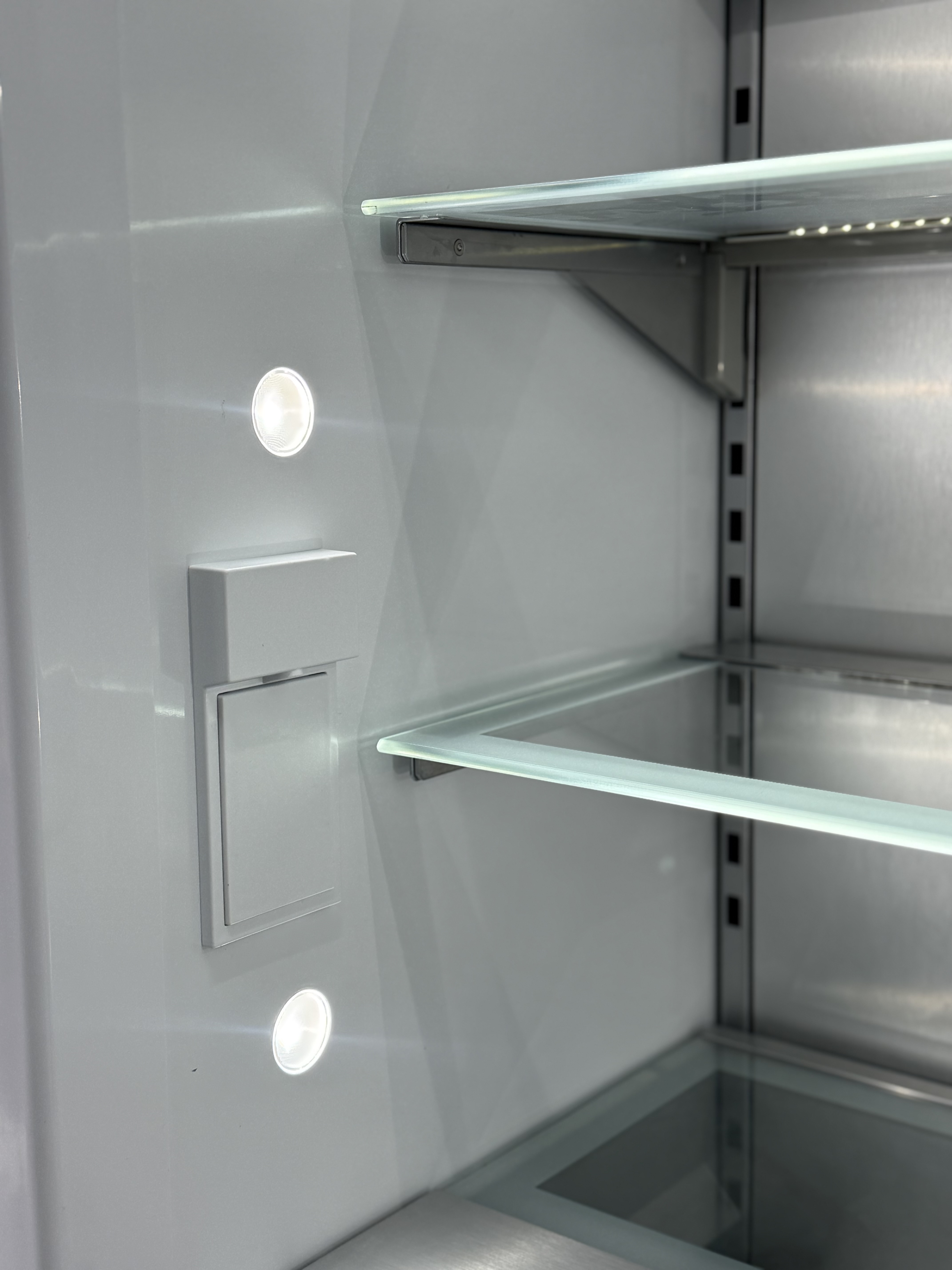

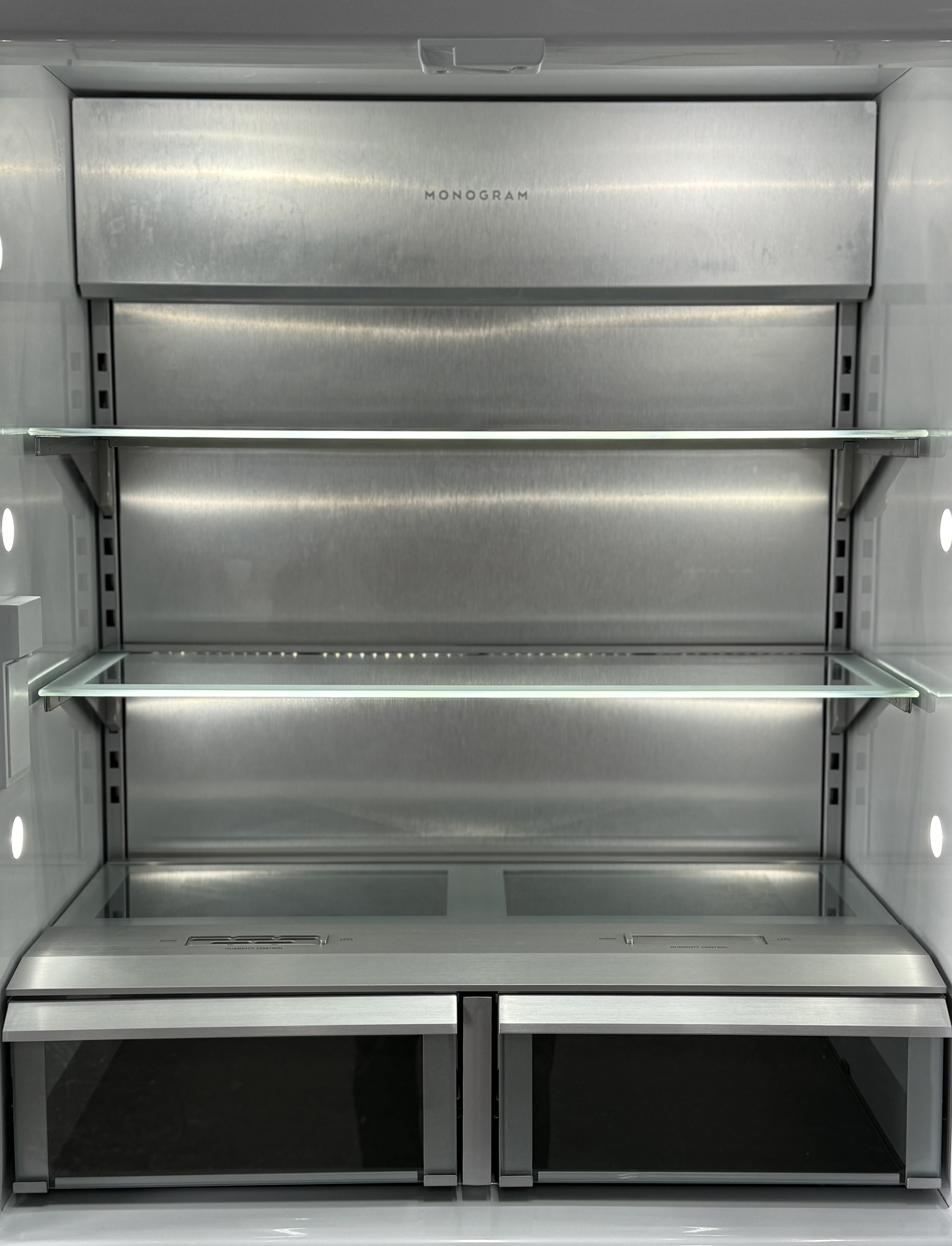

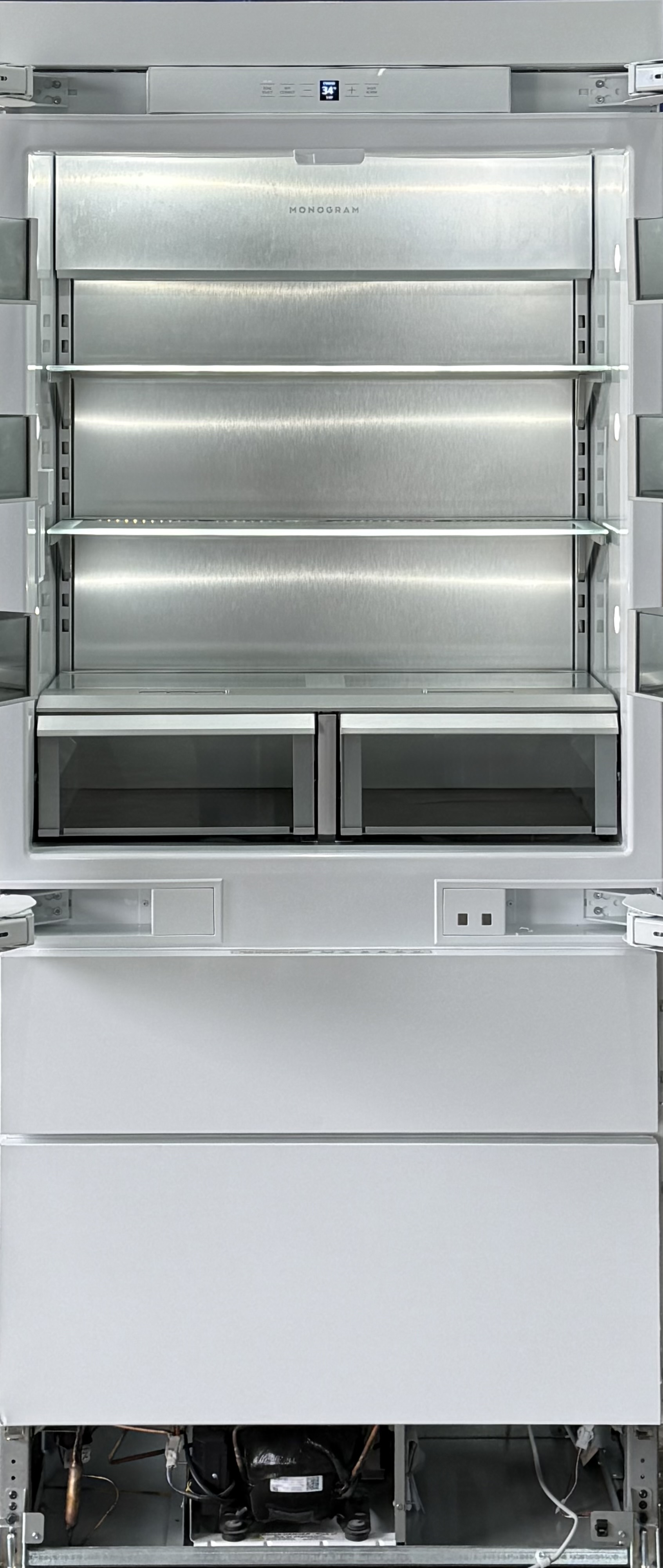

Refrigerator with Ramp-Up LED Interior Shelves
Exceptional illumination throughout the refrigerator compartment accentuates the sophisticated interior and allows easy viewing of contents
Features
- Bottom Freezer with Flush Inset Installation
- 6-Temperature Setting Convertible Drawer
- WiFi Connected Refrigerator
- 2 Humidity-Controlled Vegetable Drawers
- Glass Front Refrigerator Door Bins
- Refrigerator with Ramp-Up LED Interior Shelves

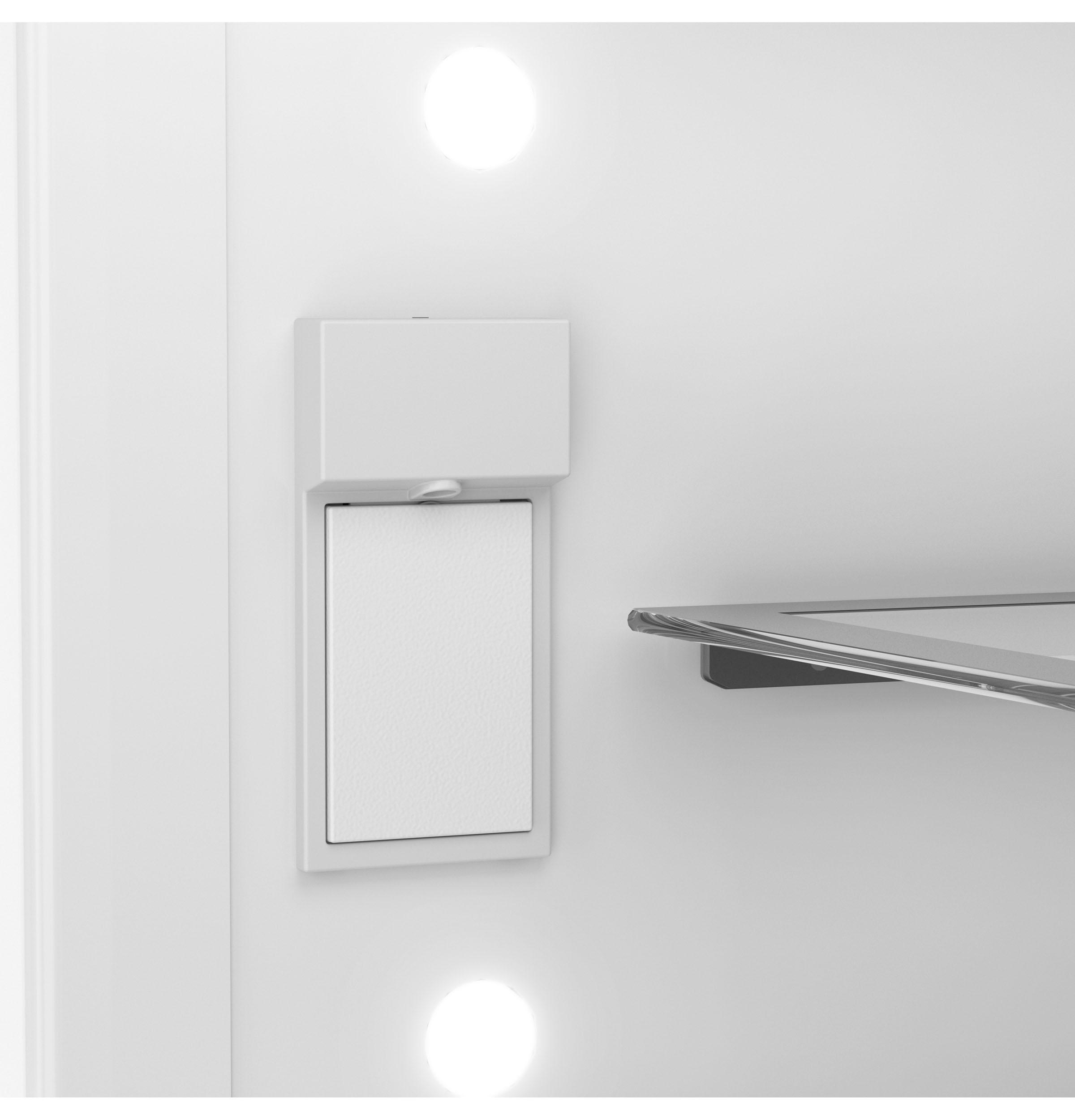

- Refrigerator Air Filtration Odor Reducing System
- Refrigerator with Internal Water Dispenser
- Factory Installed Ice Maker
- Refrigerator Organization Bins
Item Attributes
| Brand Code: | MONOGRAM |
|---|---|
| Part Number: | ZIP364IPVII |
| GTIN14: | 084691916178 |
| Category Code: | Kitchen Appliances |
| Sub Category Code: | Kitchen Appliances / Refrigeration / Refrigerators |

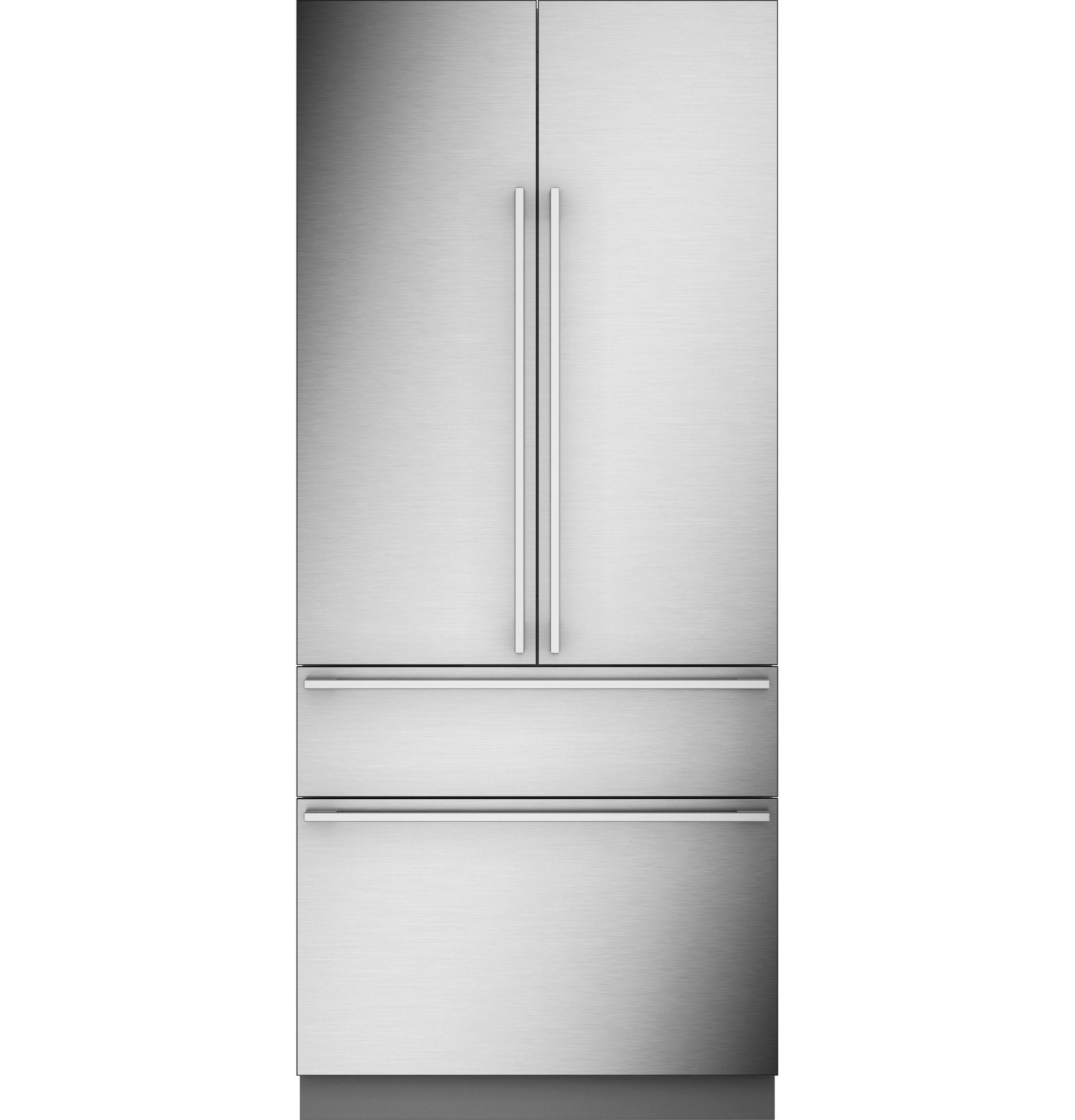

MONOGRAM 36 20.8 Cu. Ft Custom Or Ss Panel ZIP364IPVII
- SKU-0000038613
- Model #ZIP364IPVII
| Condition | New |
|---|---|
| Type | ![]() |
| Grade | B |
| Product Source | ![]() |

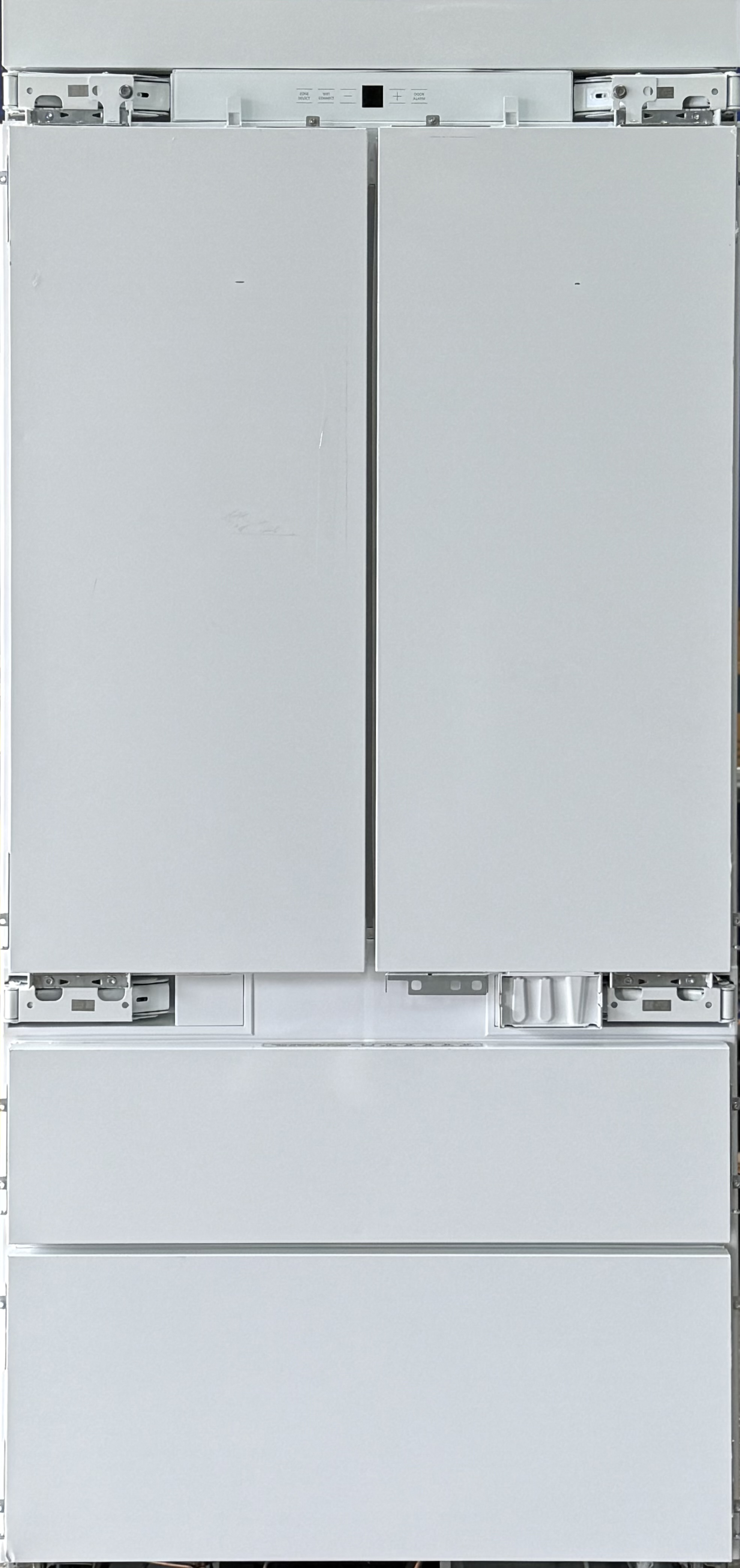

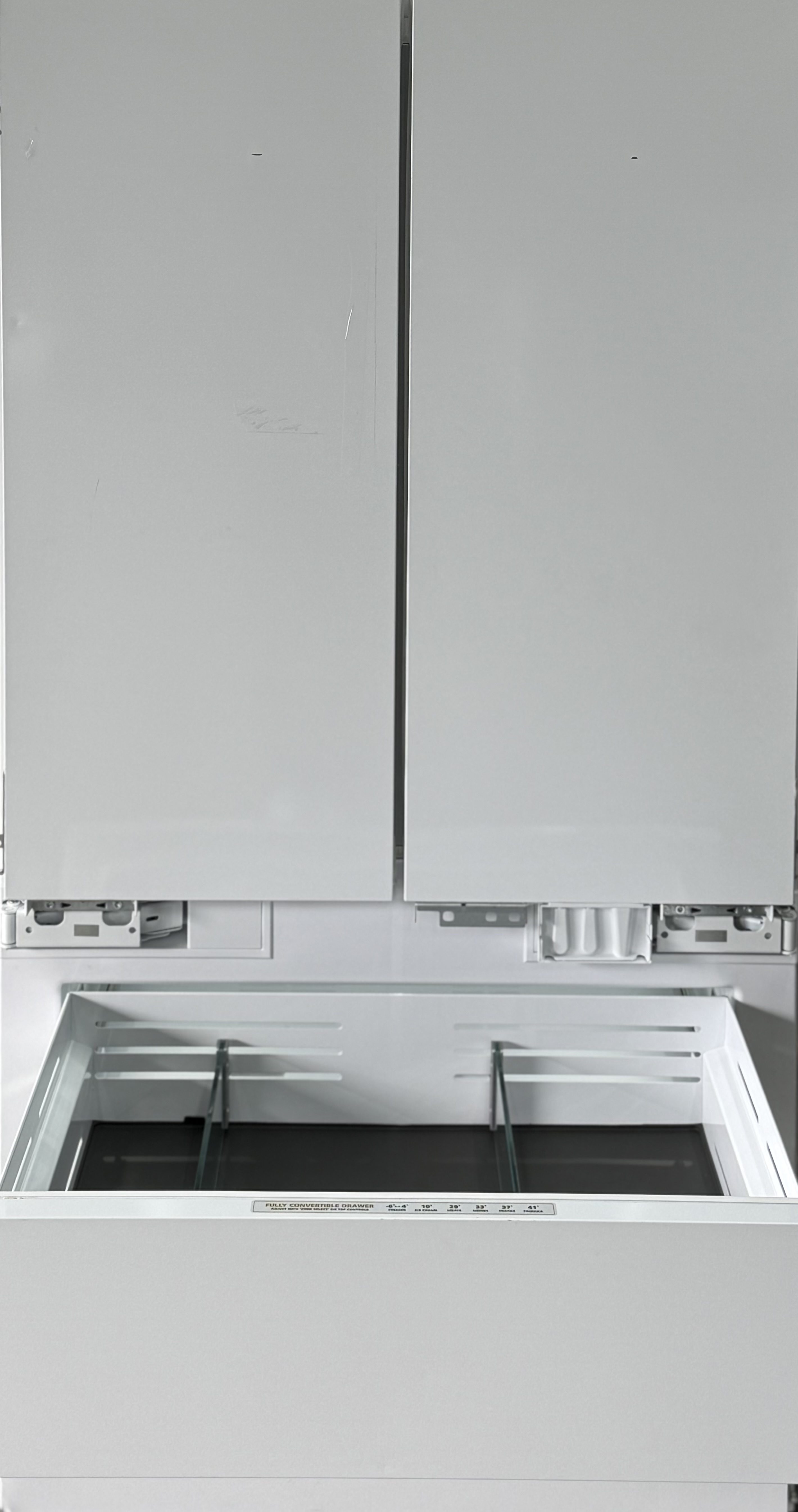

| Additional Info | Former Display Model | Panel Ready | Custom Panels & Handles Sold Separately | Toe Plate Not Included | May Be Missing Installation Hardware & Accessories |
7 DAY RETURNS ON ALL PRODUCTS
| Brand | MONOGRAM |
|---|---|
| Category | Kitchen Appliances / Refrigeration / Refrigerators |
| Model Number | ZIP364IPVII |
| UPC/GTIN | 084691916178 |
| Capacity | 20.1000 |
| Color | Custom Panel Ready |
| Depth | 24 3/4 |
| Width | 35 3/4 |
| Height | 83 1/2 |
