Capacity
| Feature | Specification |
|---|---|
| Total Capacity | 5.75 cu ft |
Appearance
| Feature | Specification |
|---|---|
| Handle | Handle with Brass accents |
| Toe Kick | Included |
| Oven Door | Soft Close Door |
| Handle Color | Stainless Steel |
| Color Appearance | Stainless Steel |
Power / Ratings
| Feature | Specification |
|---|---|
| Electrical Requirements | 240VAC; 50A (minimum circuit breaker requirement) |
| Broiler Wattage | 4000W |
| Convection Wattage | 2500W |
| Bake Wattage | 2700W |
| Hertz | 60 |
Accessories
| Feature | Specification |
|---|---|
| Optional Accessories | JXPROBE1 – Precision cooking probe |
| PM48X120 – Air Fry Basket & Tray Set | |
| WB32X32079 – Hestan Cue Smart Pan | |
| Optional Backguard | 12" stainless steel backsplash (UX12B36PSS) |
| 30"-36" adjustable stainless steel backsplash with warming shelf (UXADJB36PSS) | |
| Cooktop Cleaning | Included |
Weights & Dimensions
| Feature | Specification |
|---|---|
| Net Weight | 344 lb |
| Shipping Weight (Approx.) | 409 lb |
| Cabinet Width | 36 in |
| Overall Width | 35.875 in |
| Overall Height | 35.4375 in |
| Overall Depth | 28.5 in |
| Height to Cooking Surface | 35.875 – 36.9375 in |
| Max Height w/ Legs Extended | 37.5 in |
| Oven Interior (W x H x D) | 28-1/4 x 16-3/8 x 19 in |
Cooktop
| Feature | Specification |
|---|---|
| Cooktop Type | 5 Induction Elements |
| Fuel Type | Electric |
| Surface | Glass |
| Center Element | 11" (3700W) |
| Left Front | 7" (2500W) |
| Right Front | 8" (3200W) |
| Left Rear | 7" (2500W) – Keep Warm |
| Right Rear | 6" (1800W) – Melt |
| Indicator Lights | 5 Hot Surface + 5 Heating On |
Oven Features
| Feature | Specification |
|---|---|
| Cooking System | Reverse Air Convection / True European Convection |
| Cleaning Type | Self-Clean / Steam Clean |
| Rack Positions | 5 |
| Racks | 3 Self-Clean Full-Extension |
| Interior Light | 6 Halogen Lights |
| Bake Element | 8-Pass Hidden Bake |
| Broil Element | 8-Pass Broil |
| Convection Roasting Rack | Yes |
| Oven Door Lock | Automatic |
Cooking Modes
| Modes |
|---|
| Convection Bake Multi-Rack |
| Convection Broil Hi/Lo |
| Convection Roast |
| Hot Air Fry |
| Precision Cooking Modes |
| Proof |
| Warming |
Controls & Smart Features
| Feature | Specification |
|---|---|
| Control Type | 7" Touch Articulating LCD + Glide Touch |
| WiFi | Built-In |
| App | SmartHQ App |
| Bluetooth | Chef Connect |
| Voice Assistants | Amazon Alexa / Google Home / Innit |
| Oven Camera | Yes |
| Temperature Probe | Yes |
| Delay Start | Yes |
| Auto Recipe Conversion | Yes |
| Control Lock | Yes |
| Timer & Clock | Yes |
| Remote Enabled | Yes |
Cooktop Functions
| Functions |
|---|
| All-Off Button |
| Boost |
| Keep Warm |
| Melt Setting |
| Pan Presence Sensor |
| Pan Size Sensor |
| Sync Burners |
Lighting & Design
| Feature | Specification |
|---|---|
| Lighting | Customizable LED Bullnose Task Lighting (Dimmable, Color Changing) |
| Collection | Designer / EcoBalance / Statement |
| Product Type | Professional Range |
| Cooking Technology | Convection + Induction |
5 Induction Cooktop ElementsElevate your cooking experience with an induction cooktop that uses electromagnetic technology to provide rapid heat and quickly respond to changes in temperature for flawless results.Precision Cooking ModesEnjoy elevated dishes and simplify your cooking process with precision cooking modes that automatically track progress and make time and temperature changes for delicious results. Precision probe sold separately and Smart Pan available with rebate offer.Designer Collection Compatible7″ Touch LCD Oven ControlWith a delicate touch, the articulating LCD screen swings out toward the user for an ergonomic experience before returning flush with the oven control panel when it is not in use.Custom Color Accent LED LightingFor an elevated look, use the SmartHQ(TM) App to customize your accent lighting color and brightness to perfectly match the unique ambiance of your kitchen.Downloadable UpgradesEnjoy an elevated cooking experience when you use the downloadable upgrades to ensure maximum performance from your oven, including Hot Air Fry and Precision Cooking Modes.Glide Touch Cooktop ControlsSeamlessly swipe between 19 premium heat settings for precise heat control on this easy-to-clean induction cooktop.Synchronized Cooktop ElementsThis luxury design allows you to connect and control two synchronized cooktop elements simultaneously to create a large cooking surface for griddles.Control LockProtect against unintentionally turning your elements on when they are not in use with additional safety details including a cooktop safety lock.Cooktop Indicator LightsKnow with a quick glance whether or not the elements are hot on this luxury induction cooktop that features hot surface indicator lights for added safety.Keep Warm SettingLuxury 7″ elements feature a wide range of cooktop settings – from dedicated “Keep Warm” levels to the power to boil water.Built-in Oven WiFiDesigned with every detail in mind, this oven syncs with built-in WiFi, powered by the SmartHQ(TM) App, to control and manage your oven remotely with your smart device.Hot Air FryCrisp foods to crunchy perfection with the Hot Air Fry mode, which is a premium feature for health-conscious cooks that desire fried foods without using oils or butter.Chef ConnectChef Connect provides a premium cooking experience and allows you to effortlessly synchronize a range of kitchen items such as surface lights and the vent when elements are on.Oven WiFi Monitoring and Remote ControlNavigate your busy lifestyle and control every detail of your dinner with built-in oven WiFi capabilities. Remotely activate a variety of functions, Chef Connect and more to help streamline your cooking experience.
Image Features
5 Induction Cooktop Elements
Elevate your cooking experience with an induction cooktop that uses electromagnetic technology to provide rapid heat and quickly respond to changes in temperature for flawless results.
Precision Cooking Modes
Enjoy elevated dishes and simplify your cooking process with precision cooking modes that automatically track progress and make time and temperature changes for delicious results. Precision probe sold separately and Smart Pan available with rebate offer.
7" Touch LCD Oven Control
With a delicate touch, the articulating LCD screen swings out toward the user for an ergonomic experience before returning flush with the oven control panel when it is not in use.
Custom Color Accent LED Lighting
For an elevated look, use the SmartHQ(TM) App to customize your accent lighting color and brightness to perfectly match the unique ambiance of your kitchen.
Downloadable Upgrades
Enjoy an elevated cooking experience when you use the downloadable upgrades to ensure maximum performance from your oven, including Hot Air Fry and Precision Cooking Modes.

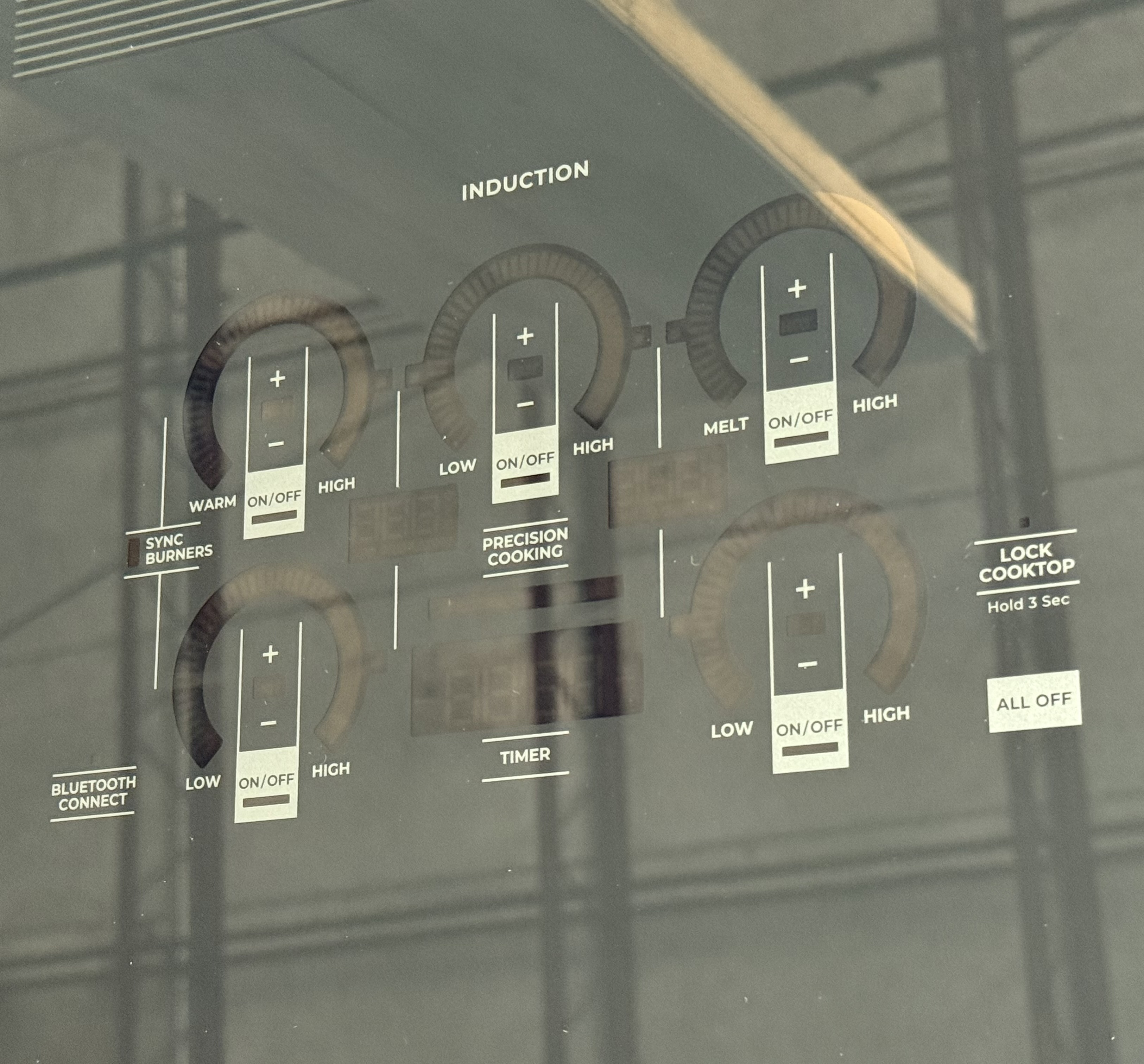

Glide Touch Cooktop Controls
Seamlessly swipe between 19 premium heat settings for precise heat control on this easy-to-clean induction cooktop.
Synchronized Cooktop Elements
This luxury design allows you to connect and control two synchronized cooktop elements simultaneously to create a large cooking surface for griddles.
Features
- 5 INDUCTION COOKTOP ELEMENTS
- 7 INCH TOUCH LCD OVEN CONTROL
- CUSTOM COLOR ACCENT LED LIGHTING
- DOWNLOADABLE UPGRADES
- GLIDE TOUCH COOKTOP CONTROLS
- PRECISION COOKING MODES
- SYNCHRONIZED COOKTOP ELEMENTS
Item Attributes
| Brand Code: | MONOGRAM |
|---|---|
| Part Number: | ZHP365ETVSS |
| GTIN14: | 084691930570 |
| Category Code: | Cooking |
| Sub Category Code: | Cooking / Kitchen Appliances / Ranges |

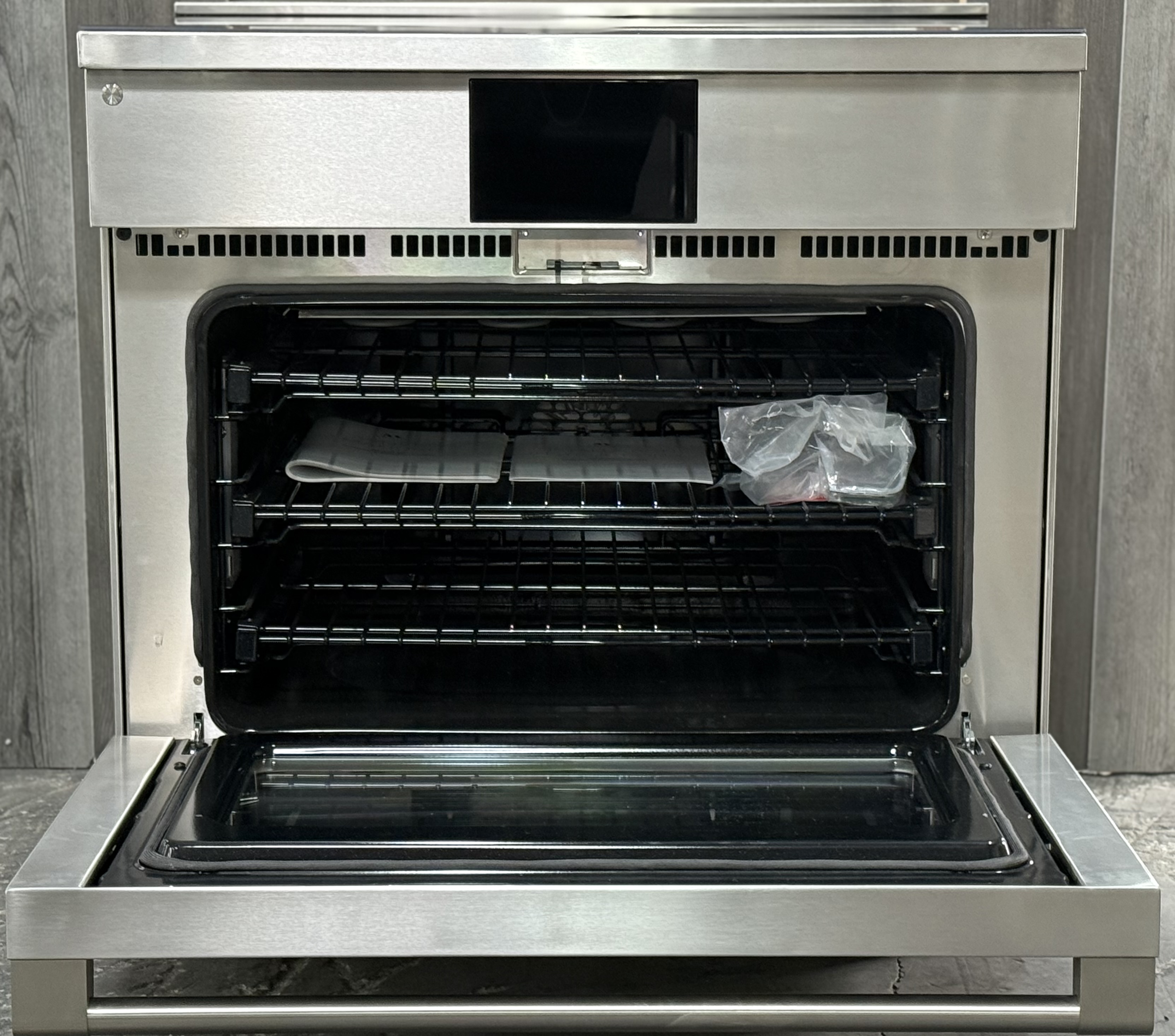

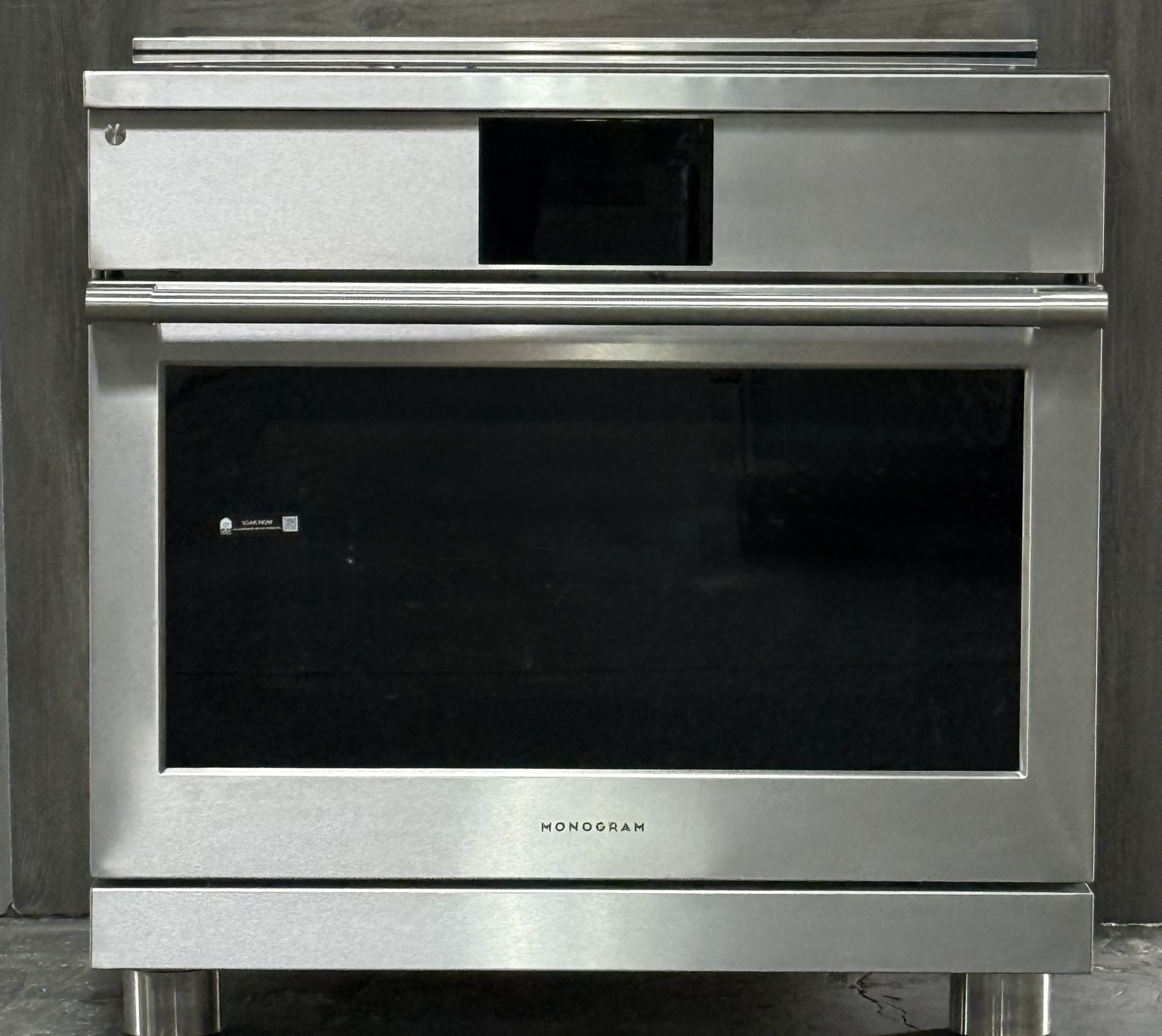

MONOGRAM 36" Freestanding Professional Induction Smart Range With 5 Elements ZHP365ETVSS
- SKU-0000032156
- Model #ZHP365ETVSS
| Condition | New |
|---|---|
| Type |  |
| Grade | B |
| Product Source |  |

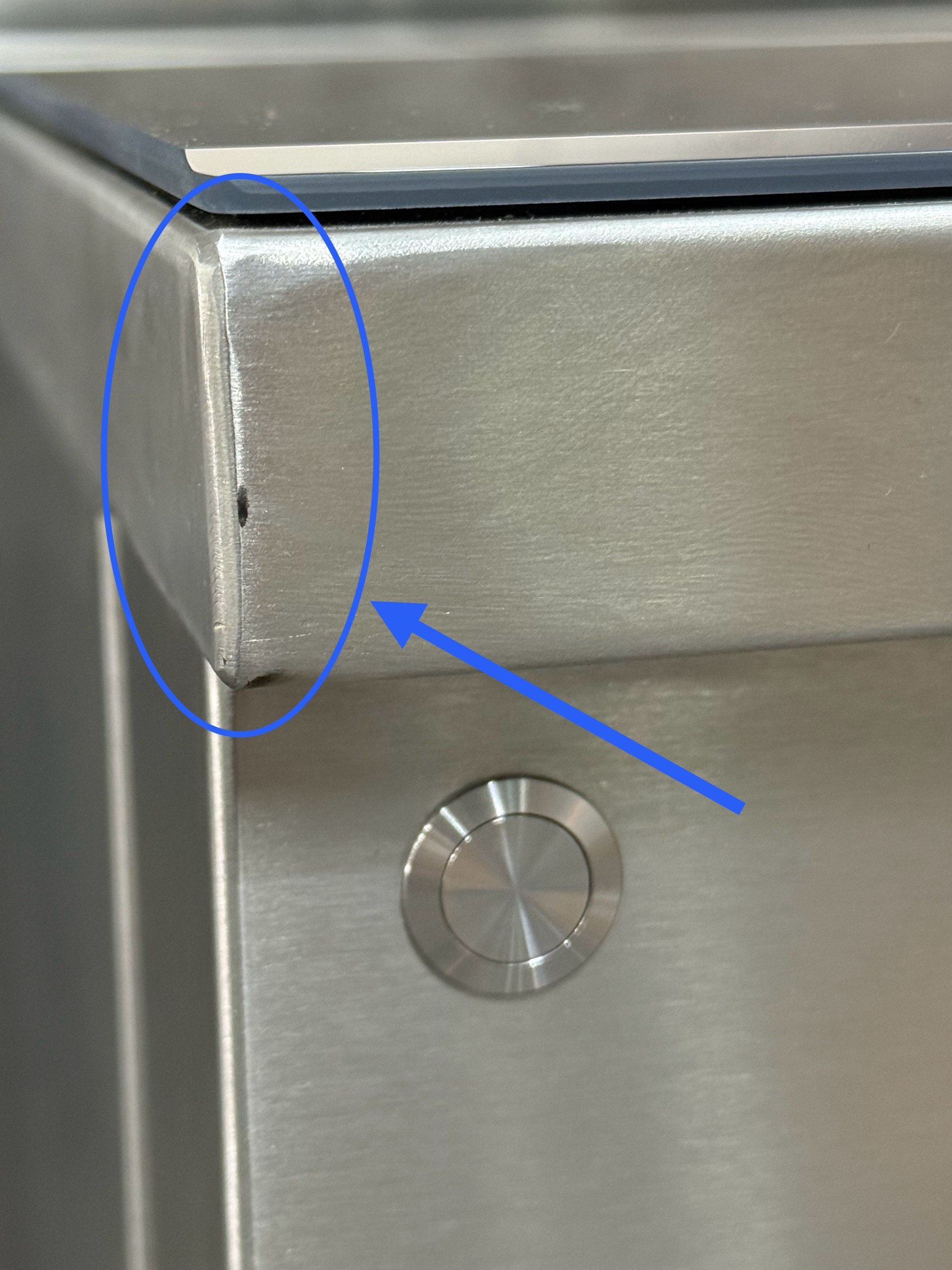

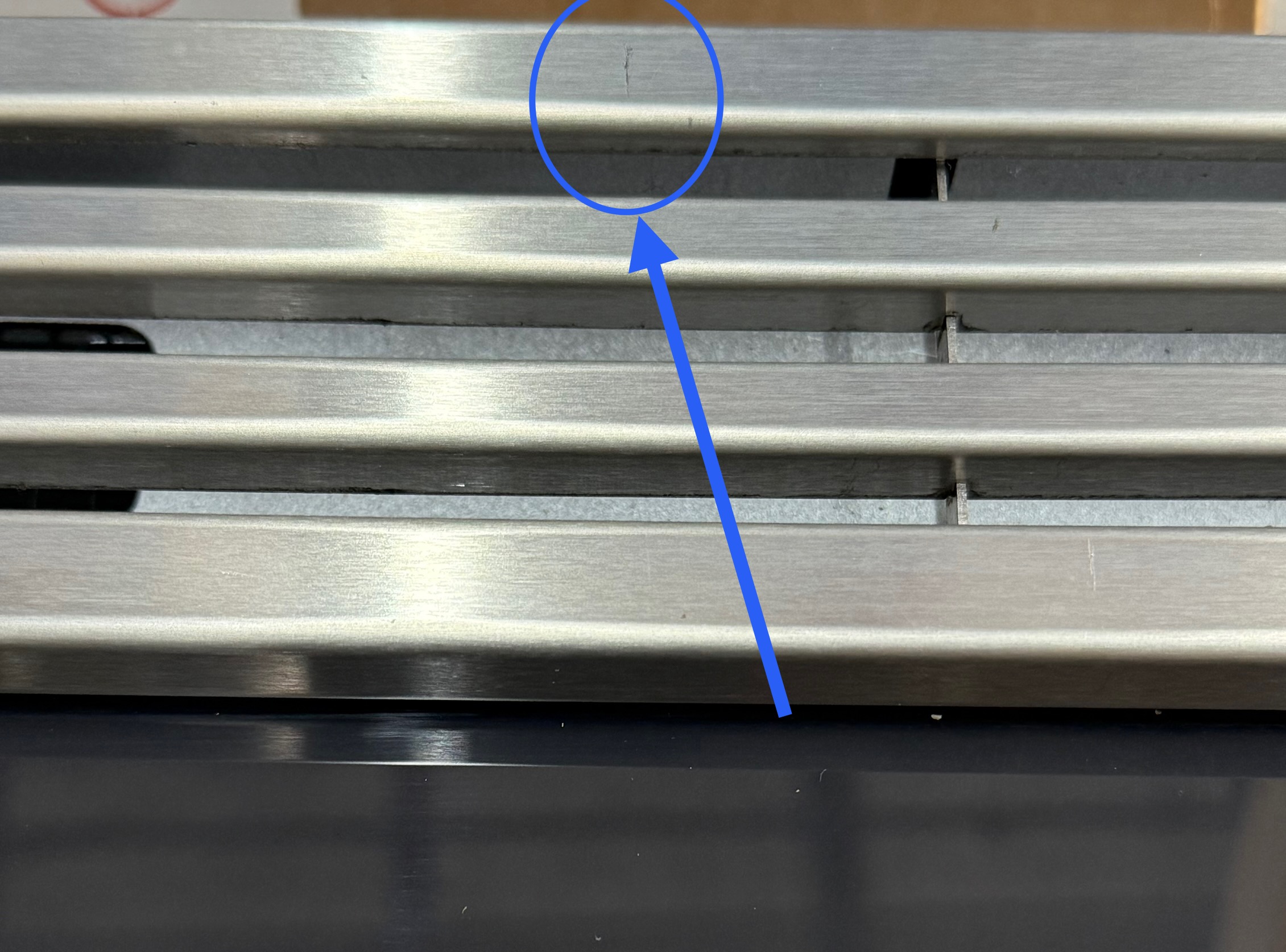

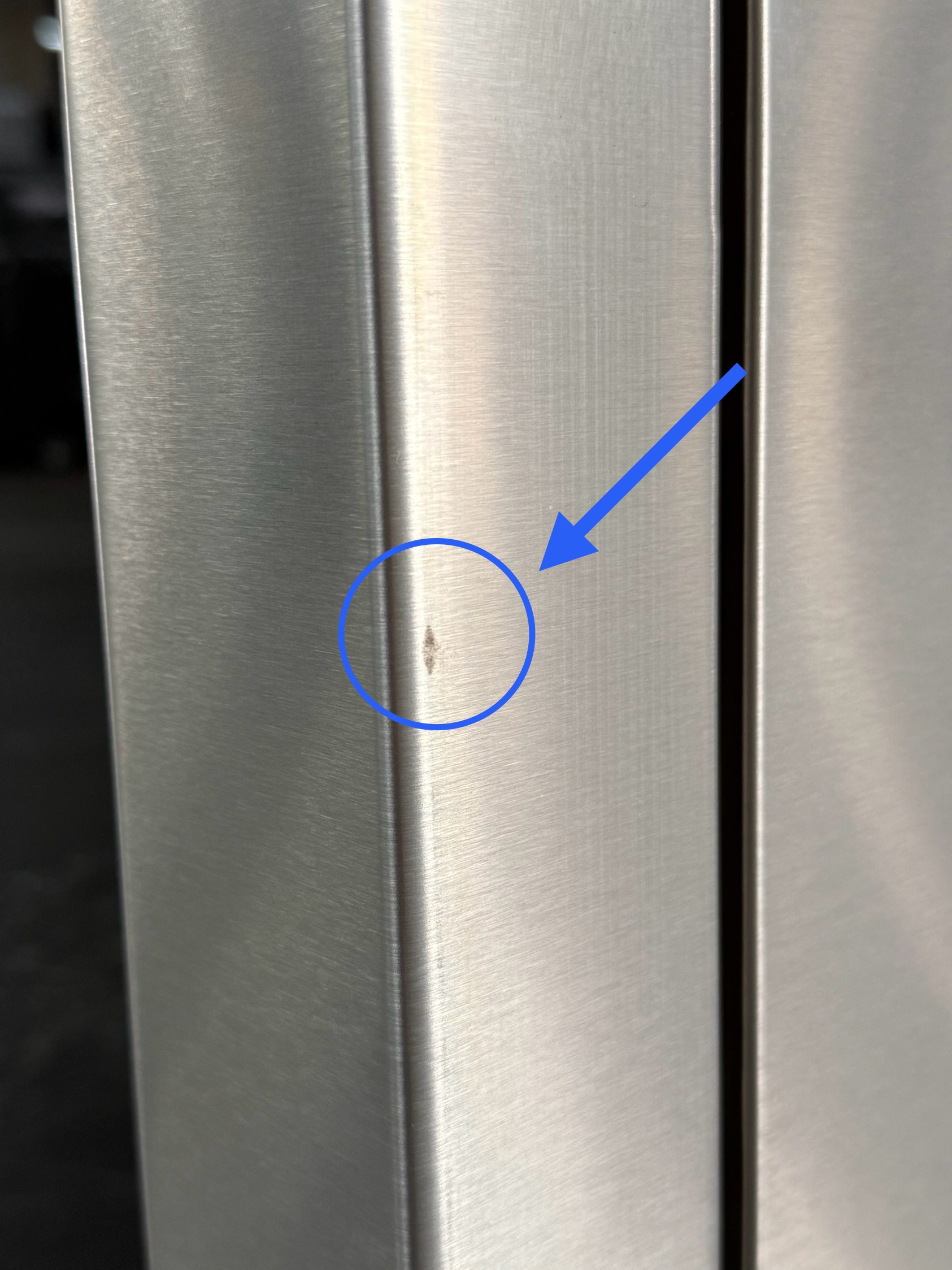

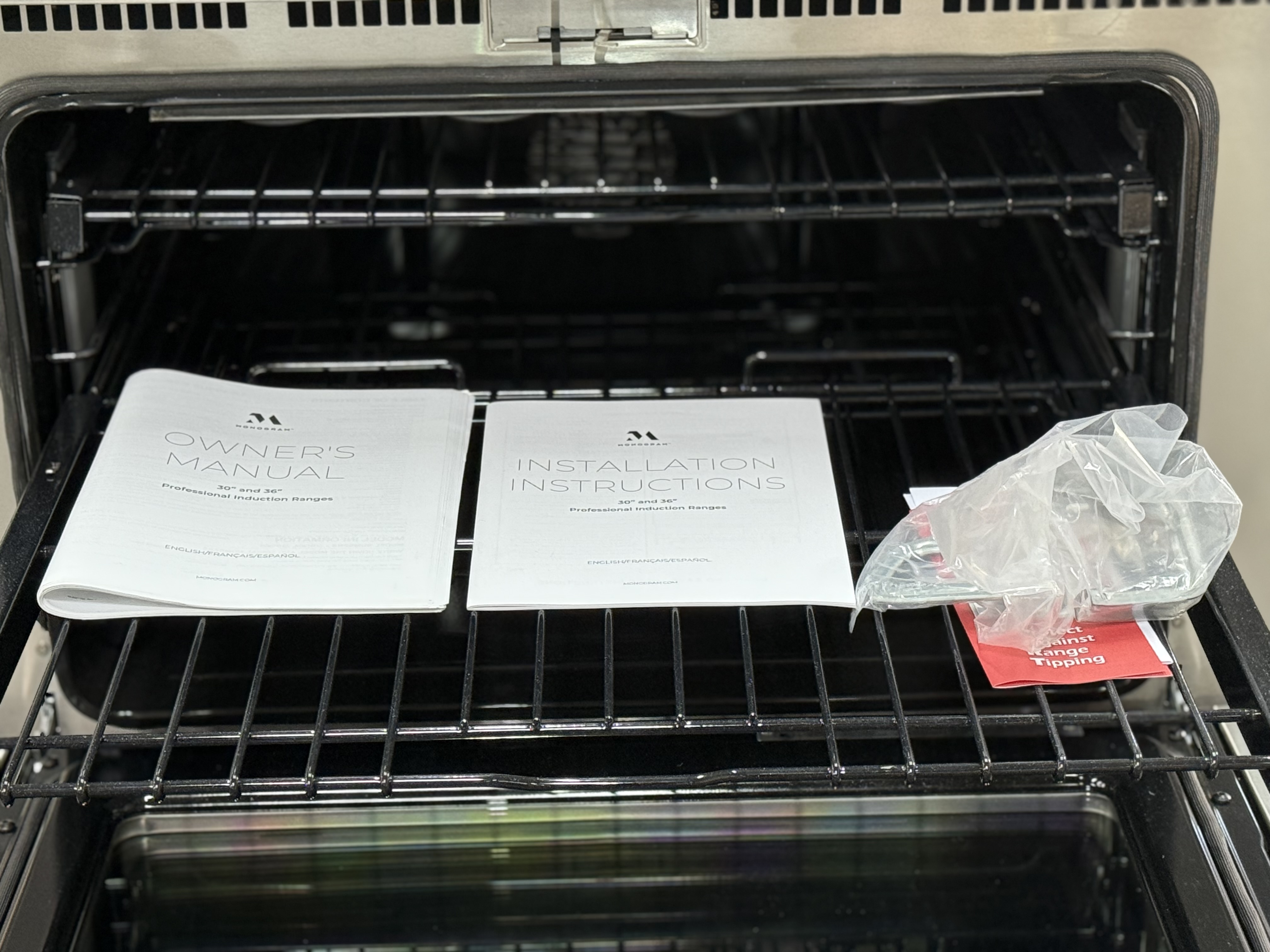

| Additional Info | Dents On Sides | Signs Of Use | Overall Great Condition | Minor Cosmetic Imperfections | Highlighted In Photos | Owners Manual Still Inside | Great Savings | Blemish Right Side Oven Door | Blemishes Left Side Top Cooktop | Scracth Rear Exhaust Grille |
7 DAY RETURNS ON ALL PRODUCTS
| Brand | MONOGRAM |
|---|---|
| Category | Cooking / Kitchen Appliances / Ranges |
| Model Number | ZHP365ETVSS |
| UPC/GTIN | 084691930570 |
| Capacity | 5.7500 |
| Color | Stainless Steel |
| Depth | 28 1/2 |
| Width | 35 7/8 |
| Height | 35 7/16 |
