Dimensions and Measurements
Height | 5.5 in. |
Width | 5.5 in. |
Included Components
Diverter Included | No |
Handles Included | Yes |
Installation Hardware Included | Yes |
Valve Included | No |
Characteristics and Features
Faucet Type | Shower Faucet |
Handle Material | Brass |
Handle Style | Lever |
Installation Type | Wall Mounted |
Material | Brass |
Number of Functions | 1 |
Number Of Handles | 1 |
Scald Guard | No |
Theme | Modern |
Valve Type | Pressure Balanced |
Warranty and Product Information
ADA | Yes |
Approved for Commercial Use | Yes |
ASME Code | A112.18.1 |
Certifications | ASME, CSA |
Collection | Equinox |
Country Of Origin | Canada, China |
CSA Code | B125.1 |

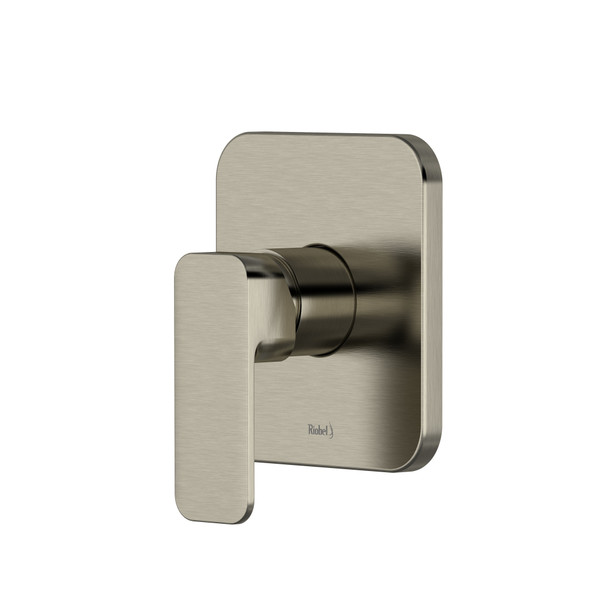

Equinox™ 1/2 Inch Single Lever Handle Pressure Balance Trim
This is a modern-style pressure-balance shower trim from the Equinox collection. It uses solid brass construction for durability and aesthetics, offers a single lever control that adjusts both water temperature and flow, and needs a compatible rough-in valve (e.g. Rohl R51) to complete the installation. The pressure-balance mechanism senses and regulates hot/cold water ratio to maintain stable shower temperature. Flow rate is about 5.8 GPM at 60 PSI, and the unit ships with a single-function cartridge and all necessary mounting hardware.
Features
Pressure‑Balance Control: Helps keep water temperature stable by balancing hot and cold water.
Single Lever Operation: One handle controls both temperature and flow for simple use.
Durable Brass Construction: Built to last and resist corrosion.
Brushed Nickel Finish: Elegant look that resists fingerprints and water spots.
Item Attributes
| Brand Code: | ROHL |
|---|---|
| Part Number: | TEQ51BN |
| GTIN14: | 883186444406 |
| Category Code: | Shower Faucets |
| Sub Category Code: | Shower Faucets |
ROHL Equinox Pressure Balanced Valve Trim Only With Single Lever Handle Less Rough In TEQ51BN
- SKUI-0000098201
- Model #TEQ51BN
| Condition | New |
|---|---|
| Type |  |
| Grade | A |
| Product Source |  |
| Additional Info | New In Box |
| Available Quantity | 1 |
7 DAY RETURNS ON ALL PRODUCTS
| Brand | ROHL |
|---|---|
| Category | Shower Faucets |
| Model Number | TEQ51BN |
| UPC/GTIN | 883186444406 |
| Capacity | 5.8000 |
| Color | Brushed Nickel |
| Depth | 1/2 |
| Width | 5 1/2 |
| Height | 5 1/2 |
