| Overview | |
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.75" (81 cm) |
| Nominal Width | 15.0" (38 cm) |
| Width | 14.88" (38 cm) |
| Nominal Depth | 21.0" (53 cm) |
| Depth | 20.13" (51 cm) |
| Depth with door at 90° | 34.38" (87 cm) |
| Defrost Type | Manual |
| Door | Panel-Ready |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.9 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 65.0 lbs. (29 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101108407 |
| Icemaker | |
| Door Swing | RHD |
| Reversible | Yes |
| Height Adjustable | Yes |
| Daily Ice Production | 25.0 lbs. (11 kg) |
| Ice Storage Capacity | 22.0 lbs. (10 kg) |
| Ice Shape | Crescent |
| Size of Cube | 1/2" x 3/4" x 2 3/8" |
| Number of Ice Cube Sizes | 1 |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.58 oz. |
| High Side PSI | 120.0 |
| Low Side PSI | 55.0 |
| Interior Height | 15.88" (40 cm) |
| Interior Width | 11.88" (30 cm) |
| Interior Depth | 12.38" (31 cm) |
| Level Legs | 4 |

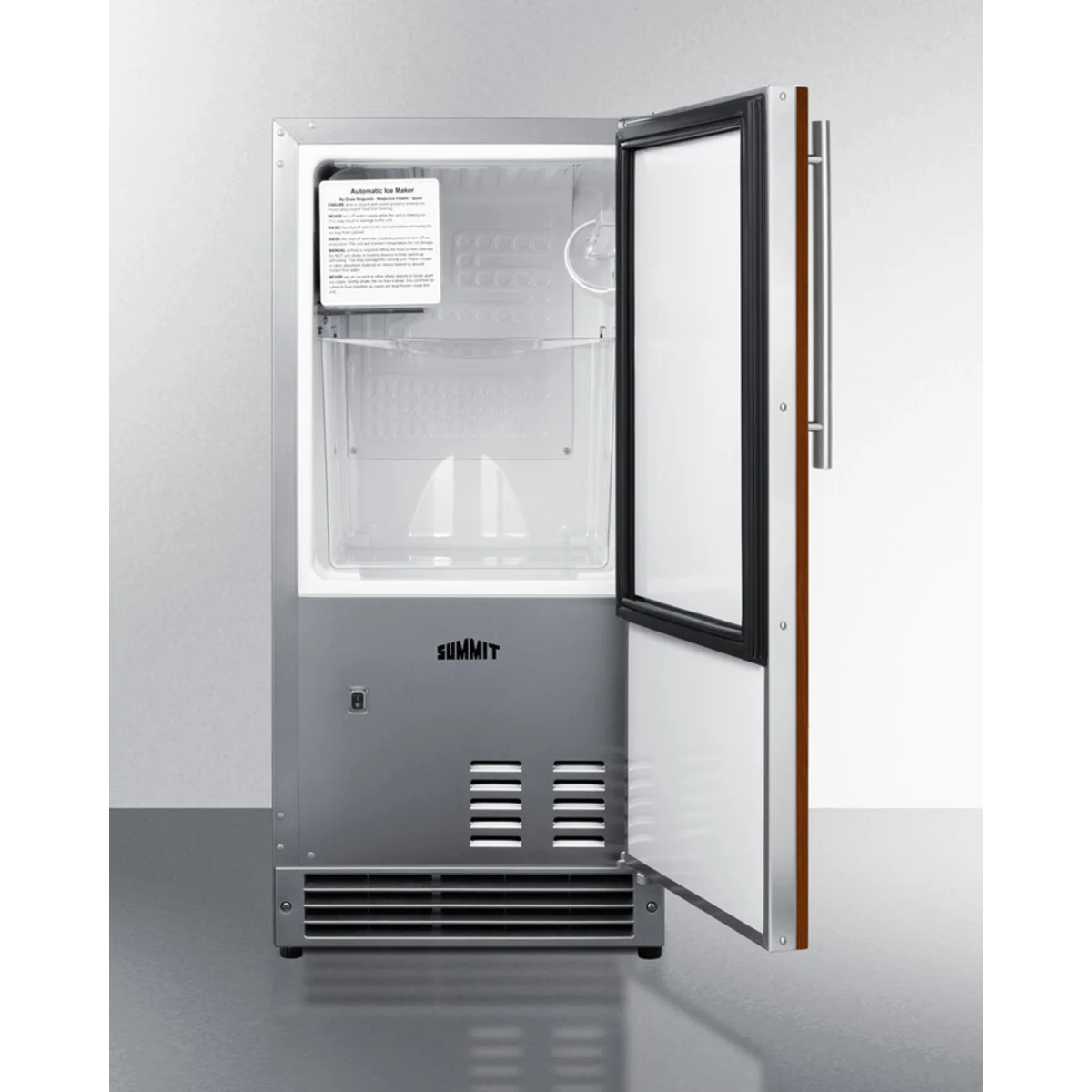

Summit combines convenience and luxury to craft the BIM26H32IF – an undercounter icemaker finished in complete 304-grade stainless steel. Sized at just under 15″ wide, the BIM26H32IF features a front-breathing design for built-in installation but also has a fully finished cabinet to allow freestanding use. It includes a taller kickplate for a streamlined and cohesive look. This model features a panel-ready door with an integrated stainless steel frame that lets you install an overlay panel and handle to match or complement surrounding cabinetry (recommended panel dimensions: 27 9/16″ H x 14 13/16″ W at 3/4″ thick).

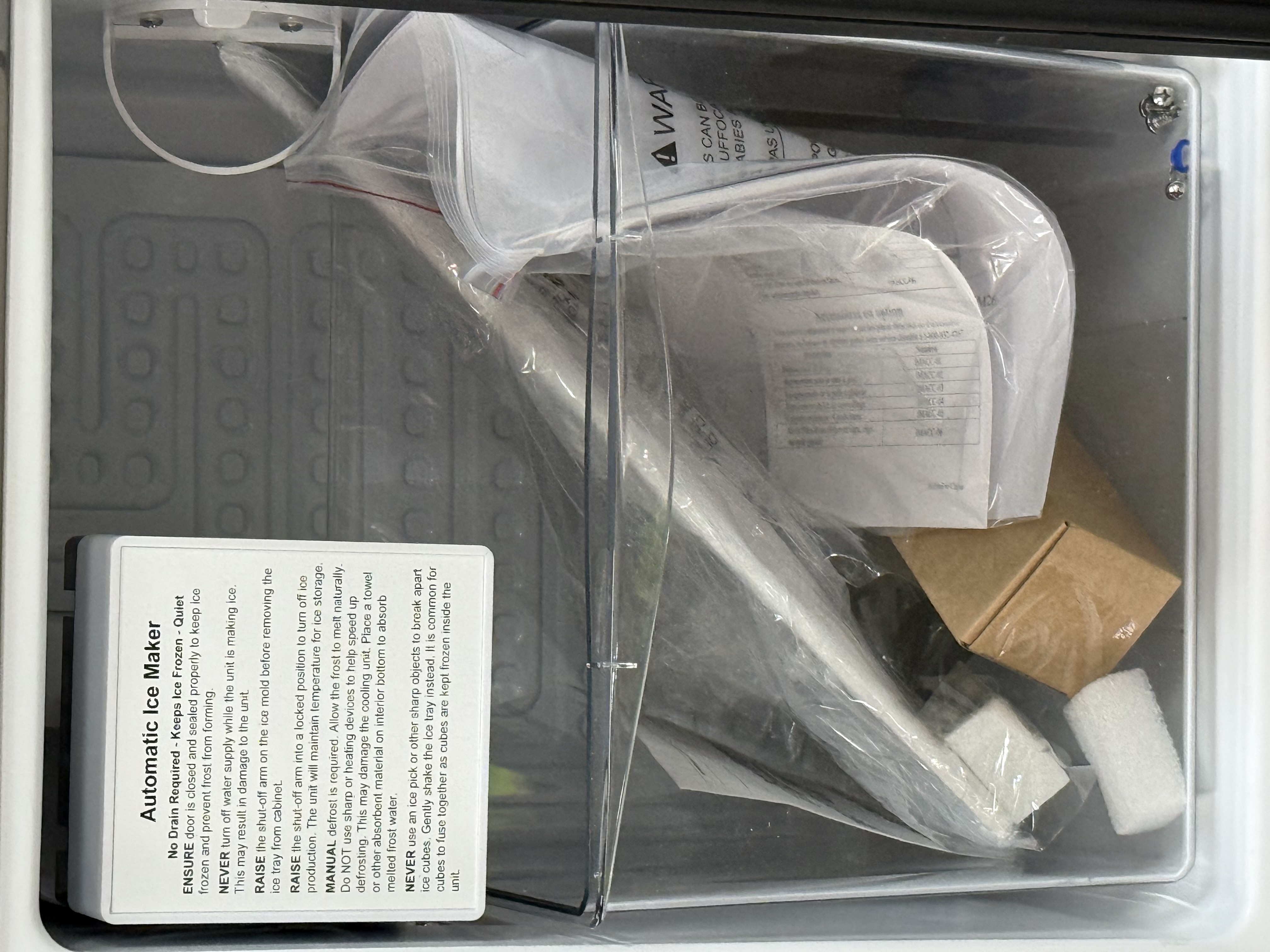

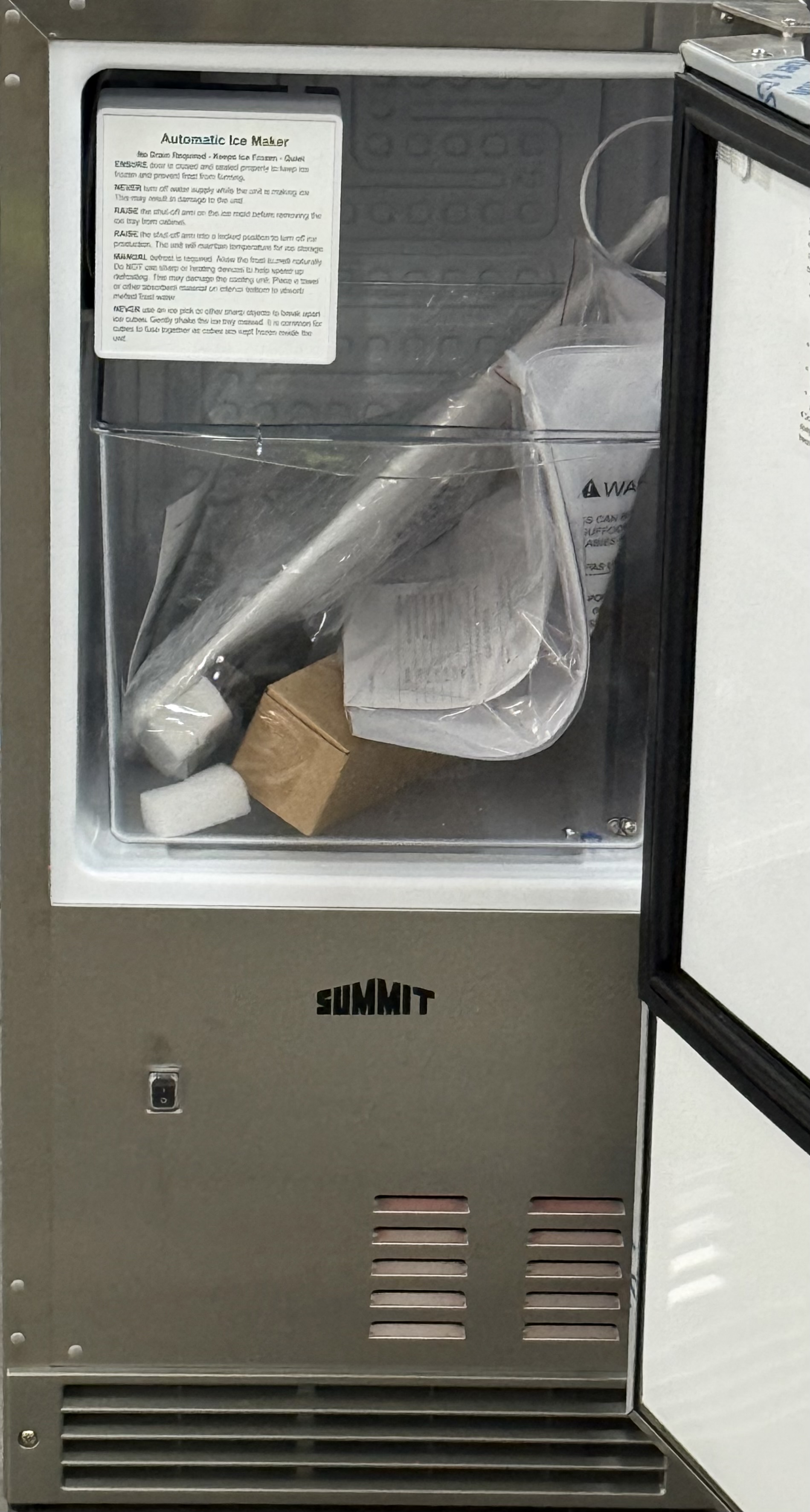

A look inside the BIM26H32IF shows it can produce 25 lbs of crescent-shaped ice daily. The static manual defrost cooling system allows ice to stay solid longer. No drain or pump is required, offering more placement flexibility. For optimal convenience, Summit has pre-installed the connection hose. Plus, this icemaker comes with a removable ice bucket, ice scoop, and a holder for the scoop. This icemaker is an ADA-compliant model. Alternative units are also available in different sizes, colors, and makes. Browse the full Summit product line to explore your options.
Features
22 lbs. Storage Capacity
- Produces and stores more than 20 lbs of ice per day cycle
25 lbs. Daily Production
- Crescent-shaped ice provides a harder and longer-lasting ice
Removable Bin
- Users can remove the ice bucket for fast and easy cleaning
Insulated Storage Bin
- Ice stays solid longer in this cold-protected bin
Manual Defrost
- Static cooling system helps to keep ice frozen for longer periods of time compared to other systems
Water Filter Included
- Water filter is included for optional use
Ice Scoop Included
- Large ice scoop and holder included for your convenience
Standard Water Hookup
- Operates with a standard 1/4" OD water supply line
Adjustable Height
- This unit can be raised to 34", with a taller kickplate included for a seamless aesthetic
Panel-Ready Door (Panel Not Included)
- Integrated door frame allows you to install overlay panels for a custom look that blends into your cabinetry (panel size: 27 9/16" H x 14 13/16" W at 3/4" thick)
Stainless Steel Exterior
- 304-grade stainless steel allows the icemaker to be used freestanding
Drain-Free Design
- Convenient design allows more flexibility in positioning the unit
Built-In Capable
- Make the best use of space by installing your ice maker under the counter
100% CFC Free
- Environmentally friendly design without ozone-damaging chemicals
Lead-Free Certified
- Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard
- Complies with lead content requirements for 'lead free' plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
Additional Features
- Reversible Door
- Sealed Back
- ADA Compliant
Item Attributes
| Brand Code: | SUMMIT |
|---|---|
| Part Number: | BIM26H32IF |
| GTIN14: | 761101108407 |
| Category Code: | Icemakers |
| Sub Category Code: | Icemakers / Kitchen Appliances / Refrigeration |
SUMMIT 15 Inch Built In Panel Ready Ice Maker 25 Lbs. Daily Production BIM26H32IF
- SKU-0000044454
- Model #BIM26H32IF
| Condition | New |
|---|---|
| Type |  |
| Grade | A |
| Product Source |  |
| Additional Info | Panel Ready | Panel & Handle Sold Separately| Cosmetic accessories and non-essential hardware from original packaging may not be included |
