| Technical Specifications | |
| Amps (A) | 15 |
| Frequency (Hz) | 60 |
| Approval certificates | CSA |
| Plug type | 120V-3 prong |
| Net weight (lbs) | 81 |
| Gross weight (lbs) | 84 |
| Required distance above range/rangetop/cooktop | 30''/30'' |
| Motor location | without motor |
| Diameter of air duct (in) top | 10 |
| Diameter of air duct (in) back | 10 |
| No-return airflow flap | No |
| Product Features | |
| Operating mode | Ducted |
| Delay shut off modes | 10M |
| Required accessories | Blower |
| Optional accessories | DC36US, DCT36US, EXTNCB25, KHS36QS, PA36JBS, RFPLT1000, RFPLT600, RJ310, WC10 |
| Number of lights | 2 |
| Type of lamps used | Halogen |
| Total power of the lamps (W) | 40; 80 |
| Grease filter material | Washable stainless steel |
Smoke and grease have no place in a beautiful Thermador kitchen. These unhealthy airborne contaminants require effective ventilation, which is precisely why they offer a complete line of ventilation units to keep the air around you fresh and clean. From standard wall to specialty hoods, downdrafts, island and custom inserts, each model has one thing in common: legendary Thermador performance. These powerful, quiet systems tackle unwanted smoke, grease, heat and odors, quietly and efficiently.
Bright halogen lighting puts a beautiful spotlight on your favorite recipes, making it easy to judge proper color and texture. The grease tray can be safely cleaned in the dishwasher for the ultimate in convenience. And seven different blower options lets you choose from Remote, Inline or Integrated Ventilation.
Features
Performance
- Three fan speeds
- Filter systems are highly efficient at capturing grease
- Powerfully quiet ventilation systems
- Six different blowers to choose from the line up according to cooking needs.
- Approved by CSL for damp environments
- Extended capture area ensures removal of smoke and odor
Design
- 24" depth hood is 18" tall and a perfect companion with Pro Harmony Ranges and Rangetops
- Chiseled design for a seamless integration into any kitchen
- Brushed stainless steel finish
- Stainless steel control buttons

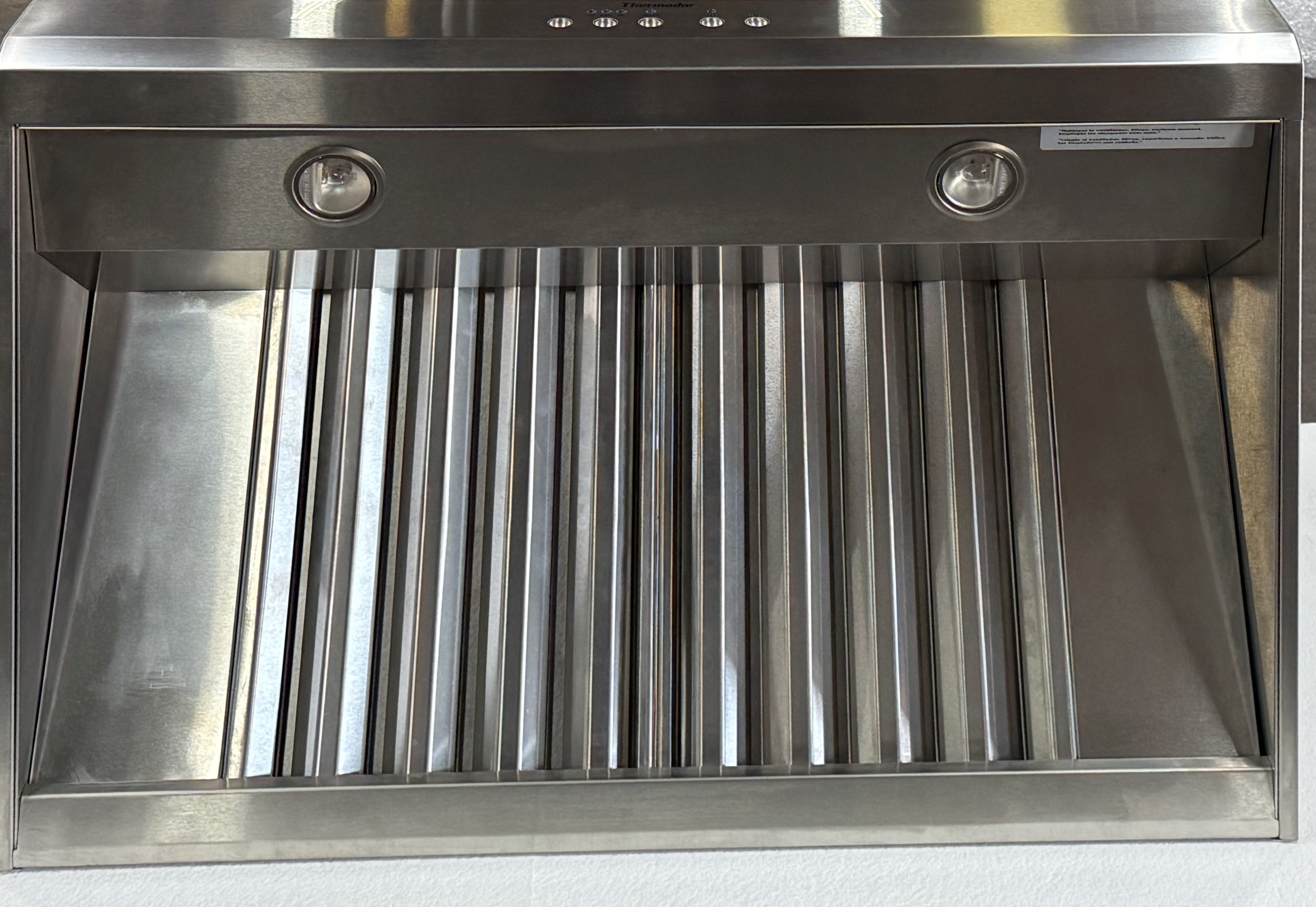

- Stainless steel professional baffle filters
Convenience
- Halogen lighting spotlights your best recipes
- Dishwasher safe stainless steel baffle filters
- Dimmer lighting - for a soft lighting effect
- Dishwasher safe grease collection trays are easily removed
- Built-in 'Clean Filter' reminder light illuminates after 40 hours of operation
- Delayed shut off tackles lingering odors for up to 10 minutes
- Hood includes filters, backdraft damper and transition
- Choose from Inline, Remote or Integrated Blowers
- Blowers sold separately
Capacity
- 600 CFM Integrated Blower option VTN630C
- 1000 CFM Integrated Blower option VTN1030C
- Inline Blowers: VTI610D (600 CFM) or VTI1010D (1000 CFM)
- Remote Blower requires Roof Plate RFPLT600 for roof installations (600 CFM)
- Remote Blowers require Roof Plate RFPLT1000 for roof installations (1000/1300 CFM)
- 10" Round duct size
- Remote Blowers: VTR630D (600 CFM) or VTR1030D (1000 CFM) or VTR1330E (1300 CFM)
- Vertical or horizontal ducting direction
Item Attributes
| Brand Code: | THERMADOR |
|---|---|
| Part Number: | PH36HS |
| GTIN14: | 825225893561 |
| Category Code: | Kitchen Appliances |
| Sub Category Code: | Kitchen Appliances / Range Hoods |

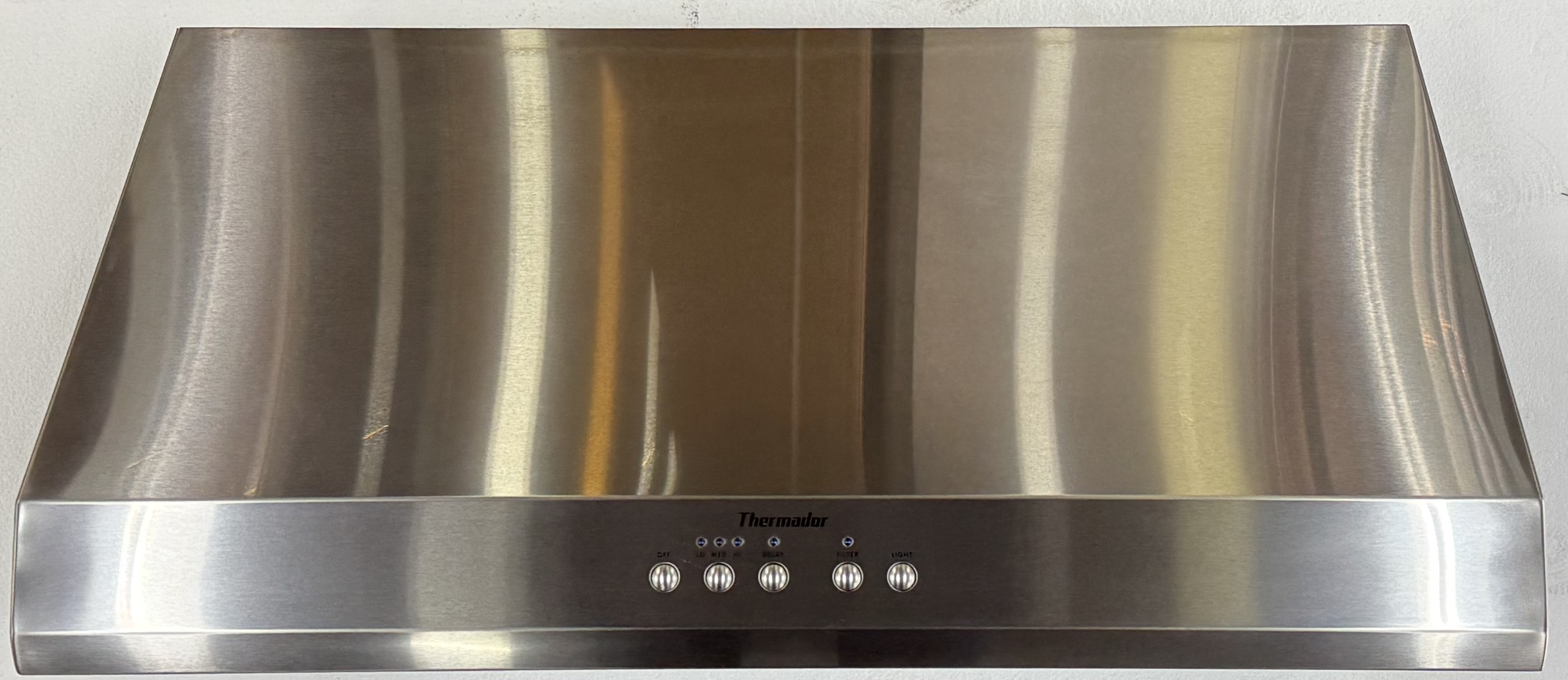

THERMADOR 36-Inch Pro-Style Canopy Wall Mount Hood Stainless Steel - PH36HS
- SKU-0000040576
- Model #PH36HS
| Condition | New |
|---|---|
| Type |  |
| Grade | B |
| Product Source |  |
| Additional Info | Blower Not Included | Former Display Model | Minor Blemishes & Scratches | Inspected for full functionality. Cosmetic accessories and non-essential hardware from original packaging may not be included |
| Available Quantity | 1 |
7 DAY RETURNS ON ALL PRODUCTS
| Brand | THERMADOR |
|---|---|
| Category | Kitchen Appliances / Range Hoods |
| Model Number | PH36HS |
| UPC/GTIN | 825225893561 |
| Capacity | 1.0000 |
| Color | Stainless Steel |
| Depth | 24 |
| Width | 36 |
| Height | 18 |
| Technical Specifications | |
| Amps (A) | 15 |
| Frequency (Hz) | 60 |
| Approval certificates | CSA |
| Plug type | 120V-3 prong |
| Net weight (lbs) | 81 |
| Gross weight (lbs) | 84 |
| Required distance above range/rangetop/cooktop | 30''/30'' |
| Motor location | without motor |
| Diameter of air duct (in) top | 10 |
| Diameter of air duct (in) back | 10 |
| No-return airflow flap | No |
| Product Features | |
| Operating mode | Ducted |
| Delay shut off modes | 10M |
| Required accessories | Blower |
| Optional accessories | DC36US, DCT36US, EXTNCB25, KHS36QS, PA36JBS, RFPLT1000, RFPLT600, RJ310, WC10 |
| Number of lights | 2 |
| Type of lamps used | Halogen |
| Total power of the lamps (W) | 40; 80 |
| Grease filter material | Washable stainless steel |
Smoke and grease have no place in a beautiful Thermador kitchen. These unhealthy airborne contaminants require effective ventilation, which is precisely why they offer a complete line of ventilation units to keep the air around you fresh and clean. From standard wall to specialty hoods, downdrafts, island and custom inserts, each model has one thing in common: legendary Thermador performance. These powerful, quiet systems tackle unwanted smoke, grease, heat and odors, quietly and efficiently.
Bright halogen lighting puts a beautiful spotlight on your favorite recipes, making it easy to judge proper color and texture. The grease tray can be safely cleaned in the dishwasher for the ultimate in convenience. And seven different blower options lets you choose from Remote, Inline or Integrated Ventilation.
Features
Performance
- Three fan speeds
- Filter systems are highly efficient at capturing grease
- Powerfully quiet ventilation systems
- Six different blowers to choose from the line up according to cooking needs.
- Approved by CSL for damp environments
- Extended capture area ensures removal of smoke and odor
Design
- 24" depth hood is 18" tall and a perfect companion with Pro Harmony Ranges and Rangetops
- Chiseled design for a seamless integration into any kitchen
- Brushed stainless steel finish
- Stainless steel control buttons
- Stainless steel professional baffle filters
Convenience
- Halogen lighting spotlights your best recipes
- Dishwasher safe stainless steel baffle filters
- Dimmer lighting - for a soft lighting effect
- Dishwasher safe grease collection trays are easily removed
- Built-in 'Clean Filter' reminder light illuminates after 40 hours of operation
- Delayed shut off tackles lingering odors for up to 10 minutes
- Hood includes filters, backdraft damper and transition
- Choose from Inline, Remote or Integrated Blowers
- Blowers sold separately
Capacity
- 600 CFM Integrated Blower option VTN630C
- 1000 CFM Integrated Blower option VTN1030C
- Inline Blowers: VTI610D (600 CFM) or VTI1010D (1000 CFM)
- Remote Blower requires Roof Plate RFPLT600 for roof installations (600 CFM)
- Remote Blowers require Roof Plate RFPLT1000 for roof installations (1000/1300 CFM)
- 10" Round duct size
- Remote Blowers: VTR630D (600 CFM) or VTR1030D (1000 CFM) or VTR1330E (1300 CFM)
- Vertical or horizontal ducting direction
Item Attributes
| Brand Code: | THERMADOR |
|---|---|
| Part Number: | PH36HS |
| GTIN14: | 825225893561 |
| Category Code: | Kitchen Appliances |
| Sub Category Code: | Kitchen Appliances / Range Hoods |
