| General | |
| Total BTU load | 108000 |
| Total connected gas load | 31620 |
| LP Gas Connection Rating | 90000 |
| ExtraLow® Burners | Yes |
| Installation | |
| Overall Appliance Dimensions (HxWxD) (in) | 24" x 47 15/16'' x 25 13/16'' |
| Dimensions | 204.8x1218x656 |
| Required Cutout Size (HxWxD) (in) | 24" x 46 1/4'' x 7 11/16" |
| Gas type preset | Natural gas 15 mbar (USA) |
| Alternative Gas Type (Nozzle Set Included) | Liquid gas 27,5 mbar (USA) |
| Plug type | 120V-3 prong |
| Power Cord Length | 96'' |
| Power cord length | 243.8 |
| Amps | 15 |
| Volts | 120 |
| Product Packaging Dimensions (HxWxD) | 20 1/2" x 53 1/4" x 40 1/2" |
| Product packaging dimensions (HxWxD) | 520 x 1350 x 1030 |
| Construction type | |
| Surface Materials | Porcelain, steel |
| Grate Materials | Cast iron with rubber feet |
| Location of Control Panel | Front |
| Comfort | |
| Number of gas burners | 6 |
| Sealed Burners | Yes |
| ExtraLow® Burners | Yes |
| Special Features | Reignition |
| Griddle | Yes |
| ADA Compliant | No |
| Connectivity | |
| Home Connect® WiFi-enabled | No |
| Safety | |
| Safety | Electronic flame failure safety device |
| Accessories | |
| Included Accessories | 3 x cast iron pan support, 1 x griddle, 1 x island trim |
The PCG486WD is another gas rangetop from Thermador’s Professional Series. It has six pedestal Star® burners instead of four and a larger griddle. The Star® burners are designed to provide even heating and superior flame coverage for any size pan. It also has a QuickClean Base® that allows for easy surface cleaning. The metal knobs are durable and offer a professional look. They also have blue illumination when the burner is on.
Image Features

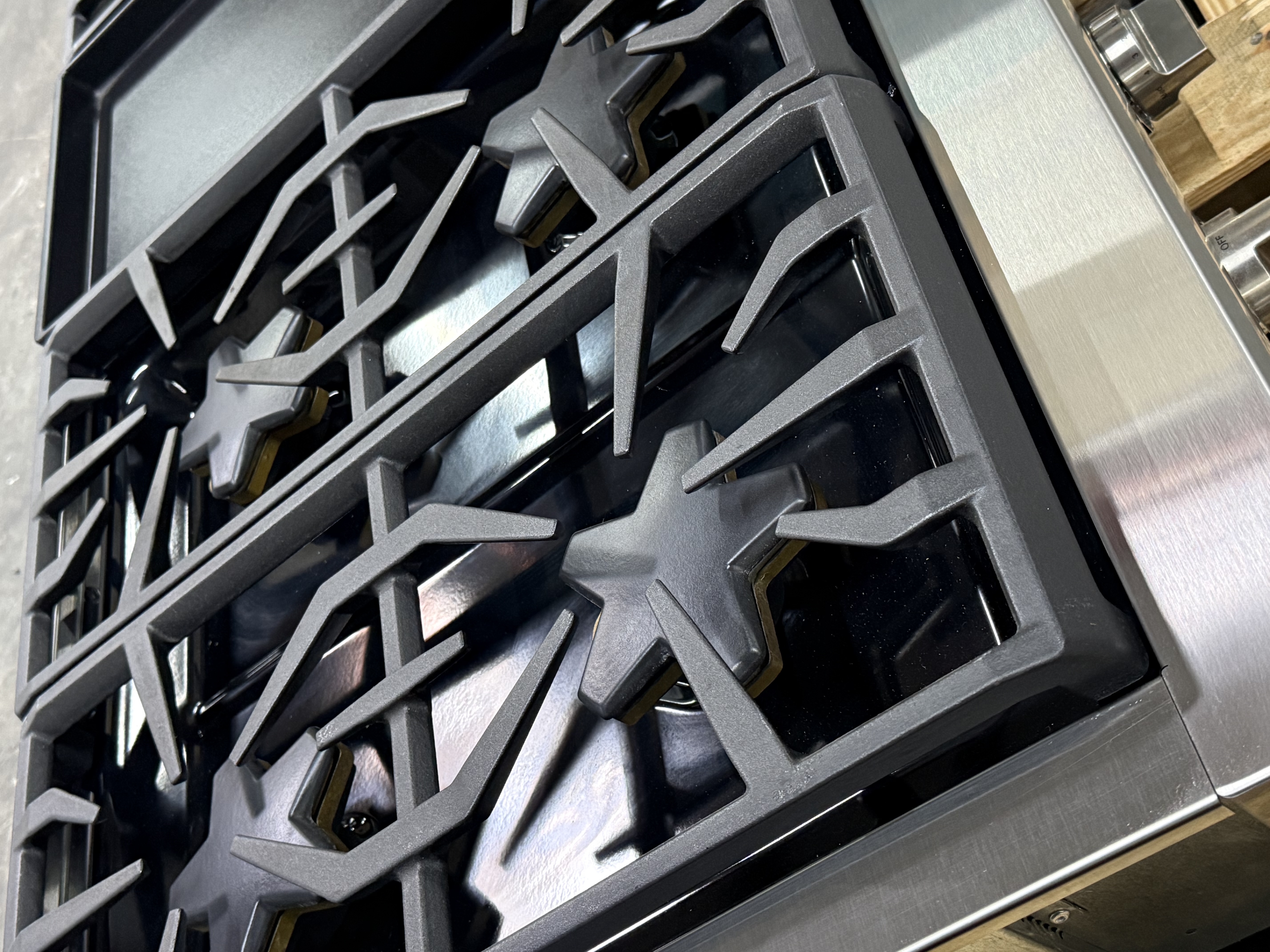

Our Star(R) Burner provides equal flame distribution
Star(R) Burners are 56% longer than a round burner of the same size, which allows for more flame ports. The result is a burner that delivers a superior flame spread and reduced cold spots for faster and more even heating.
ExtraLow(R) for slowly simmering delicate recipes
ExtraLow(R) Burners: 2 burners offer precise settings that are perfect for simmering meals or melting chocolate without burning.
QuickClean Base(R) allows for easy cleaning
The raised, patented Pedestal Star(R) Burner and porcelain maintop have been crafted for perfect integration and easy cleanup.

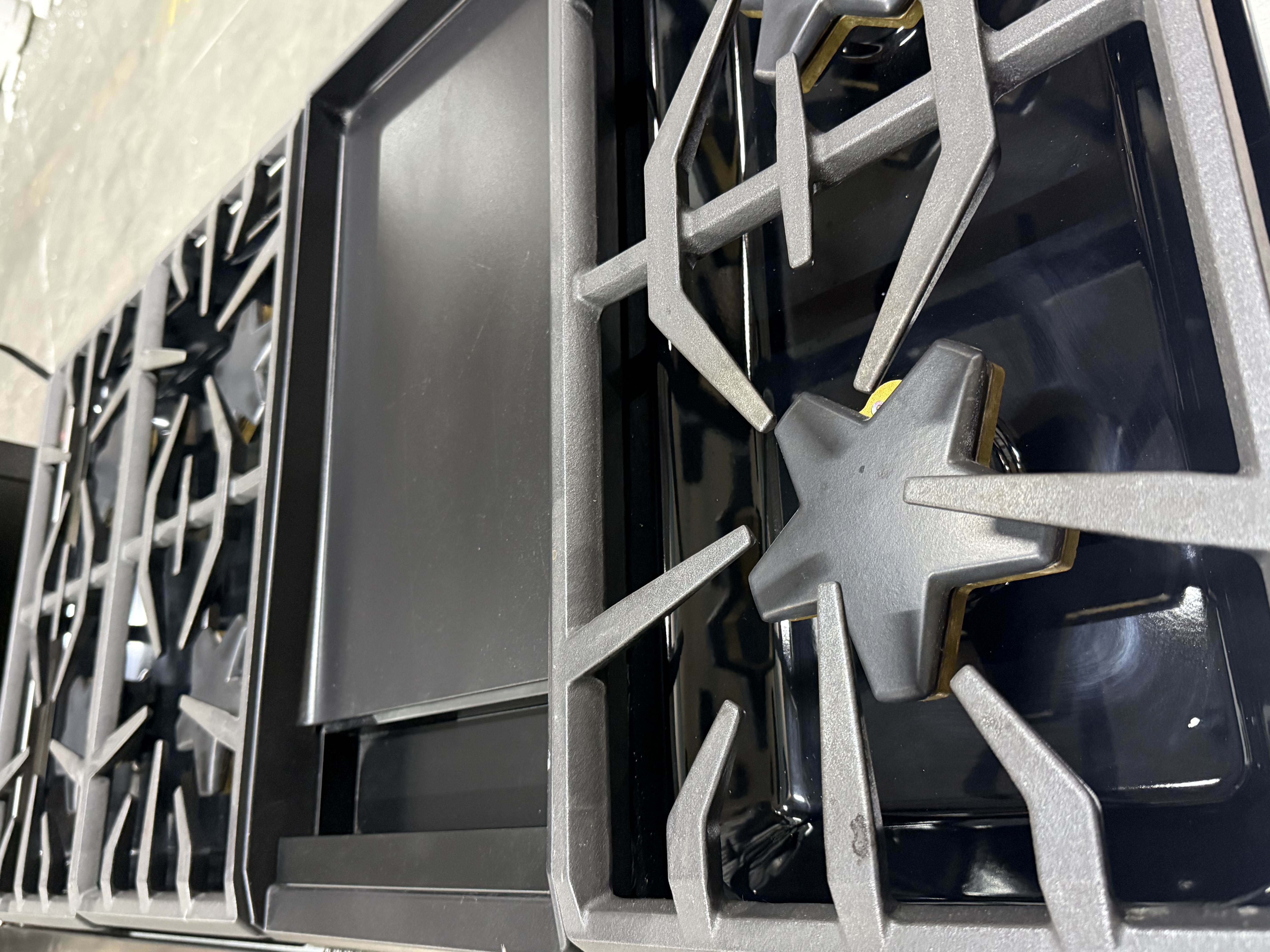

Non-Stick Griddle for cooking on a flat surface
Non-Stick Griddle Deliver consistent even heating across a flat large surface with easy removal for cleaning.
18,000 BTU Star(R) Burner
This extra high heat burner is the optimal choice for rapid boiling and high heat searing.

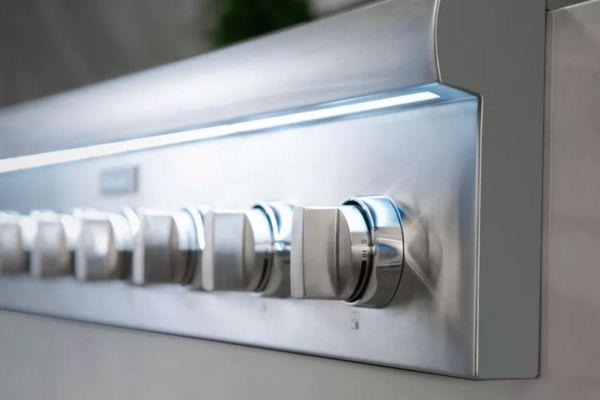

Sleek LED Down Lighting
Thoughtfully designed rangetop offers LED lighting to illuminate the control panel. Model show in photo is PCG486WD.
Star-K Sabbath Compliant
This cooktop is Star-K certified and may be used as Sabbath Compliant appliances, making it possible to use it on the Sabbath or the holidays.
Features
- Our patented five-point design provides equal flame distribution for even cooking.
- 2 burners offer precise settings that are perfect for simmering meals or melting chocolate without burning.
- Deliver consistent even heating across a flat large surface with easy removal for cleaning.
- This extra high heat burner is the optimal choice for rapid boiling and high heat searing.
- clearly illuminate the control panel with ample lighting.
Item Attributes
| Brand Code: | THERMADOR |
|---|---|
| Part Number: | PCG486WD |
| GTIN14: | 825225935537 |
| Category Code: | Cooking |
| Sub Category Code: | Cooking / Cooktops / Kitchen Appliances |

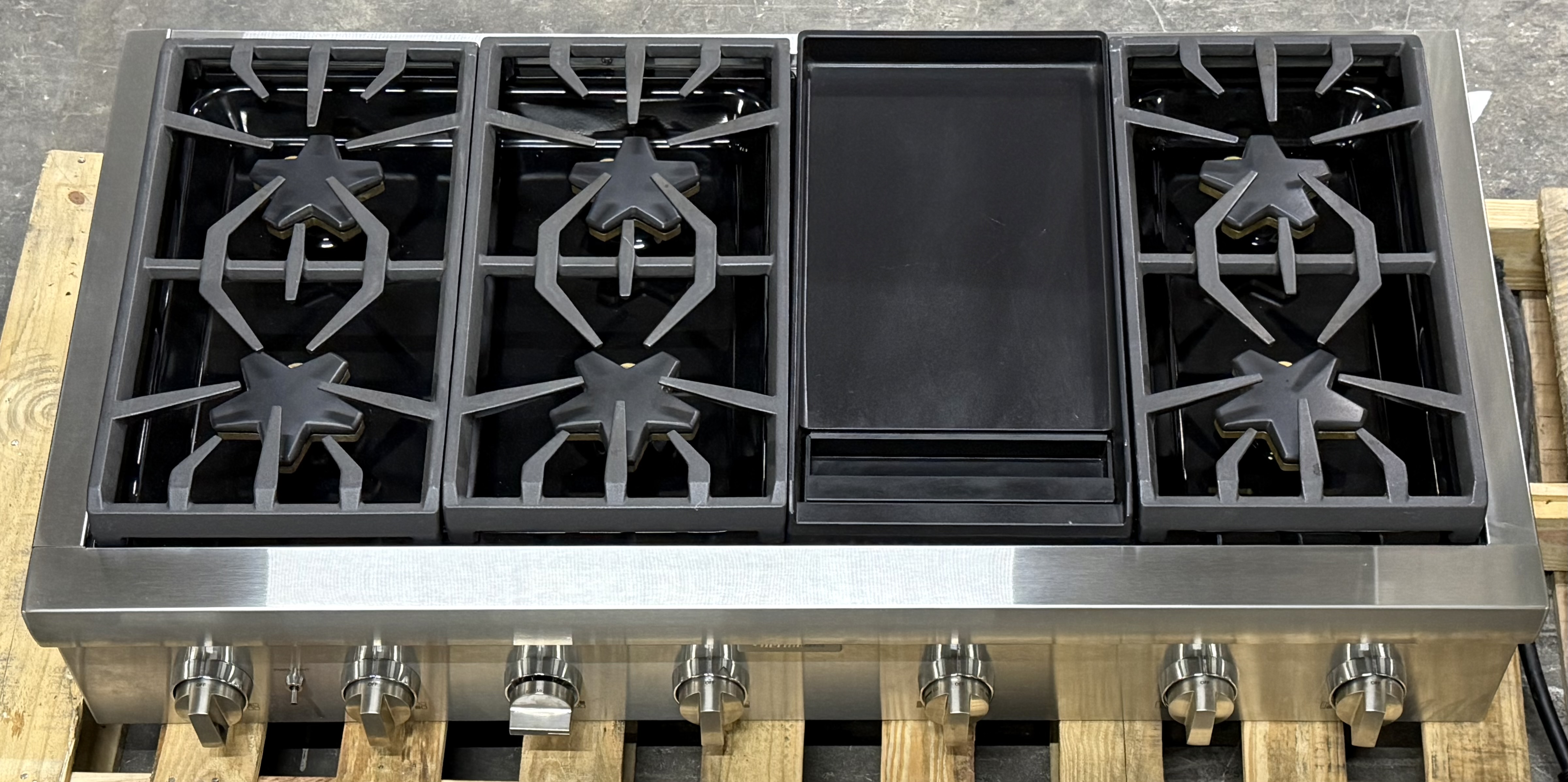

Thermador 48-Inch Gas Rangetop Stainless Steel - PCG486WD
- SKU-0000042774
- Model #PCG486WD
| Condition | New |
|---|---|
| Type |  |
| Grade | B |
| Product Source |  |
| Additional Info | Former Showroom Display | Natural Gas| Cosmetic accessories and non-essential hardware from original packaging may not be included |
7 DAY RETURNS ON ALL PRODUCTS
| Brand | THERMADOR |
|---|---|
| Category | Cooking / Cooktops / Kitchen Appliances |
| Model Number | PCG486WD |
| UPC/GTIN | 825225935537 |
| Capacity | 6.0000 |
| Color | Stainless Steel |
| Depth | 25 13/16 |
| Width | 47 15/16 |
| Height | 8 1/16 |
| General | |
| Total BTU load | 108000 |
| Total connected gas load | 31620 |
| LP Gas Connection Rating | 90000 |
| ExtraLow® Burners | Yes |
| Installation | |
| Overall Appliance Dimensions (HxWxD) (in) | 24" x 47 15/16'' x 25 13/16'' |
| Dimensions | 204.8x1218x656 |
| Required Cutout Size (HxWxD) (in) | 24" x 46 1/4'' x 7 11/16" |
| Gas type preset | Natural gas 15 mbar (USA) |
| Alternative Gas Type (Nozzle Set Included) | Liquid gas 27,5 mbar (USA) |
| Plug type | 120V-3 prong |
| Power Cord Length | 96'' |
| Power cord length | 243.8 |
| Amps | 15 |
| Volts | 120 |
| Product Packaging Dimensions (HxWxD) | 20 1/2" x 53 1/4" x 40 1/2" |
| Product packaging dimensions (HxWxD) | 520 x 1350 x 1030 |
| Construction type | |
| Surface Materials | Porcelain, steel |
| Grate Materials | Cast iron with rubber feet |
| Location of Control Panel | Front |
| Comfort | |
| Number of gas burners | 6 |
| Sealed Burners | Yes |
| ExtraLow® Burners | Yes |
| Special Features | Reignition |
| Griddle | Yes |
| ADA Compliant | No |
| Connectivity | |
| Home Connect® WiFi-enabled | No |
| Safety | |
| Safety | Electronic flame failure safety device |
| Accessories | |
| Included Accessories | 3 x cast iron pan support, 1 x griddle, 1 x island trim |
The PCG486WD is another gas rangetop from Thermador’s Professional Series. It has six pedestal Star® burners instead of four and a larger griddle. The Star® burners are designed to provide even heating and superior flame coverage for any size pan. It also has a QuickClean Base® that allows for easy surface cleaning. The metal knobs are durable and offer a professional look. They also have blue illumination when the burner is on.
Image Features
Our Star(R) Burner provides equal flame distribution
Star(R) Burners are 56% longer than a round burner of the same size, which allows for more flame ports. The result is a burner that delivers a superior flame spread and reduced cold spots for faster and more even heating.
ExtraLow(R) for slowly simmering delicate recipes
ExtraLow(R) Burners: 2 burners offer precise settings that are perfect for simmering meals or melting chocolate without burning.
QuickClean Base(R) allows for easy cleaning
The raised, patented Pedestal Star(R) Burner and porcelain maintop have been crafted for perfect integration and easy cleanup.
Non-Stick Griddle for cooking on a flat surface
Non-Stick Griddle Deliver consistent even heating across a flat large surface with easy removal for cleaning.
18,000 BTU Star(R) Burner
This extra high heat burner is the optimal choice for rapid boiling and high heat searing.
Sleek LED Down Lighting
Thoughtfully designed rangetop offers LED lighting to illuminate the control panel. Model show in photo is PCG486WD.
Star-K Sabbath Compliant
This cooktop is Star-K certified and may be used as Sabbath Compliant appliances, making it possible to use it on the Sabbath or the holidays.
Features
- Our patented five-point design provides equal flame distribution for even cooking.
- 2 burners offer precise settings that are perfect for simmering meals or melting chocolate without burning.
- Deliver consistent even heating across a flat large surface with easy removal for cleaning.
- This extra high heat burner is the optimal choice for rapid boiling and high heat searing.
- clearly illuminate the control panel with ample lighting.
Item Attributes
| Brand Code: | THERMADOR |
|---|---|
| Part Number: | PCG486WD |
| GTIN14: | 825225935537 |
| Category Code: | Cooking |
| Sub Category Code: | Cooking / Cooktops / Kitchen Appliances |
