| WIDTH : | 30" |
| DEPTH : | 21" |
| HEIGHT : | 14" |
| CFM : | 300 |
| SONES : | 5.4 |
| Amps : | 2.5 |
| Num. Lights : | 2 |
| ELECTRICAL/MECHANICAL SPECIFICATIONS FOR BLOWER UNIT | |
| Model | B100 Single |
| Volts | 115 |
| Amps+ | 2.5 |
| Hz | 60 |
| RPM | 1550 |
| CFM [email protected]" | 300 |
| Equiv. CFM$ | 450 |
| CFM [email protected]" | 273 |
| CFM [email protected]" | 245 |
| CFM [email protected]" | 225 |
| Min. Round Duct Size | 6" (28 sq. in.) |
| Sones# | 5.4 |

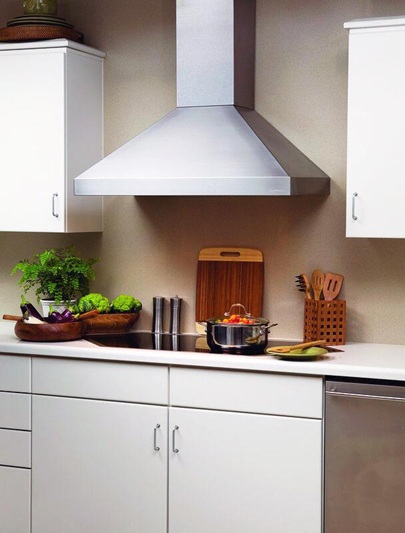

This Euroline Series with squared lip is a versatile European style hood that can stand alone or be installed between cabinets. Heat lamps are not available on this model. Click on the models for a list of our base model numbers for standard sizes; simply select the model you need, and then specify the finish [painted, stainless steel, real brass, real copper, or hammered copper]. Recommended mounting height is 24″ from the cooking surface. Shown with matching wall mount duct cover [sold separately], available in standard sizes for 7′, 8′, and 9′ ceiling heights or in custom sizes. All Vent-A-Hood products are suitable for use in damp locations [outdoor applications such as a covered patio] when installed in a GFCI protected branch circuit.
Features
- Quietest at all speeds
- Easiest to Clean
- Patented Filterless Design
- Inherently Fire Safe
- 5 Year Warranty
- SensaSource(R) heat detection
Item Attributes
| Brand Code: | VENT-A-HOOD |
|---|---|
| Part Number: | PDH14-130SS |
| GTIN14: | 9005382241493 |
| Category Code: | Kitchen Appliances |
| Sub Category Code: | Kitchen Appliances / Range Hoods |
VENT-A-HOOD 30" 300 Cfm Euro Style Wall Mount Range Hood Stainless Steel PDH14-130SS
- SKU-0000023827
- Model #PDH14-130SS
| Condition | New |
|---|---|
| Type |  |
| Grade | B |
| Product Source | |
| Additional Info | May Be Missing Installation Hardware & Accessories | Minor Imperfections | Surface Scratches |
7 DAY RETURNS ON ALL PRODUCTS
| Brand | VENT-A-HOOD |
|---|---|
| Category | Kitchen Appliances / Range Hoods |
| Model Number | PDH14-130SS |
| UPC/GTIN | 9005382241493 |
| Capacity | 1.0000 |
| Color | Stainless Steel |
| Depth | 21 |
| Width | 30 |
| Height | 14 |
| WIDTH : | 30" |
| DEPTH : | 21" |
| HEIGHT : | 14" |
| CFM : | 300 |
| SONES : | 5.4 |
| Amps : | 2.5 |
| Num. Lights : | 2 |
| ELECTRICAL/MECHANICAL SPECIFICATIONS FOR BLOWER UNIT | |
| Model | B100 Single |
| Volts | 115 |
| Amps+ | 2.5 |
| Hz | 60 |
| RPM | 1550 |
| CFM [email protected]" | 300 |
| Equiv. CFM$ | 450 |
| CFM [email protected]" | 273 |
| CFM [email protected]" | 245 |
| CFM [email protected]" | 225 |
| Min. Round Duct Size | 6" (28 sq. in.) |
| Sones# | 5.4 |
This Euroline Series with squared lip is a versatile European style hood that can stand alone or be installed between cabinets. Heat lamps are not available on this model. Click on the models for a list of our base model numbers for standard sizes; simply select the model you need, and then specify the finish [painted, stainless steel, real brass, real copper, or hammered copper]. Recommended mounting height is 24″ from the cooking surface. Shown with matching wall mount duct cover [sold separately], available in standard sizes for 7′, 8′, and 9′ ceiling heights or in custom sizes. All Vent-A-Hood products are suitable for use in damp locations [outdoor applications such as a covered patio] when installed in a GFCI protected branch circuit.
Features
- Quietest at all speeds
- Easiest to Clean
- Patented Filterless Design
- Inherently Fire Safe
- 5 Year Warranty
- SensaSource(R) heat detection
Item Attributes
| Brand Code: | VENT-A-HOOD |
|---|---|
| Part Number: | PDH14-130SS |
| GTIN14: | 9005382241493 |
| Category Code: | Kitchen Appliances |
| Sub Category Code: | Kitchen Appliances / Range Hoods |
