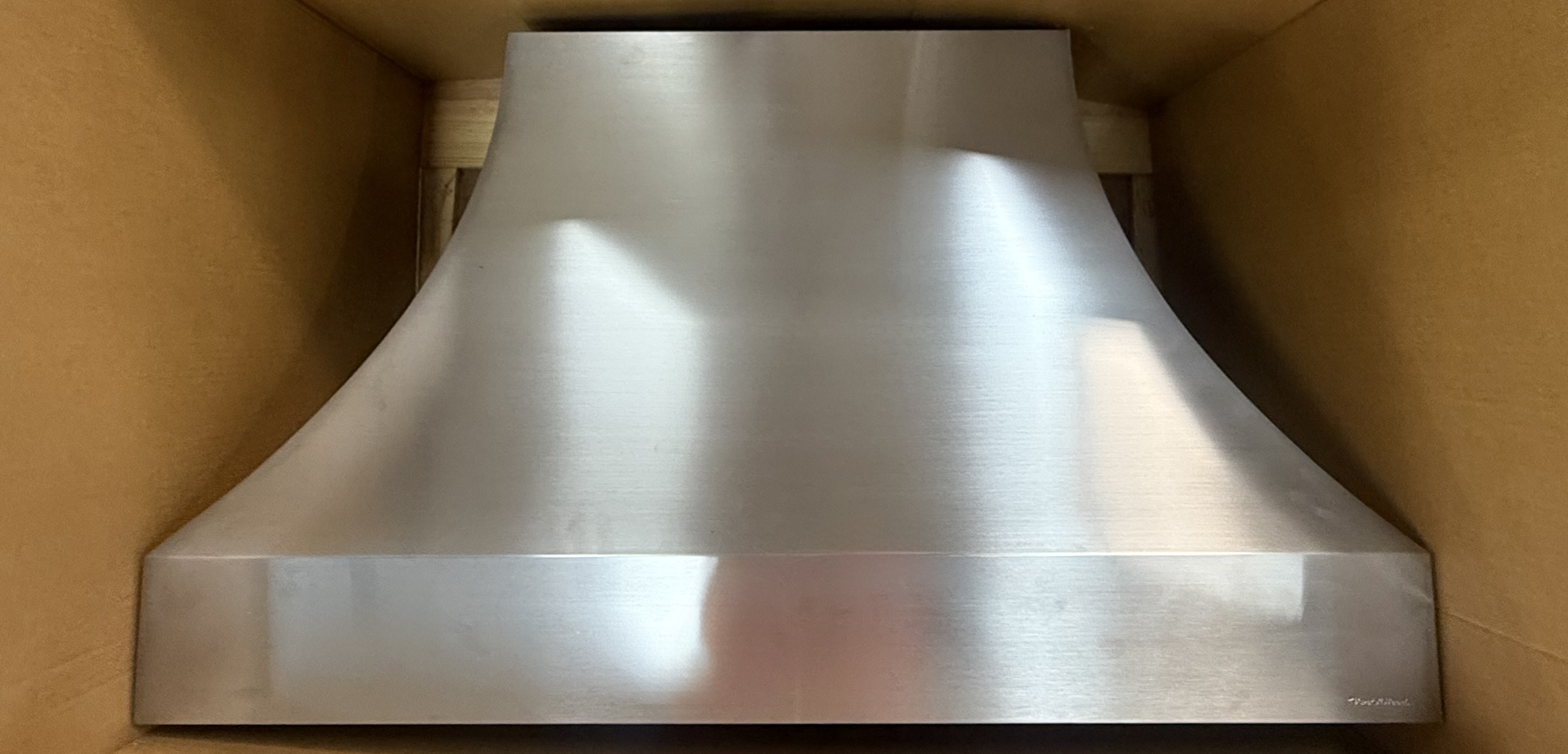

Ventahood 48" Wall Mounted Designer Series Range Hood JDH348C3
- SKU-0000010999
- Model #JDH348C3
| Condition | New |
|---|---|
| Type |  |
| Grade | A |
| Product Source |  |
| Additional Info | In Box | None identified |
7 DAY RETURNS ON ALL PRODUCTS
FAST Nationwide Shipping (Ships Same/Next Business Day)
Same Day Pick Up (Fort Lauderdale FL).
Same Day | Next Day Local Delivery Available.
| Brand | Ventahood |
|---|---|
| Category | Kitchen Appliances / Range Hood |
| Model Number | JDH348C3 |
| UPC/GTIN | 822985534260 |
| Capacity | 900.0000 |
| Color | Stainless Steel |
| Width | 48 |
| Height | 30 |
| WIDTH : | 48" |
| DEPTH : | 24" |
| HEIGHT : | 30" |
| CFM : | 900 |
| SONES : | 6.3 |
| Amps : | 6.0 |
| Num. Lights : | 3 |
| ELECTRICAL/MECHANICAL SPECIFICATIONS FOR BLOWER UNIT | |
| Model | B200 Dual & B100 Single |
| Volts | 115 |
| Amps+ | 6.0 |
| Hz | 60 |
| RPM | 1550 |
| CFM [email protected]" | 900 |
| Equiv. CFM$ | 1350 |
| CFM [email protected]" | 804 |
| CFM [email protected]" | 725 |
| CFM [email protected]" | 655 |
| Min. Round Duct Size | 10" (79 sq. in.) |
| Sones# | 6.3 |
Concave with thick lip styling. Click on the models for a list of our base model numbers for standard sizes; simply select the model you need, and then specify the finish [painted, stainless steel, real brass, real copper, or hammered copper]. All Vent-A-Hood Magic Lung products are suitable for use in damp locations [outdoor applications such as a covered patio] when installed in a GFCI protected branch circuit. Recommended mounting height is 30″ above the cooking surface.
Features
Airflow: Up to 900 CFM (with internal blower) for this model.
Sound level: 6.3 sones.
Electrical: 115 V, 6.0 amps.
Minimum round duct size: 10″.
Design style: Wall-mounted “Designer Series” with a concave front and thick lip styling.
Outdoor suitability: The units in the series are suitable for use in damp locations (e.g., covered patio) when installed on a GFCI protected circuit.
Item Attributes
| Brand Code: | Ventahood |
|---|---|
| Part Number: | JDH348C3 |
| GTIN14: | 822985534260 |
| Category Code: | Kitchen Appliances |
| Sub Category Code: | Kitchen Appliances / Range Hood |
| WIDTH : | 48" |
| DEPTH : | 24" |
| HEIGHT : | 30" |
| CFM : | 900 |
| SONES : | 6.3 |
| Amps : | 6.0 |
| Num. Lights : | 3 |
| ELECTRICAL/MECHANICAL SPECIFICATIONS FOR BLOWER UNIT | |
| Model | B200 Dual & B100 Single |
| Volts | 115 |
| Amps+ | 6.0 |
| Hz | 60 |
| RPM | 1550 |
| CFM [email protected]" | 900 |
| Equiv. CFM$ | 1350 |
| CFM [email protected]" | 804 |
| CFM [email protected]" | 725 |
| CFM [email protected]" | 655 |
| Min. Round Duct Size | 10" (79 sq. in.) |
| Sones# | 6.3 |
Concave with thick lip styling. Click on the models for a list of our base model numbers for standard sizes; simply select the model you need, and then specify the finish [painted, stainless steel, real brass, real copper, or hammered copper]. All Vent-A-Hood Magic Lung products are suitable for use in damp locations [outdoor applications such as a covered patio] when installed in a GFCI protected branch circuit. Recommended mounting height is 30″ above the cooking surface.
Features
Airflow: Up to 900 CFM (with internal blower) for this model.
Sound level: 6.3 sones.
Electrical: 115 V, 6.0 amps.
Minimum round duct size: 10″.
Design style: Wall-mounted “Designer Series” with a concave front and thick lip styling.
Outdoor suitability: The units in the series are suitable for use in damp locations (e.g., covered patio) when installed on a GFCI protected circuit.
