Capacity
Refrigerator:
15.3 Cu. Ft.
Freezer:
5.1 Cu. Ft.
Total:
20.4 Cu. Ft.
Overview
Type:
Built-In
Style:
Bottom Freezer
Type of Shelves:
Glass
Defrost Type:
Adaptive
Ice Maker:
Automatic
Sabbath Mode:
Yes
LED Lighting:
Yes
Freezer Location:
Bottom

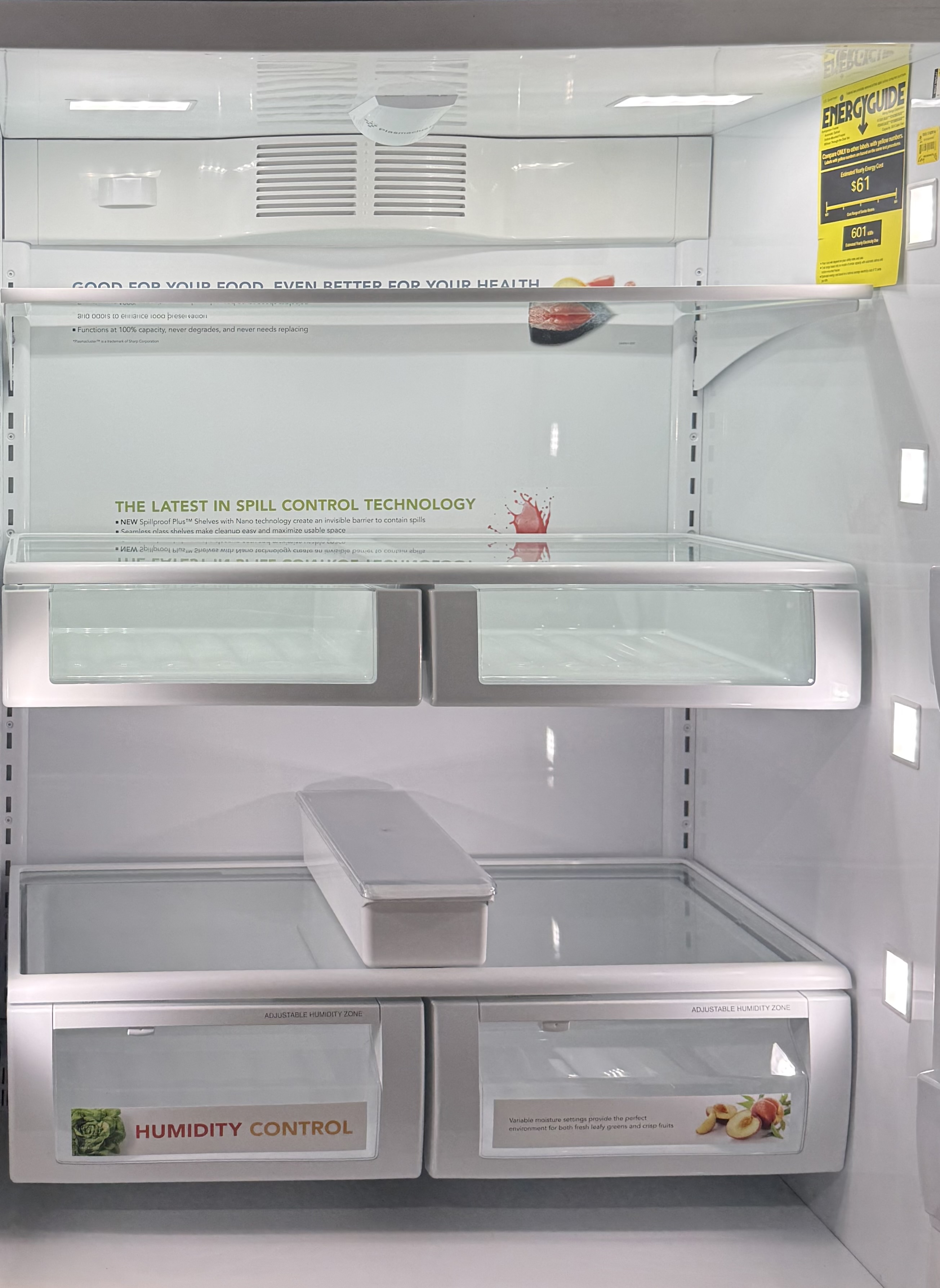

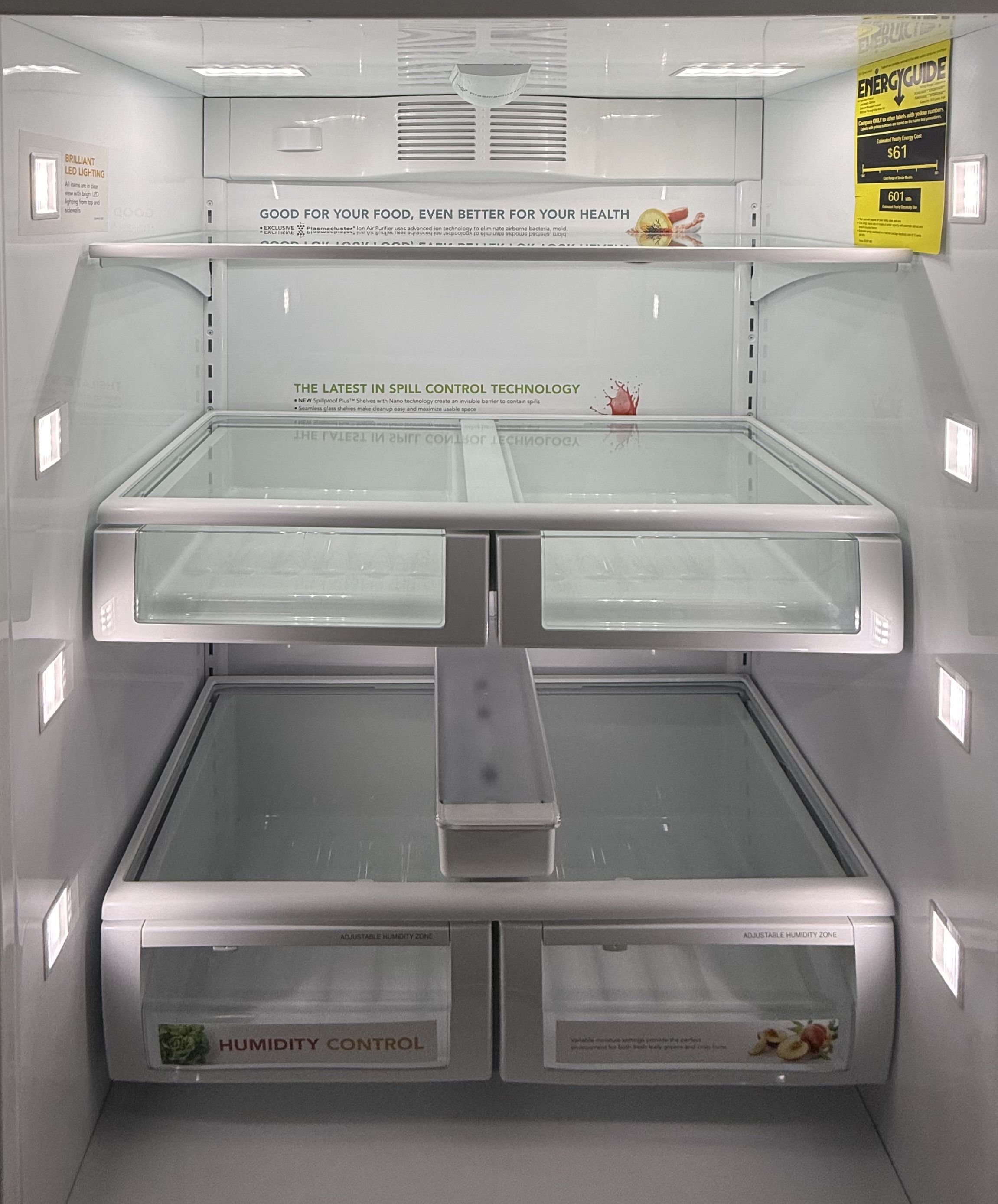

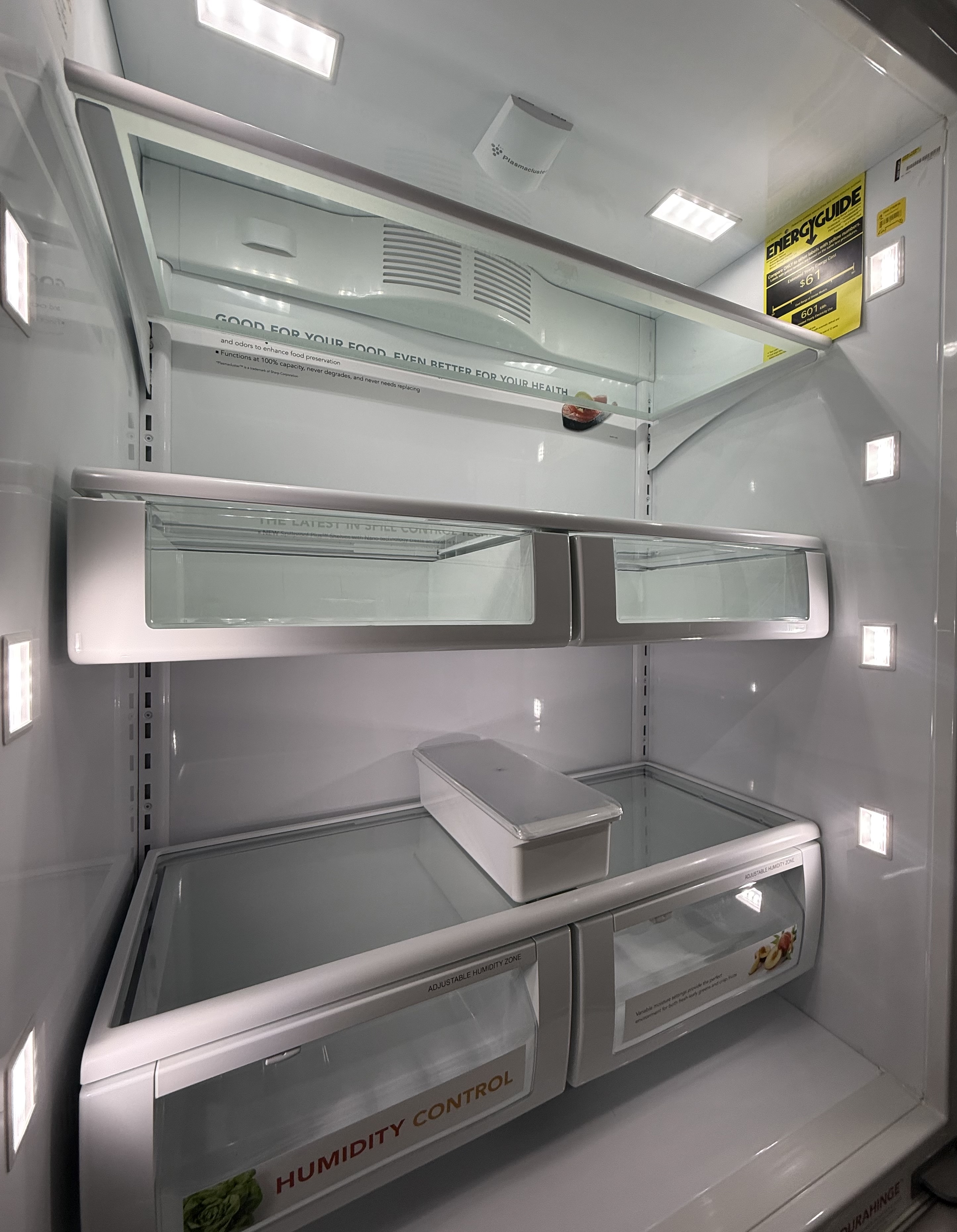

Refrigerator
Spillproof Plus Shelf with Nano Technology:
1
Spillproof Shelves:
2
Adjustable Shelves:
Yes
Dairy Compartments:
2
Adjustable Door Bins:
3
Non-Adjustable Door Bin:
1 (Patented)

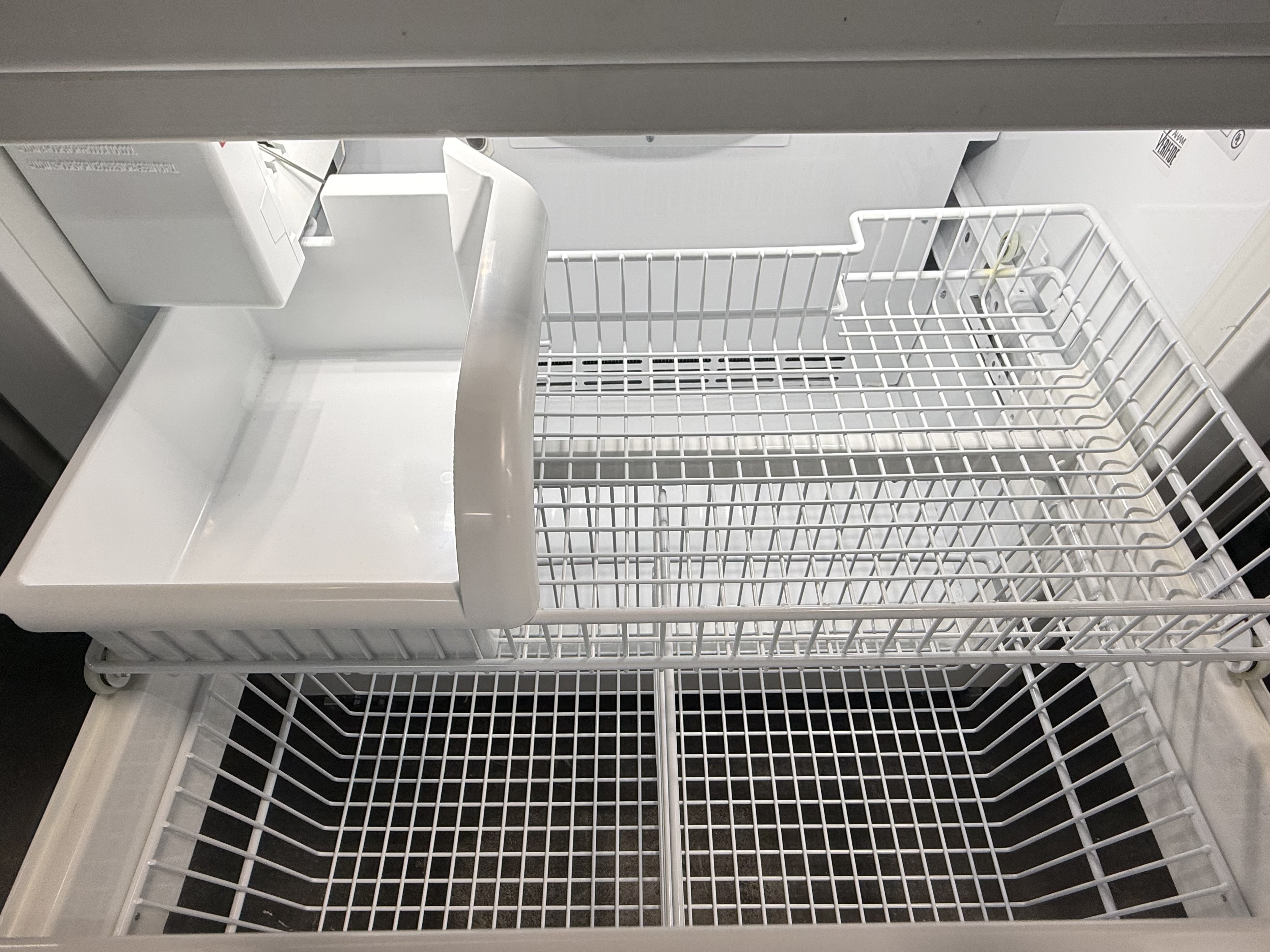

Freezer
Wire Freezer Basket:
2
Ice Bucket:
1
Adjustable Humidity Zone™ Drawers:
2
Deli Drawer:
2
Large Pizza Box Storage:
Yes
Electrical Specifications
Volts:
115 V
Amps:
15 A
Frequency:
60 Hz
Connection:
3-wire cord with a grounded 3-prong plug attached to the product
Maximum Amp Usage:
9.9 A
Dimensions & Weight
Overall Width:
36"
Overall Height (from bottom):
82-3/4" min. to 84-1/16" max.
Overall Depth from Rear:
22-3/16" to the front edge of side trim; 24" to the front of the top grille; 26-1/2" to the front of handle endcap
Cutout Width:
35-5/8" min. to 35-3/4" max.
Cutout Height:
82-7/8" min. to 84-1/16" max.
Cutout Depth:
24" minimum
Inlet Water Requirements:
1/4" copper tubing inlet waterline; minimum 20 psi; maximum 120 psi
Approximate Shipping Weight:
565 lbs
Warranty
2-Year Full:
Complete product
6-Year Full:
Sealed refrigeration system
90-Day Full:
Cosmetic parts such as glass, painted items, and decorative items
12-Year Limited:
Sealed refrigeration system (includes a compressor, condenser, dryer/strainer, evaporator, and connecting tubing)
ProChill Temperature Management System Variable Speed DC Overdrive(TM) Compressor quickly chills food and saves energy Single compressor system is one of the quietest, most technologically advanced compressors available Electronic controls maintain even temperatures within one degree (degree)F to keep food fresher longer Odor Eliminator(TM) Evaporator removes odors and excess humidity Maintenance-free Super Clog Resistant(TM) Condenser prevents dust and other airborne particles from clogging the condenser Filter-Free Freshness EXCLUSIVE Plasmacluster(TM) Ion Air Purifier uses advanced ion technology to eliminate airborne bacteria, mold, and odors to enhance food preservation Functions at 100% capacity and never degrades, never needs replacing, and no maintenance is ever required The Latest in Spill Control Technology New Spillproof Plus(TM) Shelves with Nano technology create an invisible barrier to contain spills Seamless glass shelves make cleanup easy and maximize usable space 3/8″ thick tempered glass shelves provide industry-leading durability LED Lighting All items are in clear view with bright energy efficient LED lighting from top and sidewalls Ramp on theater lighting provides better visibility Specialized Refrigeration Storage Two adjustable Humidity Zone(TM) Drawers with NEW soft-close slides Humidity can be set high for leafy greens or low for fruits and vegetables with skins NEW Two deli drawers with soft-close slides NEW Additional space for large pizza box storage Two in-the-door dairy compartments with covers Four Patented (three are adjustable) aluminum door bins securely store heavy items Adjustable door stops – 90,110 and 120 degrees Specialized Freezer Storage Full-extension main freezer compartment pulls out like a drawer for easy access to bulky frozen foods Opens quietly and easily, with ball-bearing rollers which glide on a steel track Positive self-closing feature ensures a good seal Upper freezer basket slides independently of main freezer compartment; ideal for fragile or frequently used items Adaptive defrost controls the timing of the defrost periods, instead of an electromechanical defrost timer Extends to 96 hours – improves food storage because the unit defrosts less often Factory-installed automatic ice maker features large-capacity ice bucket Door alarm sounds and glows to warn that fresh food door and/or freezer drawer have been ajar for three minutes, and that the temperature has risen above normal operating range Model Numbers VCBB5363E(R/L) – 36″W. Bottom-Freezer Accessories PBIRFTKSS – Flush mount trim kit Design Options Order as right or left mounted hinge Color Finishes Available in all Classic and Contemporary Color Finishes. California Prop. 65 WARNING: Cancer and birth defects or other reproductive harm – www.P65Warnings.ca.gov
Features
- ProChill(TM) Temperature Management
- ProChill(TM) Temperature Management System with variable speed DC Overdrive(TM) compressor. Single compressor system includes the quietest compressor available. Electronic controls provide precise temperature management with digital readout.

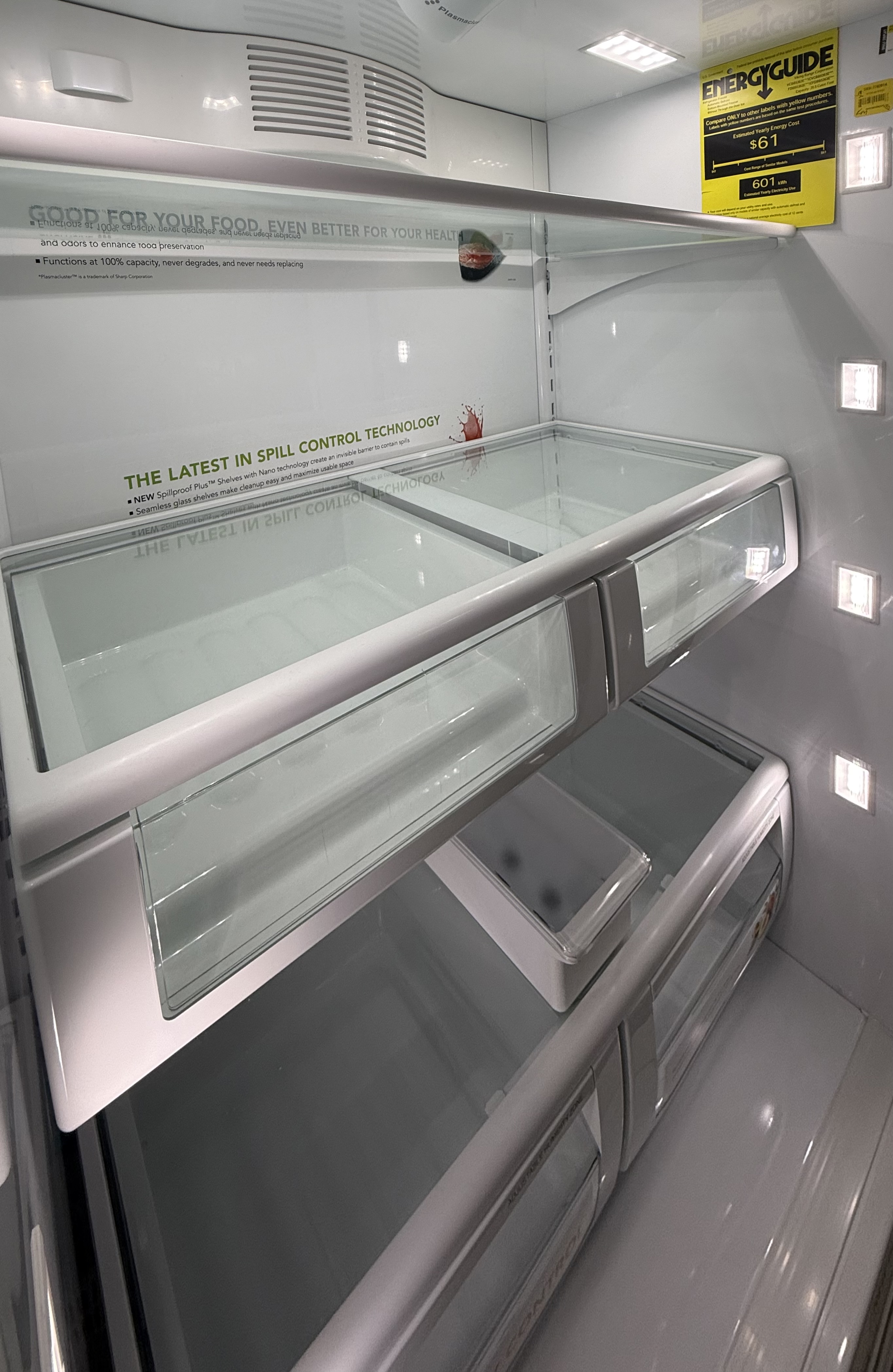

- The Latest in Spill Control Technology
- New Spillproof Plus(TM) Shelves with Nano technology create an invisible barrier to contain spills and maximize usable space. 3/8" thick tempered glass shelves provide industry leading durability.
- New LED Lighting
- Bright, energy efficient LED lighting from top and sidewalls.
- Filter-Free Freshness
- The Plasmacluster(TM) Ion Air Purifier uses ions to eliminate airbourne bacteria and mold spores, remove odors and enhance food preservation. Plasmacluster(TM) is a trademark of Sharp Corporation.

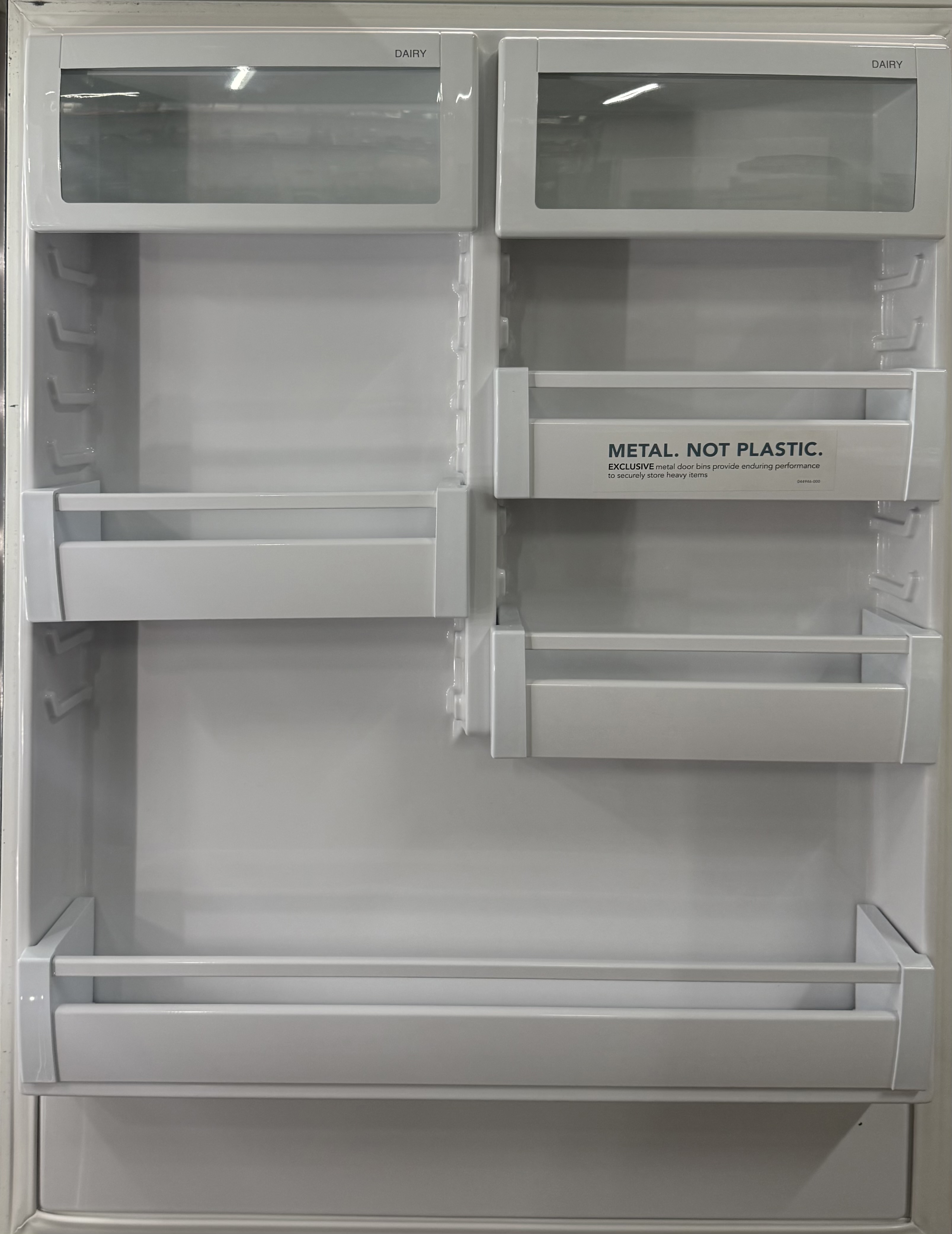

- Metal Door Bins
- Metal door bins provide enduring performance to securely store heavy items.
- New Robust Hinges
- Robust DuraHinge(TM) allows optimal door rotation and maximum durability.
- Adjustable Humidity Zone(TM) Drawers
- Produce the freshest leafy vegetables and fruits in moisture-adjustable drawer(s) with soft-close feature.
Item Attributes
| Brand Code: | VIKING |
|---|---|
| Part Number: | VCBB5363ERS |
| GTIN14: | 800284004226 |
| Category Code: | Kitchen Appliances |
| Sub Category Code: | Kitchen Appliances / Refrigeration / Refrigerators |

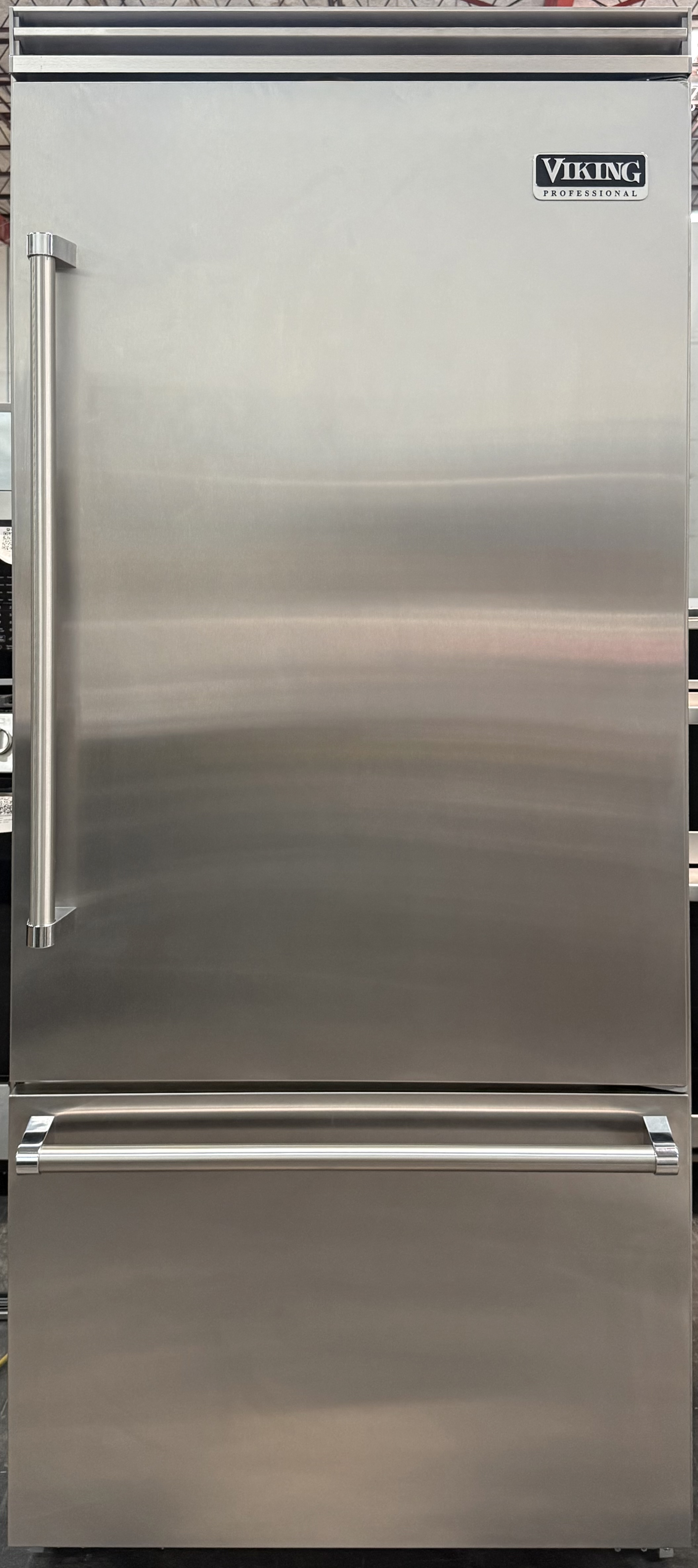

VIKING 36" Bottom Freezer Refrigerator Vcbb5363e VCBB5363ERS
- SKU-0000040801
- Model #VCBB5363ERS
| Condition | New |
|---|---|
| Type | ![]() |
| Grade | A |
| Product Source | ![]() |
| Additional Info | Former Floor Display Model | No Forward Facing Imperfections |
| Available Quantity | 1 |
7 DAY RETURNS ON ALL PRODUCTS
FAST Nationwide Shipping (Ships Same/Next Business Day)
Same Day Pick Up (Fort Lauderdale FL).
Same Day | Next Day Local Delivery Available.
Flexible Delivery — Hold Up to 90 Days
Not ready yet? We'll delay shipping your order for up to 90 days.
| Brand | VIKING |
|---|---|
| Category | Kitchen Appliances / Refrigeration / Refrigerators |
| Model Number | VCBB5363ERS |
| UPC/GTIN | 800284004226 |
| Capacity | 20.4000 |
| Color | Stainless Steel |
| Depth | 26 1/2 |
| Width | 36 |
| Height | 84 |
