- ASTM: ASTM A-126 Class B
- Collection: Model 758
- End Connection 1: Flanged
- End Connection 2: Flanged
- End Connections: Flanged
- Fitting Sizes: 2-1/2 in
- Height: 10 in
- Length: 10 in
- Material: Cast Iron, Stainless Steel
- Material Type: 304
- Maximum Temperature: 450
- Origin: Global
- Perforation Size: 1/16 in
- Pressure - High: 125, 200
- Pressure - Maximum: 200 psi
- Pressure Class: 125#, 200#
- Recommended Valve Application: Gas, Oil, Water
- Strainer Type: Wye
- UL Listed: No
- UPC: 643925050622
- Valve Body Material: Cast Iron
- Valve Body Style: Y Pattern
- Width: 7 in

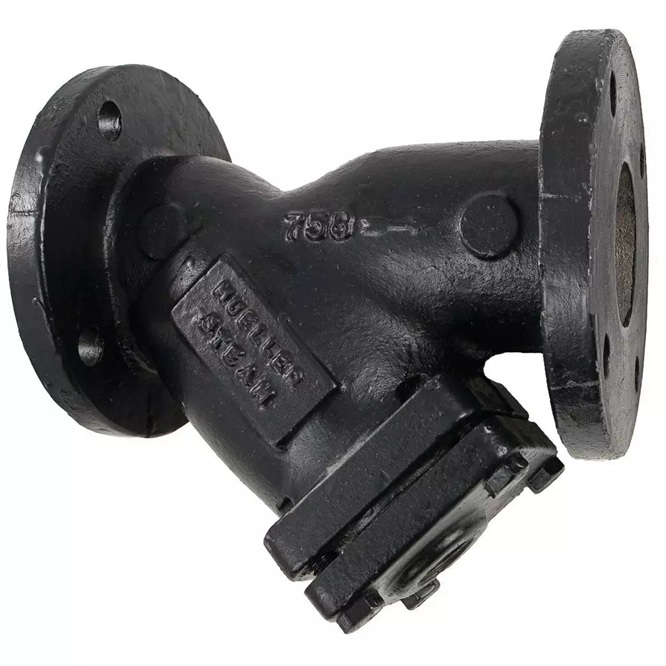

This 2 1/2 inch flanged cast iron Y strainer, class 125, is used to filter undesirable particulate from pipelines, thereby protecting other equipment downstream. It has a 0.062 perforated 304 stainless steel screen. The threaded blowoff allows for a variety of means of cleaning the unit. This model is imported.
Features
- Cast iron
- Bolted cover
- 0.062 perf screen
- Class 125
- 304 stainless steel screen
- Used to strain foreign matter from pipelines and provide economical protection for pumps and other mechanical equipment
- Tapered seats in both the body and cover flange retain screen and prevent particle bypass
- Sizes 3/4 in. - 24 in. (20 - 600 mm)
Item Attributes
| Brand Code: | WATTS MUELLER STEAM SPECIALTY |
|---|---|
| Part Number: | M758NL |
| GTIN14: | 643925050622 |
| Category Code: | Industrial Strainers |
| Sub Category Code: | Industrial Strainers |
WATTS MUELLER STEAM SPECIALTY 7" Ci Flanged Wye Strainer M758NL
- SKUI-0000097365
- Model #M758NL
| Condition | New |
|---|---|
| Type |  |
| Grade | A |
| Product Source |  |
| Additional Info | New In Box |
| Available Quantity | 1 |
