| Phase | Three Phase |
| Frame | 254/6 |
| Output | 20 HP |
| Poles | 02 |
| Frequency | 60 Hz |
| Rated speed | 3515 rpm |
| Slip | 2.36 % |
| Full Voltage - No Cables | 208-230/460//190-220/380-415 V |
| Rated Current | 45.4/22.7 A |
| LR Amperes | 300/150 A |
| LRC | 6.6x(Code G) |
| No Load Current | 13.8/6.88 A |
| Rated Torque | 29.9 ft.lb |
| Locked Rotor Torque | 200 % |
| Breakdown Torque | 290 % |
| Insulation Class | F |
| Service Factor | 1.15 |
| Moment of Inertia | 1.22 sq.ft.lb |
| Design | B |
| Locked Rotor Time | 21s (cold) 12s (hot) |
| Temperature Rise | 80 K |
| Duty Cycle | S1 |
| Maximum Room Temperature | 40 °C |
| Minimum Room Temperature | -20 °C |
| Degree of Protection | IP55 |
| Altitude | 1000 m |
| Cooling Method | TEFC Totally Enclosed Fan Cooled |
| Mounting | F-1 |
| Rotation Direction | Both |
| Noise Level | 75.0 dB(A) |
| Starting Method | - |
| Enclosure Material | Steel Plate |
| Front Bearing Shielding | Z-C3 |
| Front Bearing Size | 6309 |
| Front Bearing Type | Ball |
| Front Sealing Type | V Ring |
| Rear Bearing Shielding | Z-C3 |
| Rear Bearing Size | 6208 |
| Rear Bearing Type | Ball |
| Rear Sealing Type | No Rear Sealing |
| Grease Type | Mobil Polyrex EM |
| VFD Turndown VT | 1000:1 |
| VFD Turndown CT | 10:1 |

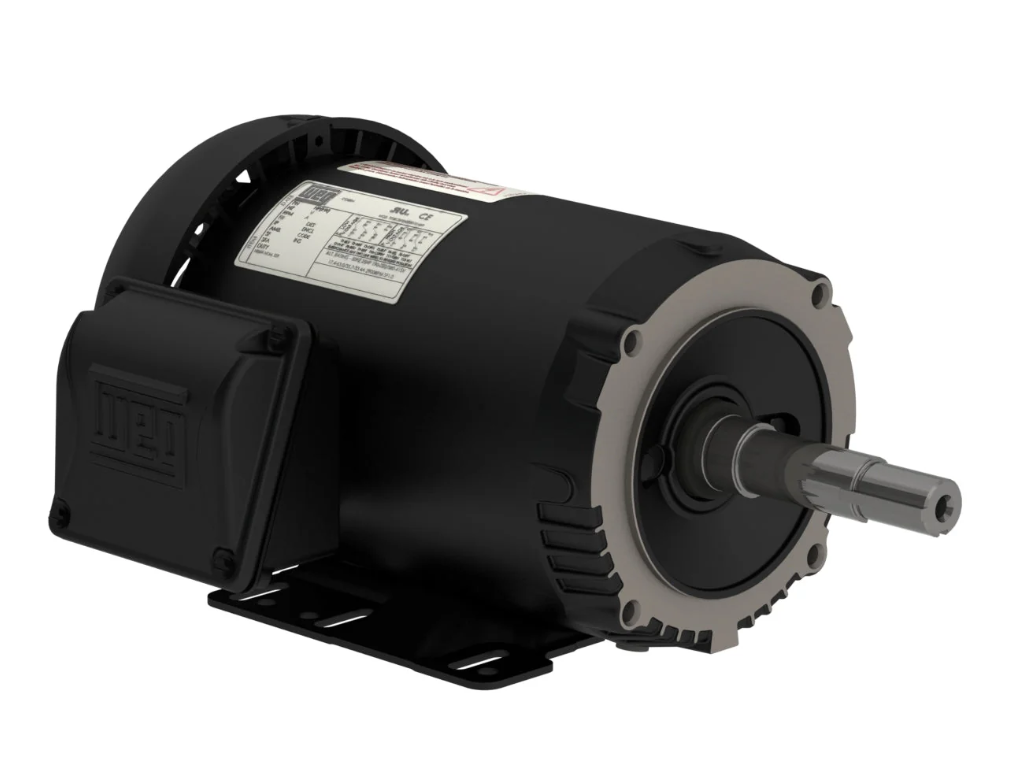

WEG ODP close-coupled pump motors are designed to meet demanding pump allications in environments where dirt and humidity are minimal. The open drip-proof design allows for maximal heat dissipation and lighter weight compared to a TEFC (totally-enclosed fan cooled) motor.
Features
- Rated Output: 1 to 25 HP
- Number of Poles: 2 to 6
- Class F insulation (B temperature rise)
- Frame Sizes: 143/5 to 254/6, JM design
- Double punched base
- Rated voltage: 208-230/460 V
- Frequency: 60 Hz (dual rated 50 Hz 190-220/380-415V)
- IP55 enclosure
- F1 foot mount as standard
- Aluminum NDE endshield
- Cast Iron flanges for improved strength (182/4TC and above), Aluminum on 143/5TC frame
- Internal bolts, giving a clean surface to the motor, avoiding trapping materials and allowing easy paint job after assembly to the load, if required
- Double shielded ball bearings on frames up to 213/5T. Regreasable ball bearings on 254/6T frame
- Standard bearing cap in all frames
- Ambient temperature: -20°C to +40°C
- 1040/45 carbon steel shaft
Item Attributes
| Brand Code: | Weg |
|---|---|
| Part Number: | 02036ET3E256JM-S |
| GTIN14: | 7909265993047 |
| Category Code: | Uncategorized |
| Sub Category Code: | Uncategorized |

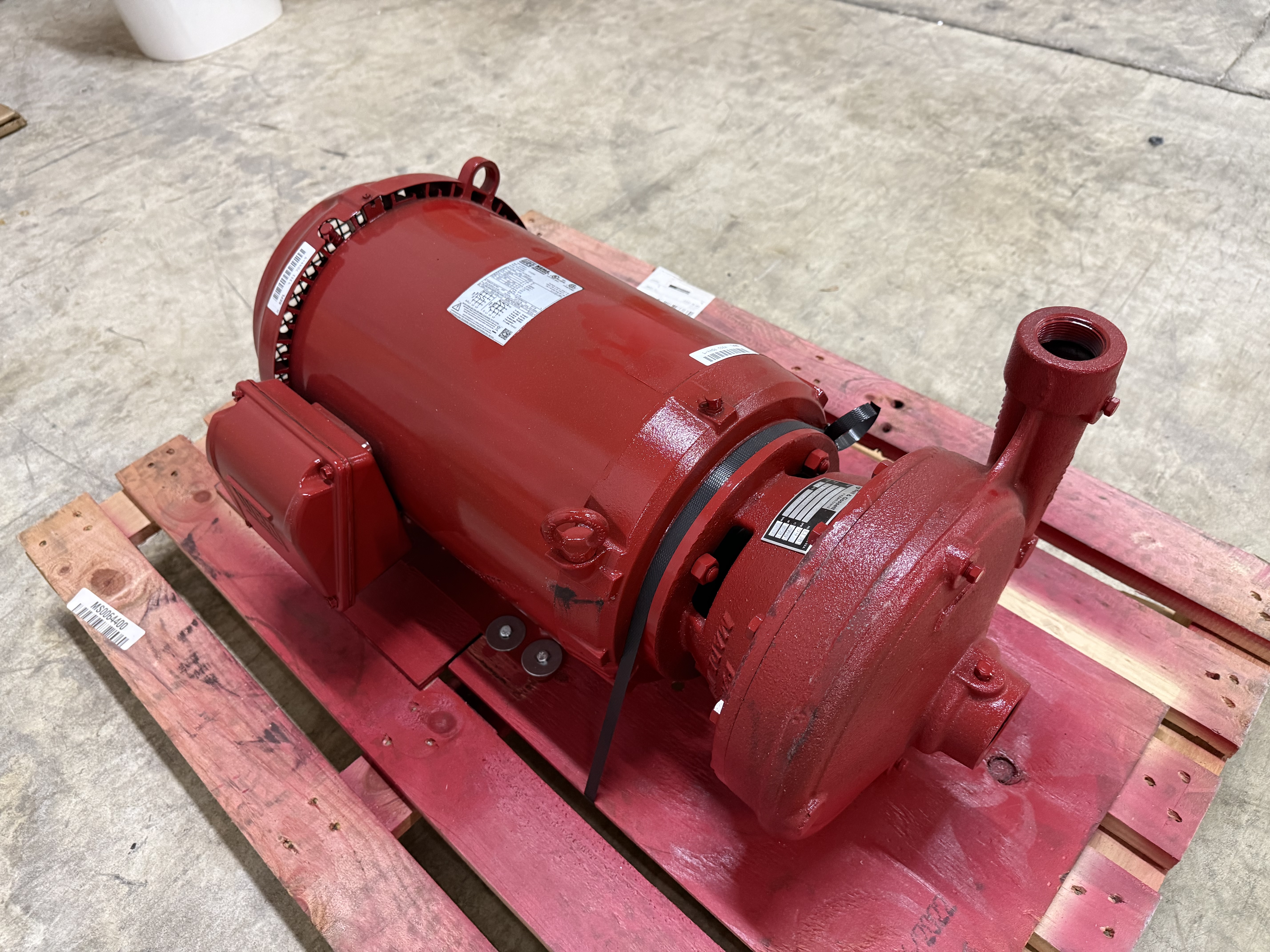

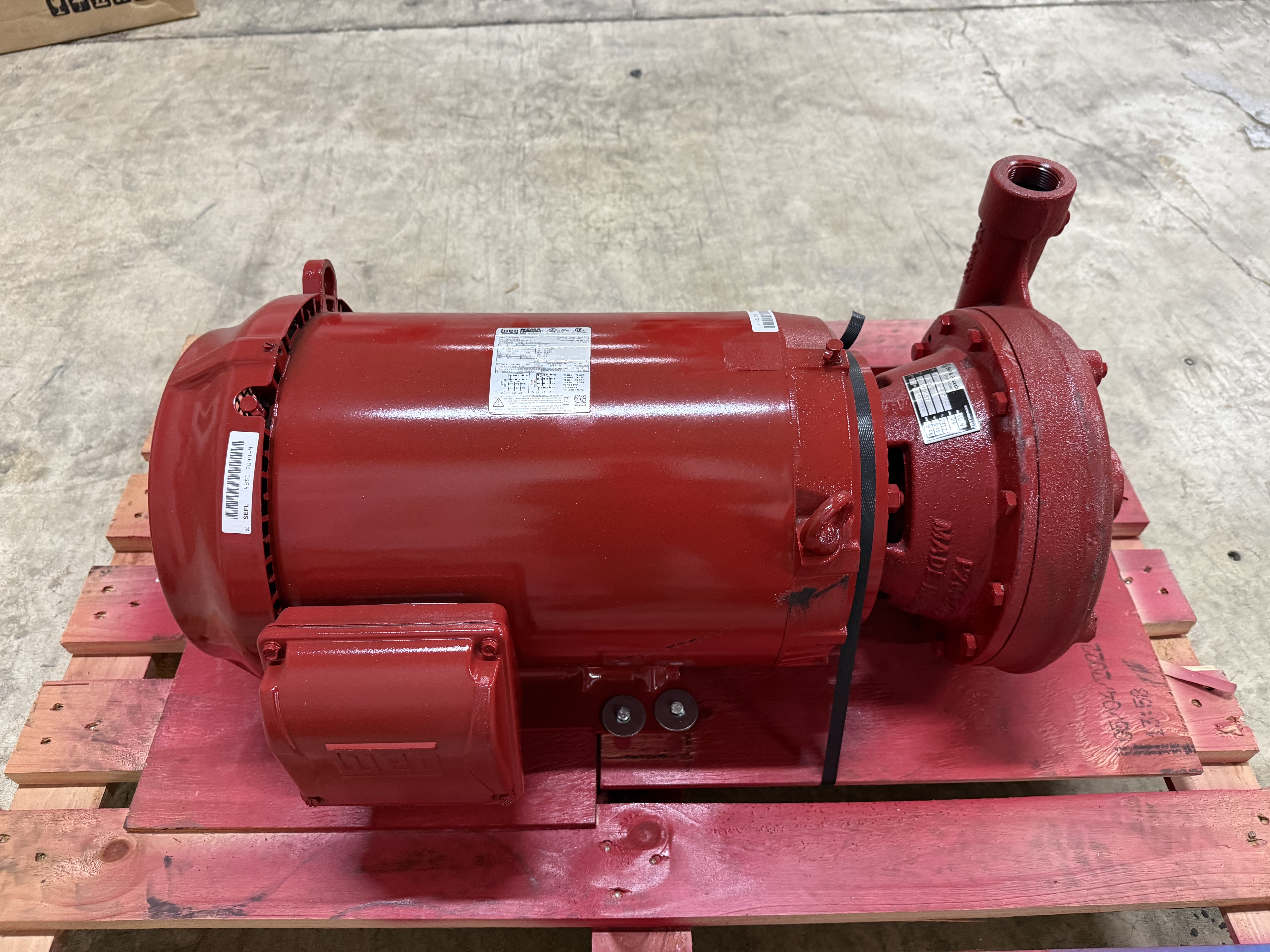

Weg Close Coupled Pump Motor 20 Hp 02036ET3E256JM-S
- SKUI-0000100331
- Model #02036ET3E256JM-S
MSRP:$2,965.00Save $1,434.44
Mardey's Price: Was $1,913.21
Last 1 in stock
| Condition | New |
|---|---|
| Type |  |
| Grade | A |
| Product Source |  |
| Additional Info | New In Box |
| Available Quantity | 1 |
7 DAY RETURNS ON ALL PRODUCTS
FAST Nationwide Shipping (Ships Same/Next Business Day)
Same Day Pick Up (Fort Lauderdale FL).
Same Day | Next Day Local Delivery Available.
Flexible Delivery — Hold Up to 90 Days
Not ready yet? We'll delay shipping your order for up to 90 days.
| Brand | Weg |
|---|---|
| Category | Uncategorized |
| Model Number | 02036ET3E256JM-S |
| UPC/GTIN | 7909265993047 |
| Capacity | 20.0000 |
| Color | Unfinished |
| Depth | 24 55/64 |
| Width | 12 43/64 |
| Height | 12 13/16 |
