| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Wall |
| Vent Type | Ducted |
| UPC | 646328010583 |
| GTIN | 00646328010583 |
| Country of Origin | Taiwan |
| Model Group | AK78-C |
| Model Name | Cypress Wall Outdoor |
| Collection | Pro Collection |
| Blower Included | Yes |
| Internal Blower 1 CFM | 1200 |
| Internal Blower 1 Min. Sones | 3.5 |
| Internal Blower 1 Max Sones | 9 |
| Minimum CFM | 450 |
| Installation Type | Wall |
| Installation Type | Wall |
| For Outdoor Use | Yes |
| Color | Stainless Steel |
| Controls Type | Control Knob |
| Blower Speeds | 3 |
| Automatic Delay-Off | No |
| Clean Air Function | No |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Pro baffle |
| Compatible Mesh or Baffle Filter Part Number | 50210031 |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal; IN | 10 |
| Duct Size; Vertical; IN | 10 |
| Mounting Height Above Cooktop; IN | 32-42 |
| Voltage | 120 |
| Maximum Amperage | 9 |
| ADA Compliant | No |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | AK0736BS, Z1C-0178 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 1080 |
| Certification | UL |
| Nominal Width; IN | 36 |
| Net Width; IN | 35.875 |
| Net Depth; IN | 32 |
| Net Height; IN | 18 |
| Weight; LBS | 84 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Shipping Length; IN | 35.04 |
| Shipping Width; IN | 38.58 |
| Shipping Height; IN | 22.63 |
| Shipping Weight; LBS | 98.32 |
| Shipping Method | LTL |
| Freight Class | 250 |
| Certification # | E127334 |
| Duct Type | Vertical |
| Duct Type | Vertical |

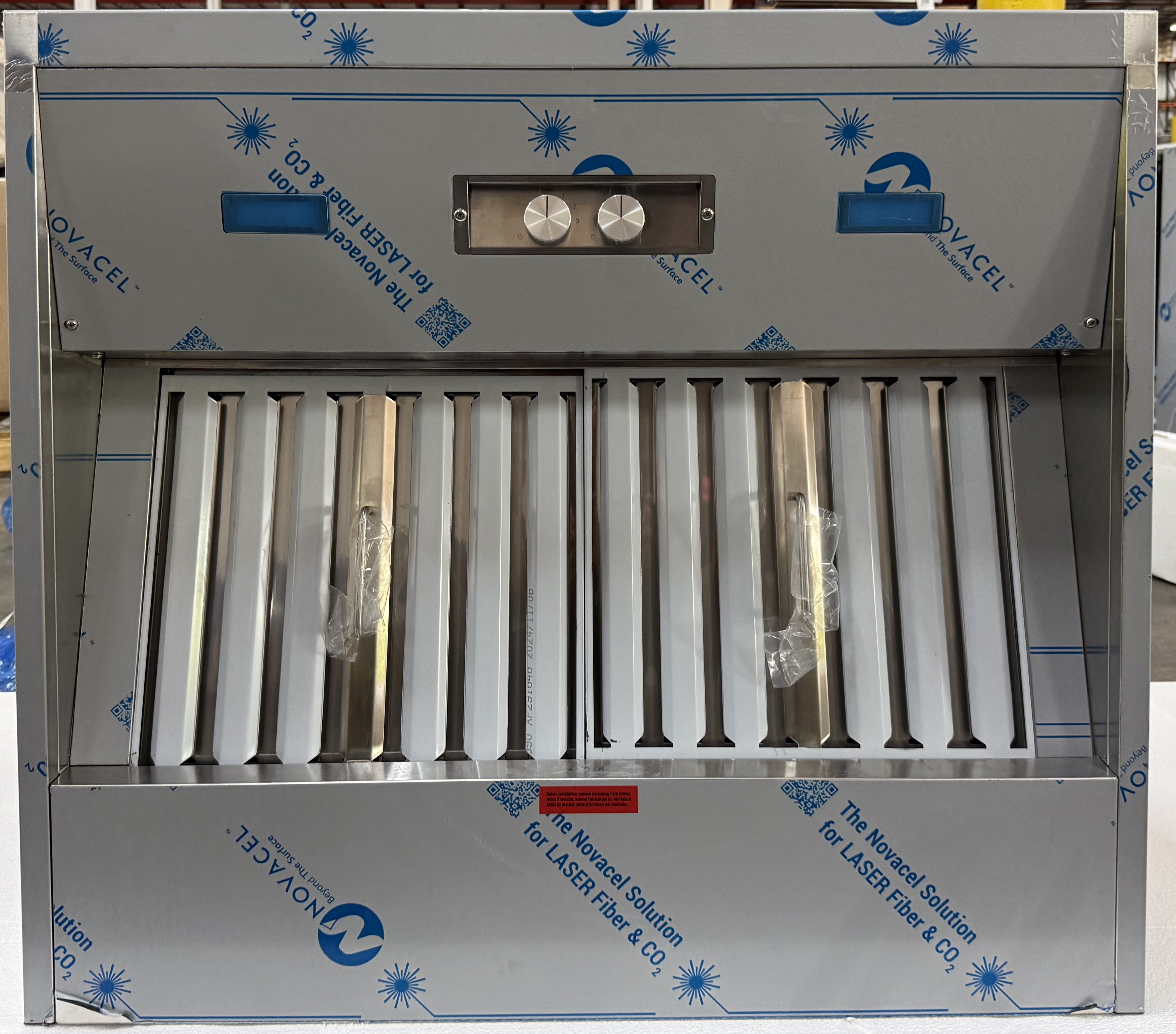

Cypress Outdoor Wall Mount Range Hood with 3-Speed/1200 CFM Blower
Cypress features a seamlessly contoured, welded, and polished exterior along with a corrosion-resistant, 304-grade stainless steel canopy that houses high-performance, professional stainless steel baffle filters to enhance airflow – and that are dishwasher safe, too. 3-speed metallic knob controls withstand extreme heat and moisture. It features dual-level LumiLight LED lighting and an extended 32″ depth for even more capture. Optional 12″ duct cover as well as a telescopic duct cover for 10′ to 12′ ceilings are available.
Features
- High-grade Stainless Steel
- Outdoor Rated
- Professional Baffle Filters
- Welded and and polished body
- Vertical or horizontal ducting

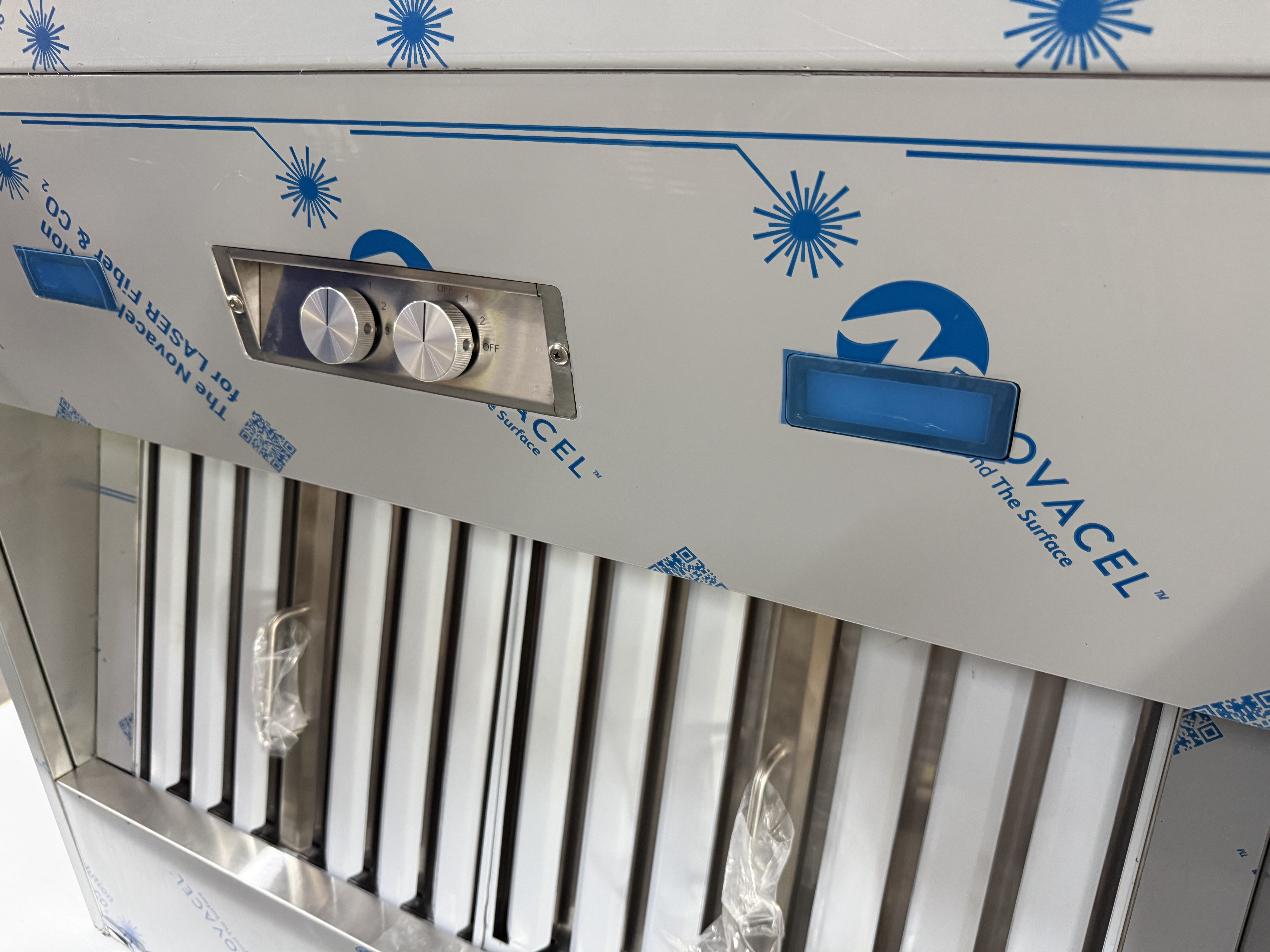

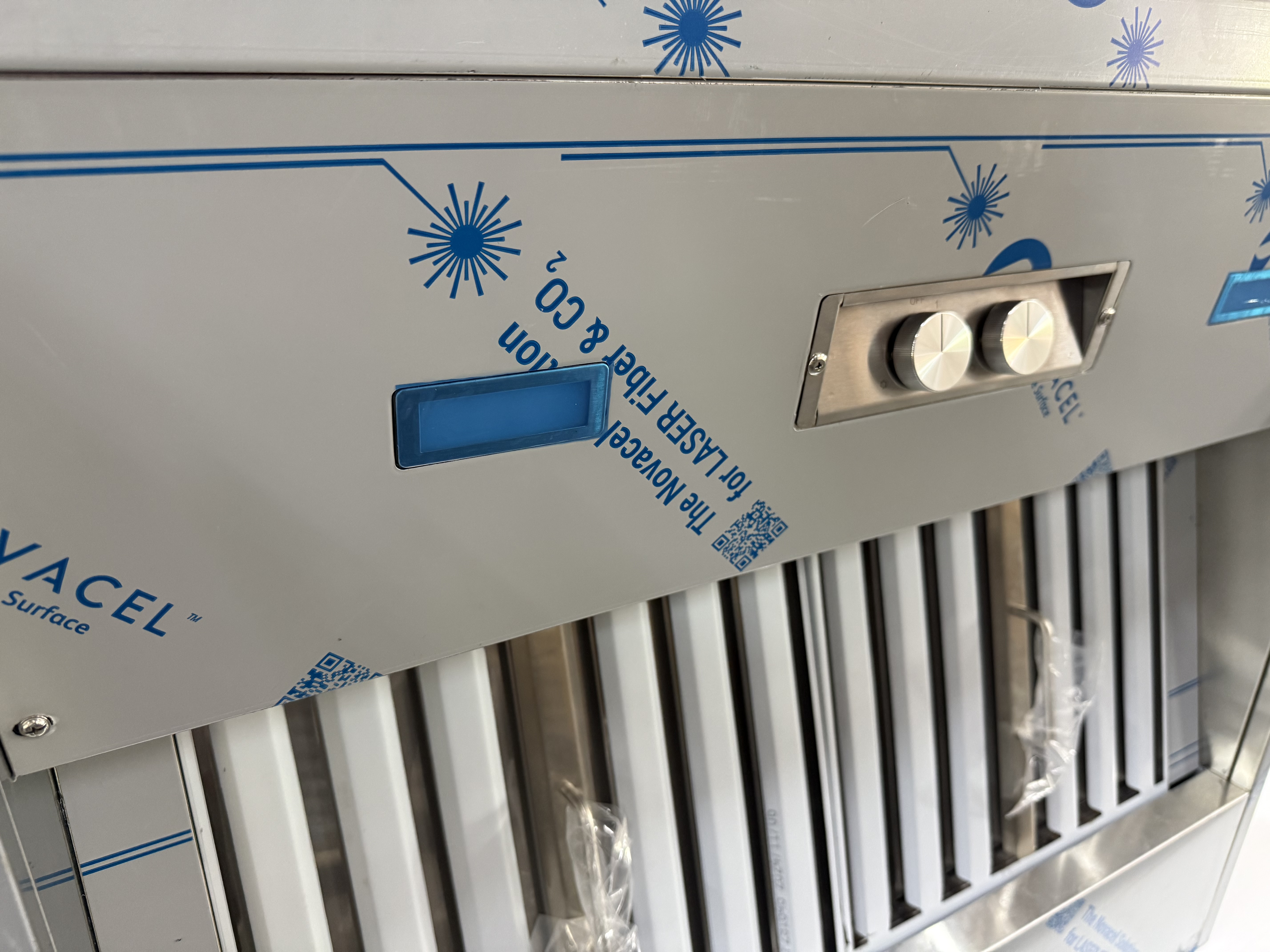

- Metallic Knob Controls
- Optional Extension Duct Cover Kit
Item Attributes
| Brand Code: | ZEPHYR |
|---|---|
| Part Number: | AK7836CS |
| GTIN14: | 646328010583 |
| Category Code: | Kitchen Appliances |
| Sub Category Code: | Kitchen Appliances / Range Hoods |
ZEPHYR 1200 Cfm 36 Inch Wall Mounted Range Hood Stainless Steel AK7836CS
- SKU-0000044469
- Model #AK7836CS
| Condition | New |
|---|---|
| Type |  |
| Grade | A |
| Product Source |  |

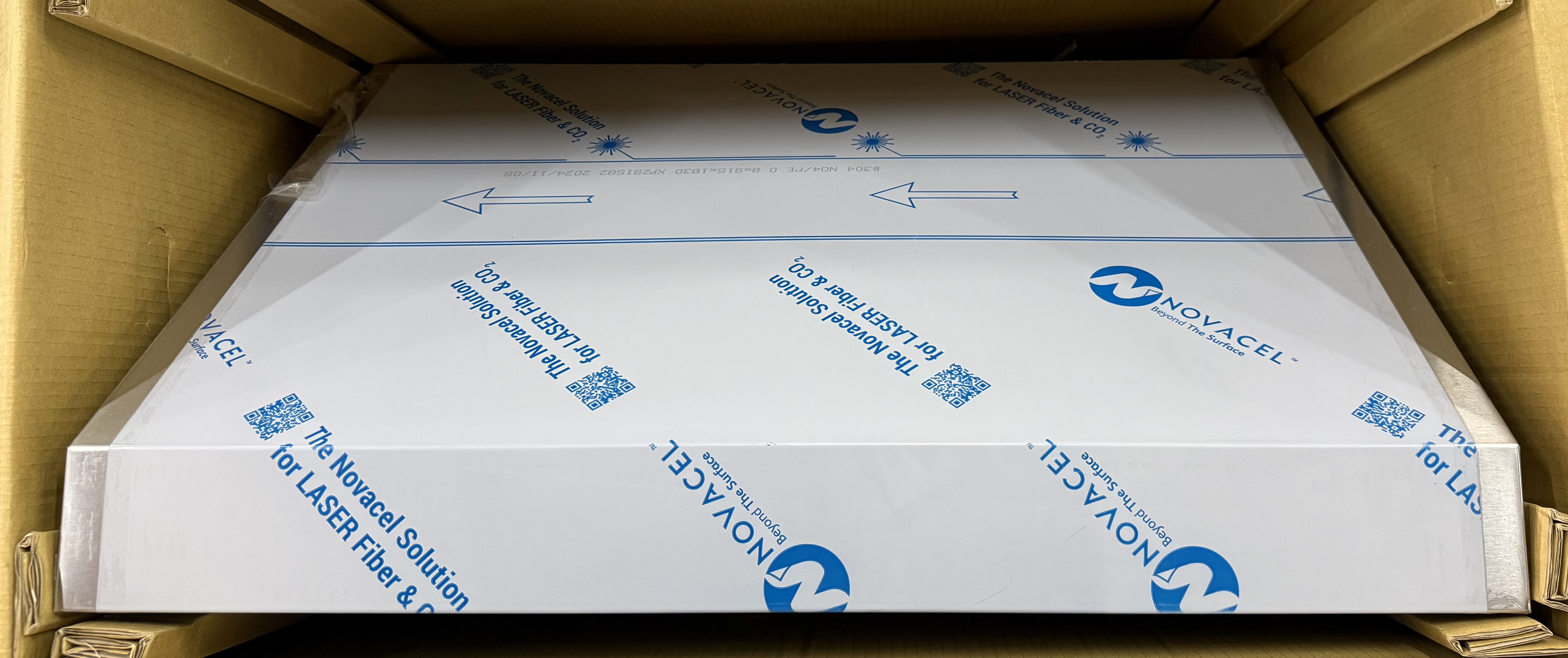

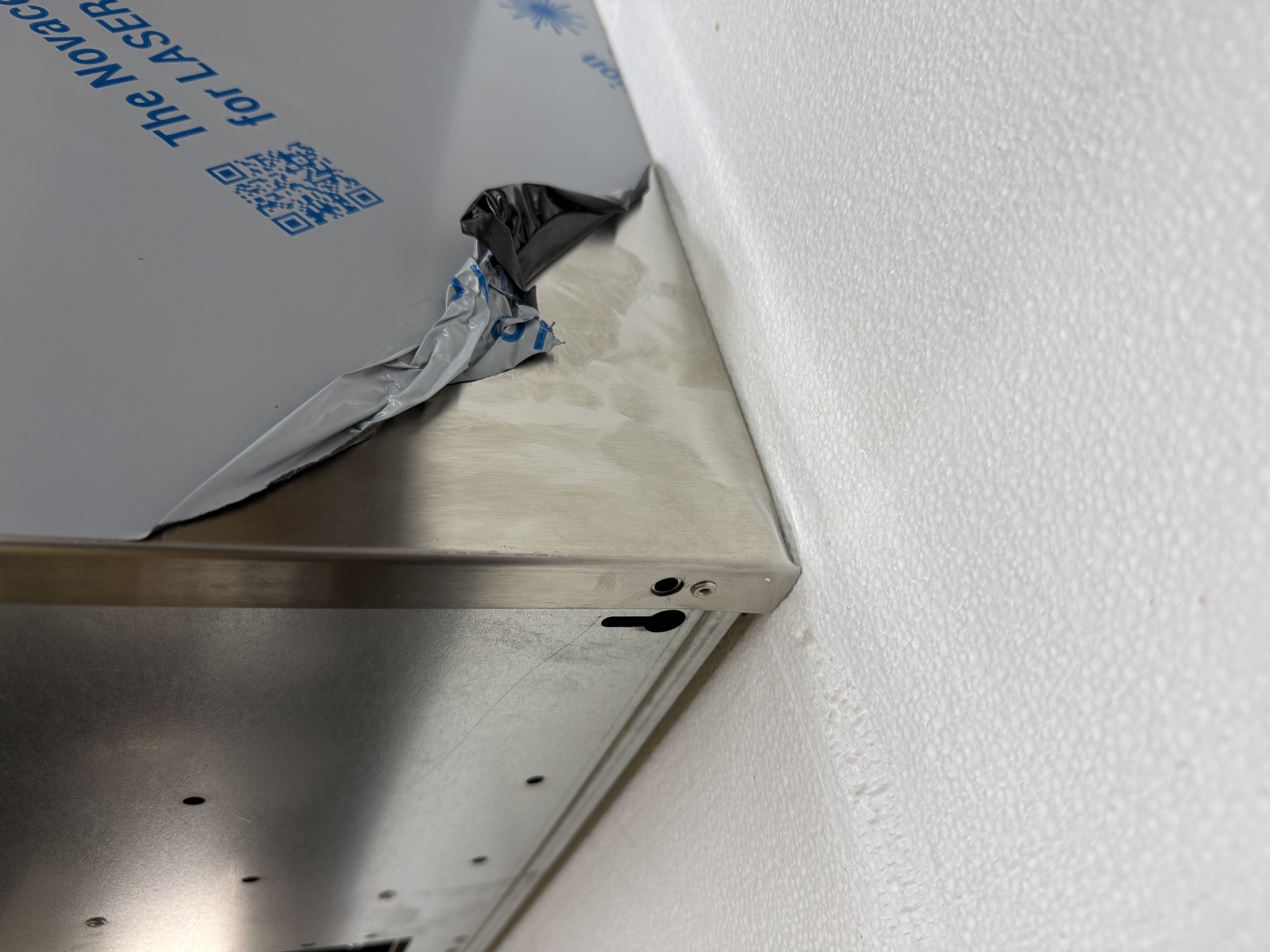

| Additional Info | No Forward Facing Imperfections | Minor Indentation Rear Corner | Overall great condition| Cosmetic accessories and non-essential hardware from original packaging may not be included |
| Available Quantity | 1 |
