Product Information
- Brand: Zephyr
- Manufacturer: Zephyr
- Category: Range Hood
- Sub-Category: Under Cabinet
- Model Group: ZPI-B
- Model Name: Pisa Under-Cabinet
- Collection: Core Collection
- UPC: 646328009693
- Country of Origin: Taiwan
Installation & Venting
- Installation Type: Under Cabinet
- Vent Type: Convertible
- Duct Discharge: Vertical or Horizontal
- Duct Size (Horizontal): 6"
- Duct Size (Vertical): 6"
- Mounting Height Above Cooktop: 20" – 32"
- Duct Type: Vertical
Performance
- Blower Included: Yes
- Blower Speeds: 3
- Minimum CFM: 180
- Internal Blower CFM: 290
- Min Sones: 1.3
- Max Sones: 3.2
Features
- Controls Type: Mechanical slide
- Automatic Delay-Off: No
- Clean Air Function: No
- Clean Filter Alert: No
- Grease Filter Type: Mesh
Lighting
- Lighting Type: LED
- Number of Lights: 2
- Watts per Bulb: 6W
- Light Levels: 2
Electrical
- Voltage: 120V
- Maximum Amperage: 2A
- Wattage: 240W
Connectivity
- Bluetooth: No
- Wi-Fi: No
- Remote Included: No
- Remote Optional: No
- Alexa / Google Home Compatible: No
Compliance & Certifications
- ADA Compliant: No
- Energy Star Certified: No
- CEC Title 20 Compliant: Yes
- CEC Title 24 Compliant: Yes
- Certification: UL
Material
- Primary Material: Steel
Dimensions & Weight
- Nominal Width: 30"
- Net Width: 29.875"
- Net Depth: 11.125"
- Net Height: 11.25"
- Weight: 33 lbs
Additional Info
- For Outdoor Use: No
- Ceiling Height Compatibility: 8 ft – 12 ft

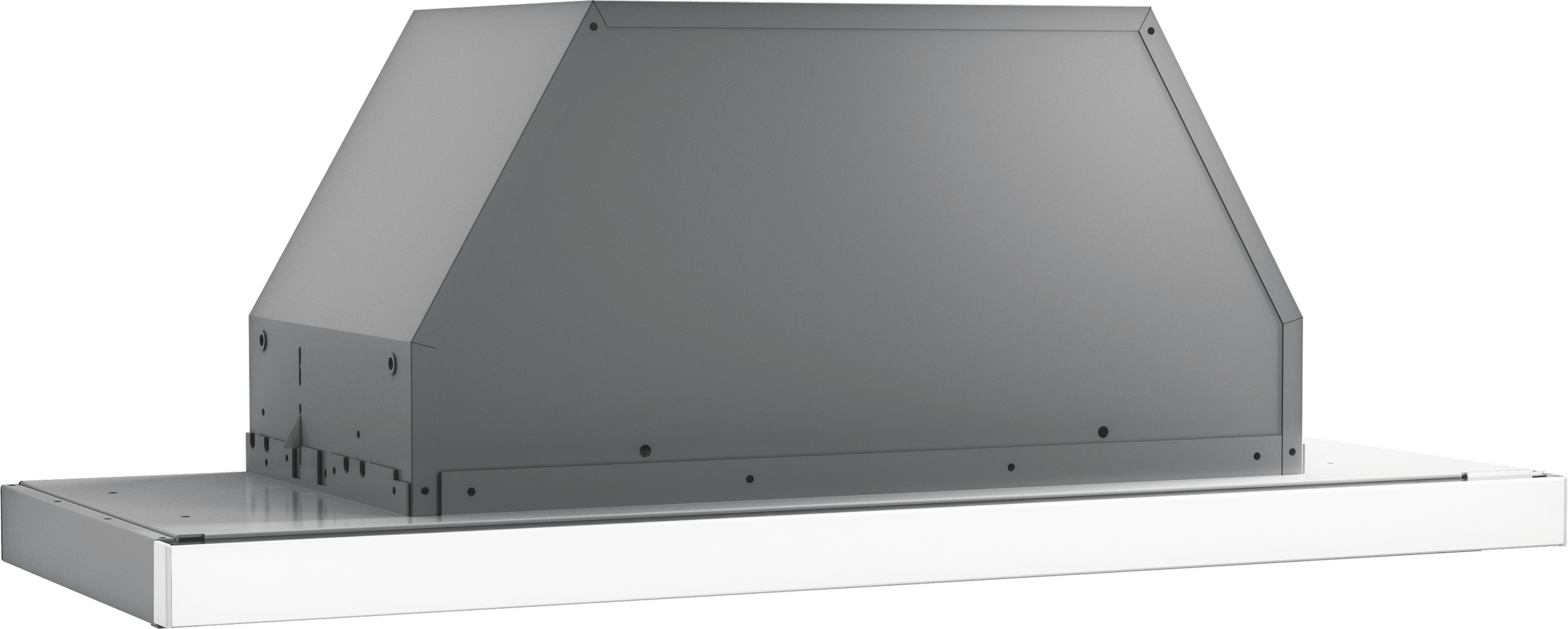

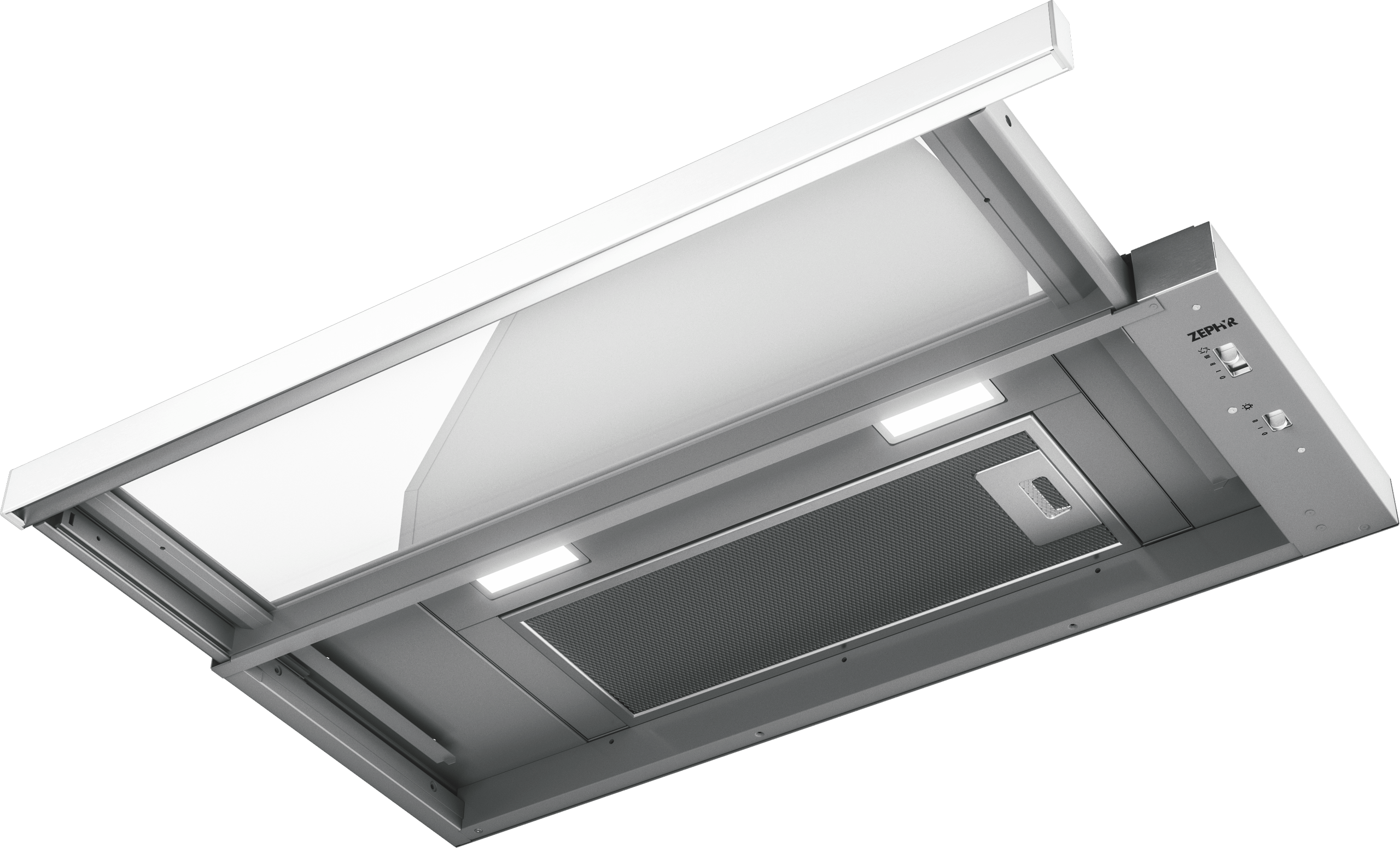

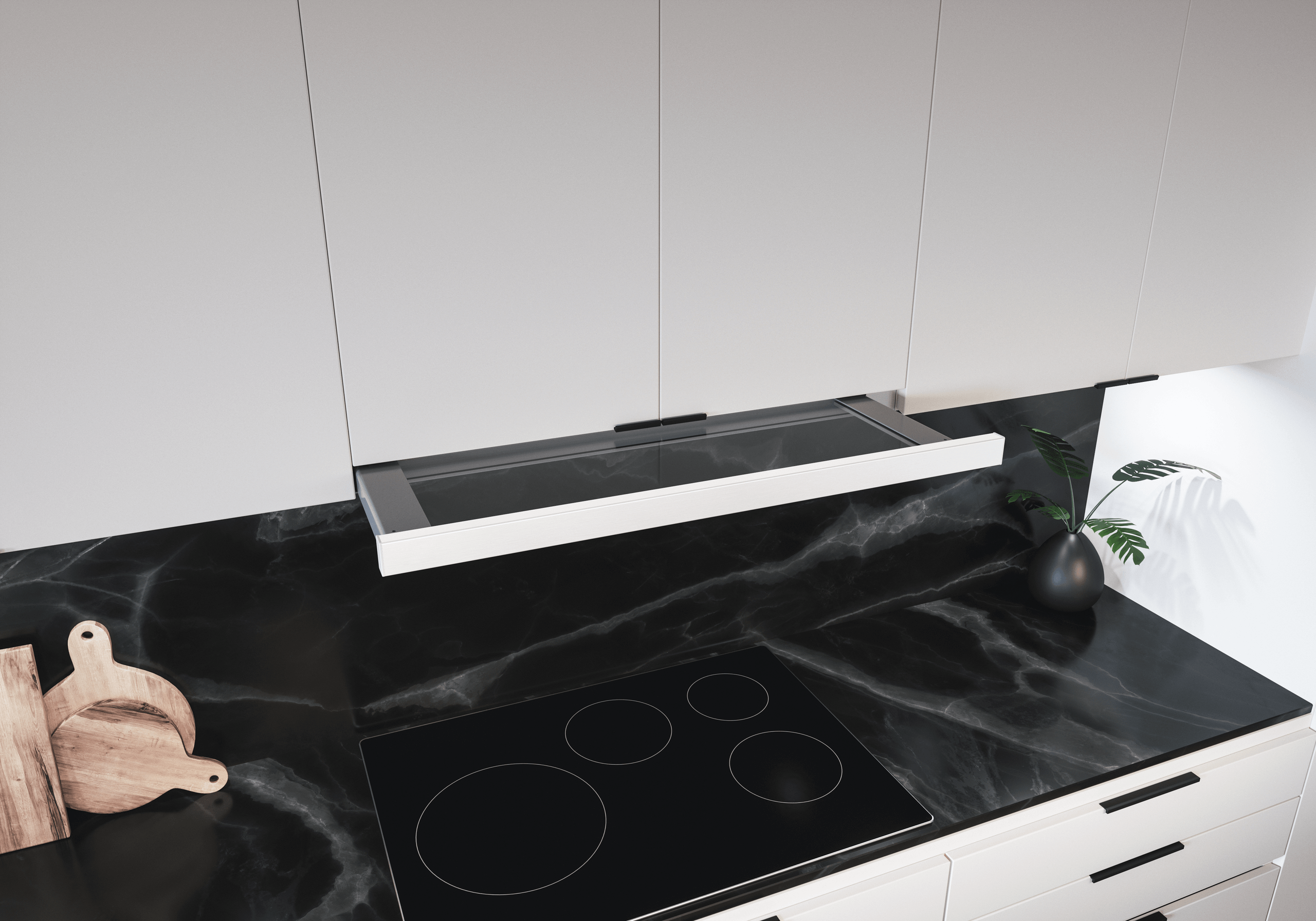

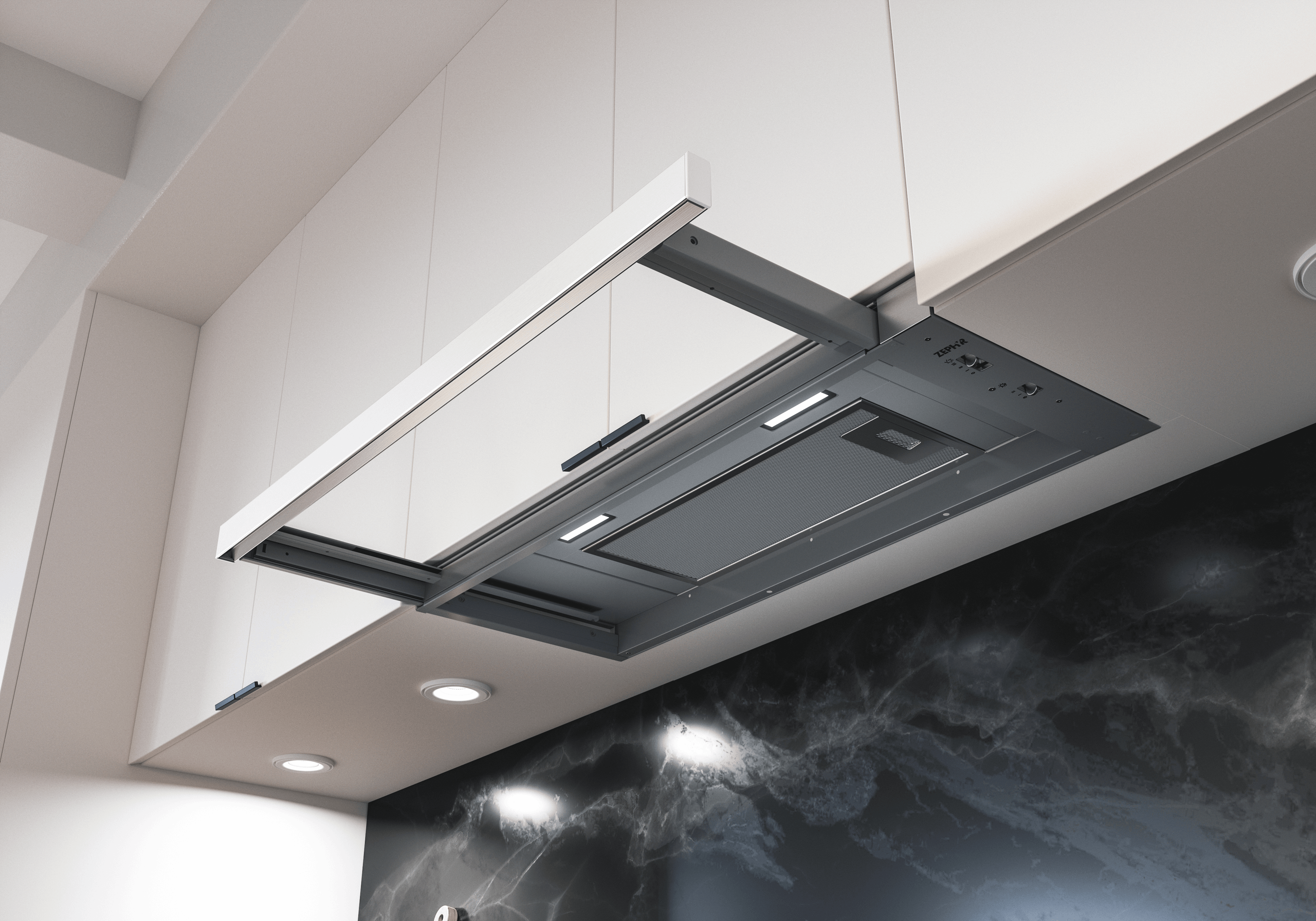

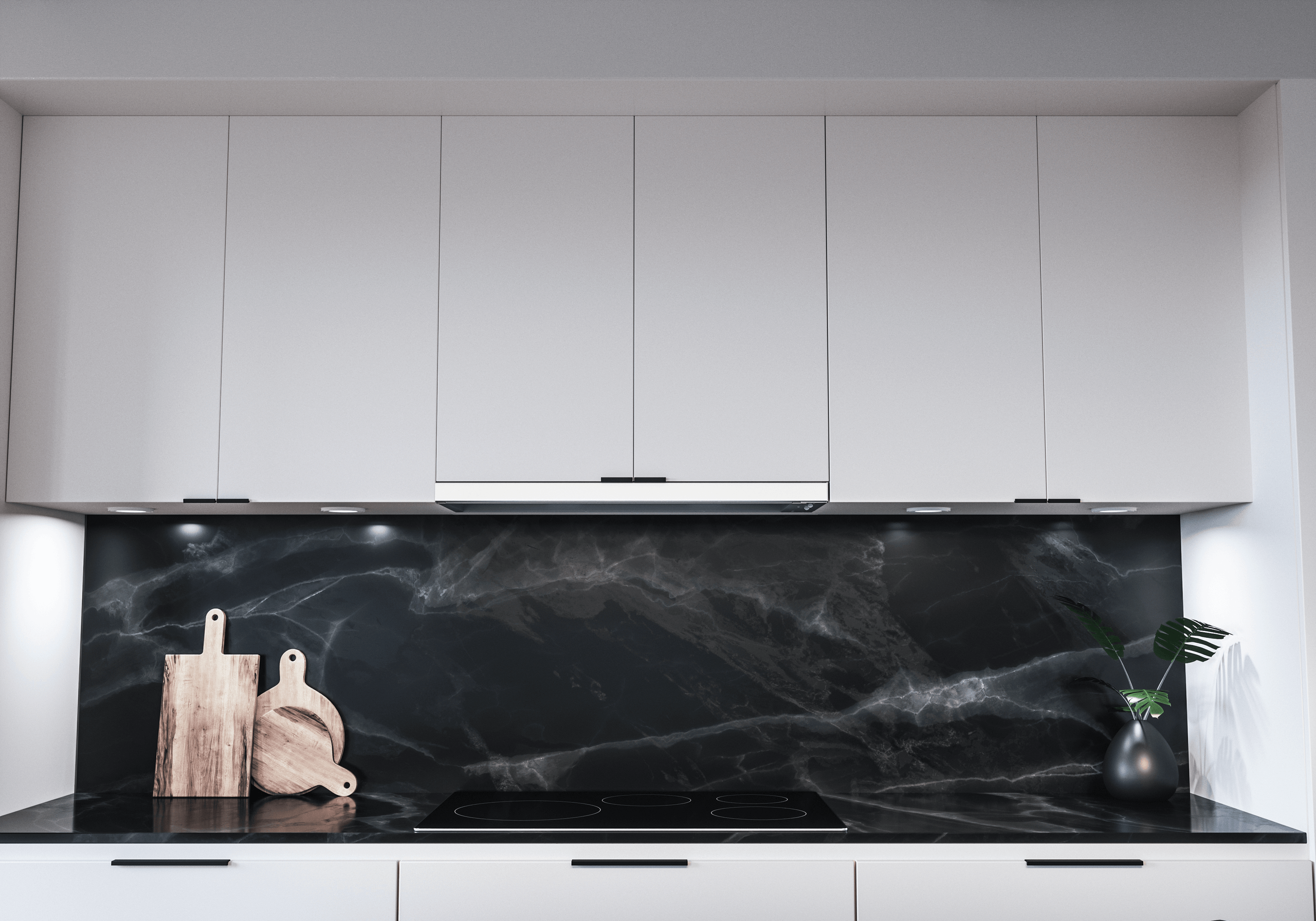

Tucked neatly out of sight within your cabinetry, Pisa is a minimal alternative to your typical under-cabinet range hood. Powered by the strength of a 290-CFM blower, Pisa’s low-profile body delivers stunning design and quality performance. Its retractable visor helps in the capture of air and puts control at your fingertips. Pisa is perfect for kitchens that require a more discreet look.
Features
3-Speed
- Allow you to adjust ventilation to meet your needs.
290 CFM Blower
- Remove smoke and odor with ease with a powerful internal blower.
Mechanical Slide Controls
- Offer simple operation.
Dual-Level LumiLight LED Lighting
- Dual levels of light offer the perfect mood option for your kitchen.
Aluminum Mesh Filters
- Easy to clean dishwasher safe filters and effectively removes grease and odors.
Vertical or Horizontal Ducting
- It gives the performance and flexibility you need.
Additional Features
- Multiple Color Options
- Value Driven
- Low-Profile Body
- UL Listed
Item Attributes
| Brand Code: | ZEPHYR |
|---|---|
| Part Number: | ZPIE30BW290 |
| GTIN14: | 646328009693 |
| Category Code: | Kitchen Appliances |
| Sub Category Code: | Kitchen Appliances / Range Hoods |

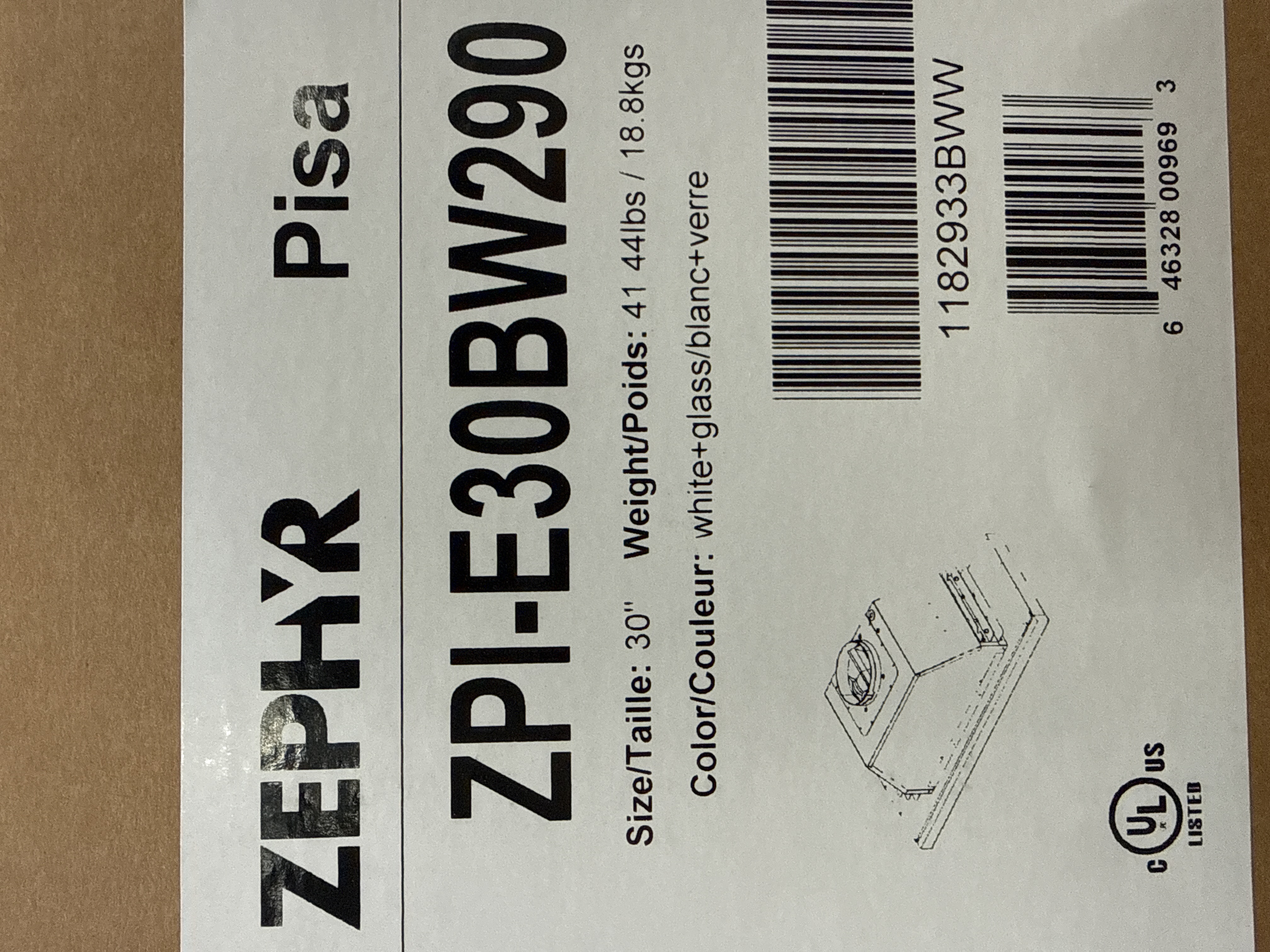

Zephyr 290 CFM 30-Inch Under Cabinet Range Hood White - ZPIE30BW290
- SKUI-0000122711
- Model #ZPIE30BW290
| Condition | New |
|---|---|
| Type |  |
| Grade | A |
| Product Source |  |
| Additional Info | New In Box | Overstock Surplus |
| Available Quantity | 2 |
7 DAY RETURNS ON ALL PRODUCTS
FAST Nationwide Shipping (Ships Same/Next Business Day)
Same Day Pick Up (Fort Lauderdale FL).
Same Day | Next Day Local Delivery Available.
Flexible Delivery — Hold Up to 90 Days
Not ready yet? We'll delay shipping your order for up to 90 days.
| Brand | ZEPHYR |
|---|---|
| Category | Kitchen Appliances / Range Hoods |
| Model Number | ZPIE30BW290 |
| UPC/GTIN | 646328009693 |
| Capacity | 1.0000 |
| Color | White |
| Depth | 18 3/4 |
| Width | 29 7/8 |
| Height | 11 1/4 |
