- SME: ASME A112.14.3
- Capacity: 70 lb
- Collection: Z1170 Series
- Depth: 34-1/8 in
- End Connection 1: MPT
- End Connection 2: MPT
- End Connections: MPT
- Fitting Size 1: 3 in
- Fitting Size 2: 3 in
- Fitting Sizes: 3 in
- Flow Rate: 35 gpm
- Height: 18-3/4 in
- IAPMO Listed: No
- Length: 34-1/8 in
- Material: Fabricated Steel
- Product Type: Grease Interceptor
- Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- UPC: 670240163539

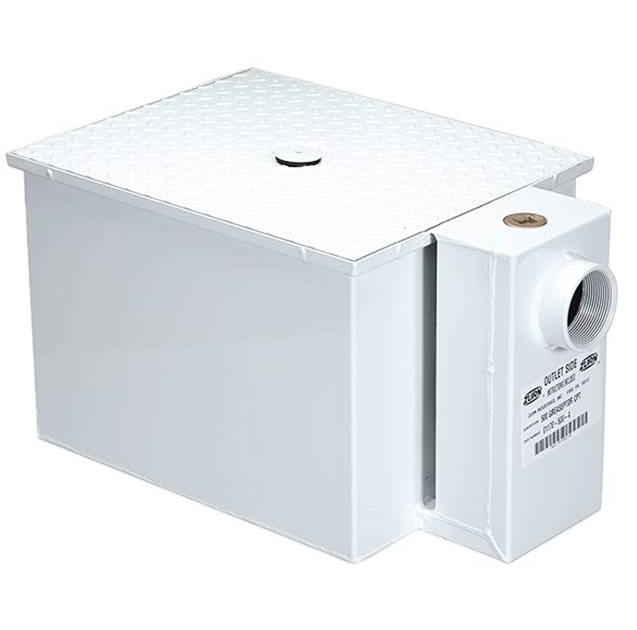

The Z1170 Grease Interceptor is an acid resistant coated interior and exterior fabricated steel grease interceptor, PDI Rated, with internal air relief by-pass. This interceptor also comes standard with bronze cleanout plug, removable pressure equalizing/flow diffusing inlet baffle, fixed bottom outlet baffle and visible double wall trap seal. Gasketed non-skid secured cover complete with tie down assembly and Z1108 flow control fitting. Regularly furnished with high inlet and outlet connection.
Grease Interceptor, Series: Z1170, #700 Nominal, 3 in Inlet Connection, 3 in Outlet, 70 lb, 35 gpm, NPT, Fabricated Steel, White, 34-1/8 in L x 22-1/2 in W x 18-3/4 in H
Features
- The Z1170 grease interceptor is an acid resistant coated interior and exterior fabricated steel grease interceptor, PDI rated, with internal air relief by-pass
- This interceptor also comes standard with bronze cleanout plug, removable pressure equalizing/flow diffusing inlet baffle, fixed bottom outlet baffle and visible double wall trap seal
- Gasketed non-skid secured cover complete with tie down assembly, and Z1108 flow control fitting
- Regularly furnished with high inlet and outlet connection
Item Attributes
| Brand Code: | Zurn |
|---|---|
| Part Number: | Z11707003IP |
| GTIN14: | 670240163539 |
| Category Code: | Drainage & Waste |
| Sub Category Code: | Drainage & Waste |
Zurn 23" Rc Fabricated Steel 35 Gpm Greasetrap W 3 Threaded Connections Z11707003IP
- SKUI-0000098376
- Model #Z11707003IP
| Condition | New |
|---|---|
| Type |  |
| Grade | A |
| Product Source |  |
| Additional Info | New In Box |
| Available Quantity | 1 |
7 DAY RETURNS ON ALL PRODUCTS
FAST Nationwide Shipping (Ships Same/Next Business Day)
Same Day Pick Up (Fort Lauderdale FL).
Same Day | Next Day Local Delivery Available.
Flexible Delivery — Hold Up to 90 Days
Not ready yet? We'll delay shipping your order for up to 90 days.
| Brand | Zurn |
|---|---|
| Category | Drainage & Waste |
| Model Number | Z11707003IP |
| UPC/GTIN | 670240163539 |
| Capacity | 70.0000 |
| Color | White |
| Depth | 34 1/8 |
| Width | 22 1/2 |
| Height | 18 3/4 |
