- ASTM: ASTM A-888
- End Connection 1: No Hub
- End Connection 2: No Hub
- End Connection 3: No Hub
- End Connections: No Hub x No Hub x No Hub
- Fitting Size 1: 3 in
- Fitting Size 2: 3 in
- Fitting Size 3: 3 in
- Fitting Sizes: 3 in
- Fitting Type: Straight
- Material: Cast Iron
- Material Type: NH 20
- NSF Certified: Yes
- Origin: Domestic
- UPC: 611942002092
Hub less cast iron pipe and fittings shall be manufactured from gray cast iron and shall conform to ASTM A888 and CISPI standard 301. All pipe and fittings shall be marked with the collective trademark of the cast iron soil pipe Institute® and listed by NSF International. Hub less couplings shall conform to CISPI standard 310, shall be manufactured in the United States and be certified by NSF International. Heavy-duty and medium-duty couplings shall conform to ASTM C 1540, shall be manufactured in the United States and shall be used if indicated.
Charlotte Pipe Wye, Wye Fitting, 3 in Connection Size 1, Spigot Connection Type 1, 3 in Connection Size 2, Spigot Connection Type 2, 3 in Connection Size 3, Spigot Connection Type 3, Spigot|Spigot|Spigot Connection, Iron, Cast Iron Material Construction, Black, 4.3 psi, 8 in L, 32 to 212 deg F, 2.96 in ID x 3.35 in OD, 0.16 in THK Wall, Domestic
Features
- Black Cast Iron pipe/fittings for drain, waste and vent (DWV) applications without a Hub
- Premier piping system that withstands extreme temperatures and conditions
- Manufactured from 100% recycled content, not intended for pressure use
- Excellent sound-deadening qualities
Item Attributes
| Brand Code: | CHARLOTTE PIPE AND FOUNDRY CO |
|---|---|
| Part Number: | NHYM |
| GTIN14: | 611942002092 |
| Category Code: | Pipe Fittings |
| Sub Category Code: | Pipe Fittings |

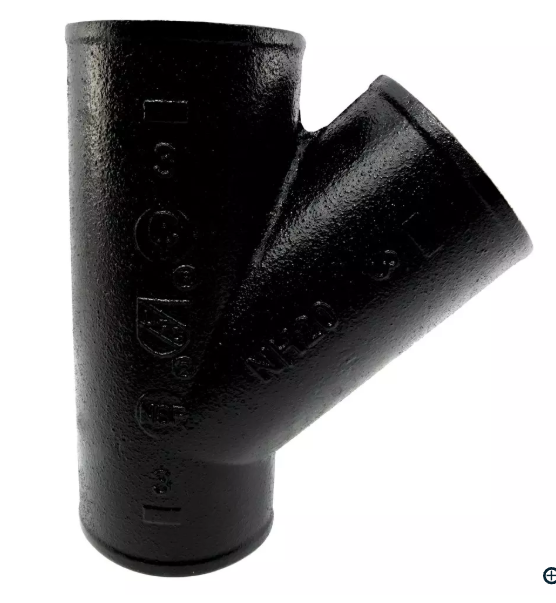

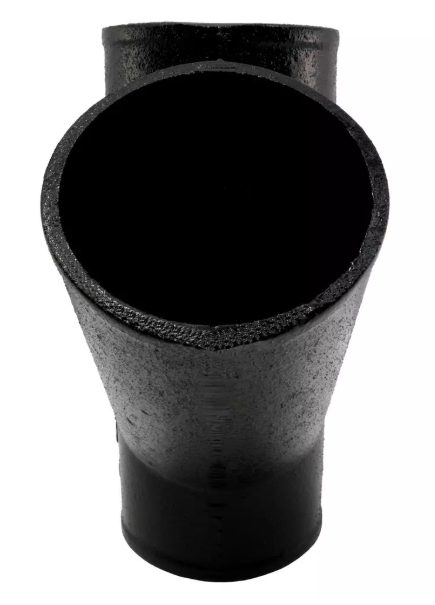

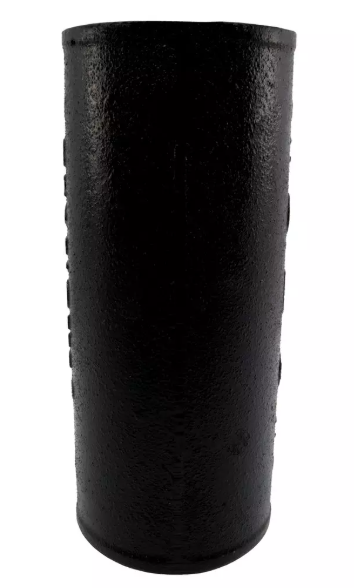

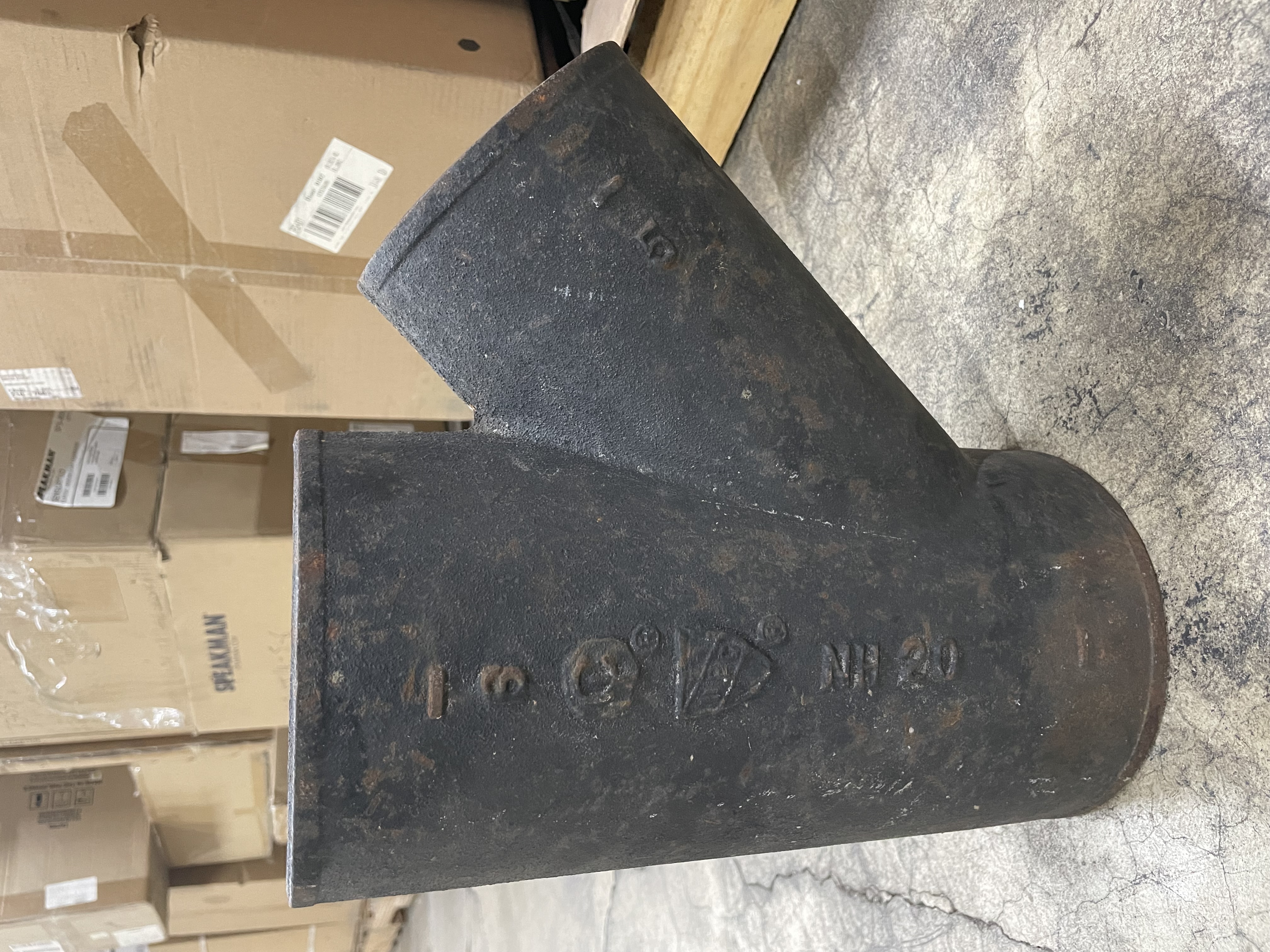

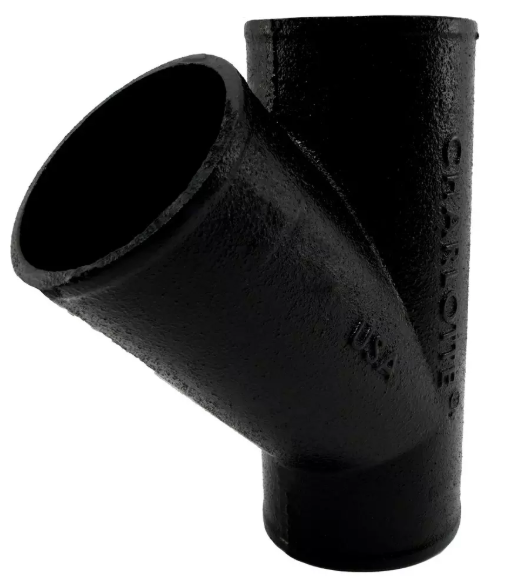

CHARLOTTE PIPE AND FOUNDRY CO 3" No Hub Cast Iron Wye NHYM
- SKUI-0000097813
- Model #NHYM
| Condition | New |
|---|---|
| Type |  |
| Grade | A |
| Product Source |  |
| Available Quantity | 1 |
7 DAY RETURNS ON ALL PRODUCTS
FAST Nationwide Shipping (Ships Same/Next Business Day)
Same Day Pick Up (Fort Lauderdale FL).
Same Day | Next Day Local Delivery Available.
Flexible Delivery — Hold Up to 90 Days
Not ready yet? We'll delay shipping your order for up to 90 days.
| Brand | CHARLOTTE PIPE AND FOUNDRY CO |
|---|---|
| Category | Pipe Fittings |
| Model Number | NHYM |
| UPC/GTIN | 611942002092 |
| Capacity | 4.3000 |
| Color | Black |
| Depth | 08 |
| Width | 03 |
| Height | 08 |
- ASTM: ASTM A-888
- End Connection 1: No Hub
- End Connection 2: No Hub
- End Connection 3: No Hub
- End Connections: No Hub x No Hub x No Hub
- Fitting Size 1: 3 in
- Fitting Size 2: 3 in
- Fitting Size 3: 3 in
- Fitting Sizes: 3 in
- Fitting Type: Straight
- Material: Cast Iron
- Material Type: NH 20
- NSF Certified: Yes
- Origin: Domestic
- UPC: 611942002092
Hub less cast iron pipe and fittings shall be manufactured from gray cast iron and shall conform to ASTM A888 and CISPI standard 301. All pipe and fittings shall be marked with the collective trademark of the cast iron soil pipe Institute® and listed by NSF International. Hub less couplings shall conform to CISPI standard 310, shall be manufactured in the United States and be certified by NSF International. Heavy-duty and medium-duty couplings shall conform to ASTM C 1540, shall be manufactured in the United States and shall be used if indicated.
Charlotte Pipe Wye, Wye Fitting, 3 in Connection Size 1, Spigot Connection Type 1, 3 in Connection Size 2, Spigot Connection Type 2, 3 in Connection Size 3, Spigot Connection Type 3, Spigot|Spigot|Spigot Connection, Iron, Cast Iron Material Construction, Black, 4.3 psi, 8 in L, 32 to 212 deg F, 2.96 in ID x 3.35 in OD, 0.16 in THK Wall, Domestic
Features
- Black Cast Iron pipe/fittings for drain, waste and vent (DWV) applications without a Hub
- Premier piping system that withstands extreme temperatures and conditions
- Manufactured from 100% recycled content, not intended for pressure use
- Excellent sound-deadening qualities
Item Attributes
| Brand Code: | CHARLOTTE PIPE AND FOUNDRY CO |
|---|---|
| Part Number: | NHYM |
| GTIN14: | 611942002092 |
| Category Code: | Pipe Fittings |
| Sub Category Code: | Pipe Fittings |
