- ASTM: ASTM C-1277-2018, ASTM C-1460, ASTM C-564
- CSA Certified: CSA B602, CSA B70
- Clean Bagged: No
- Collection: MI-QHUB Series
- End Connection 1: No Hub
- End Connection 2: No Hub
- End Connections: No Hub
- FM Approved: No
- Fitting Size 1: 8 in
- Fitting Size 2: 8 in
- Fitting Sizes: 8 in
- Fitting Type: Coupling, Straight
- IAPMO Listed: Yes
- Length: 4 in
- Material: Rubber, Stainless Steel
- Material Type: 301, 305, Neoprene
- NSF Certified: Yes
- Origin: Global
- Pressure - Maximum: 6 psi
- Pressure Class: 6#
- UL Listed: No
- UPC: 779897178276

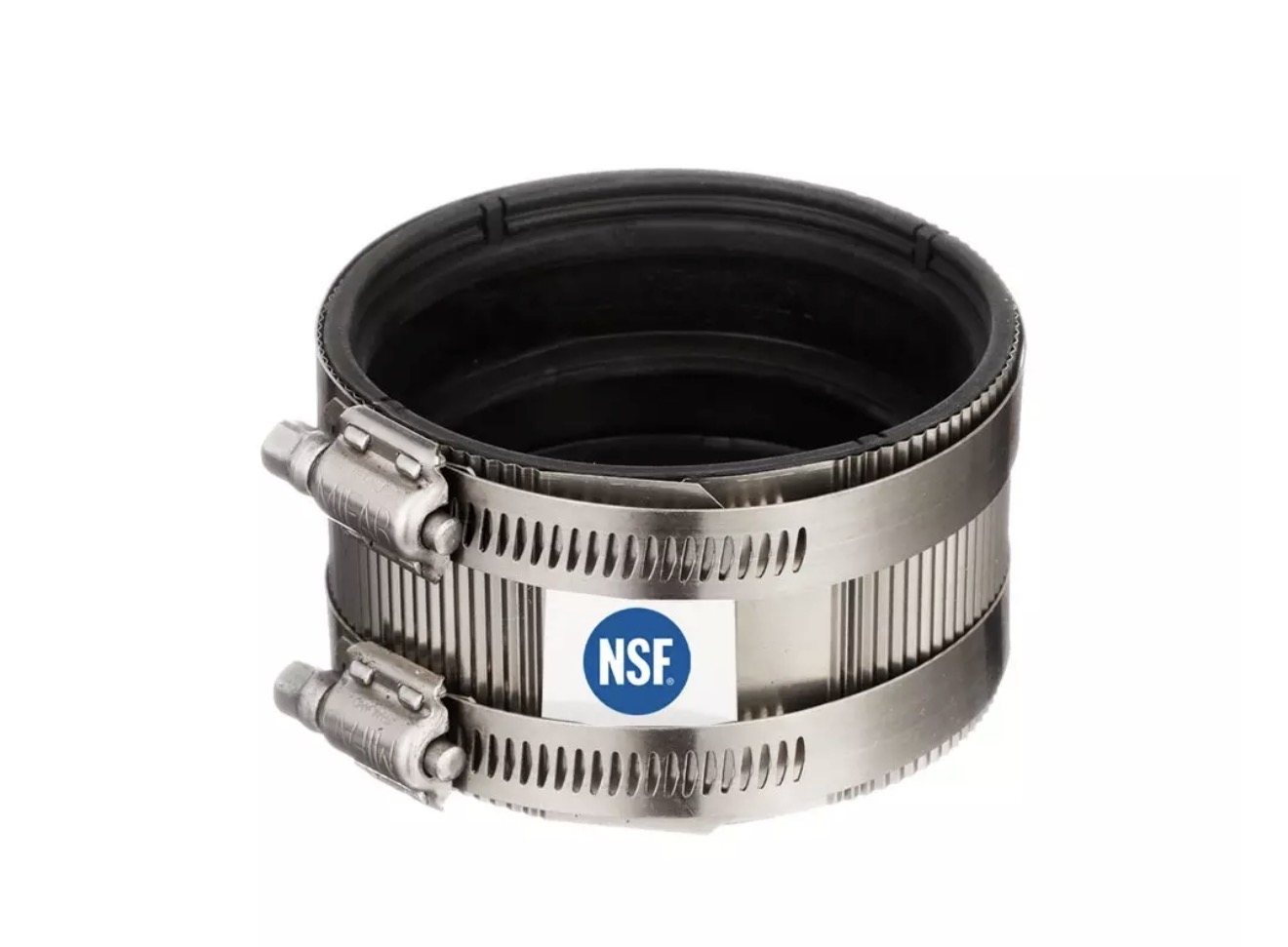

MI-QHUB Series 8 in. No Hub 301 and 305 Stainless Steel Quick Hub Shield Coupling with Neoprene Sealing Ring
Features
- MIFAB® Series MI-QHUB (specify size) no hub couplings are manufactured with quick hub gaskets made with neoprene and three sealing rings that meets the requirements of ASTM C564 housed inside a type 301 stainless steel corrugated shield

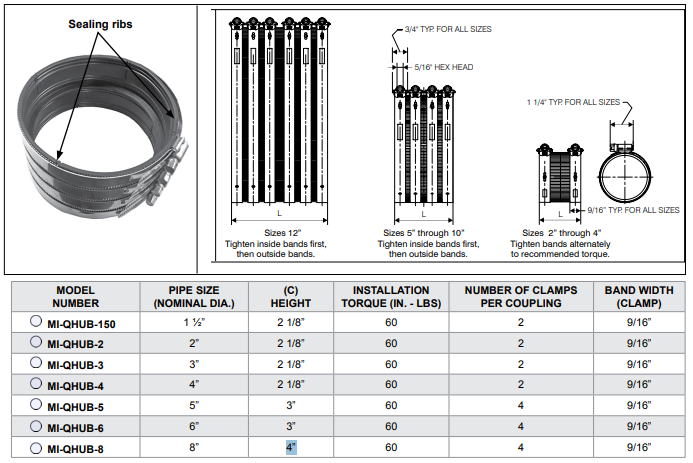

- Two (2” through 4” size), four (6” through10” size) or six (12” sizes) type 301 stainless steel clamps tightened with 5/16” type 305 stainless steel hex head screws surround the shield to provide the sealing force
- MI-QHUB Series couplings are tested and certified to the ASTM-C1277, CISPI 310, NSF, CSA B70 and CSA B602 (File # 247608) standards and are listed with IAPMO
- Also tested and certified by Intertek testing services to CAN/ULC S102.2 "smoke test". Patented pipe clamp for joining all types of pipe
- 40% less labor
- Less skilled labor helper required
- Complete job quicker to make deadlines
- Fast assembly - assembles over cast iron fitting with ease
- Torque requirements - same 60 to 80 lb torque requirement as regular couplings
- There is no need to remove the gasket first and roll it over the pipe
Item Attributes
| Brand Code: | MIFAB |
|---|---|
| Part Number: | MI-QHUB-8 |
| GTIN14: | 779897178276 |
| Category Code: | Pipe Fittings |
| Sub Category Code: | Pipe Fittings |
MIFAB Series 8 In. No Hub 301 And 305 Stainless Steel Quick Hub Shield Coupling With Neoprene Sealing Ring MI-QHUB-8
- SKUI-0000098313
- Model #MI-QHUB-8
MSRP:$51.00Save $17.85
Mardey's Price: Was $33.15
| Condition | New |
|---|---|
| Type |  |
| Grade | A |
| Product Source |  |
| Additional Info | New In Box |
| Available Quantity | 58 |
