Features and Specifications
| Weight | 10.55 |
|---|---|
| Amps | 2.8 |
| Basis Of Rotation View | Shaft End |
| Bearing Type | Ball |
| Brand | PROTECH™ |
| Cubic Measurement | 4.1083 |
| Cycle/Hertz | 60 Hz |
| Dimensional Weight | 55 |
| Duty | (S1) Continuous Running Duty |
| Full Load Amps | 2.8 |
| Height | 6.8 |
| Length | 72 |
| Motor Enclosure | Totally Enclosed Non-Ventilated (TENV) |
| Motor HP | 1/3 |
| Motor Type | ECM (Electronically Commutated Motor) |
| Mounting Type | Thru-Bolt |
| NEMA Frame | 48Y |
| Number of Speeds | Variable |
| Phase | Single |
| Prop 65 | No |
| Protection | Yes |
| Rotation | Counter Clockwise (CCW) |
| RPM | 1,075 |
| Shaft Diameter | 0.5" (1/2") |
| Shaft Length | 3-1/16 |
| UOM | EA |
| UPC | 662766665208 |
| Voltage | 208-230 VAC |
| Width | 14.5 |
| Country of Origin | MEX |
| Substantial Commodity | Steel; Copper |

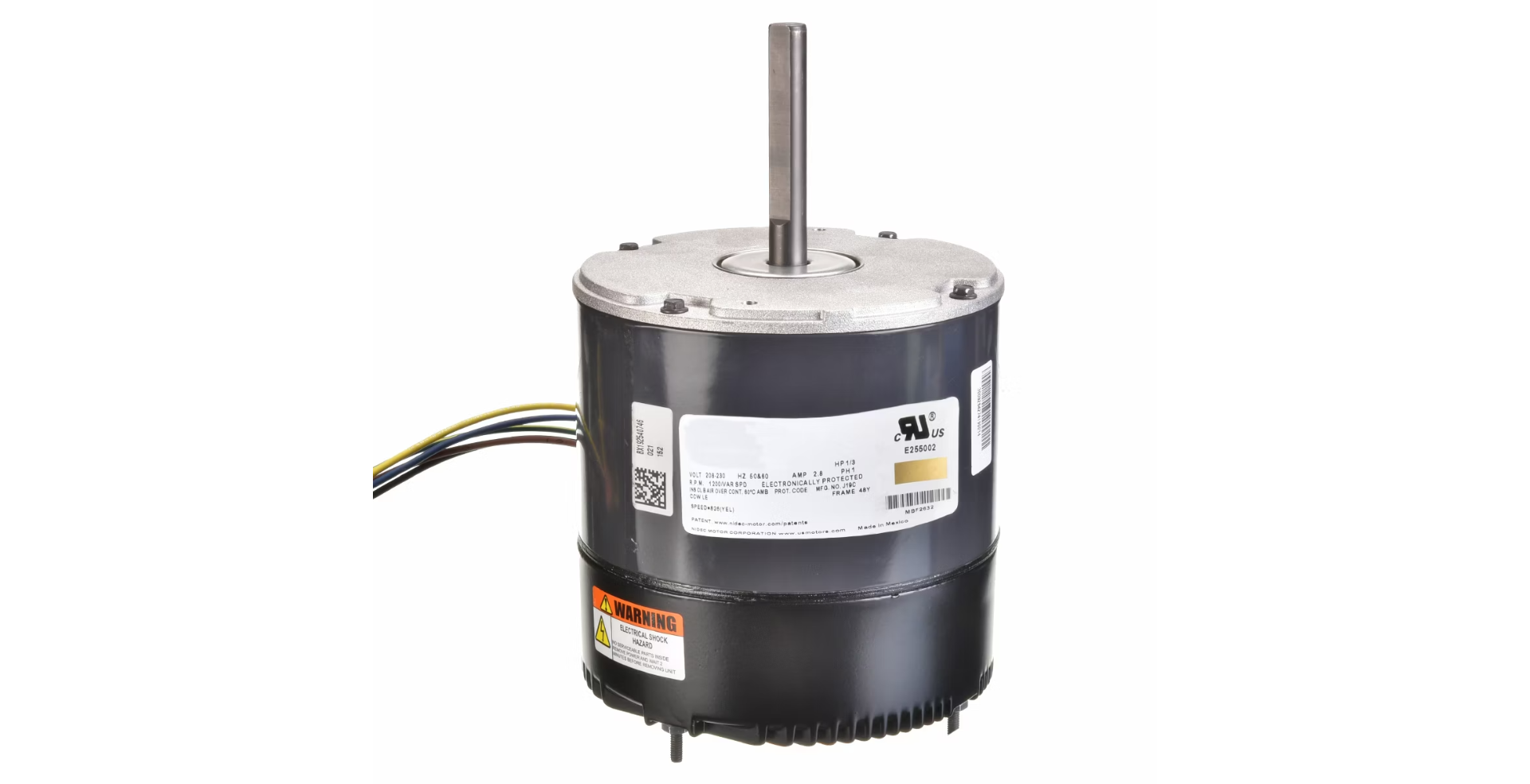

51-106394-03 is an official OEM 1/3 HP Cond. Fan Motor (208/230V) for Rheem HVAC equipment.
Features
Condenser Motor - 1/3 HP, 1 Phase, Variable Speed, 208/230V
Item Attributes
| Brand Code: | Rheem |
|---|---|
| Part Number: | 51-106394-03 |
| GTIN14: | 662766665208 |
| Category Code: | HVAC Accessories |
| Sub Category Code: | HVAC Accessories |
Rheem Condenser Motor 1 3 Hp 1 Phase Variable Speed 208 230v 51-106394-03
- SKUI-0000098309
- Model #51-106394-03
| Condition | New |
|---|---|
| Type |  |
| Grade | A |
| Product Source |  |
| Additional Info | New In Box |
7 DAY RETURNS ON ALL PRODUCTS
| Brand | Rheem |
|---|---|
| Category | HVAC Accessories |
| Model Number | 51-106394-03 |
| UPC/GTIN | 662766665208 |
| Capacity | 2.8000 |
| Depth | 72 |
| Width | 14 1/2 |
| Height | 6 13/16 |
