Specifications
- A2L Compatible: No
- BTU: 48000
- CFM: 1900 ft3/min
- Casing: Uncased
- Collection: RCH Series
- Configuration: Convertible, Vertical
- Depth: 21-3/8 in
- Height: 23-3/8 in
- Indoor Outdoor: Indoor
- Liquid Line (OD): 3/8 in
- MBH: 48
- Material: Aluminum, Copper
- Refrigerant: R-410A
- Refrigeration Control Type: TEV
- Suction Line (OD): 3/4 in
- Tonnage: 4 Ton
- UL Listed: Yes
- UPC: 662021306990
- Weight: 83 lb
- Width: 24 in

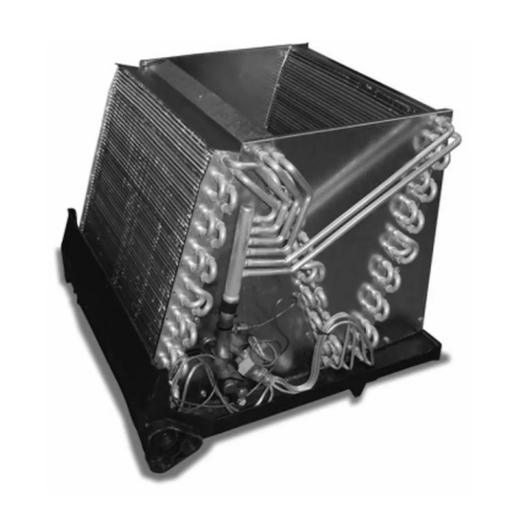

Rheem® Indoor Replacement Coils are designed for use with Rheem outdoor units and are available for vertical upflow or downflow, and horizontal left or horizontal right airflow. When matched with Rheem outdoor units, this coil provides a nominal capacity of 48,000 BTU/HR.
Features
- Constructed of aluminum fins bonded to internally grooved aluminum tubing.
- Coils are tested at the factory with an extensive refrigerant leak check.
- Coils have copper sweat refrigerant connections.
- Feature two sets of 3/4" [14.1 mm] N.P.T. Condensate drain connections for ease of connection.
- Chatleff metering device connections.
- Approved for system application with variety of Rheem outdoor units.
- Condensate drain pan is constructed of high grade, heat resistant, corrosion free thermal-set material.
- Bi-Directional airflow eliminates the need to switch any internal components from horizontal left to right.
- Unique drain pan design maximizes application flexibility and condensate removal.
- N-Coil design maximizes performance and minimizes height required at installation.
- Cabinet width 24"
Item Attributes
| Brand Code: | Rheem |
|---|---|
| Part Number: | RCH4824STAVUA |
| GTIN14: | 662021306990 |
| Category Code: | HVAC Accessories |
| Sub Category Code: | HVAC Accessories |
Rheem 24" Rch Series 4 Ton Convertible Aluminum And Copper Uncased Coil RCH4824STAVUA
- SKUI-0000098194
- Model #RCH4824STAVUA
| Condition | New |
|---|---|
| Type |  |
| Grade | A |
| Product Source |  |
| Additional Info | New In Box |
| Available Quantity | 3 |
7 DAY RETURNS ON ALL PRODUCTS
FAST Nationwide Shipping (Ships Same/Next Business Day)
Same Day Pick Up (Fort Lauderdale FL).
Same Day | Next Day Local Delivery Available.
Flexible Delivery — Hold Up to 90 Days
Not ready yet? We'll delay shipping your order for up to 90 days.
| Brand | Rheem |
|---|---|
| Category | HVAC Accessories |
| Model Number | RCH4824STAVUA |
| UPC/GTIN | 662021306990 |
| Capacity | 4.0000 |
| Depth | 21 3/8 |
| Width | 24 |
| Height | 23 3/8 |
